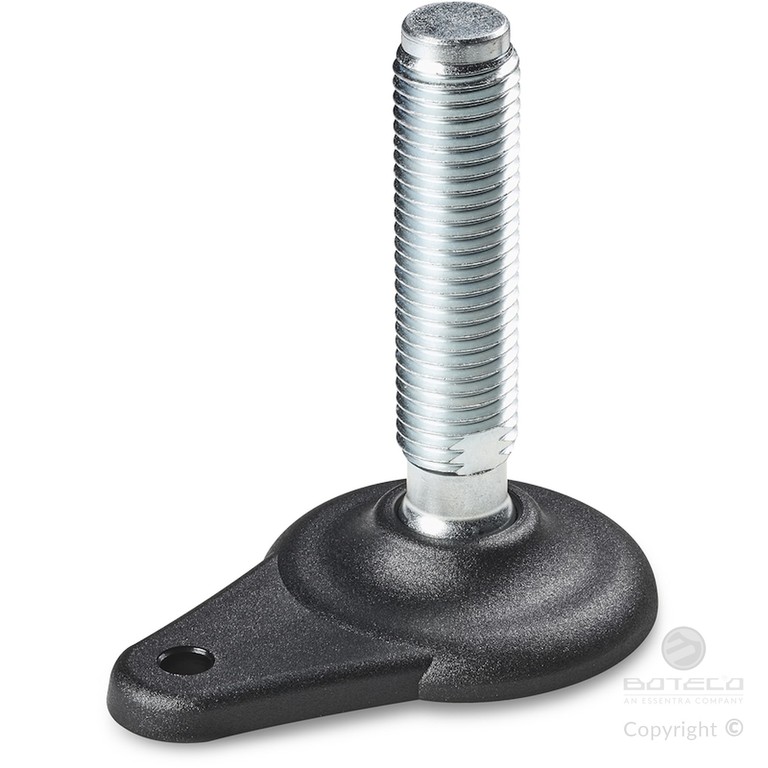

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 15
16
P706
Piedi plastica con fissaggio laterale-stelo snodato
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:

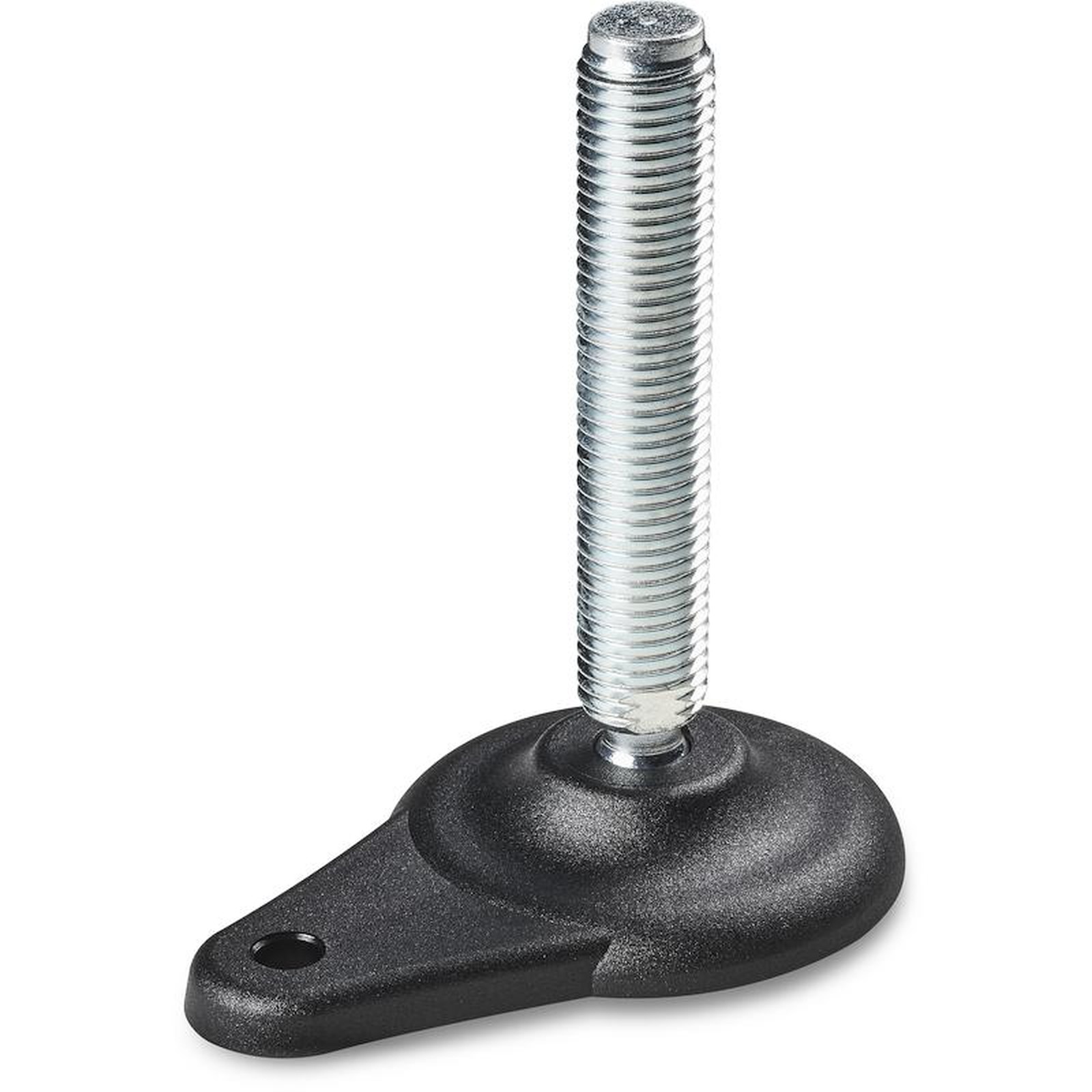

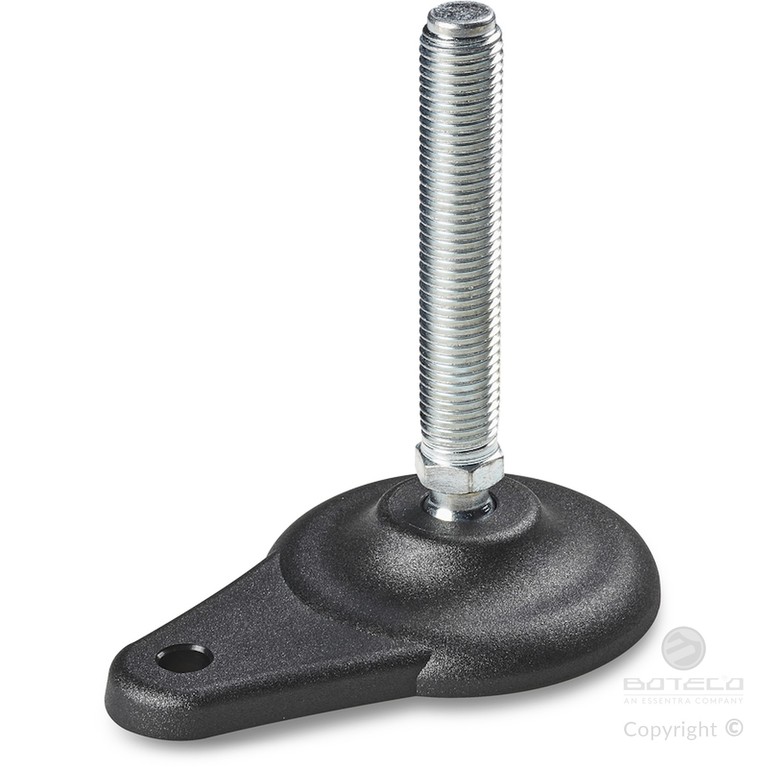

P706:
Galvanised steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (thread tolerance 6g).

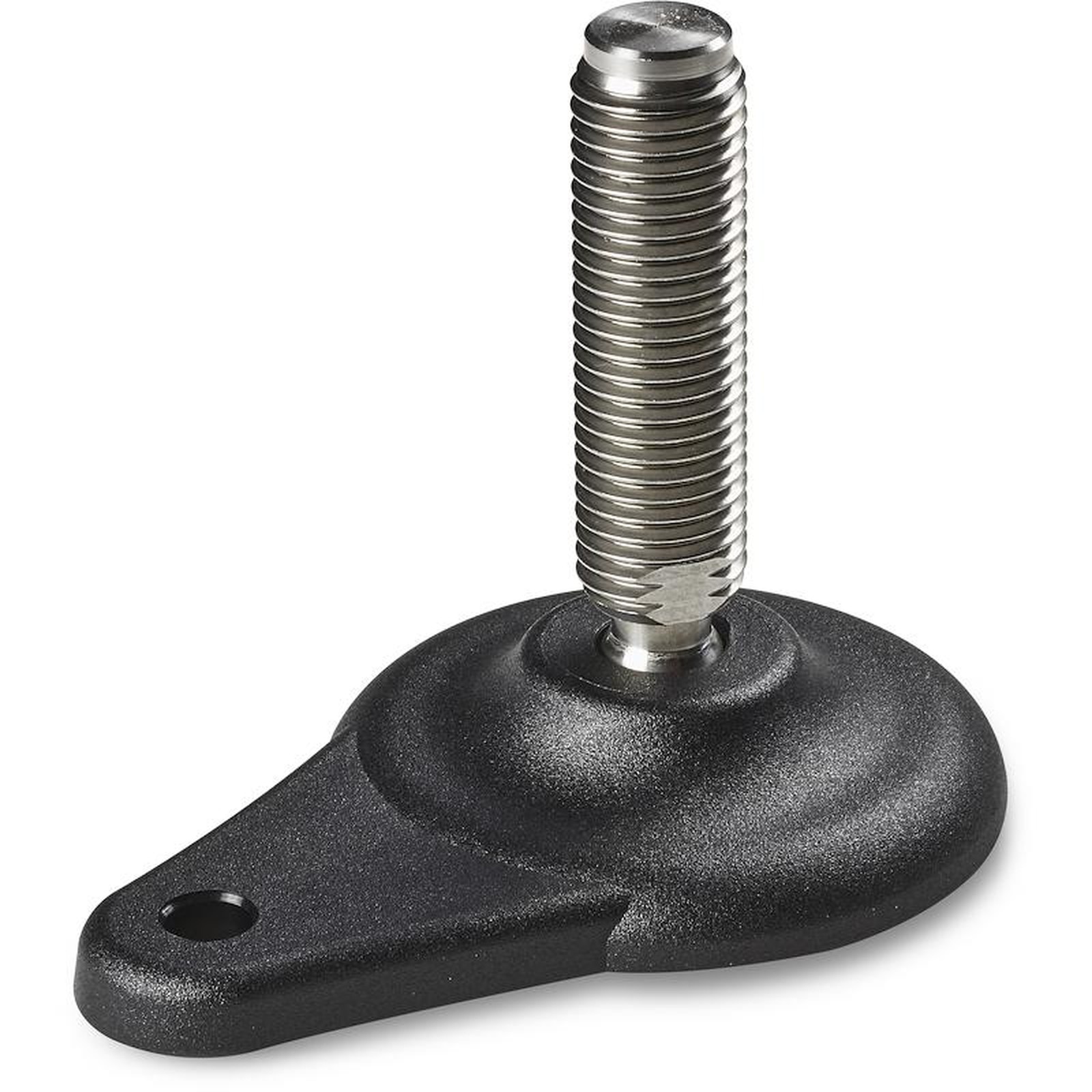

P706CIN:
Stainless steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (Aisi 304) (thread tolerance 6g).
Ground fixing:
Through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

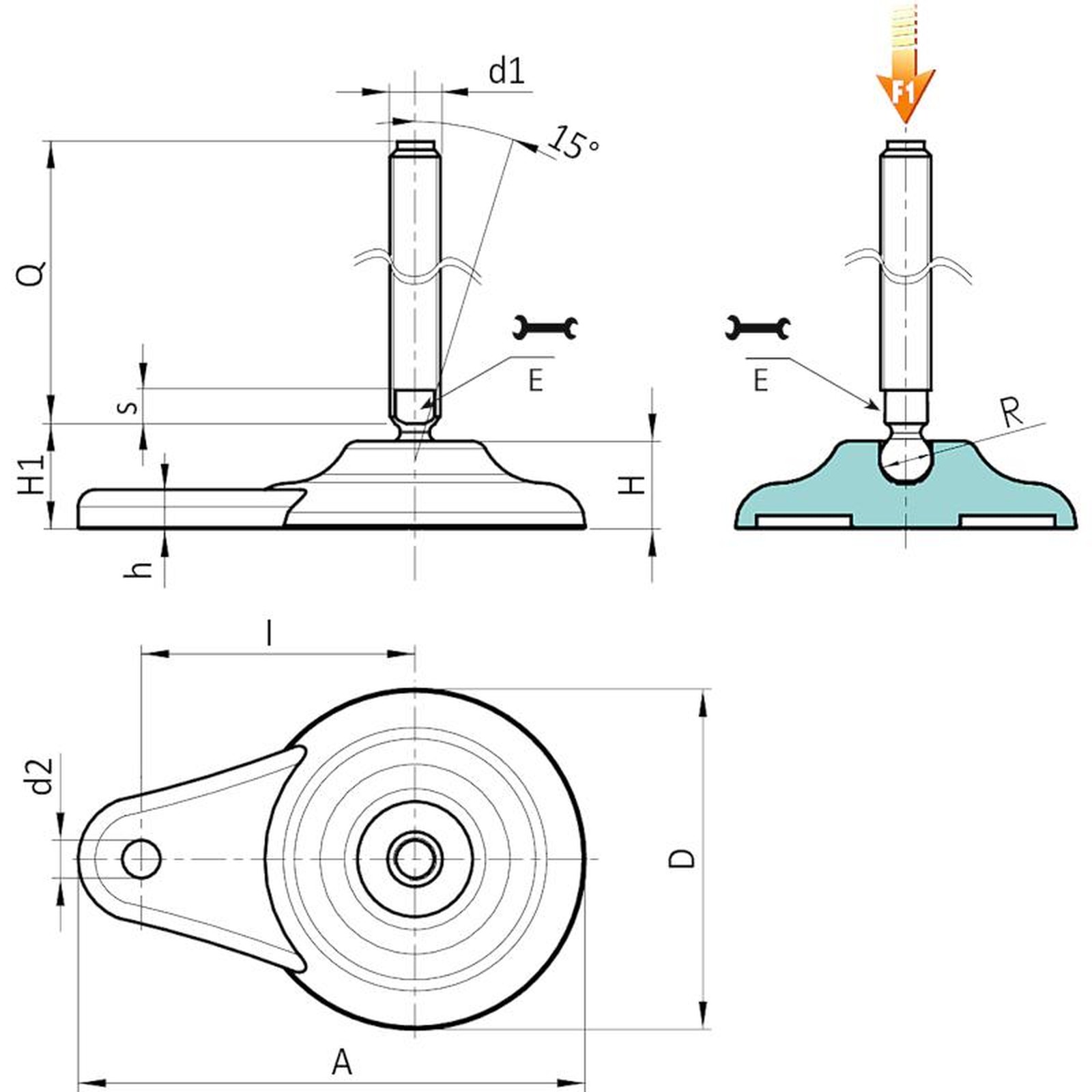

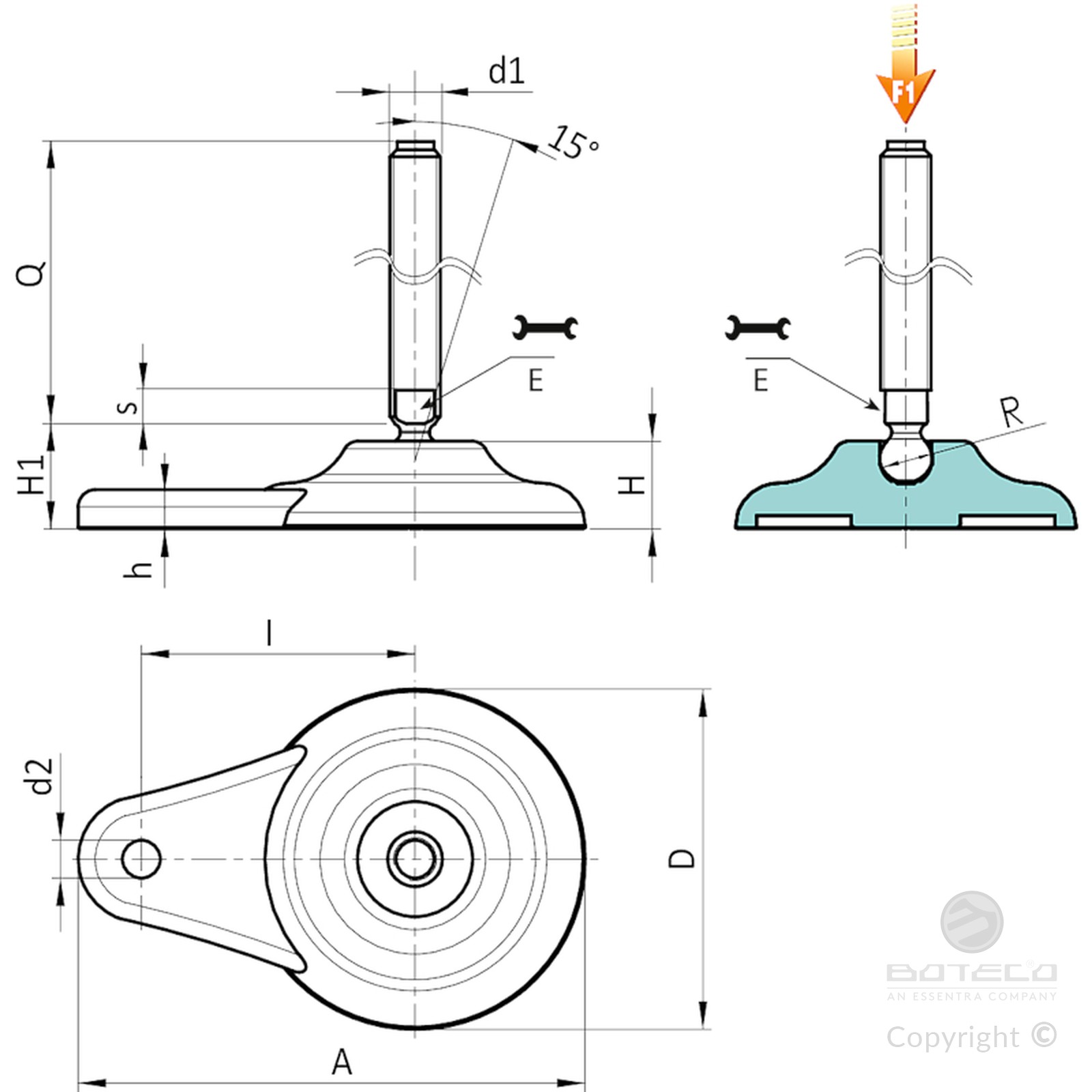

Version P706: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 15
| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P706080.0002 | P706080.TM20X07001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 70 | 231 | 17 |
| P706080.0004 | P706080.TM20X09001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 90 | 263 | 17 |
| P706080.0007 | P706080.TM20X13001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 130 | 327 | 17 |
| P706080.0009 | P706080.TM20X15001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 150 | 362 | 17 |
| P706080.0012 | P706080.TM20X19001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 190 | 427 | 17 |
| P706080.0014 | P706080.TM20X21001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 210 | 462 | 17 |
| P706080.0017 | P706080.TM24X15001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 150 | 567 | 17 |
| P706080.0019 | P706080.TM24X17001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 170 | 627 | 17 |
| P706080.0021 | P706080.TM24X19001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 190 | 687 | 17 |
| P706080.0023 | P706080.TM24X21001 | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 210 | 747 | 17 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
Version P706CIN: Teardrop mounting foot with ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 15
| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P706080.0003 | P706080.TM20X07001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 70 | 231 | 17 |
| P706080.0005 | P706080.TM20X09001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 90 | 263 | 17 |
| P706080.0008 | P706080.TM20X13001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 130 | 327 | 17 |
| P706080.0010 | P706080.TM20X15001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 150 | 362 | 17 |
| P706080.0013 | P706080.TM20X19001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 190 | 427 | 17 |
| P706080.0015 | P706080.TM20X21001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M20 | 210 | 462 | 17 |
| P706080.0016 | P706080.TM24X11001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 110 | 447 | 17 |
| P706080.0018 | P706080.TM24X15001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 150 | 567 | 17 |
| P706080.0022 | P706080.TM24X19001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 16 | 7 | 9 | 15 | M24 | 190 | 687 | 17 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
