P703
TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 15 AND NON-SLIP BASE
Teardrop floor-anchor feet - articulated stem + non-slip base
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
P703:
Galvanised steel threaded and articulated stem (ball 15) with hexagonal base (thread tolerance 6g).
P703CIN:
Stainless steel threaded and articulated stem (ball 15) with hexagonal base (Aisi 303) (thread tolerance 6g).
Non-slip base:
Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.
Ground fixing:
Through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

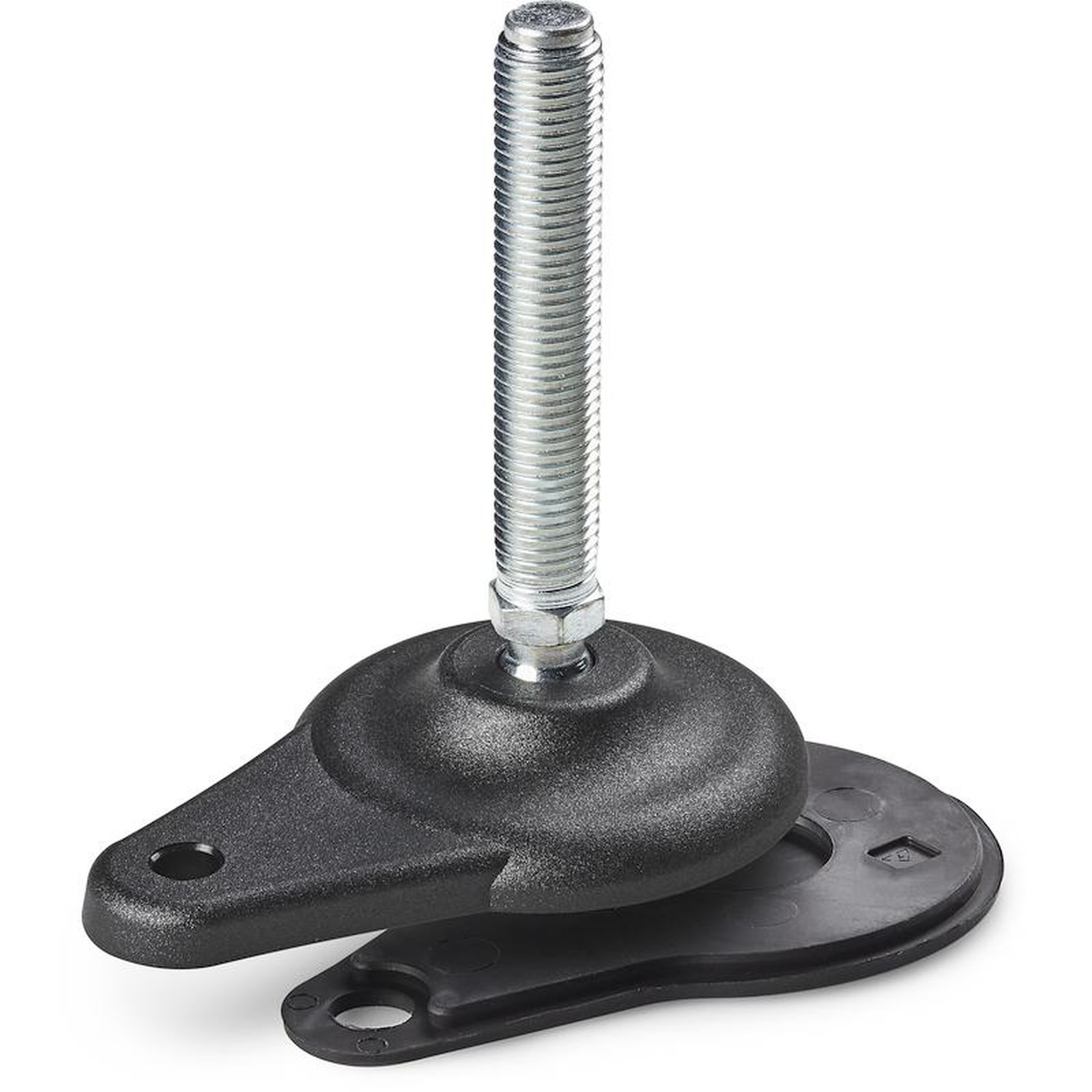

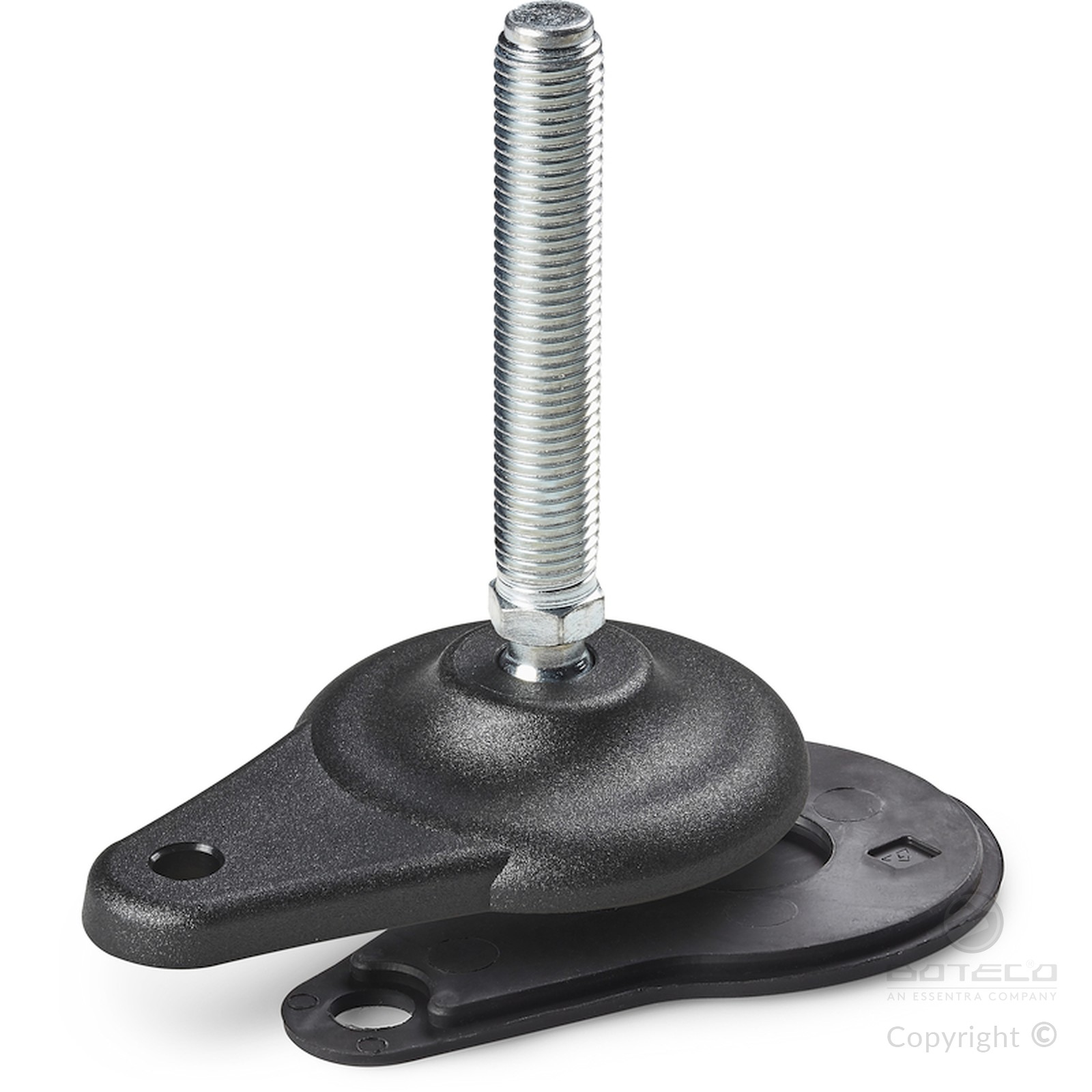

Version P703: Teardrop mounting foot with ground fixing - stem type A (with hexagonal base) and ball 15 - with SBS non-slip base

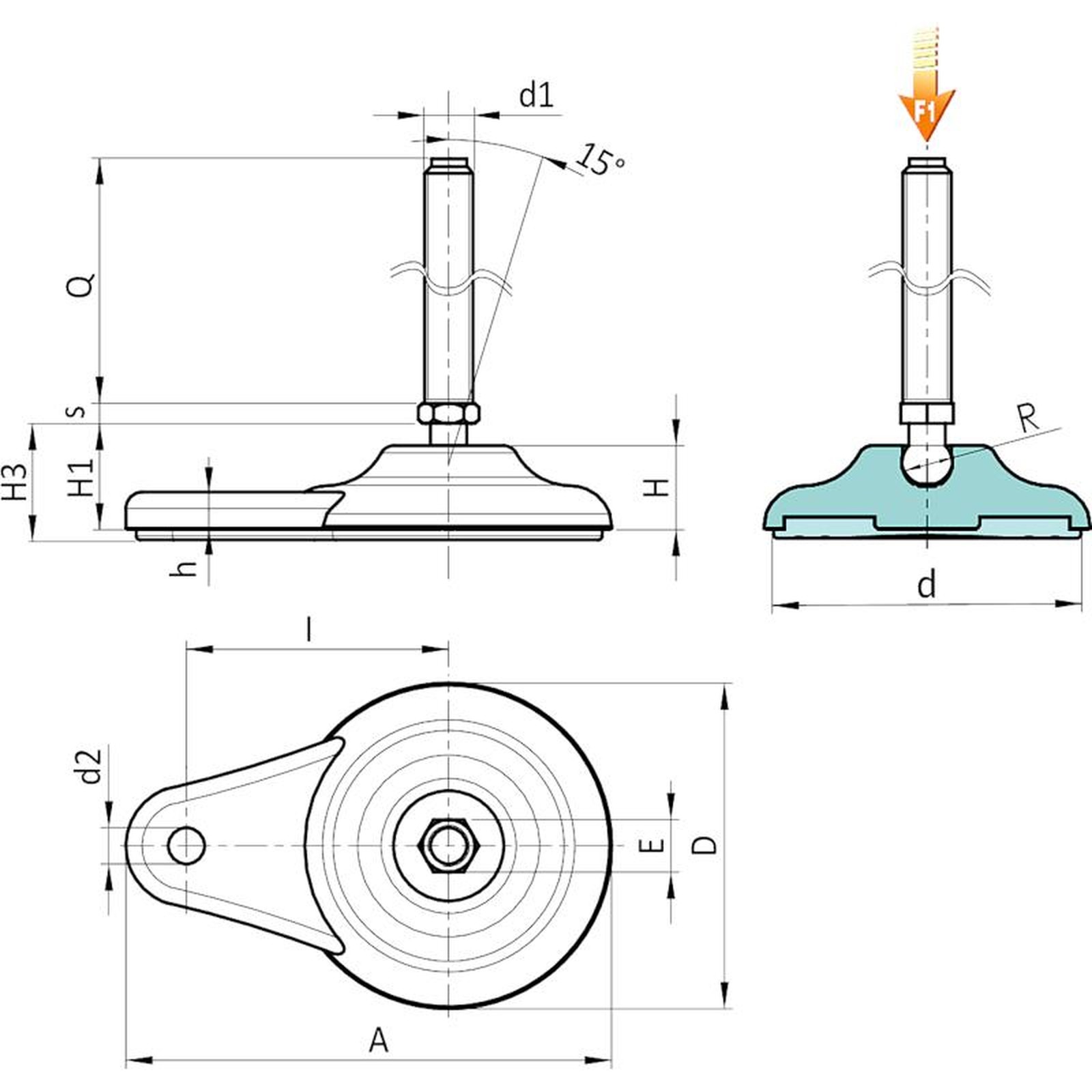

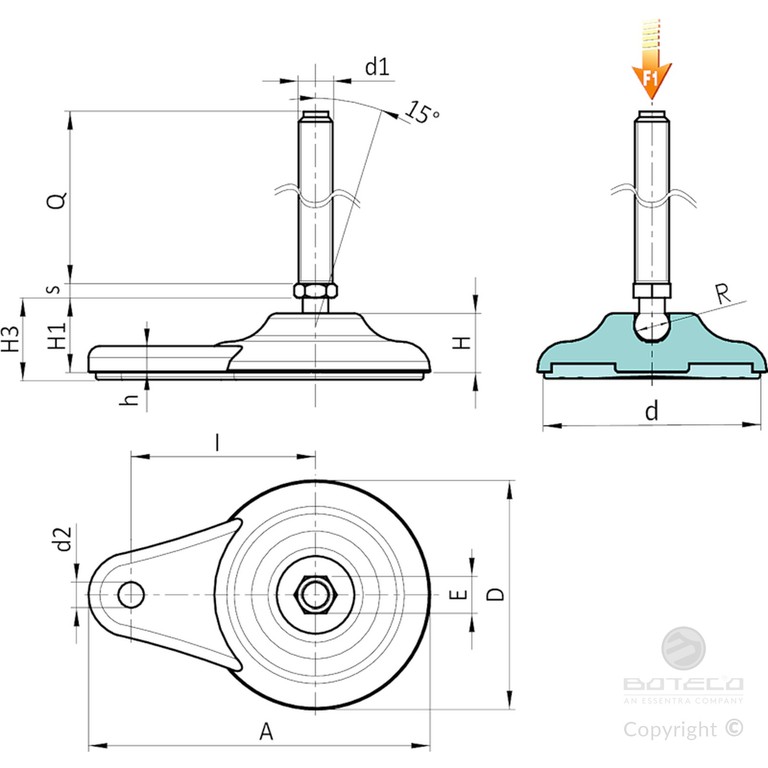

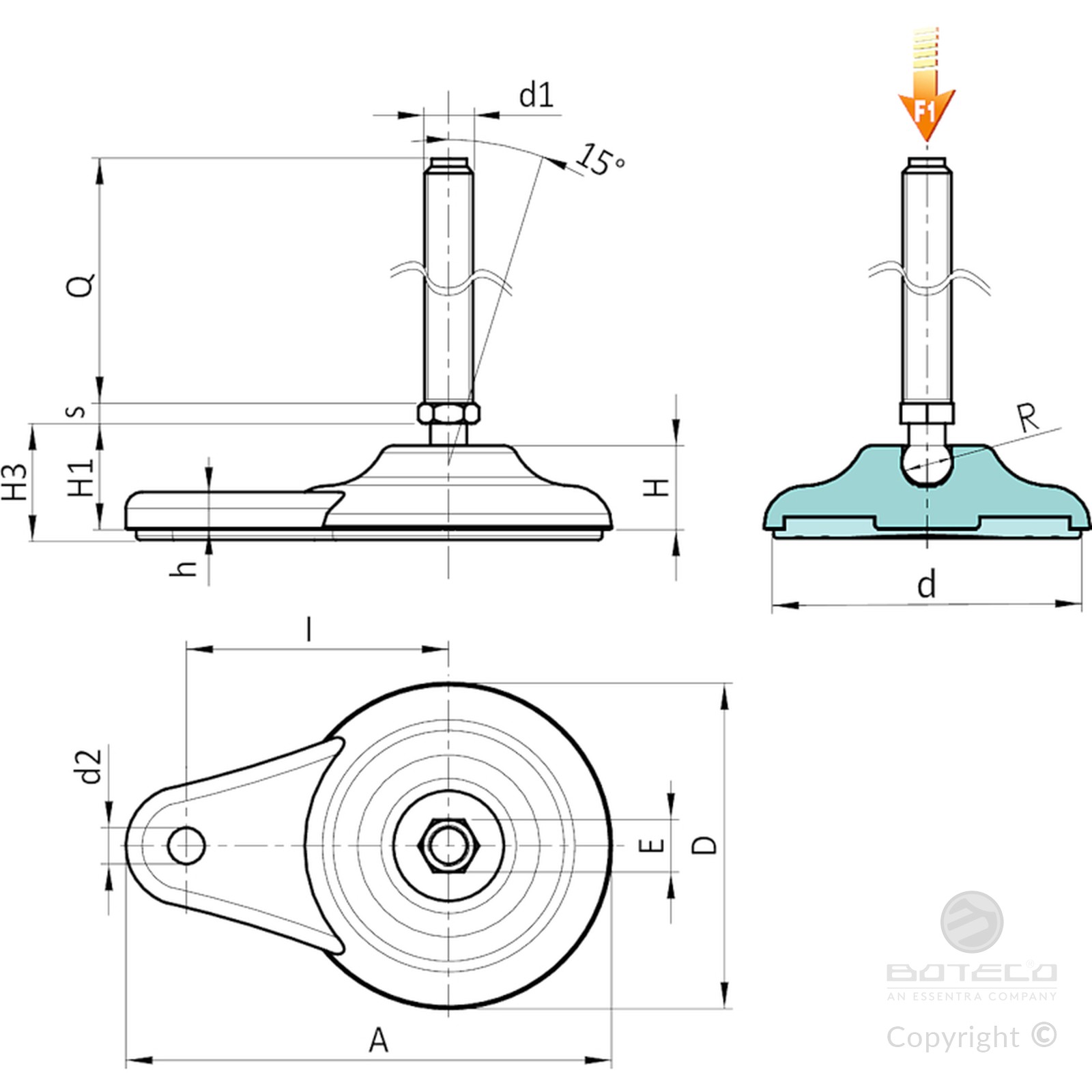

| Code | Art. | D | H | I | H1 | H3 | h | A | E | s | d2 | d | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P703080.0001 | P703080.TM12X5001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 50 | 143 | 13 |
| P703080.0002 | P703080.TM12X7001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 70 | 156 | 13 |
| P703080.0004 | P703080.TM12X9001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 90 | 171 | 13 |
| P703080.0006 | P703080.TM12X11001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 110 | 187 | 13 |
| P703080.0009 | P703080.TM14X5001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 50 | 155 | 13 |
| P703080.0010 | P703080.TM14X7001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 70 | 185 | 13 |
| P703080.0012 | P703080.TM14X9001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 90 | 196 | 13 |
| P703080.0013 | P703080.TM14X11001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 110 | 213 | 13 |
| P703080.0016 | P703080.TM14X15001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 150 | 230 | 13 |
| P703080.0017 | P703080.TM16X5001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 50 | 171 | 13 |
| P703080.0032 | P703080.TM16X7001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 70 | 197 | 13 |
| P703080.0020 | P703080.TM16X9001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 90 | 223 | 13 |
| P703080.0022 | P703080.TM16X11001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 110 | 248 | 13 |
| P703080.0024 | P703080.TM16X13001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 130 | 274 | 13 |
| P703080.0026 | P703080.TM16X15001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 150 | 299 | 13 |
| P703080.0028 | P703080.TM16X17001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 170 | 327 | 13 |
| P703080.0030 | P703080.TM16X19001 | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 190 | 350 | 13 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

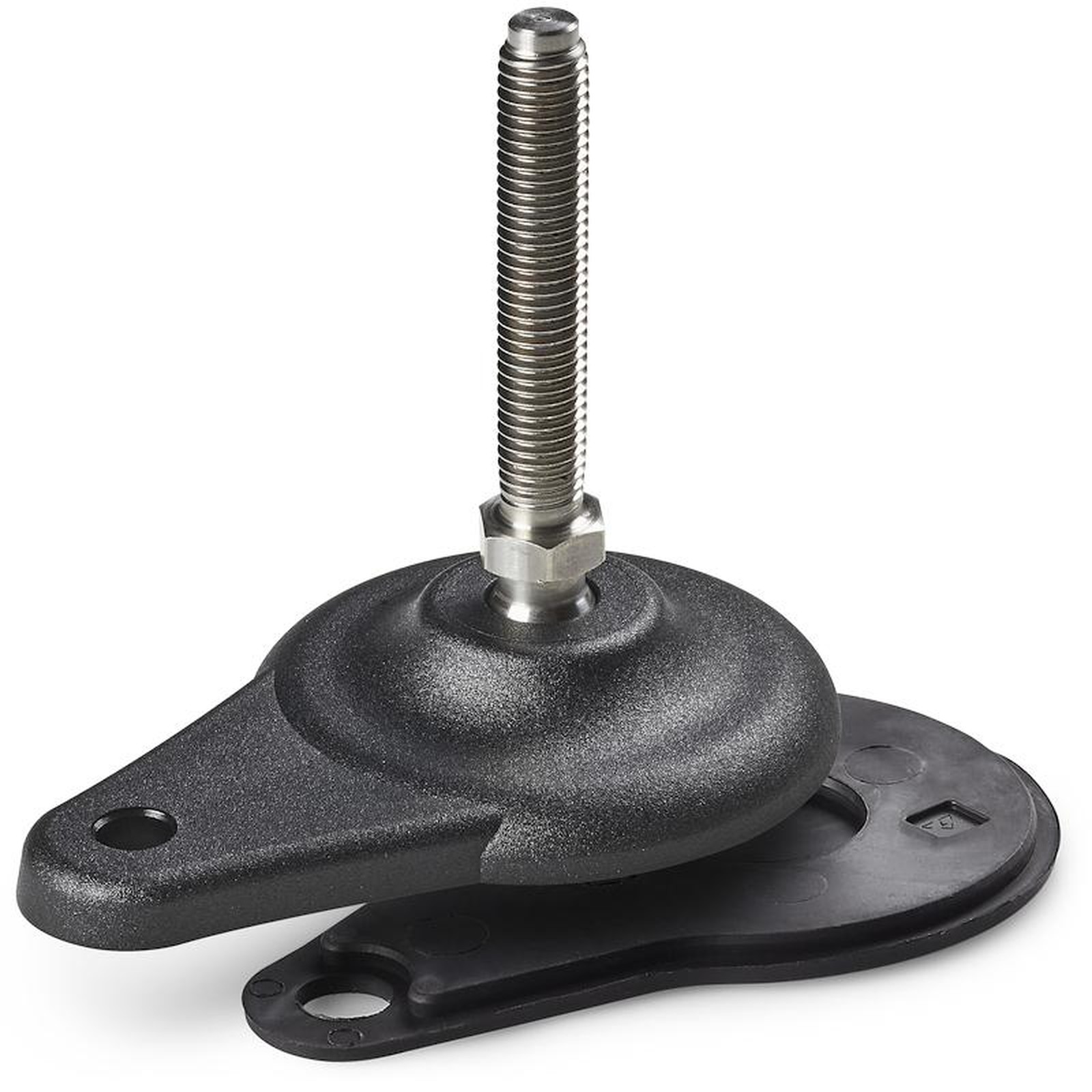

Version P703CIN: Teardrop mounting foot with ground fixing - stem type A - stainless steel - (with hexagonal base) and ball 15 - with SBS non-slip base
| Code | Art. | D | H | I | H1 | H3 | h | A | E | s | d2 | d | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P703080.0003 | P703080.TM12X7001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 70 | 156 | 13 |
| P703080.0005 | P703080.TM12X9001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 90 | 171 | 13 |
| P703080.0007 | P703080.TM12X11001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M12 | 110 | 187 | 13 |
| P703080.0011 | P703080.TM14X7001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 70 | 185 | 13 |
| P703080.0014 | P703080.TM14X11001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 110 | 213 | 13 |
| P703080.0015 | P703080.TM14X13001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M14 | 130 | 230 | 13 |
| P703080.0018 | P703080.TM16X5001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 50 | 171 | 13 |
| P703080.0019 | P703080.TM16X7001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 70 | 197 | 13 |
| P703080.0021 | P703080.TM16X9001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 90 | 223 | 13 |
| P703080.0023 | P703080.TM16X11001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 110 | 248 | 13 |
| P703080.0025 | P703080.TM16X13001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 130 | 274 | 13 |
| P703080.0027 | P703080.TM16X15001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 150 | 299 | 13 |
| P703080.0029 | P703080.TM16X17001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 170 | 327 | 13 |
| P703080.0031 | P703080.TM16X19001CIN | 80 | 20 | 65 | 26 | 29 | 9 | 120 | 16 | 6.5 | 9 | 70 | 15 | M16 | 190 | 350 | 13 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
