P702

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 15

Teardrop floor-anchor feet - articulated stem
Data sheet More information

Product variants

Alternative products

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black(RAL 9011).

Inserts:

P702:

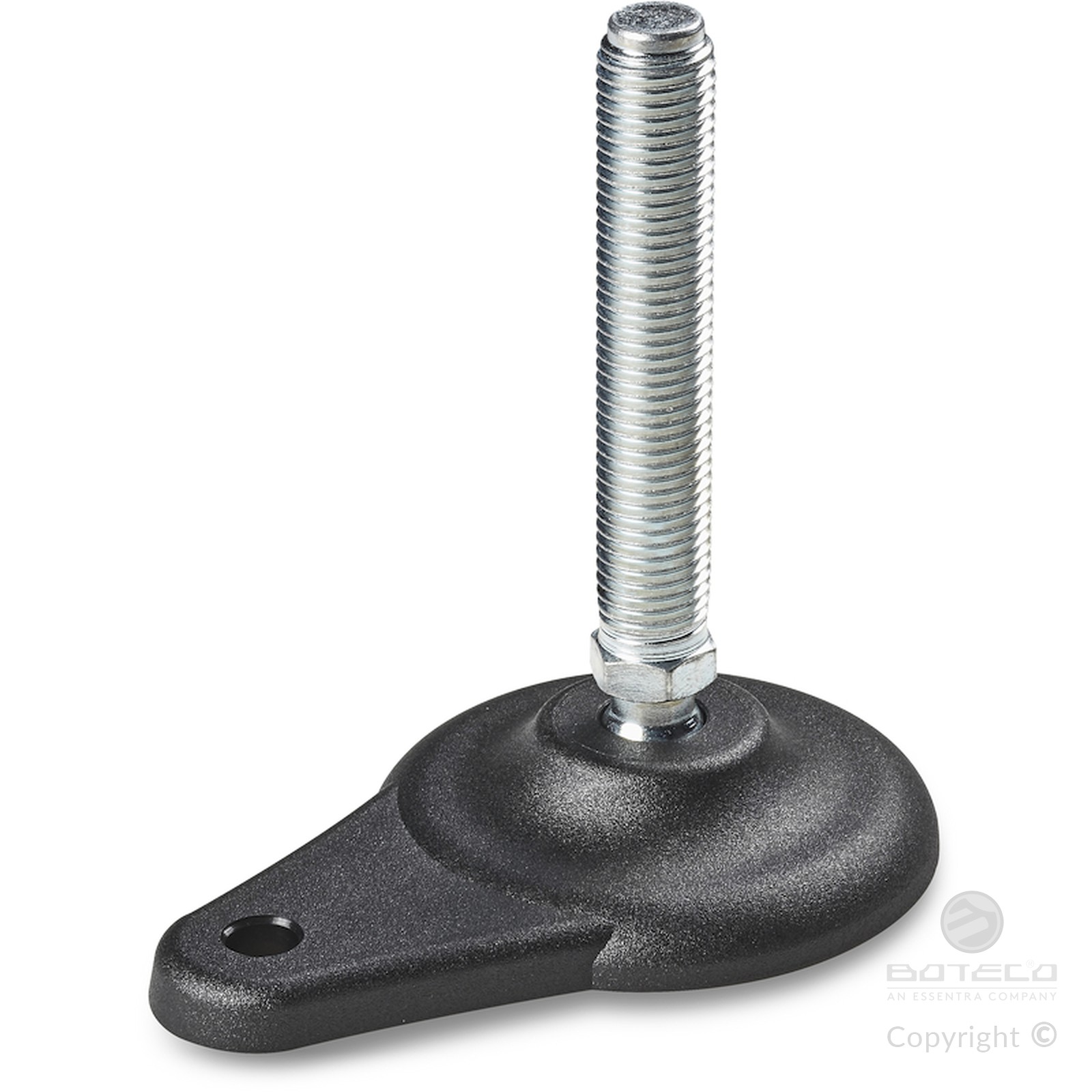

Galvanised steel threaded and articulated stem (ball 15) with hexagonal base (thread tolerance 6g).

P702CIN:

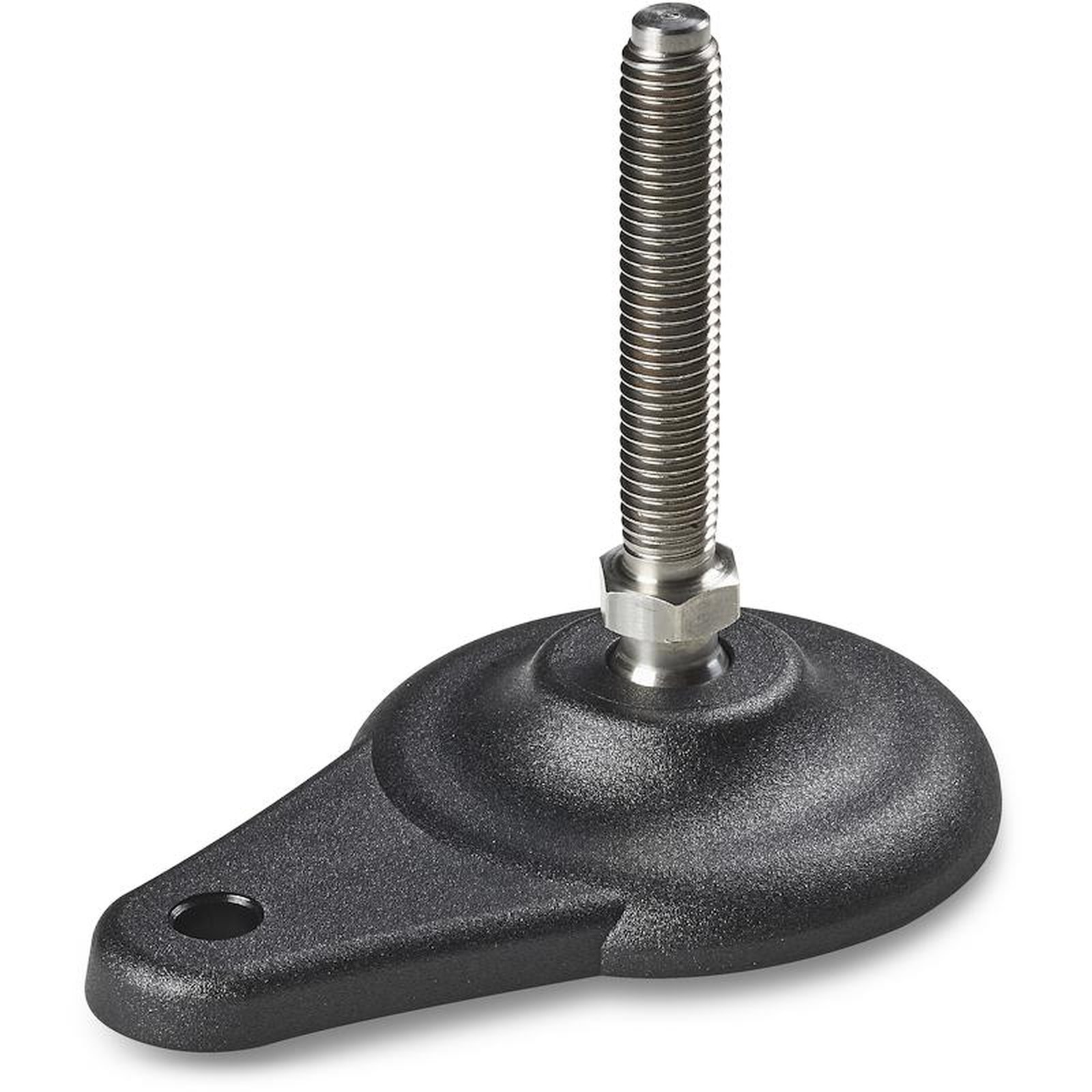

Stainless steel threaded and articulated stem (ball 15) with hexagonal base (Aisi 303) (thread tolerance 6g).

Ground fixing:

Through hole obtained by moulding the plastic.

Special requests:

Upon request and for special quantities inserts can be supplied with customised lengths.

Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

Version P702: Teardrop mounting foot with ground fixing - stem type A (with hexagonal base) and ball 15

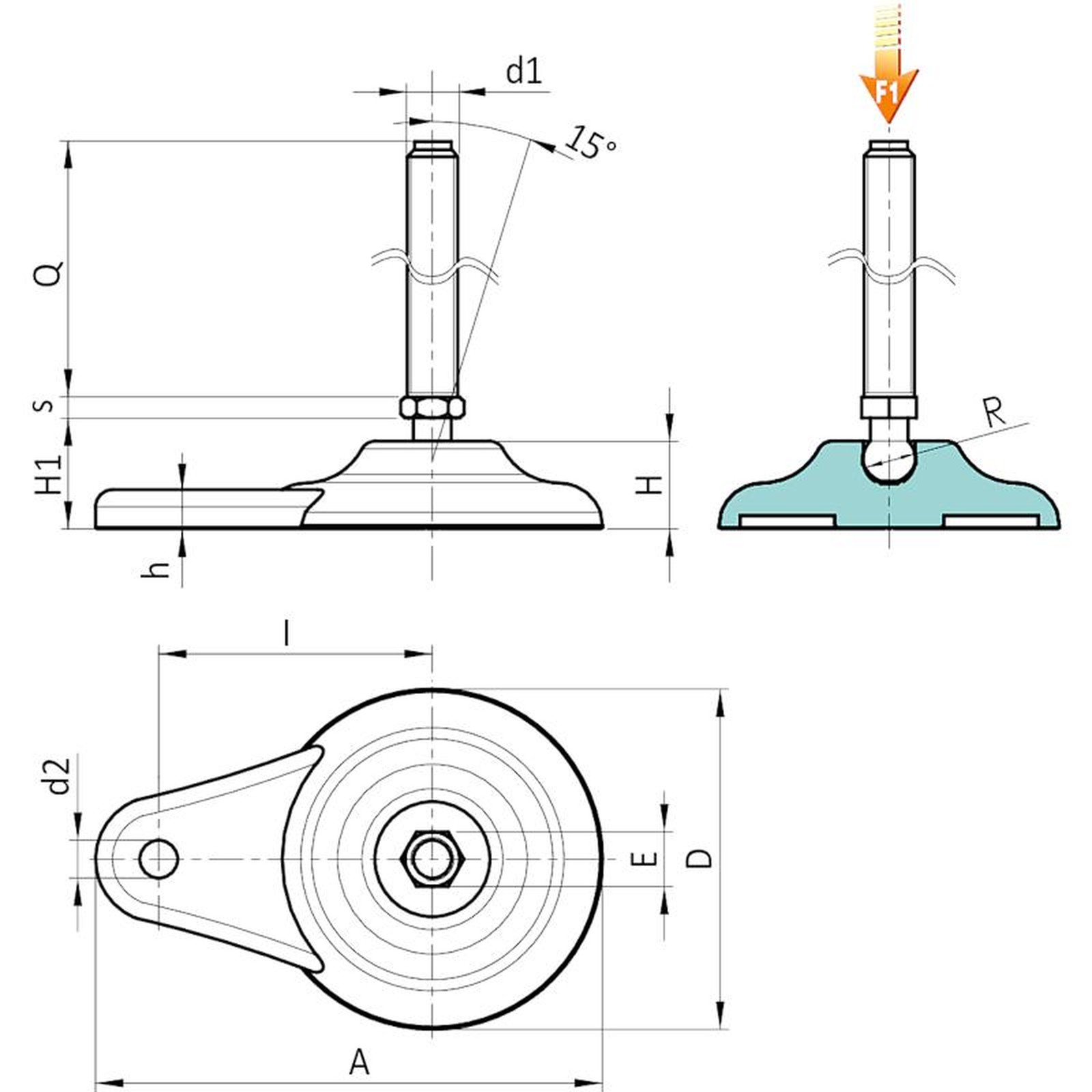

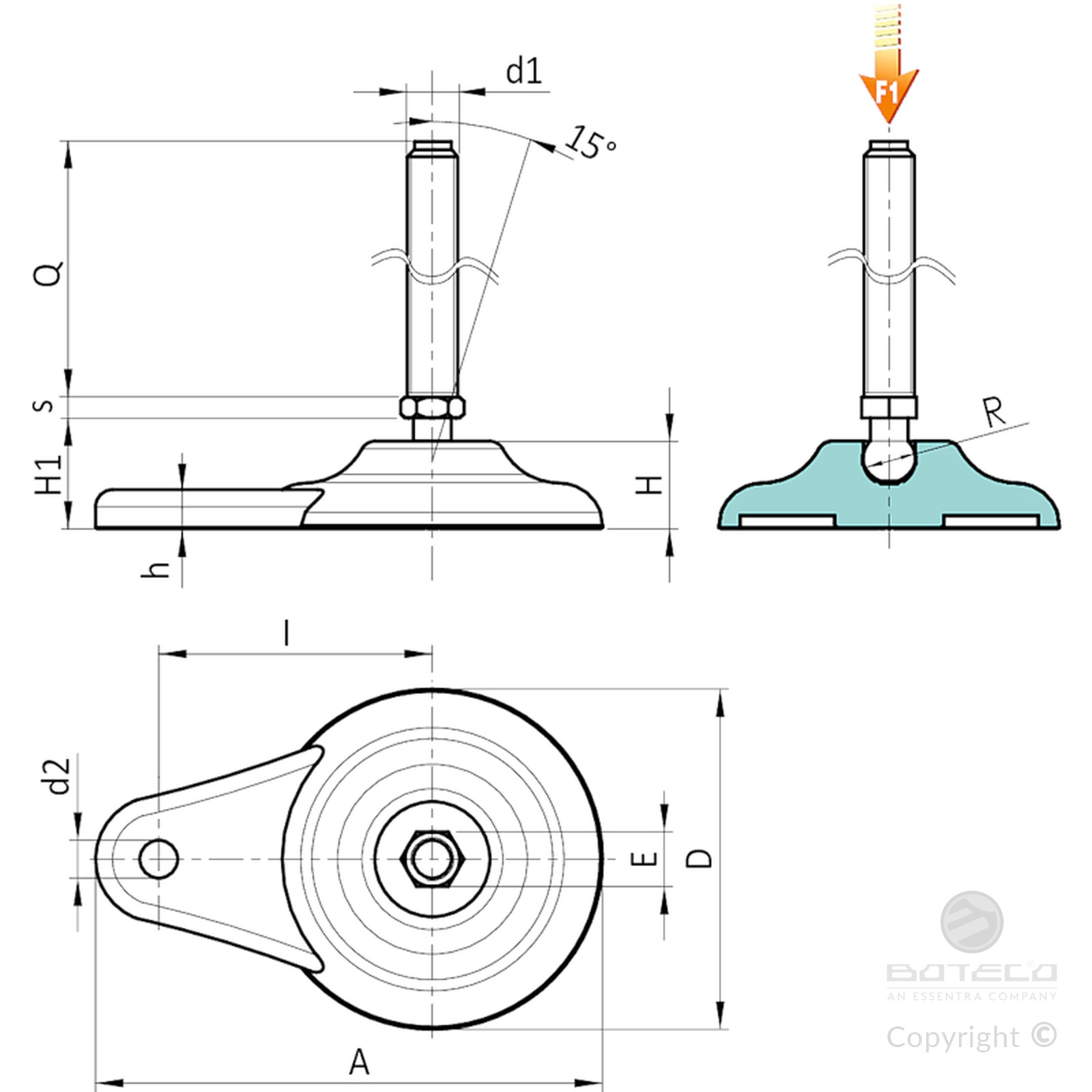

Code Art. D H I H1 h A E s d2 R d1 6g Q Weight (g) F1 (kN)
P702080.0001 P702080.TM12X5001 80 20 65 26 9 120 16 6.5 9 15 M12 50 120 13
P702080.0002 P702080.TM12X7001 80 20 65 26 9 120 16 6.5 9 15 M12 70 133 13
P702080.0004 P702080.TM12X9001 80 20 65 26 9 120 16 6.5 9 15 M12 90 148 13
P702080.0006 P702080.TM12X11001 80 20 65 26 9 120 16 6.5 9 15 M12 110 164 13
P702080.0008 P702080.TM14X5001 80 20 65 26 9 120 16 6.5 9 15 M14 50 132 13
P702080.0009 P702080.TM14X7001 80 20 65 26 9 120 16 6.5 9 15 M14 70 152 13
P702080.0010 P702080.TM14X9001 80 20 65 26 9 120 16 6.5 9 15 M14 90 173 13
P702080.0012 P702080.TM14X11001 80 20 65 26 9 120 16 6.5 9 15 M14 110 190 13
P702080.0015 P702080.TM14X15001 80 20 65 26 9 120 16 6.5 9 15 M14 150 224 13
P702080.0016 P702080.TM16X5001 80 20 65 26 9 120 16 6.5 9 15 M16 50 148 13
P702080.0019 P702080.TM16X7001 80 20 65 26 9 120 16 6.5 9 15 M16 70 174 13
P702080.0021 P702080.TM16X9001 80 20 65 26 9 120 16 6.5 9 15 M16 90 200 13
P702080.0024 P702080.TM16X11001 80 20 65 26 9 120 16 6.5 9 15 M16 110 225 13
P702080.0026 P702080.TM16X13001 80 20 65 26 9 120 16 6.5 9 15 M16 130 251 13
P702080.0028 P702080.TM16X15001 80 20 65 26 9 120 16 6.5 9 15 M16 150 276 13
P702080.0030 P702080.TM16X17001 80 20 65 26 9 120 16 6.5 9 15 M16 170 304 13
P702080.0032 P702080.TM16X19001 80 20 65 26 9 120 16 6.5 9 15 M16 190 327 13
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

Version P702CIN: Teardrop mounting foot with ground fixing - stem type A - stainless steel - (with hexagonal base) and ball 15

Code Art. D H I H1 h A E s d2 R d1 6g Q Weight (g) F1 (kN)
P702080.0003 P702080.TM12X7001CIN 80 20 65 26 9 120 16 6.5 9 15 M12 70 133 13
P702080.0005 P702080.TM12X9001CIN 80 20 65 26 9 120 16 6.5 9 15 M12 90 148 13
P702080.0007 P702080.TM12X11001CIN 80 20 65 26 9 120 16 6.5 9 15 M12 110 164 13
P702080.0010 P702080.TM14X7001CIN 80 20 65 26 9 120 16 6.5 9 15 M14 70 152 13
P702080.0013 P702080.TM14X11001CIN 80 20 65 26 9 120 16 6.5 9 15 M14 110 190 13
P702080.0014 P702080.TM14X13001CIN 80 20 65 26 9 120 16 6.5 9 15 M14 130 207 13
P702080.0018 P702080.TM16X5001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 50 148 13
P702080.0020 P702080.TM16X7001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 70 174 13
P702080.0022 P702080.TM16X9001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 90 200 13
P702080.0025 P702080.TM16X11001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 110 225 13
P702080.0027 P702080.TM16X13001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 130 251 13
P702080.0029 P702080.TM16X15001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 150 276 13
P702080.0031 P702080.TM16X17001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 170 304 13
P702080.0033 P702080.TM16X19001CIN 80 20 65 26 9 120 16 6.5 9 15 M16 190 327 13
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
