TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 12.5 AND NON-SLIP BASE

16

P701


Piedi plastica con fissaggio laterale-stelo snodato+antiscivolo

    Materials:

    Reinforced polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Inserts:

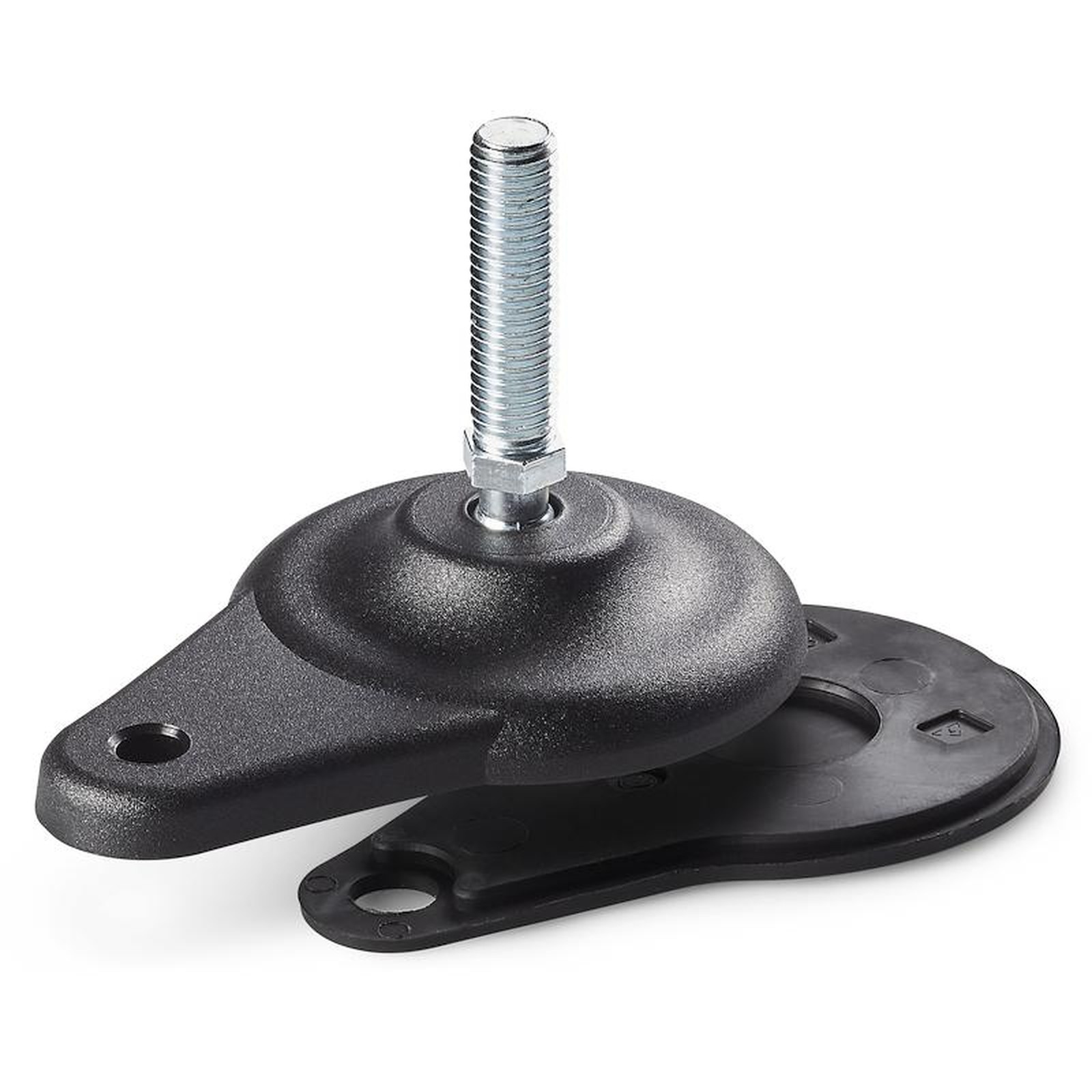

    P701:

    Galvanised steel threaded and articulated stem (ball 12.5) with hexagonal base (thread tolerance 6g).

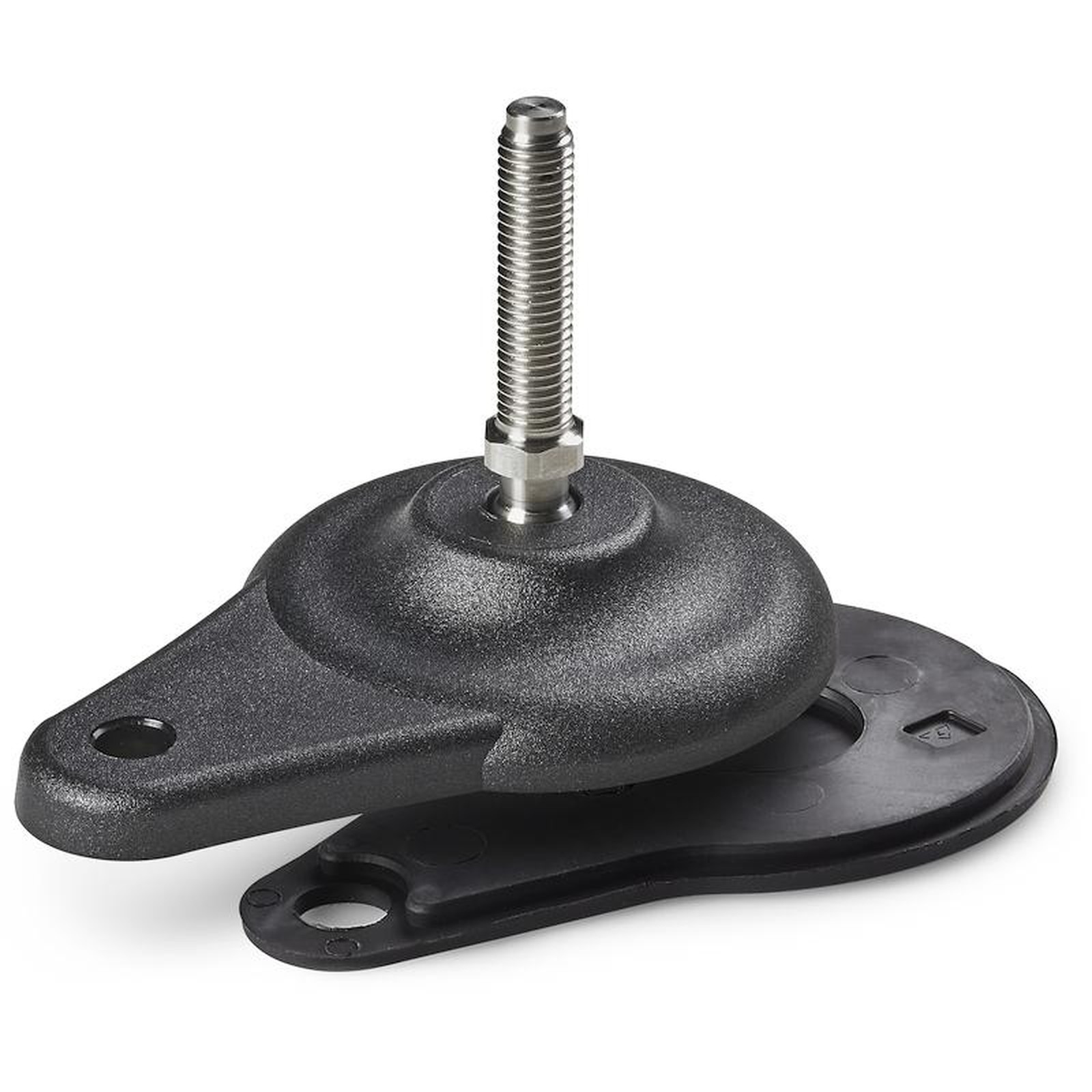

    P701CIN:

    Stainless steel threaded and articulated stem (ball 12.5) with hexagonal base (Aisi 303) (thread tolerance 6g).

    Non-slip base:

    Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.

    Ground fixing:

    Through hole obtained by moulding the plastic.

    Special requests:

    Upon request and for special quantities inserts can be supplied with customised lengths.

    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

    Data sheet

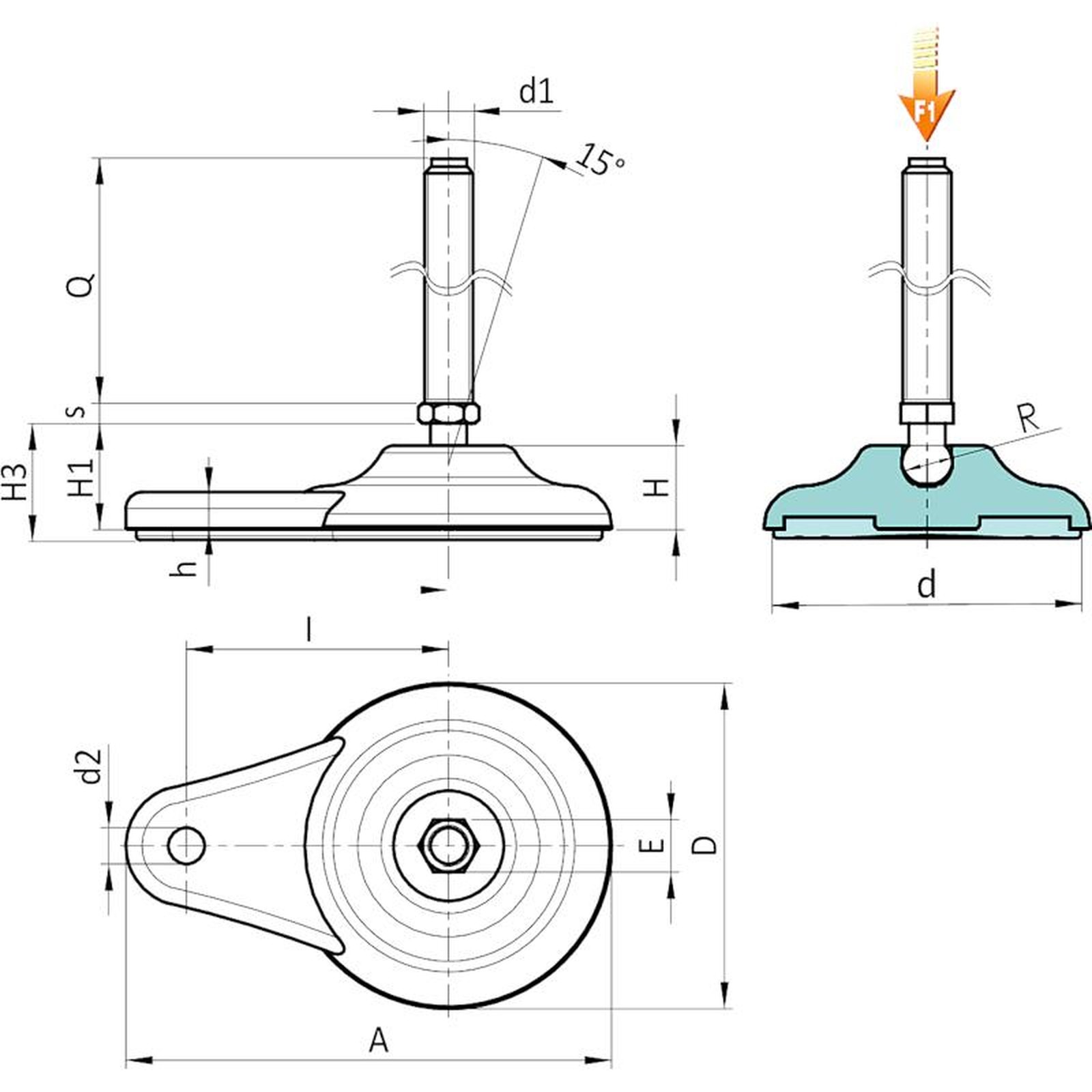

    Version P701: Teardrop mounting foot with ground fixing - stem type A (with hexagonal base) and ball 12.5 - with SBS non-slip base

    Code Art. D H I H1 H3 h A E s d2 d R d1 6g Q Weight (g) F1 (kN)
    P701080.0015 P701080.TM08X4501 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 45 72 10
    P701080.0016 P701080.TM08X7001 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 70 79 10
    P701080.0001 P701080.TM10X4501 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 45 97 10
    P701080.0003 P701080.TM10X7001 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 70 109 10
    P701080.0005 P701080.TM10X10001 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 100 146 10
    P701080.0007 P701080.TM12X4501 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 45 107 10
    P701080.0009 P701080.TM12X7001 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 70 124 10
    P701080.0012 P701080.TM12X10001 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 100 168 10

    Version P701CIN: Teardrop mounting foot with ground fixing - stem type A - stainless steel - (with hexagonal base) and ball 12.5 - with SBS non-slip base

    Code Art. D H I H1 H3 h A E s d2 d R d1 6g Q Weight (g) F1 (kN)
    P701080.0017 P701080.TM08X4501CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 45 72 10
    P701080.0018 P701080.TM08X7001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M8 70 79 10
    P701080.0002 P701080.TM10X4501CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 45 97 10
    P701080.0004 P701080.TM10X7001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M10 70 109 10
    P701080.0008 P701080.TM12X4501CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 45 107 10
    P701080.0010 P701080.TM12X7001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 70 124 10
    P701080.0013 P701080.TM12X10001CIN 80 20 65 26 29 9 120 13 5 9 70 12.5 M12 100 168 10
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
    Customised stud length available for a minimum of 100 pieces.
