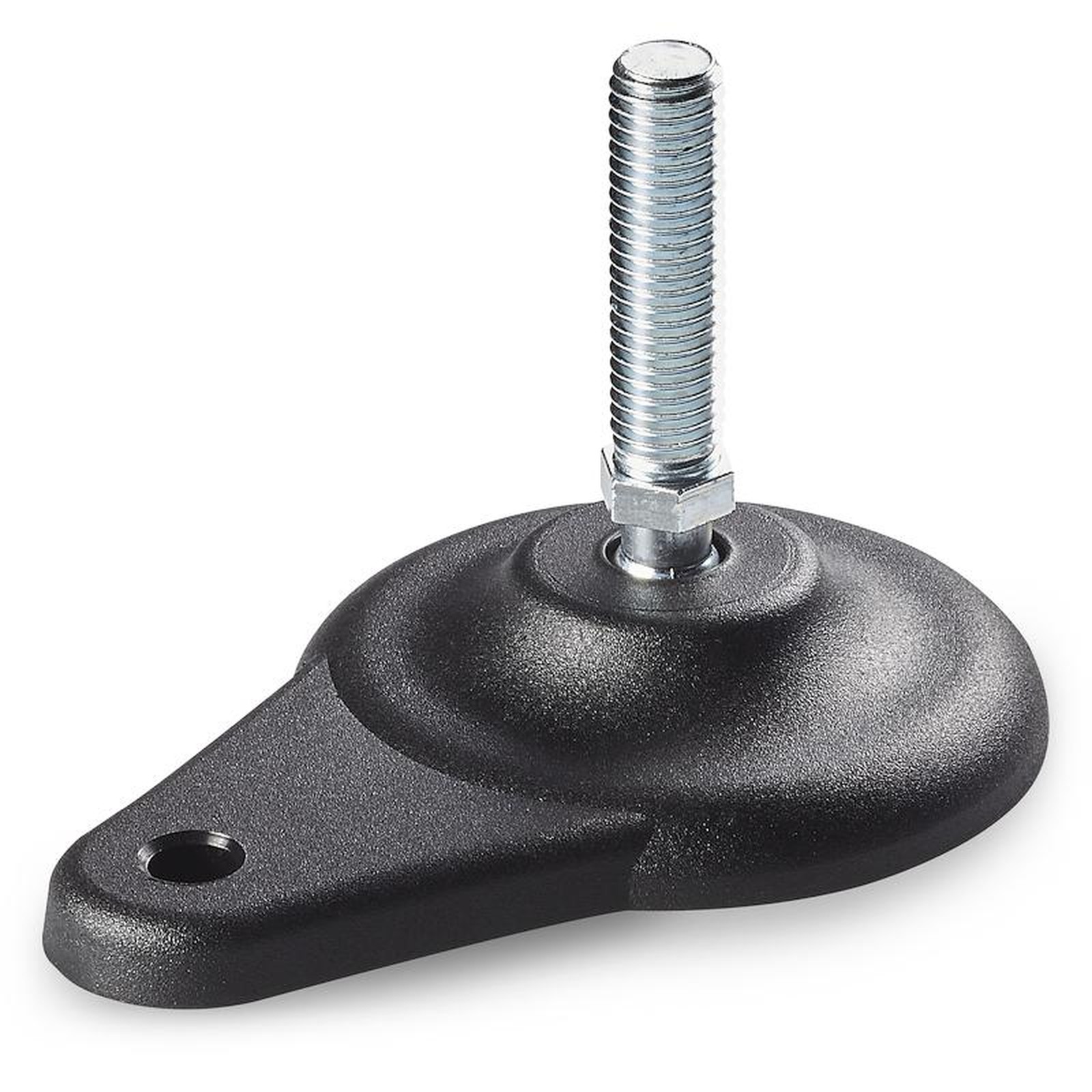

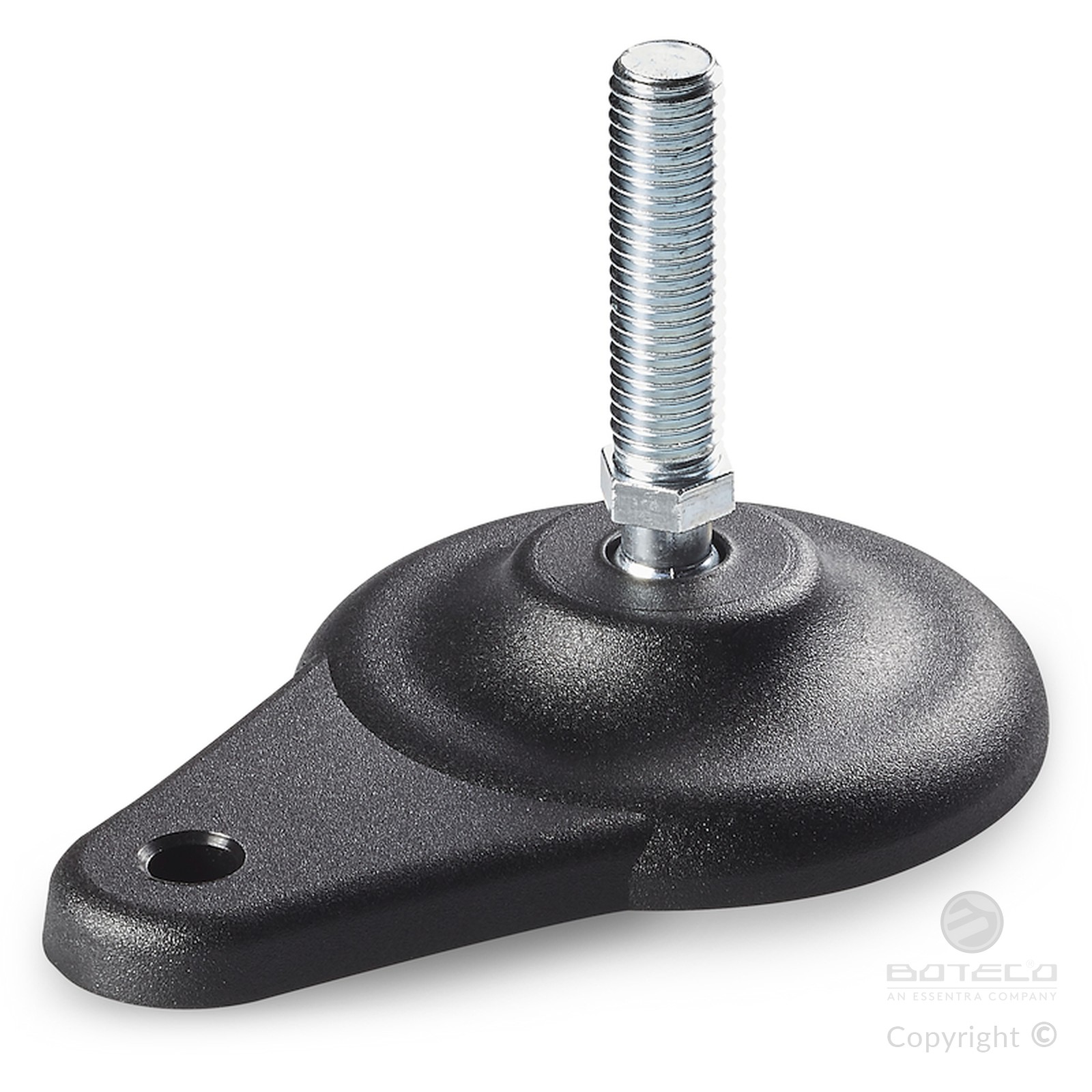

TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 12.4
Teardrop floor-anchor feet - articulated stem
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
P700:
Galvanised steel threaded and articulated stem (ball 12.4) with hexagonal base (thread tolerance 6g).
P700CIN:

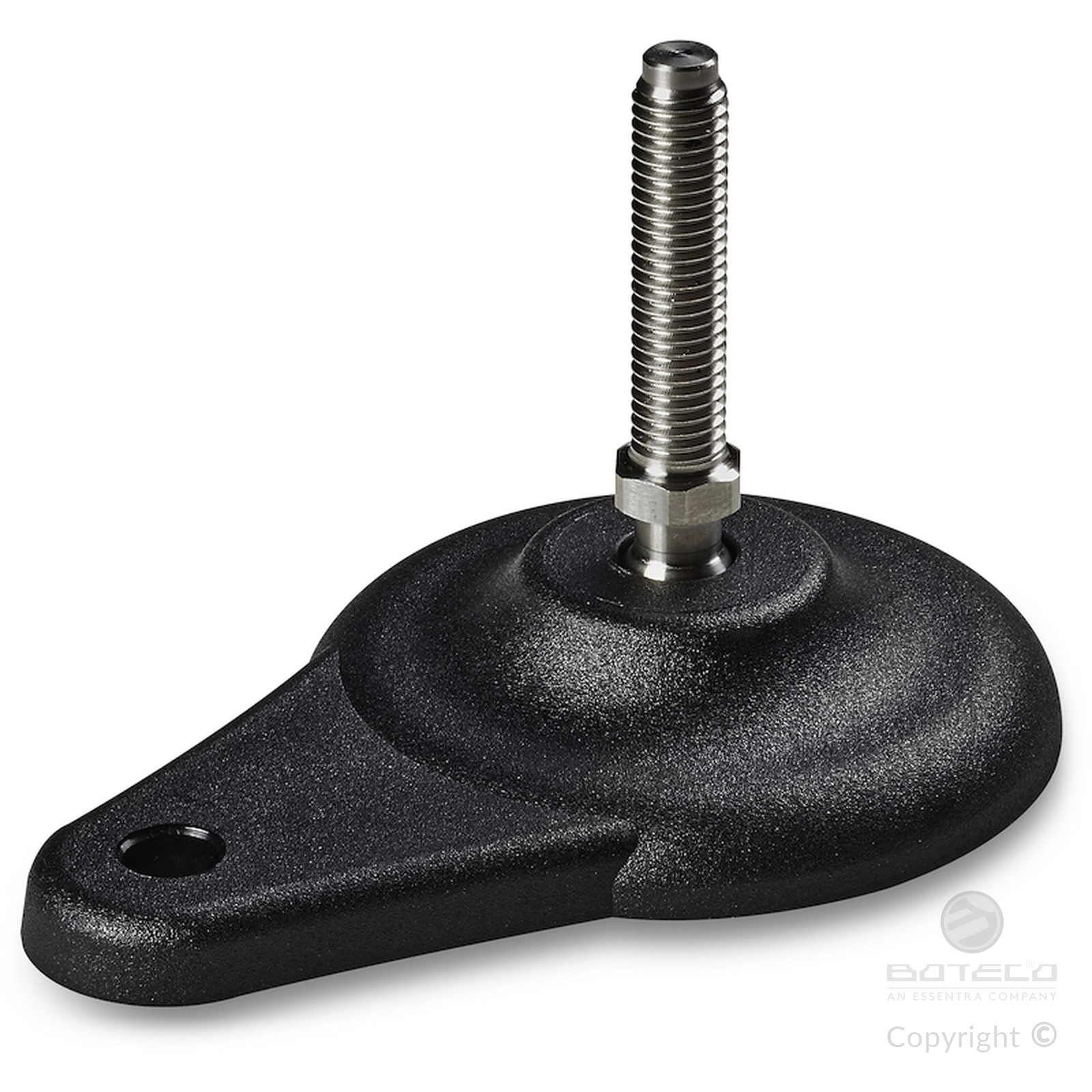

Stainless steel threaded and articulated stem (ball 12.4) with hexagonal base (Aisi 303) (thread tolerance 6g).
Ground fixing:
Through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P700: Teardrop mounting foot with ground fixing - stem type A (with hexagonal base) and ball 12.5

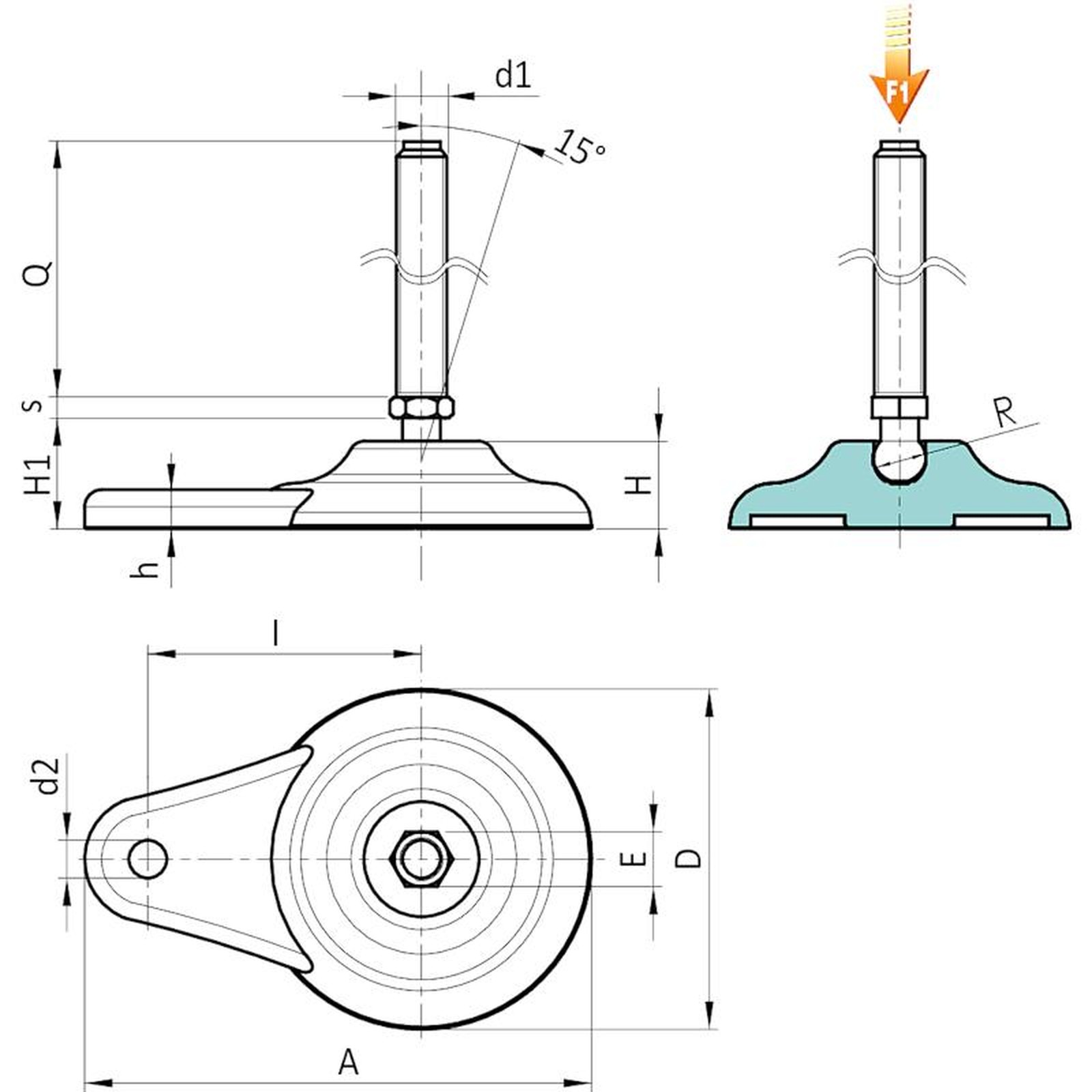

| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P700080.0014 | P700080.TM08X4501 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M8 | 45 | 58 | 10 |
| P700080.0001 | P700080.TM08X07001 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M8 | 70 | 65 | 10 |
| P700080.0002 | P700080.TM10X04501 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M10 | 45 | 83 | 10 |
| P700080.0004 | P700080.TM10X07001 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M10 | 70 | 95 | 10 |
| P700080.0006 | P700080.TM10X10001 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M10 | 100 | 132 | 10 |
| P700080.0008 | P700080.TM12X04501 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M12 | 45 | 93 | 10 |
| P700080.0010 | P700080.TM12X07001 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M12 | 70 | 110 | 10 |
| P700080.0012 | P700080.TM12X10001 | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M12 | 100 | 154 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
Version P700CIN: Teardrop mounting foot with ground fixing - stem type A - stainless steel - (with hexagonal base) and ball 12.5
| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P700080.0031 | P700080.TM08X4501CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M8 | 45 | 58 | 10 |
| - | P700080.TM08X07001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M8 | 70 | 65 | 10 |
| P700080.0003 | P700080.TM10X04501CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M10 | 45 | 83 | 10 |
| P700080.0005 | P700080.TM10X07001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M10 | 70 | 95 | 10 |
| P700080.0007 | P700080.TM10X10001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M10 | 100 | 132 | 10 |
| P700080.0009 | P700080.TM12X04501CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M12 | 45 | 93 | 10 |
| P700080.0011 | P700080.TM12X07001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M12 | 70 | 110 | 10 |
| P700080.0013 | P700080.TM12X10001CIN | 80 | 20 | 65 | 26 | 9 | 120 | 13 | 5 | 9 | 12.5 | M12 | 100 | 154 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
