P544
FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE A - BALL 24 AND NON-SLIP BASE
Metal feet with articulated stem + non-slip base
Materials:
P544:
Turned free-cutting steel mounting foot base.
P544CIN:
Turned stainless steel mounting foot base (Aisi 303).
Surface finish:
Smooth.
Colour:
P544:
Standard blue galvanising.
P544CIN:
Natural.
Inserts:
P544:
Galvanised steel threaded and articulated stem (ball 24) with hexagonal base (thread tolerance 6g).
P544CIN:
Stainless steel threaded and articulated stem (ball 24) with hexagonal base (Aisi 303) (thread tolerance 6g).
Stem fixing method:
The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.
Non-slip base:
Non-slip base in thermoplastic rubber TPV 75 Shore, black RAL 9011.
Resistant to oils and greases. Push-fit assembly.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.

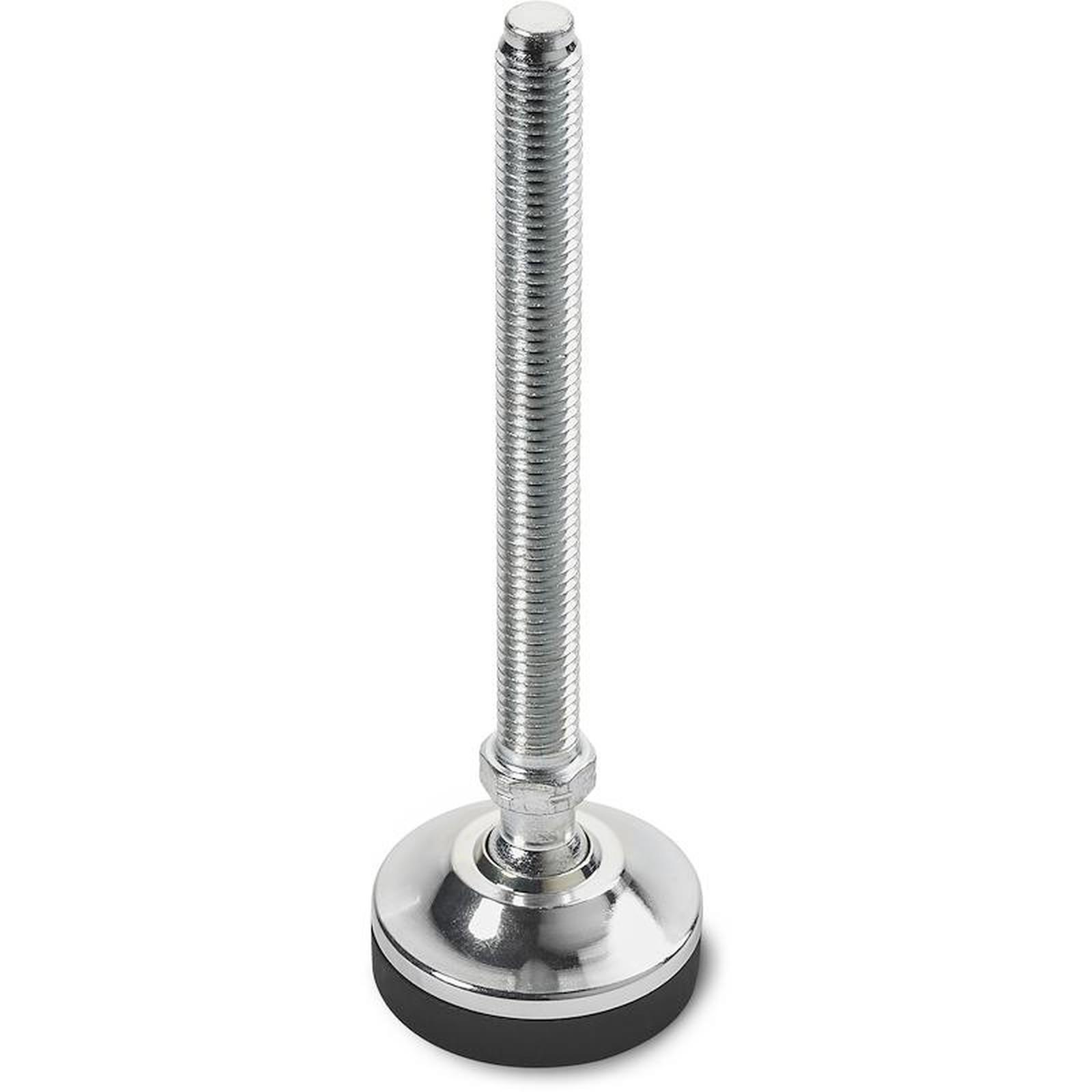

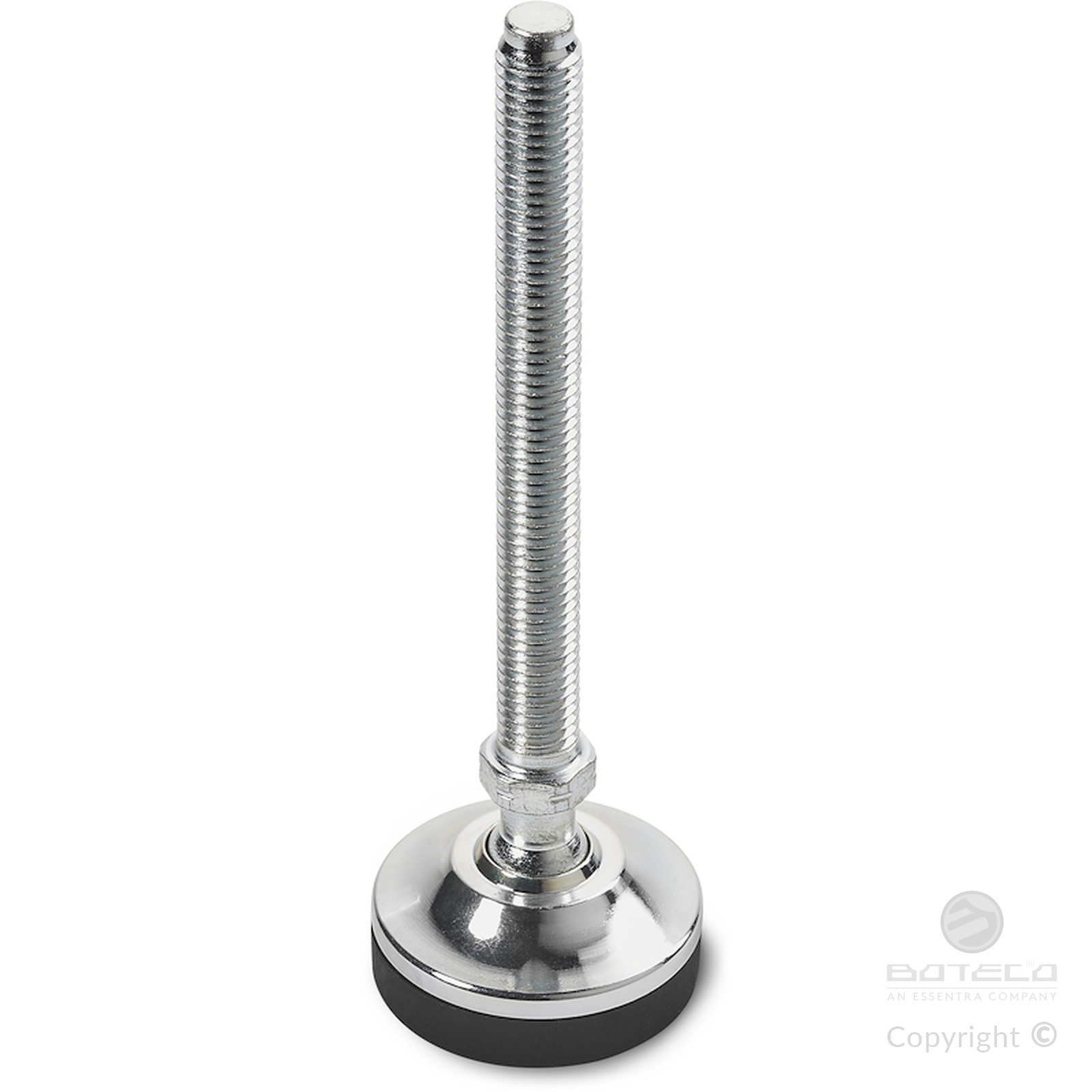

Version P544: Galvanised steel mounting foot with stem type A (with hexagonal base) and ball 24-with TPV non-slip base

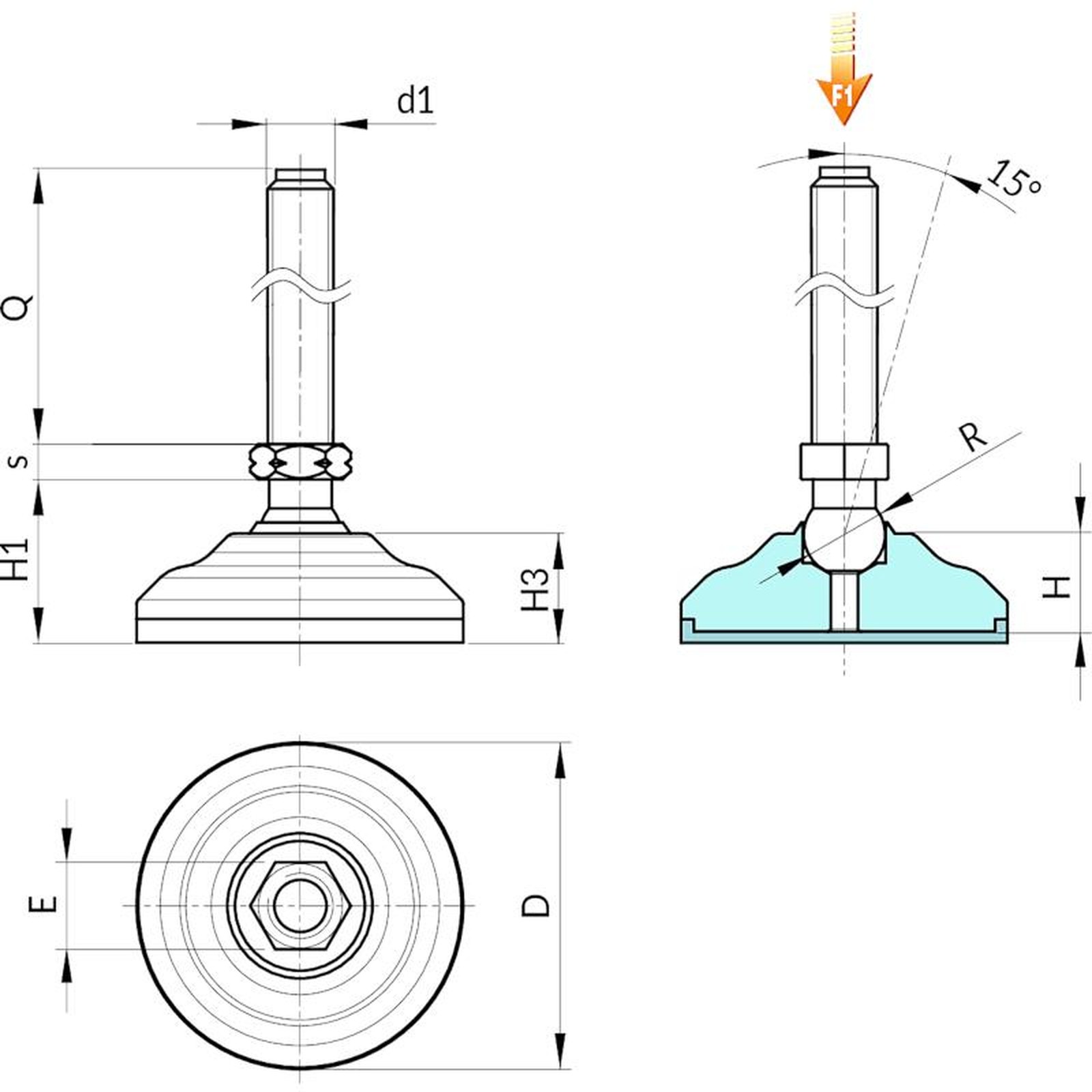

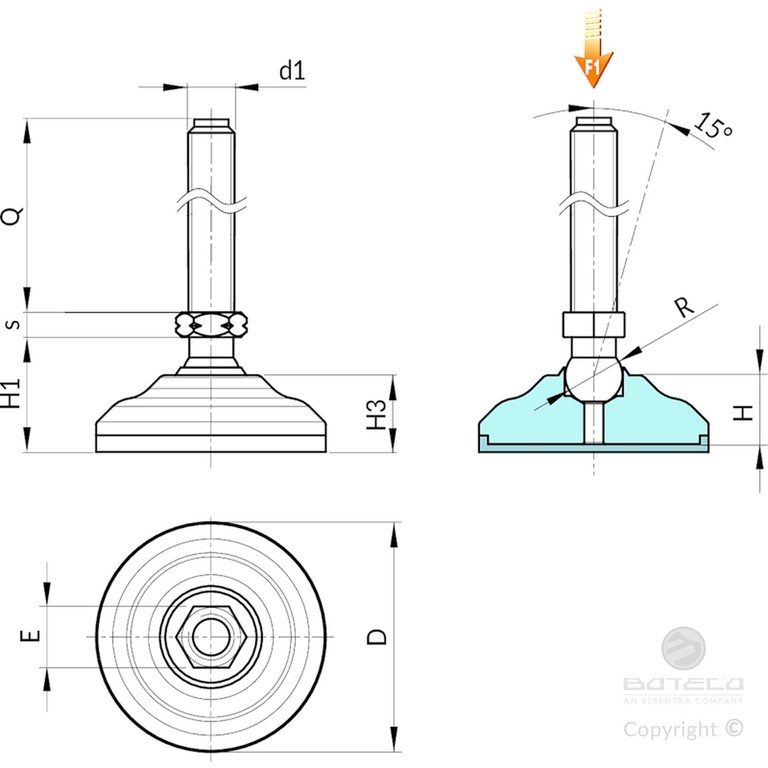

| Code | Art. | D | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1|(kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P54460.0011 | P54460.VZM16X090 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 90 | - | 60 |
| P54460.0012 | P54460.VZM16X110 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 110 | - | 60 |
| P54460.0013 | P54460.VZM16X130 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 130 | - | 60 |
| P54460.0014 | P54460.VZM16X150 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 150 | - | 60 |
| P54460.0015 | P54460.VZM16X170 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 170 | - | 60 |
| P54460.0016 | P54460.VZM20X090 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 90 | - | 90 |
| P54460.0017 | P54460.VZM20X110 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 110 | - | 90 |
| P54460.0018 | P54460.VZM20X130 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 130 | - | 90 |
| P54460.0019 | P54460.VZM20X150 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 150 | - | 90 |
| P54460.0020 | P54460.VZM20X170 | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 170 | - | 90 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

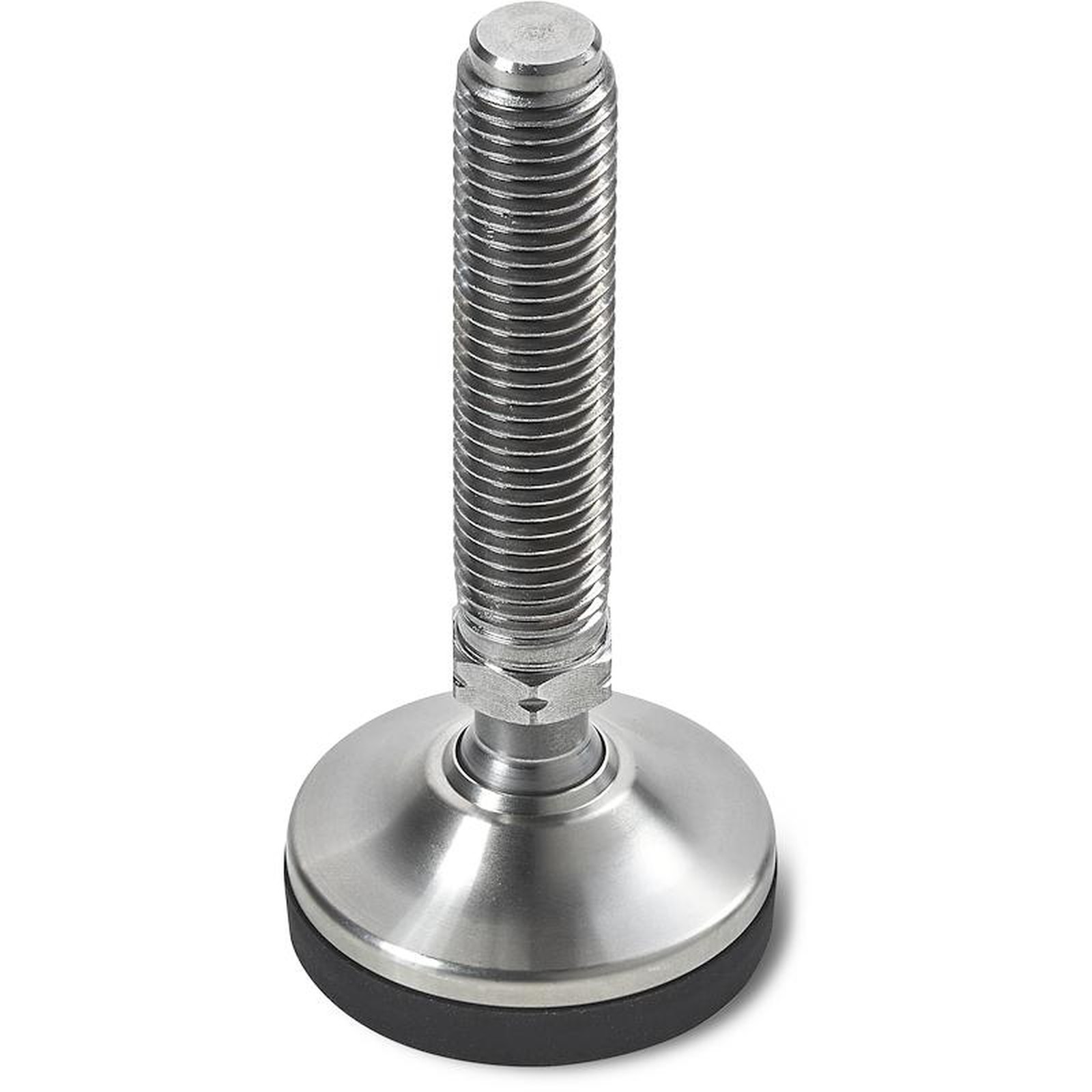

Version P544CIN: Stainless steel mounting foot with stem type A (with hexagonal base) and ball 24-with TPV non-slip base

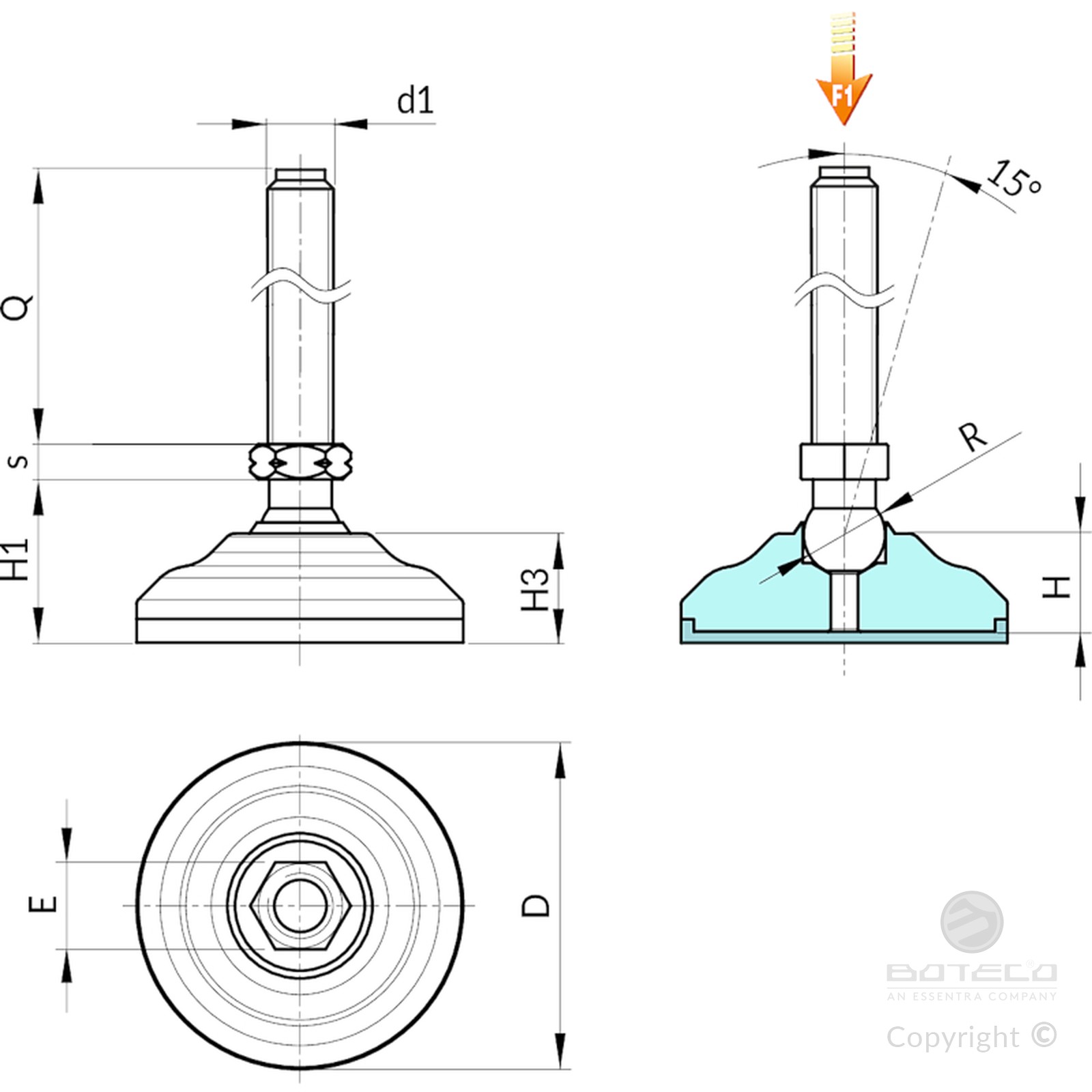

| Code | Art. | D | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1_(kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P54460.0001 | P54460.INM16X090CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 90 | - | 60 |
| P54460.0002 | P54460.INM16X110CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 110 | - | 60 |
| P54460.0003 | P54460.INM16X130CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 130 | - | 60 |
| P54460.0004 | P54460.INM16X150CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 150 | - | 60 |
| P54460.0005 | P54460.INM16X170CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M16 | 170 | - | 60 |
| P54460.0006 | P54460.INM20X090CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 90 | - | 60 |
| P54460.0007 | P54460.INM20X110CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 110 | - | 60 |
| P54460.0008 | P54460.INM20X130CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 130 | - | 60 |
| P54460.0009 | P54460.INM20X150CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 150 | - | 60 |
| P54460.0010 | P54460.INM20X170CIN | 60 | 20 | 32 | 22,5 | 24 | 10 | 24 | M20 | 170 | - | 60 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
