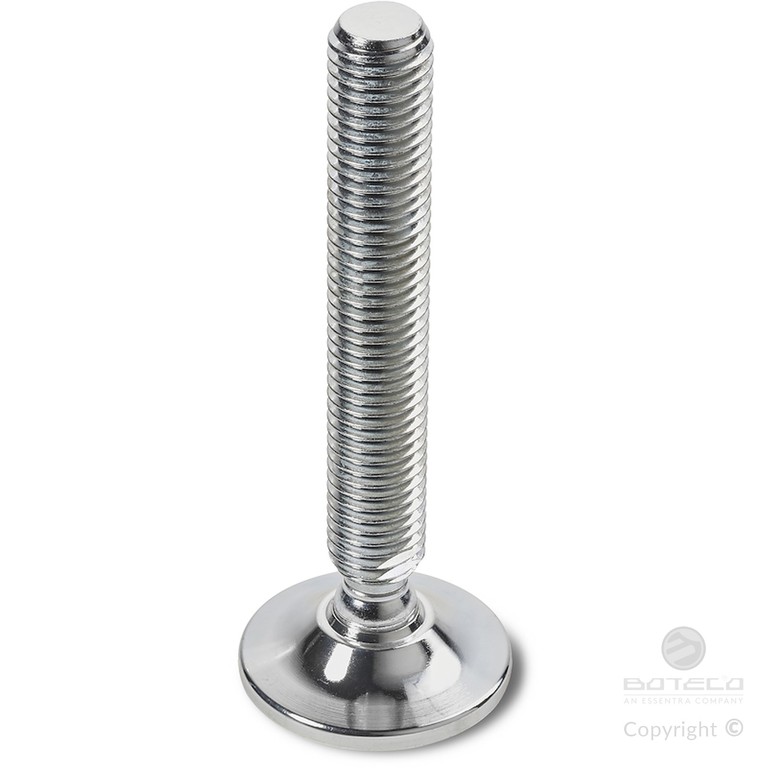

FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE B - BALL 15 AND NON-SLIP BASE

16

P543


Piedi metallo con stelo snodato + antiscivolo

    Materials:

    P543:

    Turned free-cutting steel mounting foot base.

    P543CIN:

    Turned stainless steel mounting foot base (Aisi 303).

    Surface finish:

    Smooth.

    Colour:

    P543:

    Standard blue galvanising.

    P543CIN:

    Natural.

    Inserts:

    P543:

    Galvanised steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (thread tolerance 6g).

    P543CIN:

    Stainless steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (Aisi 304) (thread tolerance 6g).

    Stem fixing method:

    The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.

    Non-slip base:

    Non-slip base in thermoplastic rubber TPV 75 Shore, black RAL 9011.

    Resistant to oils and greases. Push-fit assembly.

    Special requests:

    Upon request and for special quantities inserts can be supplied with customised lengths.

    Data sheet

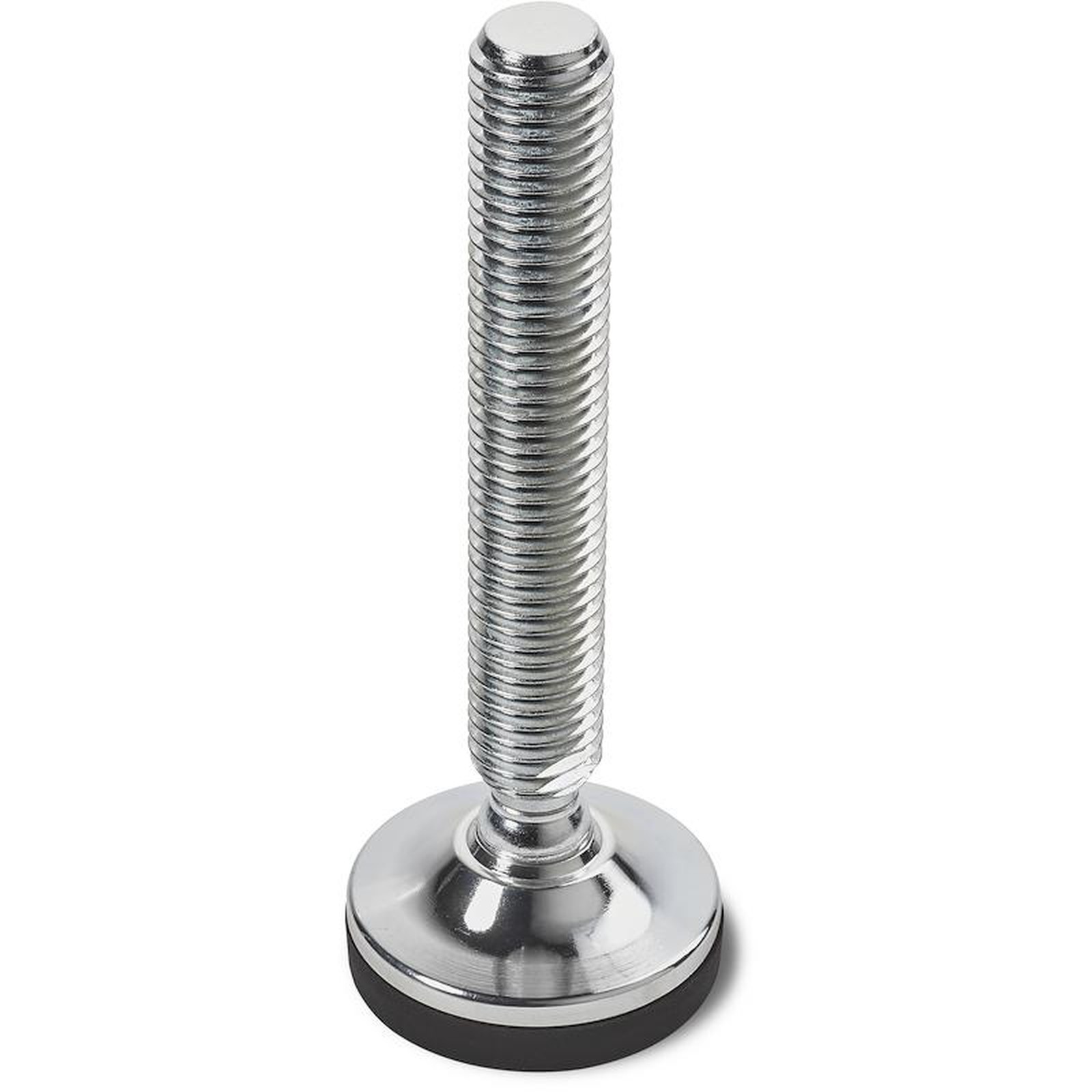

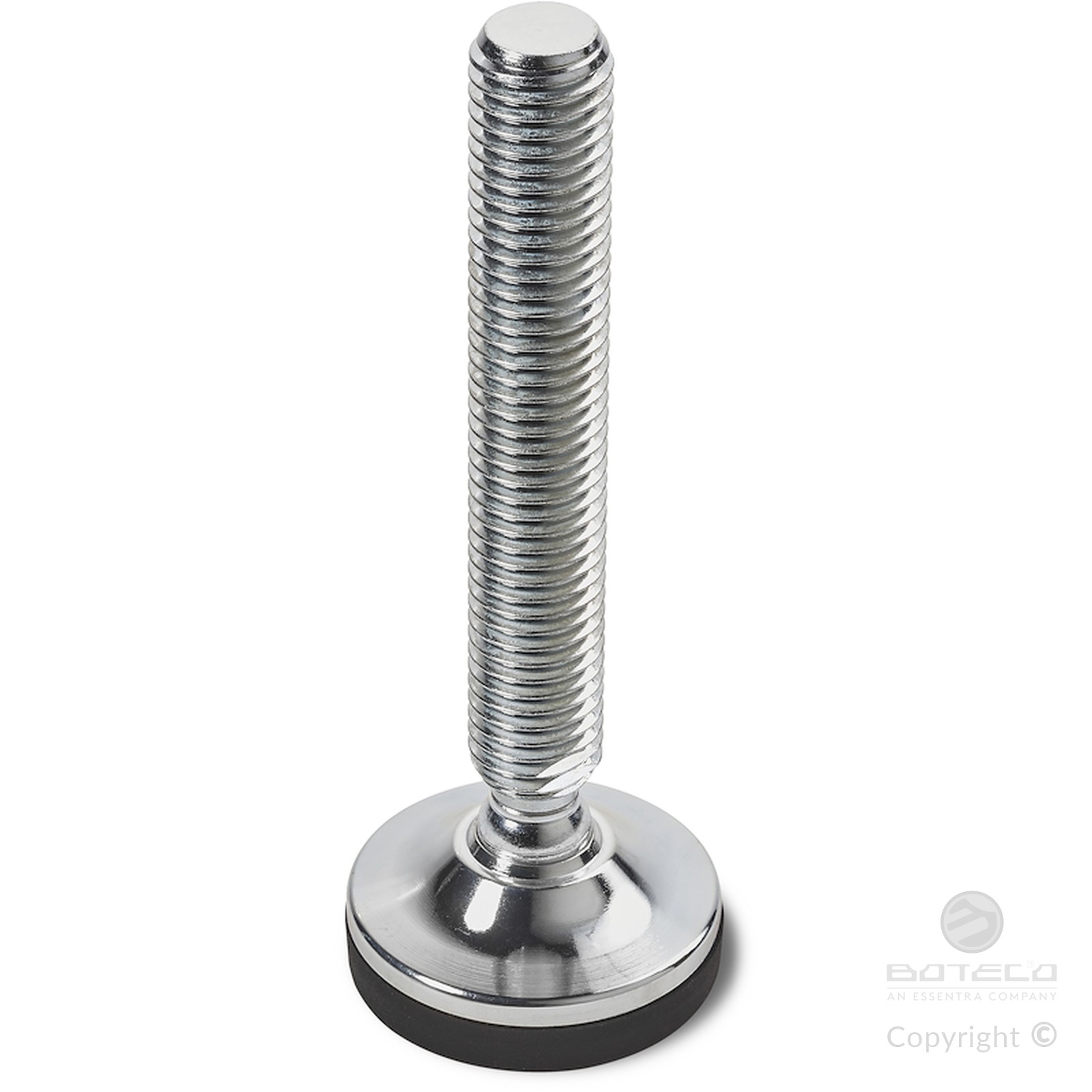

    Version P543: Galvanised steel mounting foot with stem type B (with milled seat for wrench) and ball 15 - with TPV non-slip base

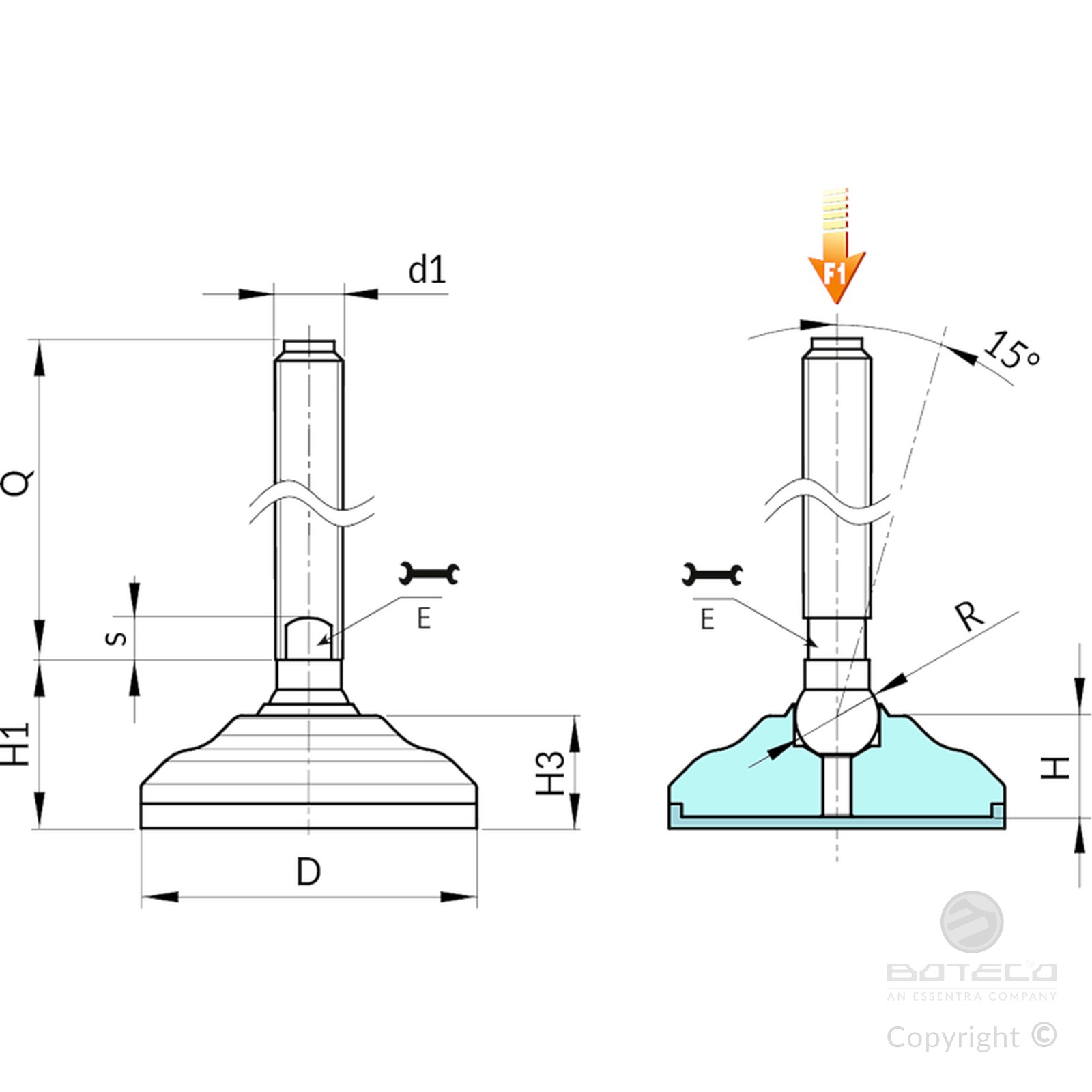

    Code Art. D H H1 H3 E s R d1 6g Q Weight (g) F1|(kN)
    P54340.0015 P54340.VZM20X90 40 15 26 17.5 16 7 15 M20 90 313 50
    P54340.0016 P54340.VZM20X110 40 15 26 17.5 16 7 15 M20 110 345 50
    P54340.0017 P54340.VZM20X130 40 15 26 17.5 16 7 15 M20 130 377 50
    P54340.0018 P54340.VZM20X150 40 15 26 17.5 16 7 15 M20 150 412 50
    P54340.0019 P54340.VZM20X170 40 15 26 17.5 16 7 15 M20 170 444 50
    P54340.0020 P54340.VZM20X190 40 15 26 17.5 16 7 15 M20 190 477 50
    P54340.0021 P54340.VZM20X210 40 15 26 17.5 16 7 15 M20 210 512 50
    P54350.0015 P54350.VZM20X90 50 17.5 29.5 20 16 7 15 M20 90 382 50
    P54350.0016 P54350.VZM20X110 50 17.5 29.5 20 16 7 15 M20 110 414 50
    P54350.0017 P54350.VZM20X130 50 17.5 29.5 20 16 7 15 M20 130 446 50
    P54350.0018 P54350.VZM20X150 50 17.5 29.5 20 16 7 15 M20 150 481 50
    P54350.0019 P54350.VZM20X170 50 17.5 29.5 20 16 7 15 M20 170 513 50
    P54350.0020 P54350.VZM20X190 50 17.5 29.5 20 16 7 15 M20 190 546 50
    P54350.0021 P54350.VZM20X210 50 17.5 29.5 20 16 7 15 M20 210 581 50
    P54360.0015 P54360.VZM20X90 60 19.5 32 22 16 7 15 M20 90 487 50
    P54360.0016 P54360.VZM20X110 60 19.5 32 22 16 7 15 M20 110 519 50
    P54360.0017 P54360.VZM20X130 60 19.5 32 22 16 7 15 M20 130 351 50
    P54360.0018 P54360.VZM20X150 60 19.5 32 22 16 7 15 M20 150 586 50
    P54360.0019 P54360.VZM20X170 60 19.5 32 22 16 7 15 M20 170 618 50
    P54360.0020 P54360.VZM20X190 60 19.5 32 22 16 7 15 M20 190 651 50
    P54360.0021 P54360.VZM20X210 60 19.5 32 22 16 7 15 M20 210 686 50
    P54340.0022 P54340.VZM24X90 40 15 26 17.5 19 7 15 M24 90 437 50
    P54340.0023 P54340.VZM24X110 40 15 26 17.5 19 7 15 M24 110 497 50
    P54340.0024 P54340.VZM24X130 40 15 26 17.5 19 7 15 M24 130 557 50
    P54340.0025 P54340.VZM24X150 40 15 26 17.5 19 7 15 M24 150 617 50
    P54340.0026 P54340.VZM24X170 40 15 26 17.5 19 7 15 M24 170 677 50
    P54340.0027 P54340.VZM24X190 40 15 26 17.5 19 7 15 M24 190 737 50
    P54340.0028 P54340.VZM24X210 40 15 26 17.5 19 7 15 M24 210 797 50
    P54350.0022 P54350.VZM24X90 50 17.5 29.5 20 19 7 15 M24 90 506 50
    P54350.0023 P54350.VZM24X110 50 17.5 29.5 20 19 7 15 M24 110 566 50
    P54350.0024 P54350.VZM24X130 50 17.5 29.5 20 19 7 15 M24 130 626 50
    P54350.0025 P54350.VZM24X150 50 17.5 29.5 20 19 7 15 M24 150 686 50
    P54350.0026 P54350.VZM24X170 50 17.5 29.5 20 19 7 15 M24 170 746 50
    P54350.0027 P54350.VZM24X190 50 17.5 29.5 20 19 7 15 M24 190 806 50
    P54350.0028 P54350.VZM24X210 50 17.5 29.5 20 19 7 15 M24 210 866 50
    P54360.0022 P54360.VZM24X90 60 19.5 32 22 19 7 15 M24 90 611 50
    P54360.0023 P54360.VZM24X110 60 19.5 32 22 19 7 15 M24 110 671 50
    P54360.0024 P54360.VZM24X130 60 19.5 32 22 19 7 15 M24 130 731 50
    P54360.0025 P54360.VZM24X150 60 19.5 32 22 19 7 15 M24 150 791 50
    P54360.0026 P54360.VZM24X170 60 19.5 32 22 19 7 15 M24 170 851 50
    P54360.0027 P54360.VZM24X190 60 19.5 32 22 19 7 15 M24 190 911 50
    P54360.0028 P54360.VZM24X210 60 19.5 32 22 19 7 15 M24 210 971 50
    Customised stud length available for a minimum of 100 pieces.
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.

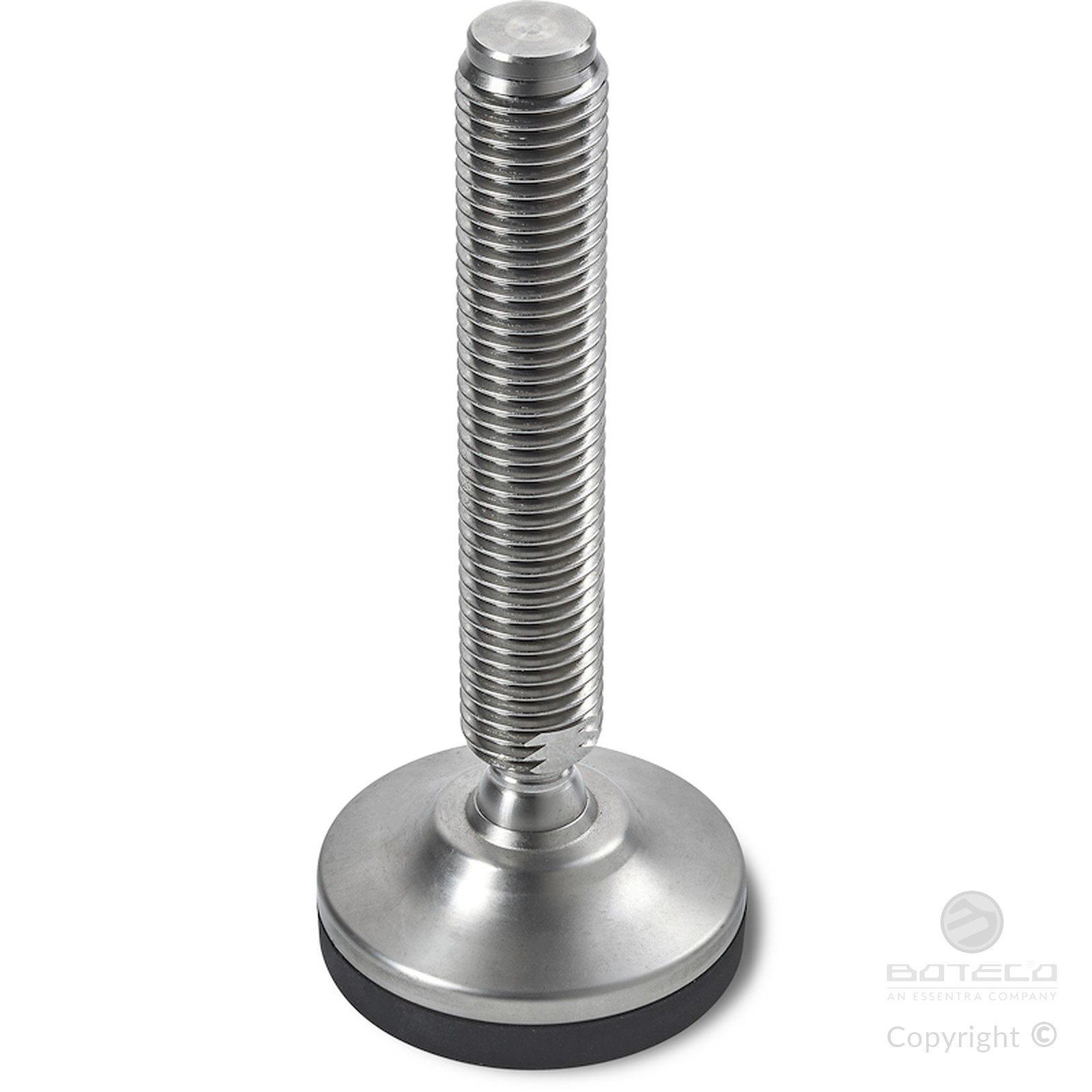

    Version P543CIN: Stainless steel foot with stem type B (with milled seat for wrench) and ball 15 - with TPV non-slip base

    Code Art. D H H1 H3 E s R d1 6g Q Weight (g) F1_(kN)
    P54340.0001 P54340.INM20X90CIN 40 15 26 17.5 16 7 15 M20 90 313 50
    P54340.0002 P54340.INM20X110CIN 40 15 26 17.5 16 7 15 M20 110 345 50
    P54340.0003 P54340.INM20X130CIN 40 15 26 17.5 16 7 15 M20 130 377 50
    P54340.0004 P54340.INM20X150CIN 40 15 26 17.5 16 7 15 M20 150 412 50
    P54340.0005 P54340.INM20X170CIN 40 15 26 17.5 16 7 15 M20 170 444 50
    P54340.0006 P54340.INM20X190CIN 40 15 26 17.5 16 7 15 M20 190 477 50
    P54340.0007 P54340.INM20X210CIN 40 15 26 17.5 16 7 15 M20 210 512 50
    P54350.0001 P54350.INM20X90CIN 50 17.5 29.5 20 16 7 15 M20 90 382 50
    P54350.0002 P54350.INM20X110CIN 50 17.5 29.5 20 16 7 15 M20 110 414 50
    P54350.0003 P54350.INM20X130CIN 50 17.5 29.5 20 16 7 15 M20 130 446 50
    P54350.0004 P54350.INM20X150CIN 50 17.5 29.5 20 16 7 15 M20 150 481 50
    P54350.0005 P54350.INM20X170CIN 50 17.5 29.5 20 16 7 15 M20 170 513 50
    P54350.0006 P54350.INM20X190CIN 50 17.5 29.5 20 16 7 15 M20 190 546 50
    P54350.0007 P54350.INM20X210CIN 50 17.5 29.5 20 16 7 15 M20 210 581 50
    P54360.0001 P54360.INM20X90CIN 60 19.5 32 22 16 7 15 M20 90 487 50
    P54360.0002 P54360.INM20X110CIN 60 19.5 32 22 16 7 15 M20 110 519 50
    P54360.0003 P54360.INM20X130CIN 60 19.5 32 22 16 7 15 M20 130 351 50
    P54360.0004 P54360.INM20X150CIN 60 19.5 32 22 16 7 15 M20 150 586 50
    P54360.0005 P54360.INM20X170CIN 60 19.5 32 22 16 7 15 M20 170 618 50
    P54360.0006 P54360.INM20X190CIN 60 19.5 32 22 16 7 15 M20 190 651 50
    P54360.0007 P54360.INM20X210CIN 60 19.5 32 22 16 7 15 M20 210 686 50
    P54340.0008 P54340.INM24X90CIN 40 15 26 17.5 19 7 15 M24 90 437 50
    P54340.0009 P54340.INM24X110CIN 40 15 26 17.5 19 7 15 M24 110 497 50
    P54340.0010 P54340.INM24X130CIN 40 15 26 17.5 19 7 15 M24 130 557 50
    P54340.0011 P54340.INM24X150CIN 40 15 26 17.5 19 7 15 M24 150 617 50
    P54340.0012 P54340.INM24X170CIN 40 15 26 17.5 19 7 15 M24 170 677 50
    P54340.0013 P54340.INM24X190CIN 40 15 26 17.5 19 7 15 M24 190 737 50
    P54340.0014 P54340.INM24X210CIN 40 15 26 17.5 19 7 15 M24 210 797 50
    P54350.0008 P54350.INM24X90CIN 50 17.5 29.5 20 19 7 15 M24 90 506 50
    P54350.0009 P54350.INM24X110CIN 50 17.5 29.5 20 19 7 15 M24 110 566 50
    P54350.0010 P54350.INM24X130CIN 50 17.5 29.5 20 19 7 15 M24 130 626 50
    P54350.0011 P54350.INM24X150CIN 50 17.5 29.5 20 19 7 15 M24 150 686 50
    P54350.0012 P54350.INM24X170CIN 50 17.5 29.5 20 19 7 15 M24 170 746 50
    P54350.0013 P54350.INM24X190CIN 50 17.5 29.5 20 19 7 15 M24 190 806 50
    P54350.0014 P54350.INM24X210CIN 50 17.5 29.5 20 19 7 15 M24 210 866 50
    P54360.0008 P54360.INM24X90CIN 60 19.5 32 22 19 7 15 M24 90 611 50
    P54360.0009 P54360.INM24X110CIN 60 19.5 32 22 19 7 15 M24 110 671 50
    P54360.0010 P54360.INM24X130CIN 60 19.5 32 22 19 7 15 M24 130 731 50
    P54360.0011 P54360.INM24X150CIN 60 19.5 32 22 19 7 15 M24 150 791 50
    P54360.0012 P54360.INM24X170CIN 60 19.5 32 22 19 7 15 M24 170 851 50
    P54360.0013 P54360.INM24X190CIN 60 19.5 32 22 19 7 15 M24 190 911 50
    P54360.0014 P54360.INM24X210CIN 60 19.5 32 22 19 7 15 M24 210 971 50
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
    Customised stud length available for a minimum of 100 pieces.
