P542

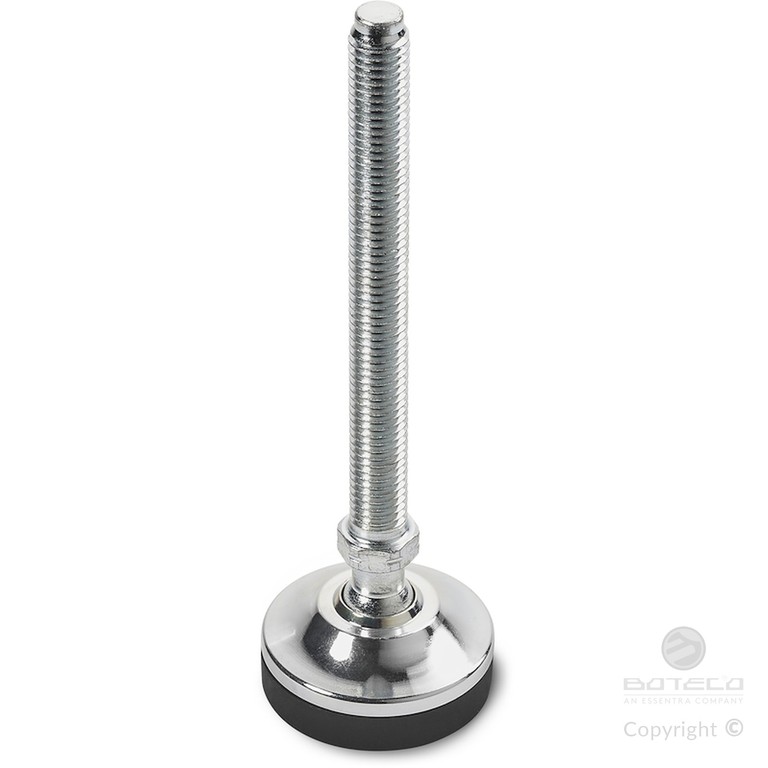

FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE B - BALL 12.5 AND NON-SLIP BASE
Metal feet with articulated stem + non-slip base
Materials:
P542:
Turned free-cutting steel mounting foot base.
P542CIN:
Turned stainless steel mounting foot base (Aisi 303).
Surface finish:
Smooth.
Colour:
P542:
Standard blue galvanising.
P542CIN:
Natural.
Inserts:
P542:
Galvanised steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (thread tolerance 6g).
P542CIN:
Stainless steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (Aisi 303) (thread tolerance 6g).
Stem fixing method:
The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.
Non-slip base:
Non-slip base in thermoplastic rubber TPV 75 Shore, black RAL 9011.
Resistant to oils and greases. Push-fit assembly.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.

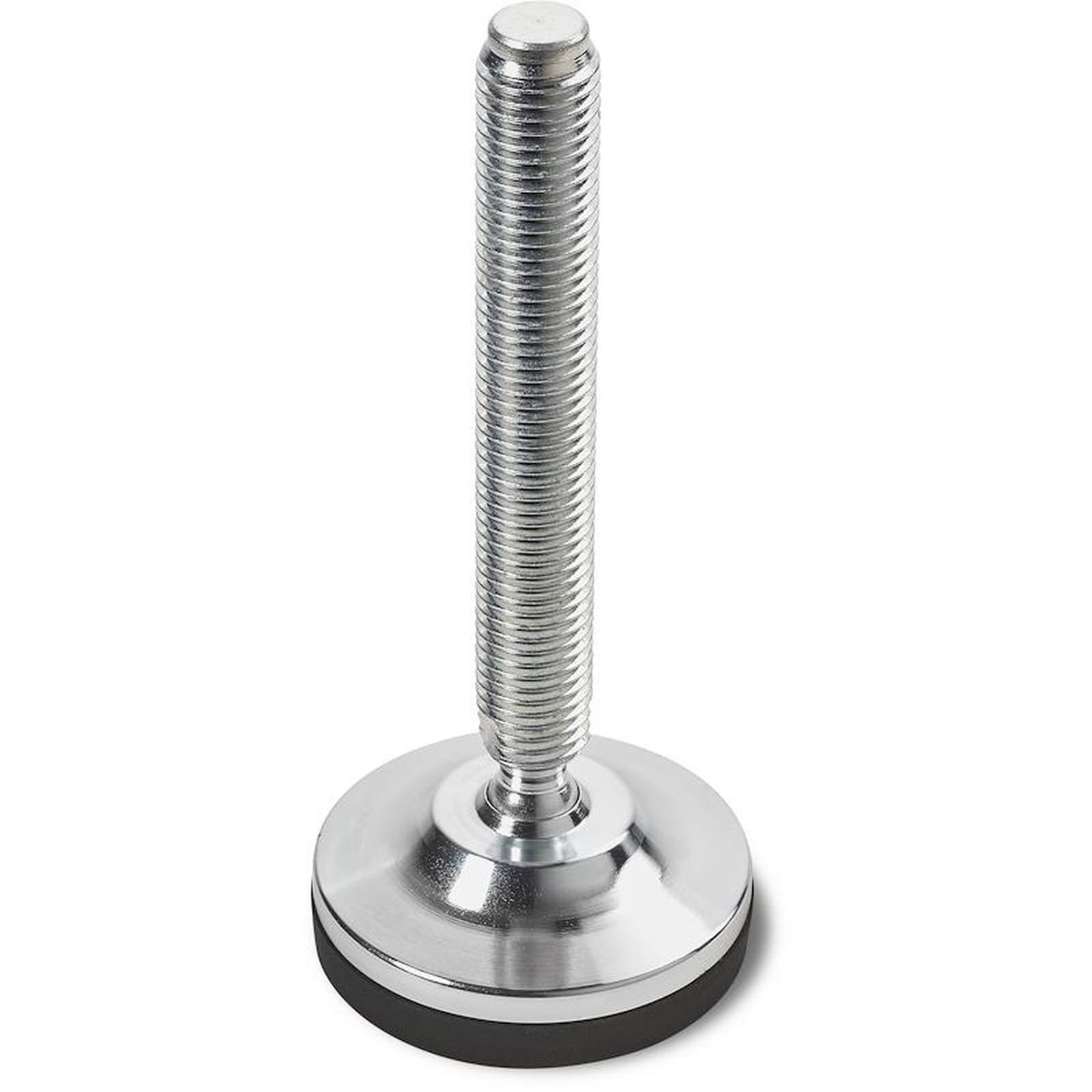

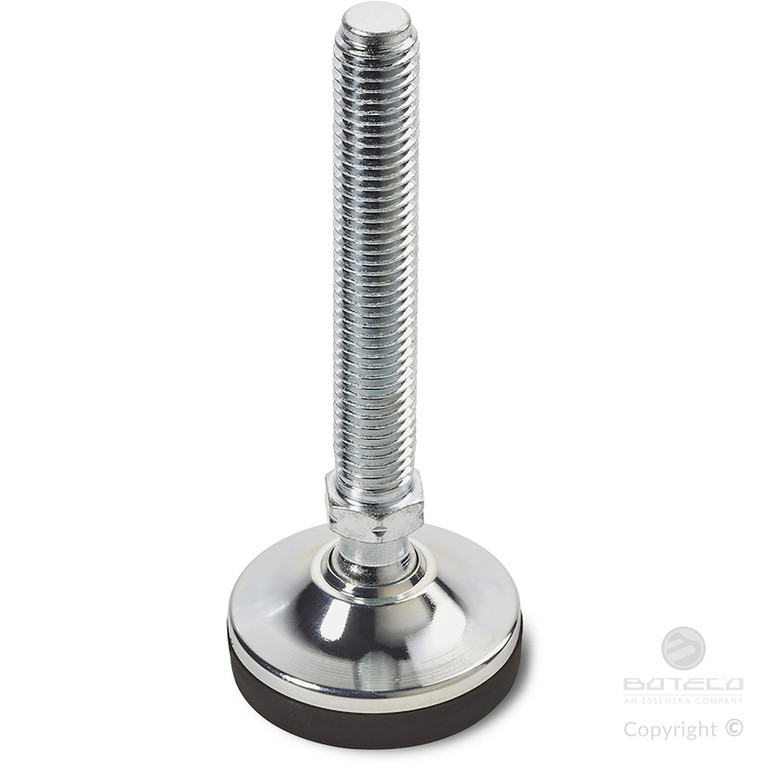

Version P542: Galvanised steel mounting foot with stem type B (with milled seat for wrench) and ball 12.5 - with TPV non-slip base

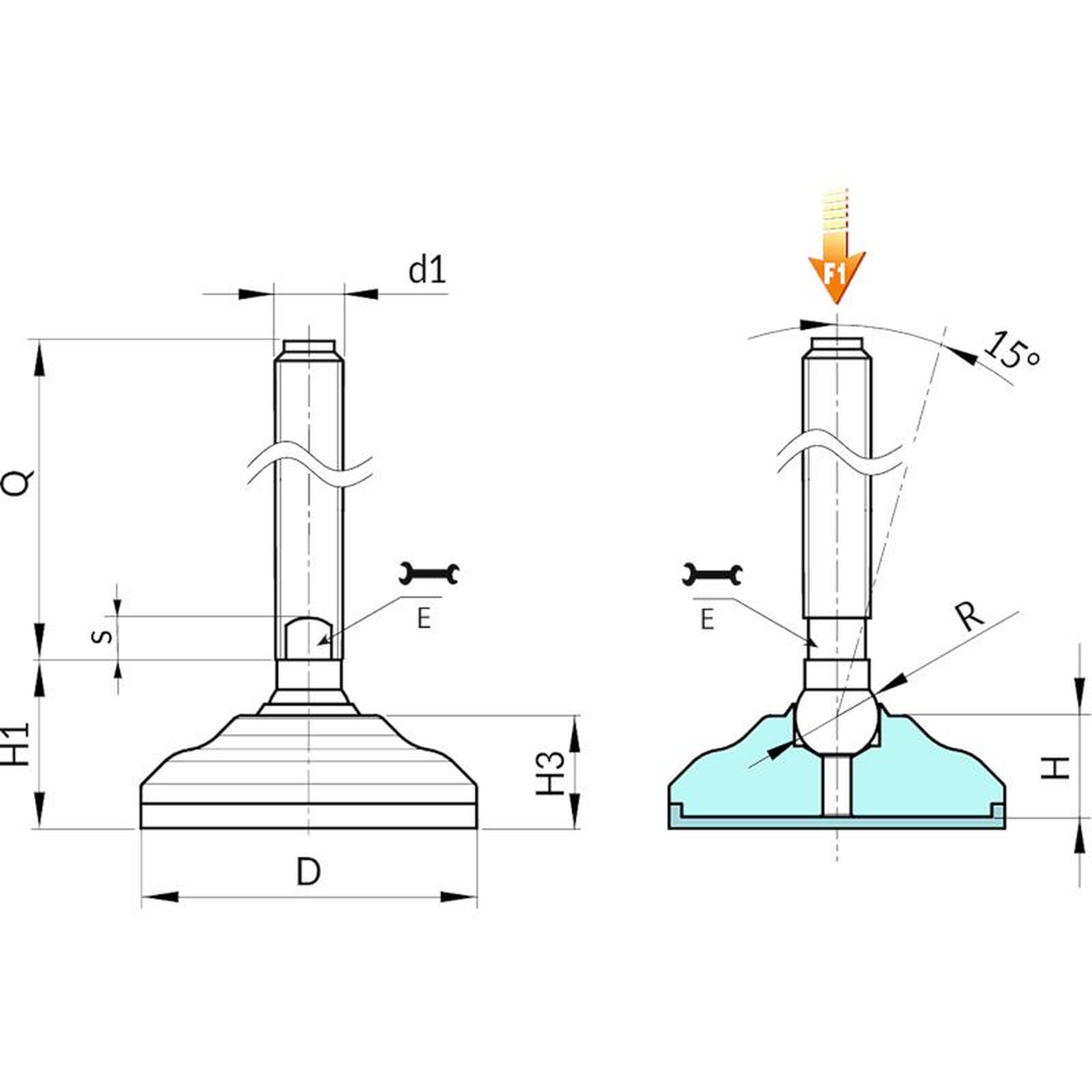

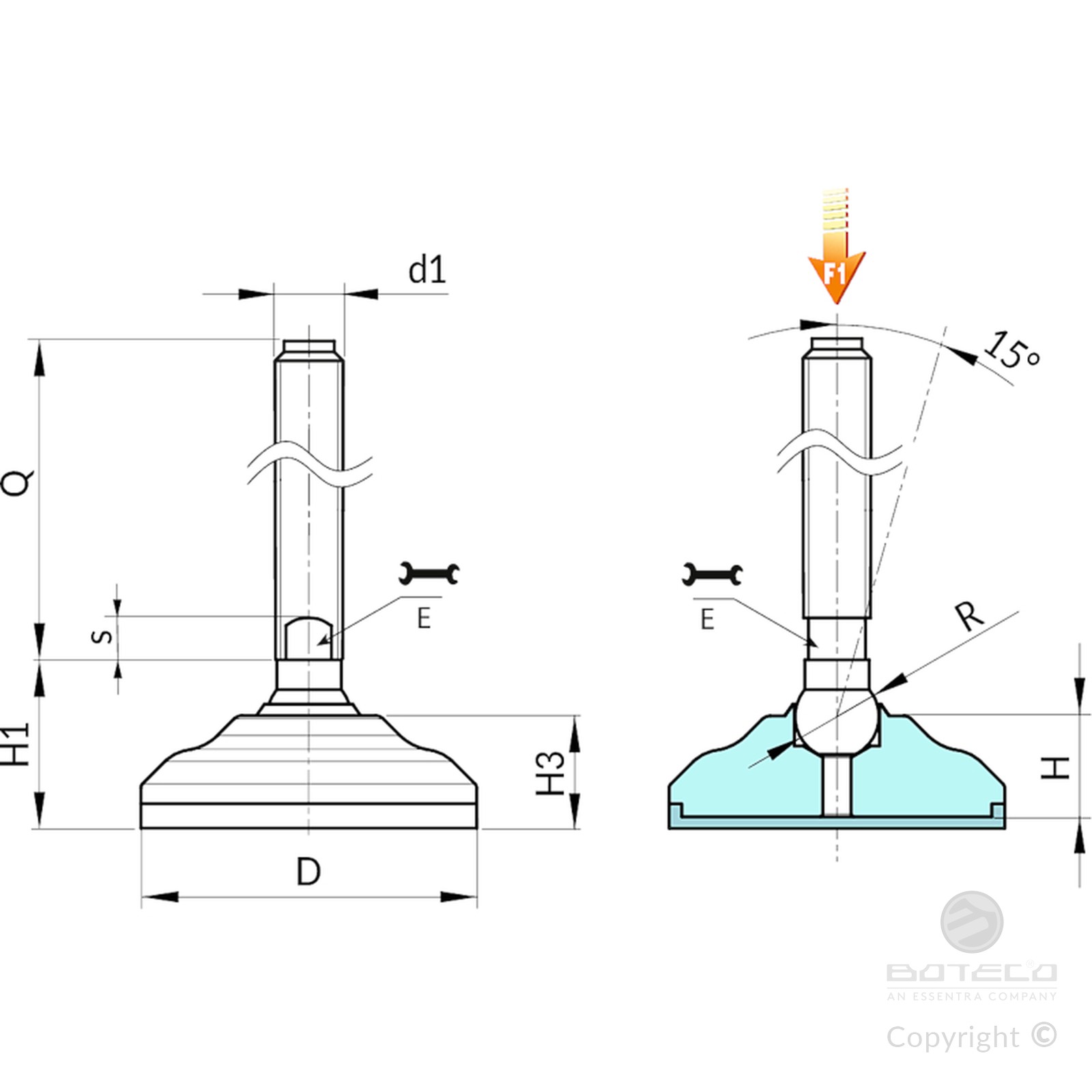

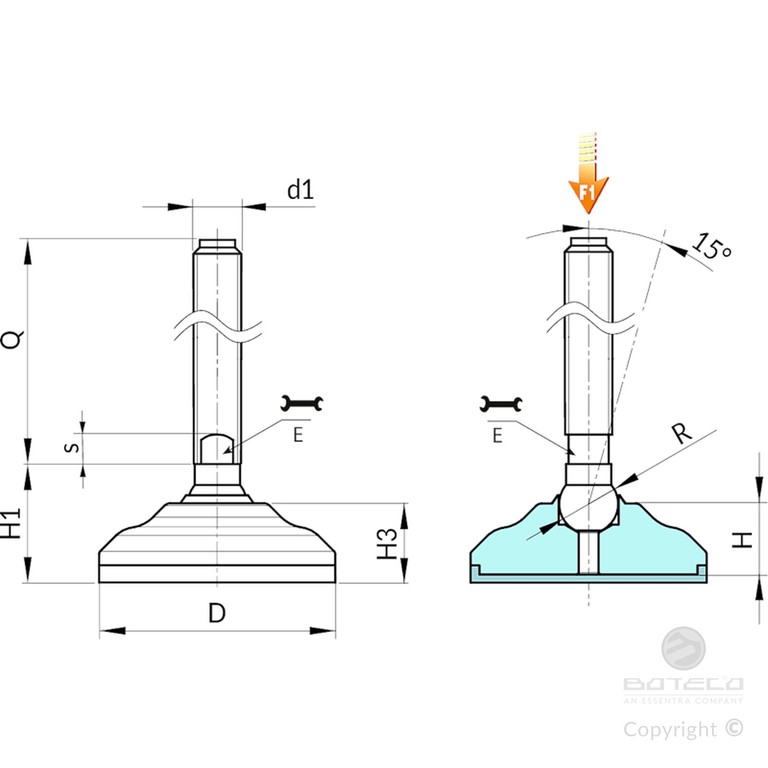

| Code | Art. | D | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P54260.0008 | P54260.VZM16X50 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 50 | 352 | 23 |
| P54260.0009 | P54260.VZM16X70 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 70 | 379 | 23 |
| P54260.0010 | P54260.VZM16X90 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 90 | 405 | 23 |
| P54260.0011 | P54260.VZM16X110 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 110 | 431 | 23 |
| P54260.0012 | P54260.VZM16X130 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 130 | 457 | 23 |
| P54260.0013 | P54260.VZM16X150 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 150 | 483 | 23 |
| P54260.0014 | P54260.VZM16X170 | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 170 | 509 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

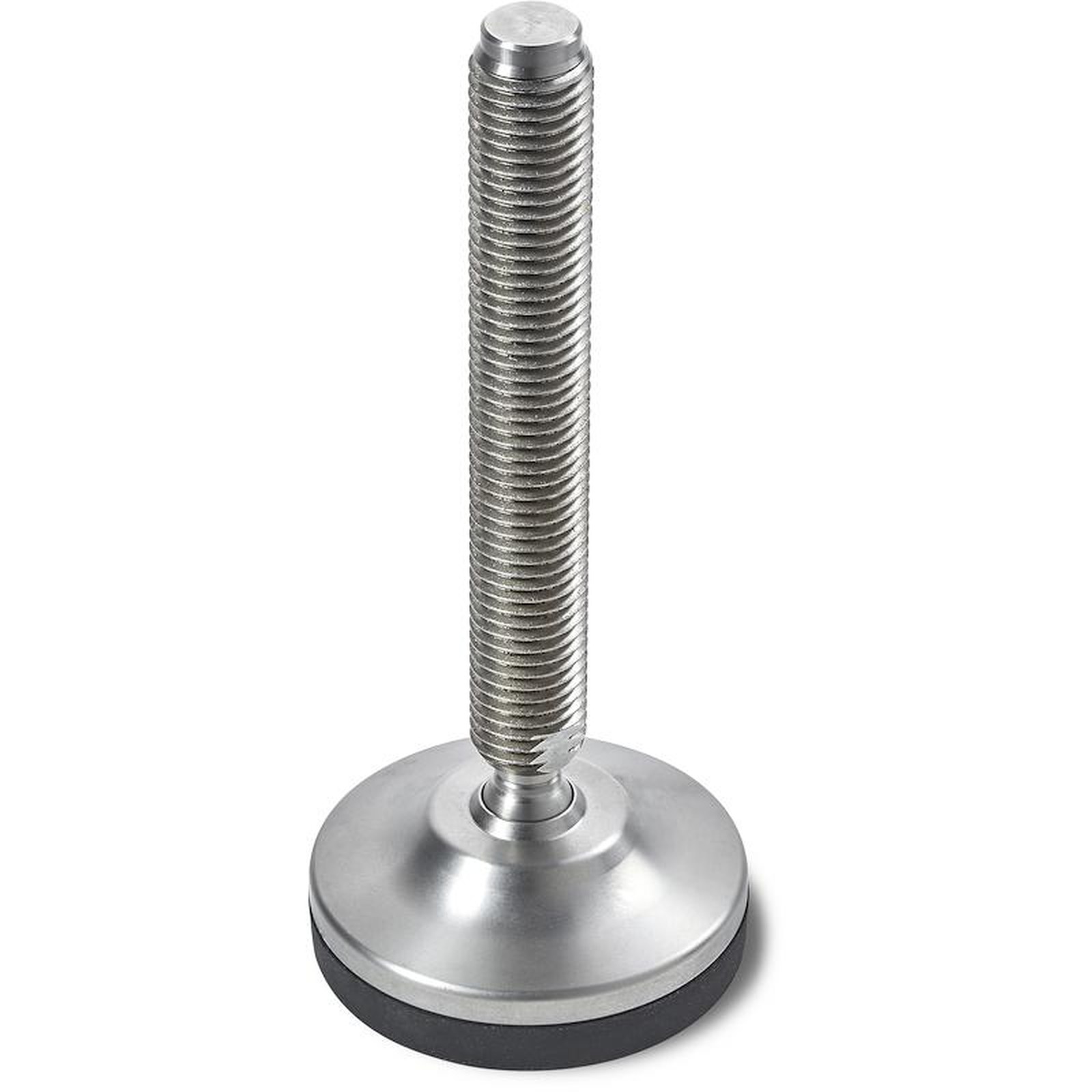

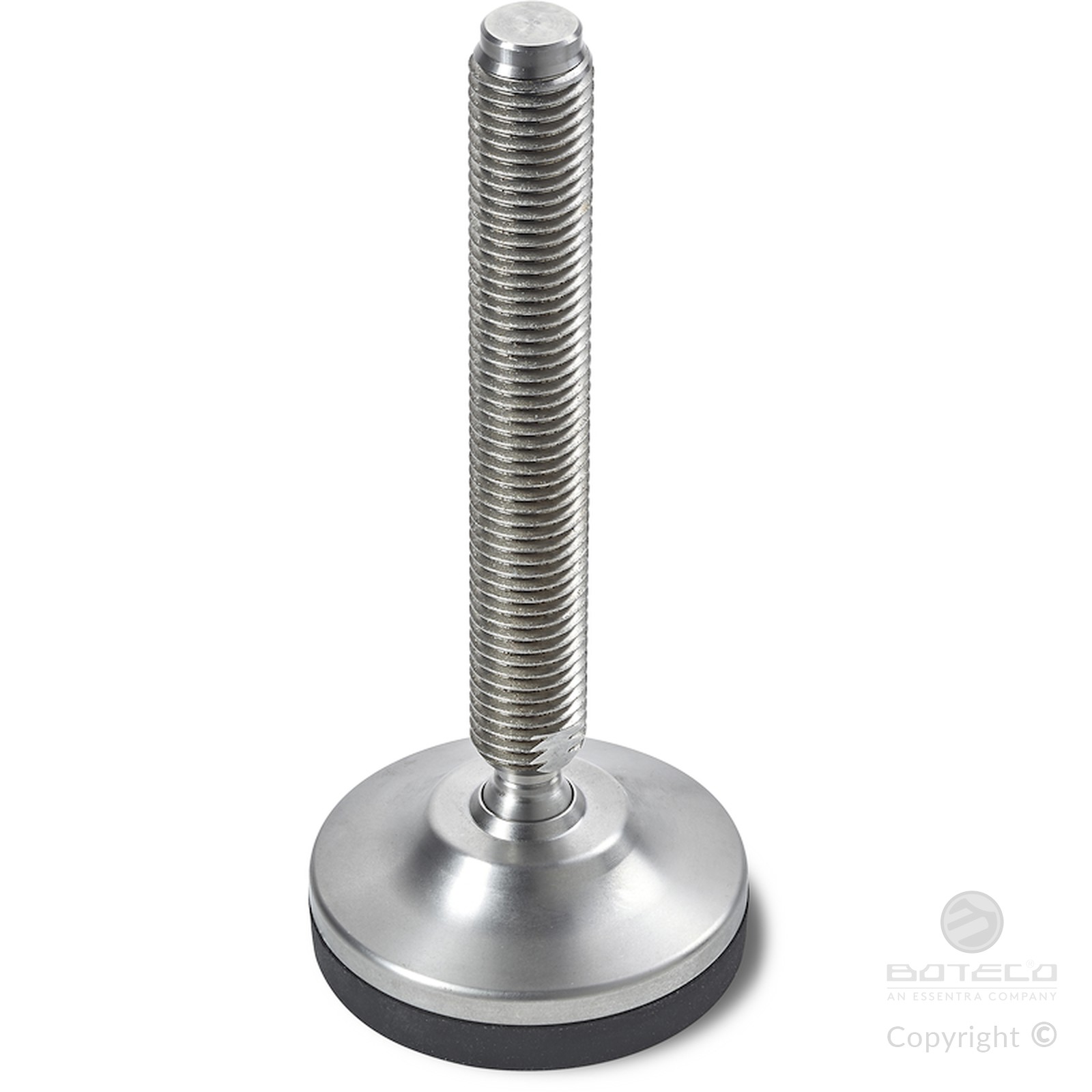

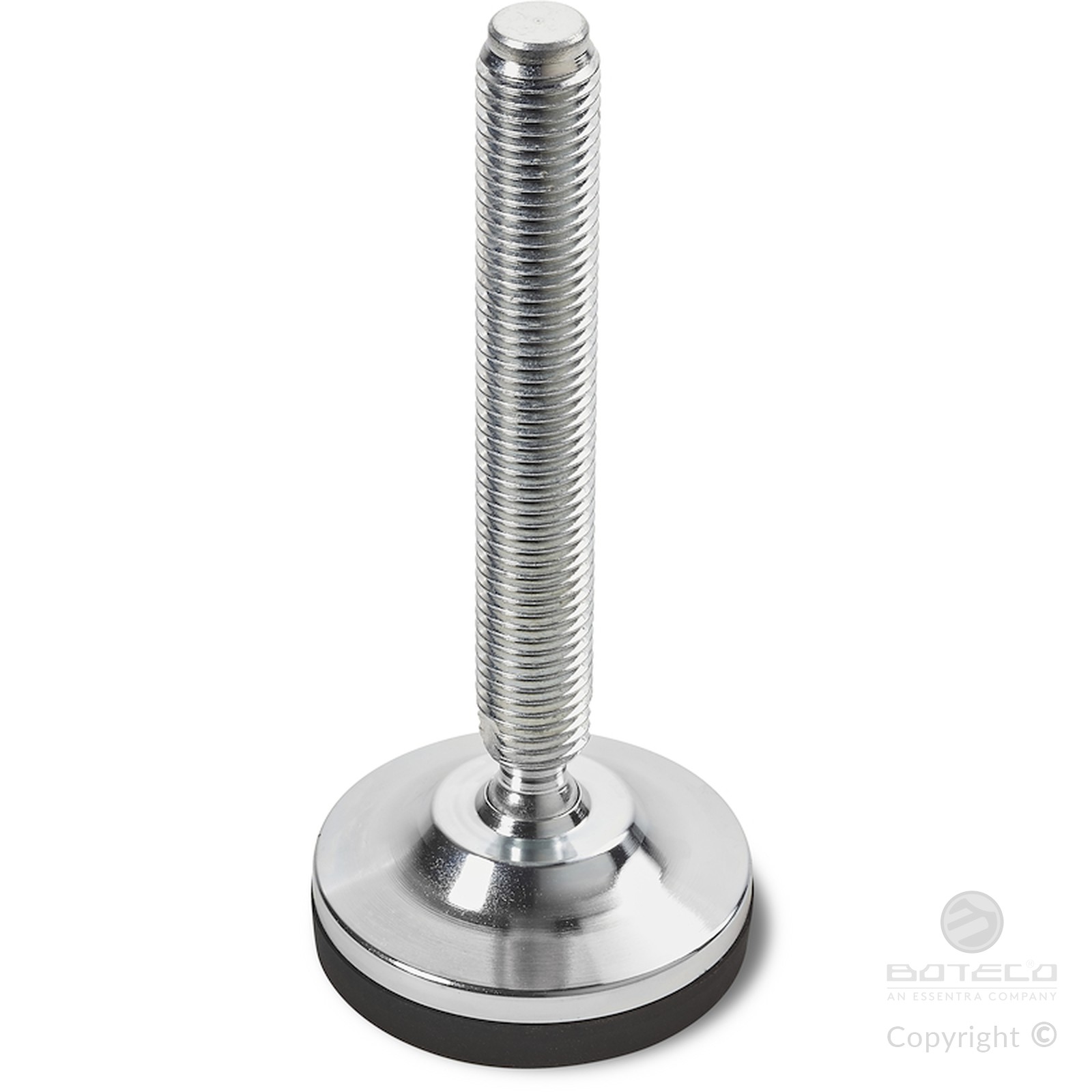

Version P542CIN: Stainless steel foot with stem type B (with milled seat for wrench) and ball 12.5 - with TPV non-slip base
| Code | Art. | D | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P54260.0001 | P54260.INM16X50CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 50 | 352 | 23 |
| P54260.0002 | P54260.INM16X70CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 70 | 379 | 23 |
| P54260.0003 | P54260.INM16X90CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 90 | 405 | 23 |
| P54260.0004 | P54260.INM16X110CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 110 | 431 | 23 |
| P54260.0005 | P54260.INM16X130CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 130 | 457 | 23 |
| P54260.0006 | P54260.INM16X150CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 150 | 483 | 23 |
| P54260.0007 | P54260.INM16X170CIN | 60 | 19.5 | 32 | 22 | 13 | 7 | 12.5 | M16 | 170 | 509 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
