P540
FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE A - BALL 12.5 AND NON-SLIP BASE
Metal feet with articulated stem + non-slip base
Materials:
P540:
Turned free-cutting steel mounting foot base.
P540CIN:
Turned stainless steel mounting foot base (Aisi 303).
Surface finish:
Smooth.
Colour:
P540:
Standard blue galvanising.
P540CIN:
Natural.
Inserts:
P540:
Galvanised steel threaded and articulated stem (ball 12.5) with hexagonal base (thread tolerance 6g).
P540CIN:
Stainless steel threaded and articulated stem (ball 12.5) with hexagonal base (Aisi 303) (thread tolerance 6g).
Stem fixing method:
The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.
Non-slip base:
Non-slip base in thermoplastic rubber TPV 75 Shore, black RAL 9011.
Resistant to oils and greases. Push-fit assembly.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.

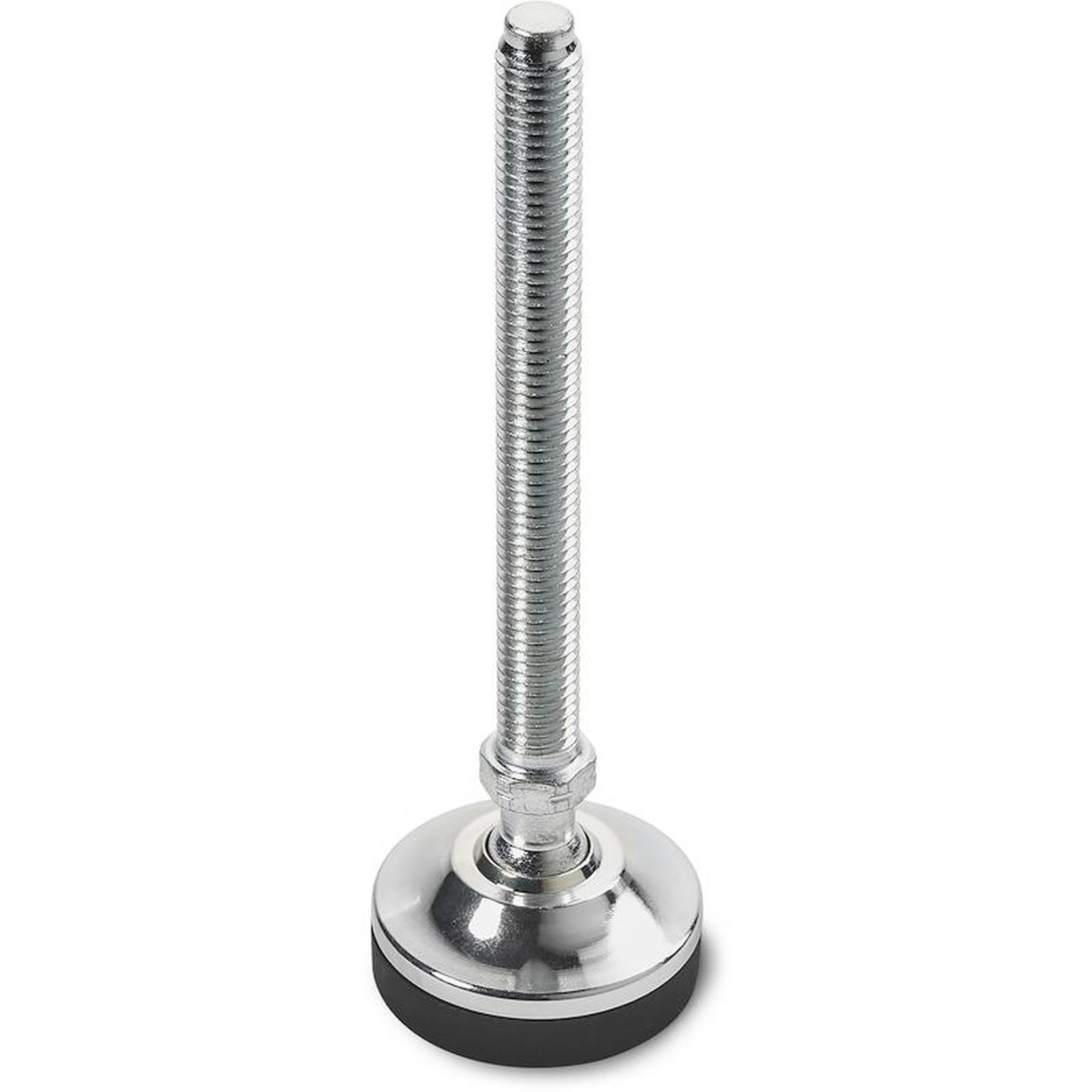

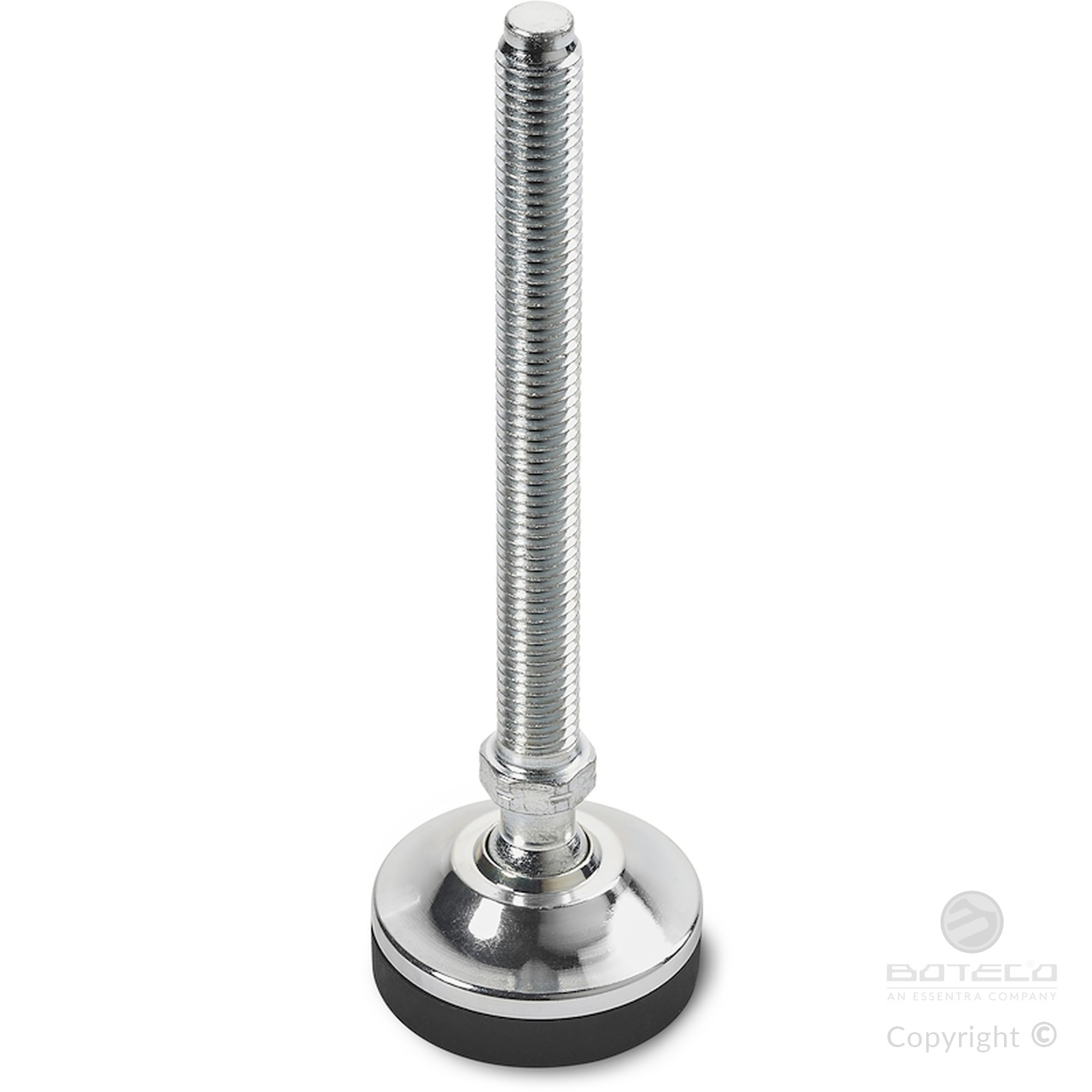

Version P540: Galvanised steel mounting foot with stem type A (with hexagonal base) and ball 12.5 - with TPV non-slip base

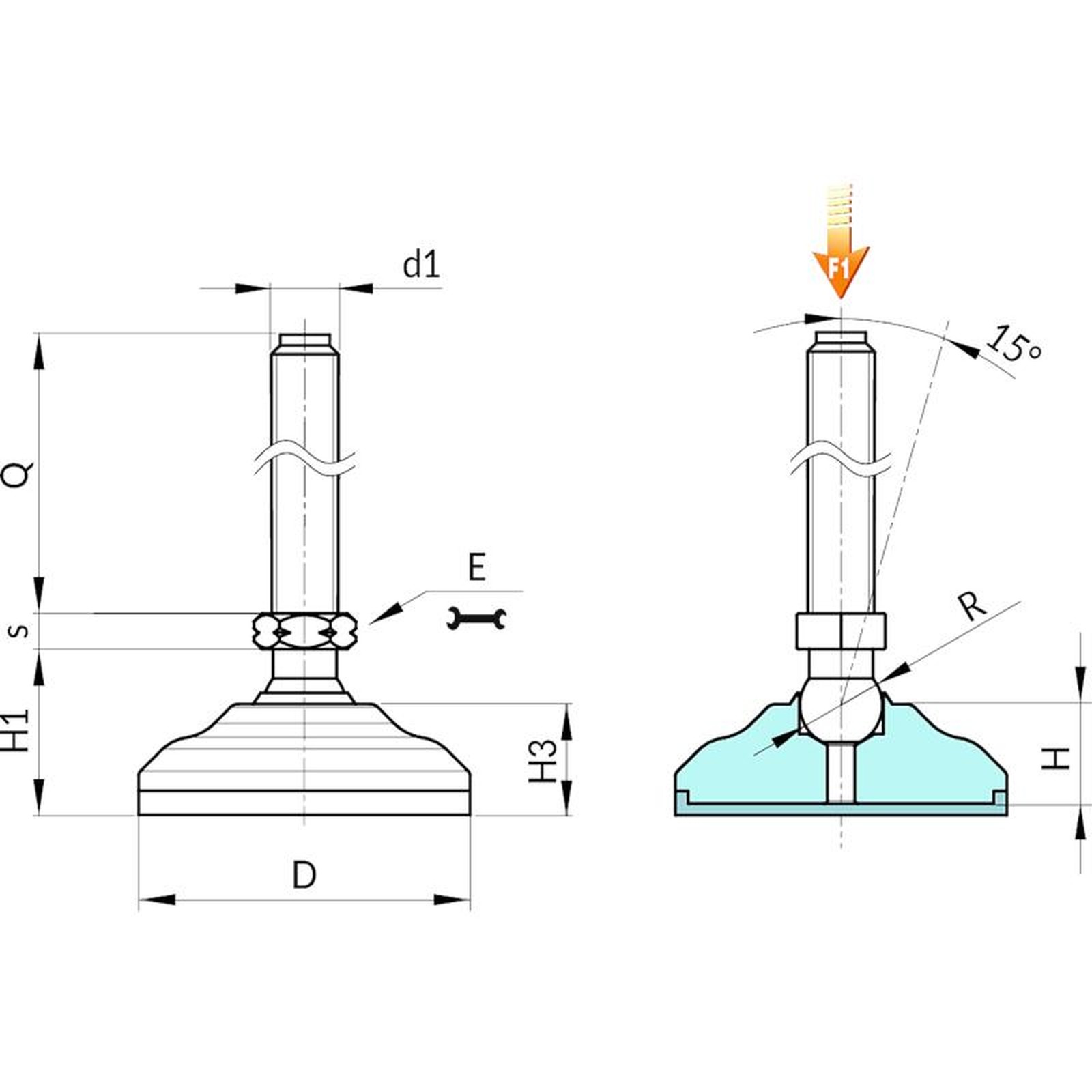

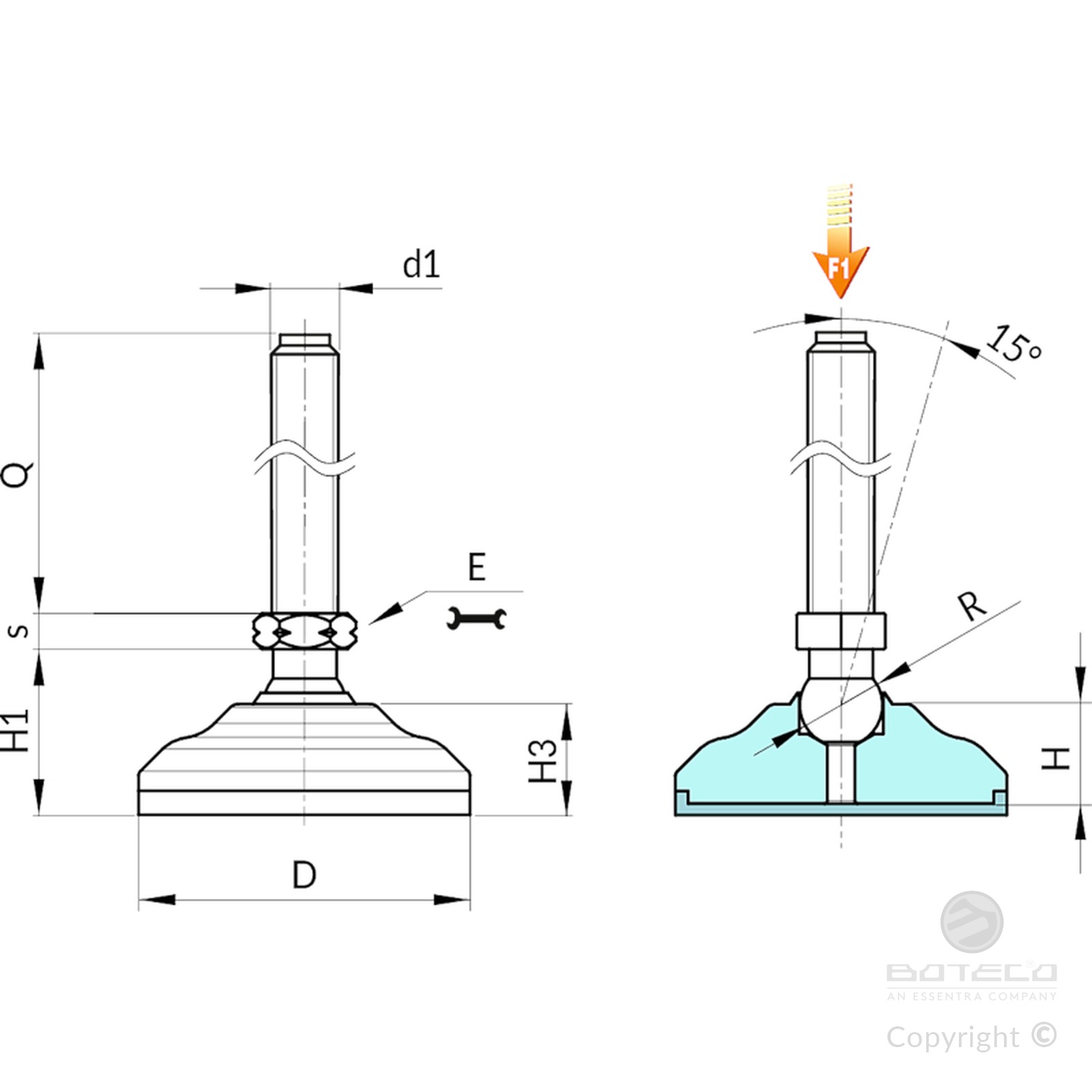

| Code | Art. | D | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1_(kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P54040.0009 | P54040.VZM08X45 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M8 | 45 | 136 | 13 |
| P54040.0010 | P54040.VZM08X70 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M8 | 70 | 143 | 13 |
| P54040.0011 | P54040.VZM10X45 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M10 | 45 | 144 | 23 |
| P54040.0012 | P54040.VZM10X70 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M10 | 70 | 156 | 23 |
| P54040.0013 | P54040.VZM10X100 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M10 | 100 | 183 | 23 |
| P54040.0014 | P54040.VZM12X45 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M12 | 45 | 153 | 23 |
| P54040.0015 | P54040.VZM12X70 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M12 | 70 | 172 | 23 |
| P54040.0016 | P54040.VZM12X100 | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M12 | 100 | 192 | 23 |
| P54050.0010 | P54050.VZM08X45 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M8 | 45 | 205 | 13 |
| P54050.0011 | P54050.VZM08X70 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M8 | 70 | 212 | 13 |
| P54050.0012 | P54050.VZM10X45 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M10 | 45 | 213 | 23 |
| P54050.0013 | P54050.VZM10X70 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M10 | 70 | 225 | 23 |
| P54050.0014 | P54050.VZM10X100 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M10 | 100 | 250 | 23 |
| P54050.0016 | P54050.VZM12X45 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M12 | 45 | 222 | 23 |
| P54050.0017 | P54050.VZM12X70 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M12 | 70 | 241 | 23 |
| P54050.0018 | P54050.VZM12X100 | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M12 | 100 | 261 | 23 |
| P54060.0009 | P54060.VZM08X45 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M8 | 45 | 310 | 13 |
| P54060.0010 | P54060.VZM08X70 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M8 | 70 | 317 | 13 |
| P54060.0011 | P54060.VZM10X45 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M10 | 45 | 318 | 23 |
| P54060.0012 | P54060.VZM10X70 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M10 | 70 | 330 | 23 |
| P54060.0013 | P54060.VZM10X100 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M10 | 100 | 355 | 23 |
| P54060.0015 | P54060.VZM12X45 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M12 | 45 | 327 | 23 |
| P54060.0016 | P54060.VZM12X70 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M12 | 70 | 346 | 23 |
| P54060.0014 | P54060.VZM12X100 | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M12 | 100 | 366 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

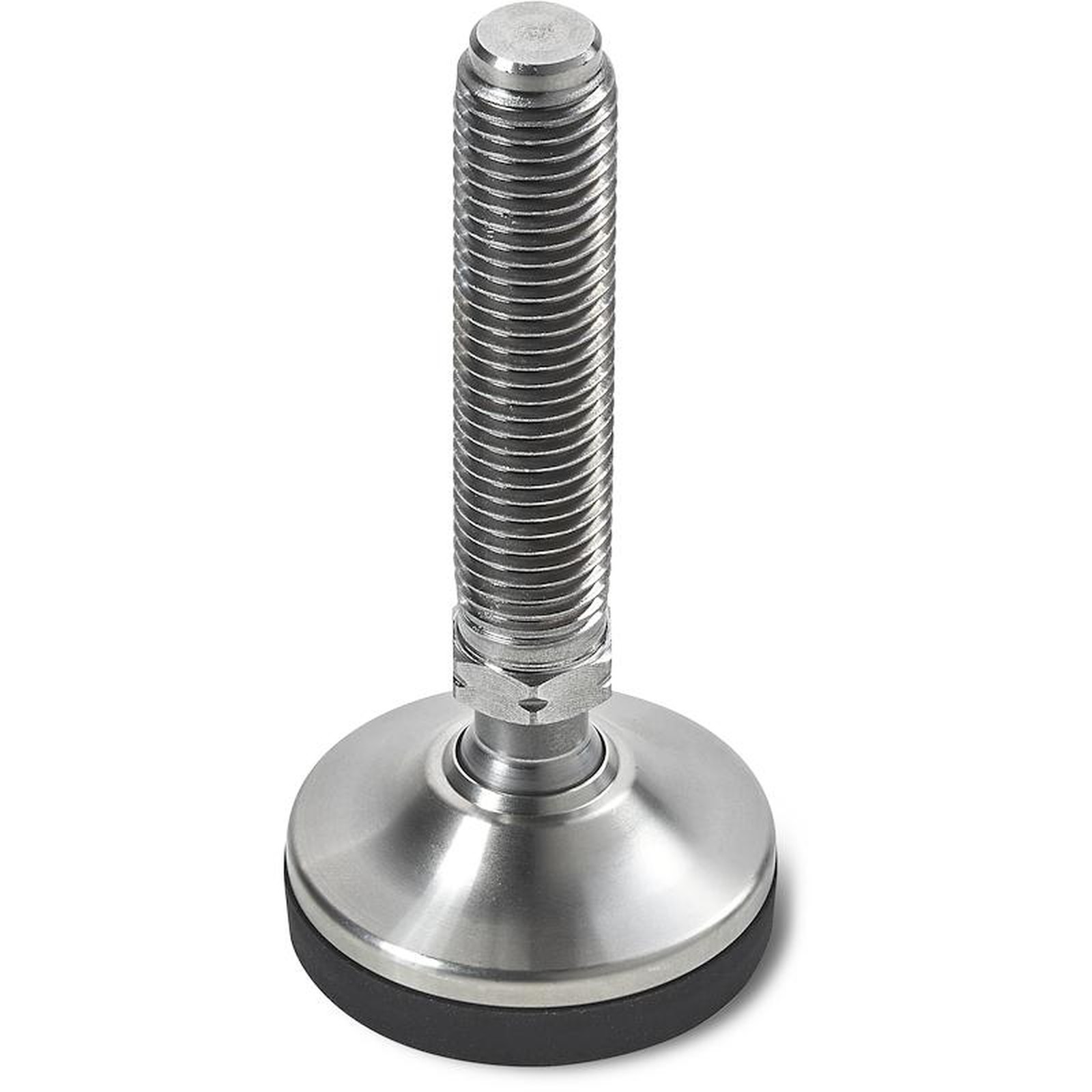

Version P540CIN: Stainless steel mounting foot with stem type A (with hexagonal base) and ball 12.5 - with TPV non-slip base
| Code | Art. | D | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1_(kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P54040.0001 | P54040.INM08X45CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M8 | 45 | 136 | 13 |
| P54040.0002 | P54040.INM08X70CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M8 | 70 | 143 | 13 |
| P54040.0003 | P54040.INM10X45CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M10 | 45 | 144 | 23 |
| P54040.0004 | P54040.INM10X70CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M10 | 70 | 156 | 23 |
| P54040.0005 | P54040.INM10X100CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M10 | 100 | 183 | 23 |
| P54040.0006 | P54040.INM12X45CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M12 | 45 | 153 | 23 |
| P54040.0007 | P54040.INM12X70CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M12 | 70 | 172 | 23 |
| P54040.0008 | P54040.INM12X100CIN | 40 | 15 | 26 | 17.5 | 13 | 5 | 12.5 | M12 | 100 | 192 | 23 |
| P54050.0001 | P54050.INM08X45CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M8 | 45 | 205 | 13 |
| P54050.0002 | P54050.INM08X70CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M8 | 70 | 212 | 13 |
| P54050.0003 | P54050.INM10X45CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M10 | 45 | 213 | 23 |
| P54050.0004 | P54050.INM10X70CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M10 | 70 | 225 | 23 |
| P54050.0005 | P54050.INM10X100CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M10 | 100 | 250 | 23 |
| P54050.0006 | P54050.INM12X45CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M12 | 45 | 222 | 23 |
| P54050.0007 | P54050.INM12X70CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M12 | 70 | 241 | 23 |
| P54050.0008 | P54050.INM12X100CIN | 50 | 17.5 | 29.5 | 20 | 13 | 5 | 12.5 | M12 | 100 | 261 | 23 |
| P54060.0001 | P54060.INM08X45CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M8 | 45 | 310 | 13 |
| P54060.0002 | P54060.INM08X70CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M8 | 70 | 317 | 13 |
| P54060.0003 | P54060.INM10X45CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M10 | 45 | 318 | 23 |
| P54060.0004 | P54060.INM10X70CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M10 | 70 | 330 | 23 |
| P54060.0005 | P54060.INM10X100CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M10 | 100 | 355 | 23 |
| P54060.0006 | P54060.INM12X45CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M12 | 45 | 327 | 23 |
| P54060.0007 | P54060.INM12X70CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M12 | 70 | 346 | 23 |
| P54060.0008 | P54060.INM12X100CIN | 60 | 19.5 | 32 | 22 | 13 | 5 | 12.5 | M12 | 100 | 366 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
