FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE A - BALL 24

16

P534


Piedi metallo con stelo snodato

    Materials:

    P534:

    Turned free-cutting steel mounting foot base.

    P534CIN:

    Turned stainless steel mounting foot base (Aisi 303).

    Surface finish:

    Smooth.

    Colour:

    P534:

    Standard blue galvanising.

    P534CIN:

    Natural.

    Inserts:

    P534:

    Galvanised steel threaded and articulated stem (ball 24) with hexagonal base (thread tolerance 6g).

    P534CIN:

    Stainless steel threaded and articulated stem (ball 24) with hexagonal base (Aisi 303) (thread tolerance 6g).

    Stem fixing method:

    The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.

    Special requests:

    Upon request and for special quantities inserts can be supplied with customised lengths.

    Data sheet

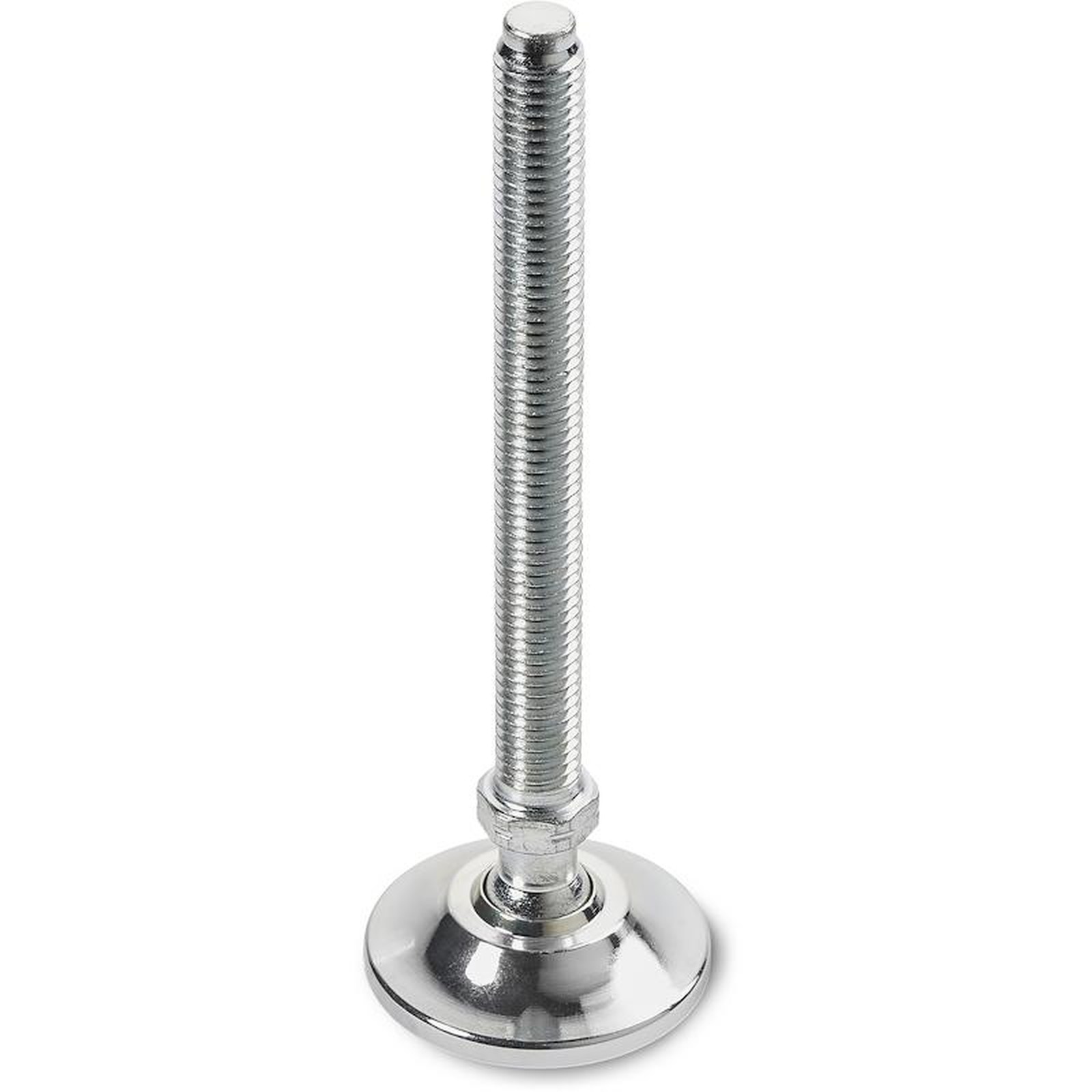

    Version P534: Galvanised steel mounting foot with stem type A (with hexagonal base) and ball 24

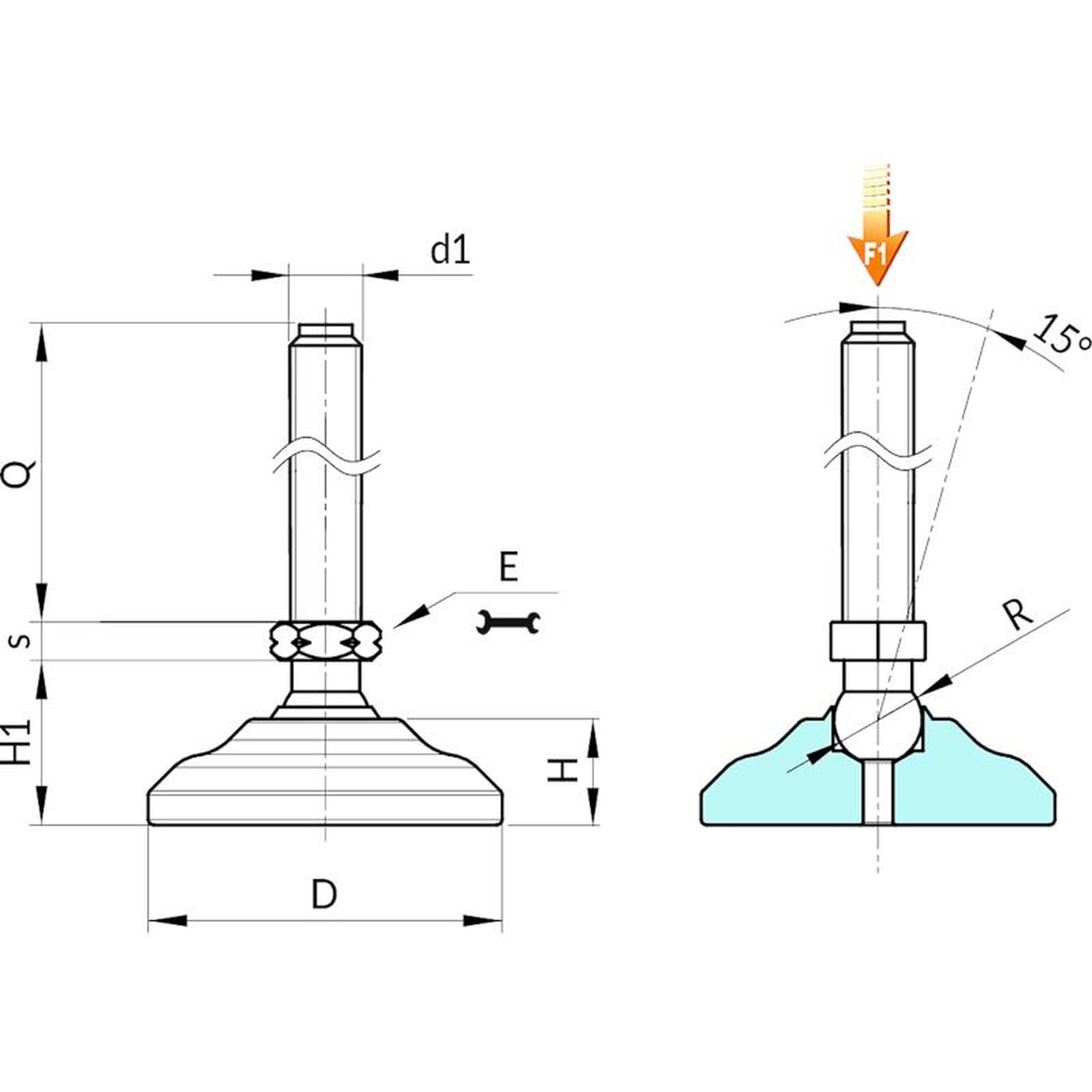

    Code Art. D H H1 E s R d1 6g Q Weight (g) F1 (kN)
    P53460.0012 P53460.VZM16X90 60 18 40 13 7 24 M16 90 - 60
    P53460.0013 P53460.VZM16X110 60 18 40 13 7 24 M16 110 - 60
    P53460.0014 P53460.VZM16X130 60 18 40 13 7 24 M16 130 - 60
    P53460.0015 P53460.VZM16X150 60 18 40 13 7 24 M16 150 - 60
    P53460.0016 P53460.VZM16X170 60 18 40 13 7 24 M16 170 - 60
    P53460.0017 P53460.VZM20X90 60 18 40 16 7 24 M20 90 - 90
    P53460.0018 P53460.VZM20X110 60 18 40 16 7 24 M20 110 - 90
    P53460.0019 P53460.VZM20X130 60 18 40 16 7 24 M20 130 - 90
    P53460.0020 P53460.VZM20X150 60 18 40 16 7 24 M20 150 - 90
    P53460.0021 P53460.VZM20X170 60 18 40 16 7 24 M20 170 - 90
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
    Customised stud length available for a minimum of 100 pieces.

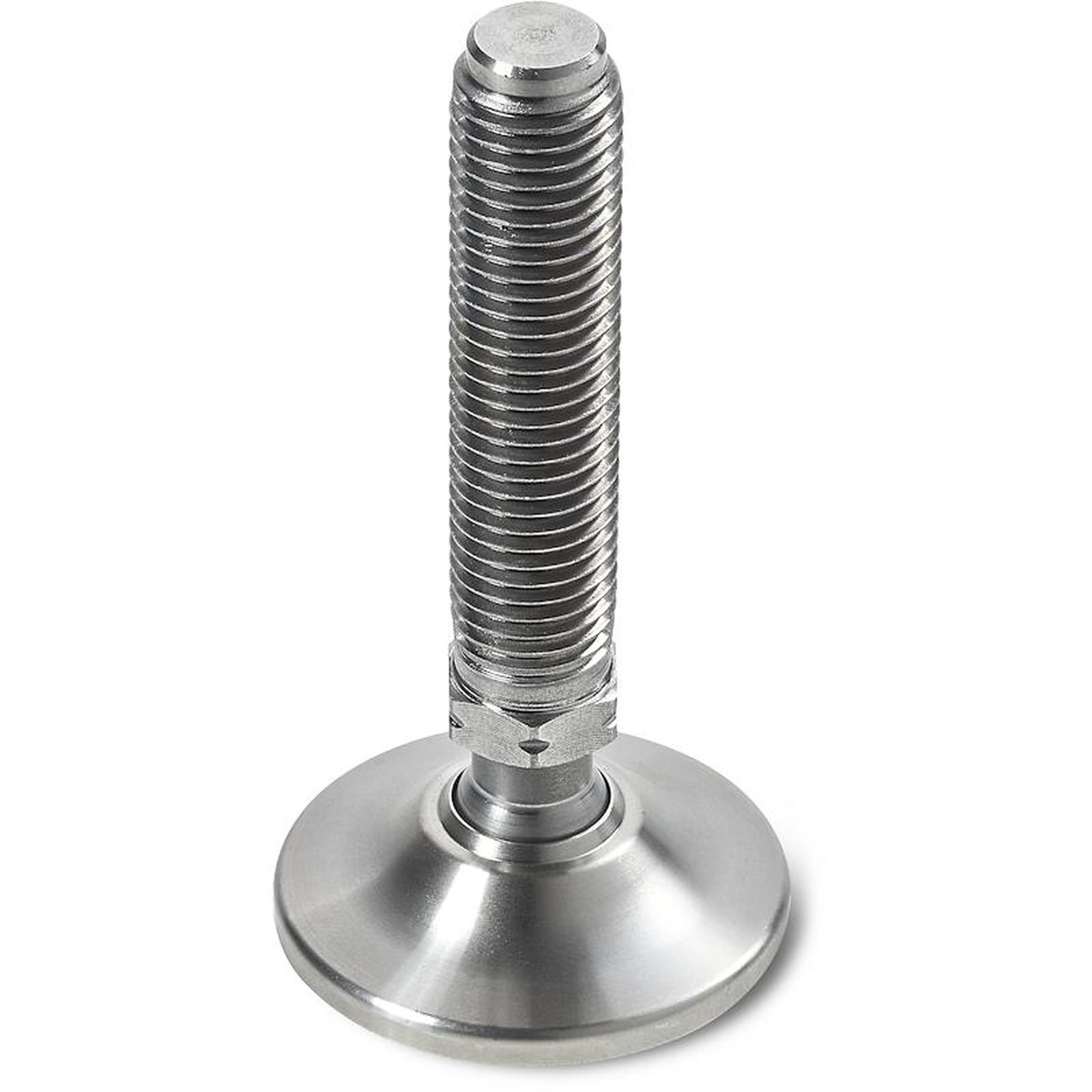

    Version P534CIN: Stainless steel mounting foot with stem type A (with hexagonal base) and ball 24

    Code Art. D H H1 E s R d1 6g Q Weight (g) F1 (kN)
    P53460.0001 P53460.INM16X90CIN 60 18 40 13 7 24 M16 90 - 60
    P53460.0002 P53460.INM16X110CIN 60 18 40 13 7 24 M16 110 - 60
    P53460.0003 P53460.INM16X130CIN 60 18 40 13 7 24 M16 130 - 60
    P53460.0004 P53460.INM16X150CIN 60 18 40 13 7 24 M16 150 - 60
    P53460.0006 P53460.INM20X90CIN 60 18 40 16 7 24 M20 90 - 90
    P53460.0007 P53460.INM20X110CIN 60 18 40 16 7 24 M20 110 - 90
    P53460.0008 P53460.INM20X130CIN 60 18 40 16 7 24 M20 130 - 90
    P53460.0009 P53460.INM20X150CIN 60 18 40 16 7 24 M20 150 - 90
    P53460.0010 P53460.INM20X170CIN 60 18 40 16 7 24 M20 170 - 90
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
    Customised stud length available for a minimum of 100 pieces.
