FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE B - BALL 12.4
16
P532
Piedi metallo con stelo snodato
Materials:
P532:
Turned free-cutting steel mounting foot base.
P532CIN:
Turned stainless steel mounting foot base (Aisi 303).
Surface finish:
Smooth.
Colour:
P532:
Standard blue galvanising.
P532CIN:
Natural.
Inserts:
P532:
Galvanised steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (thread tolerance 6g).
P532CIN:
Stainless steel threaded and articulated stem (ball 12.5) with milled seat for wrench (type B) (Aisi 303) (thread tolerance 6g).
Stem fixing method:
The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.

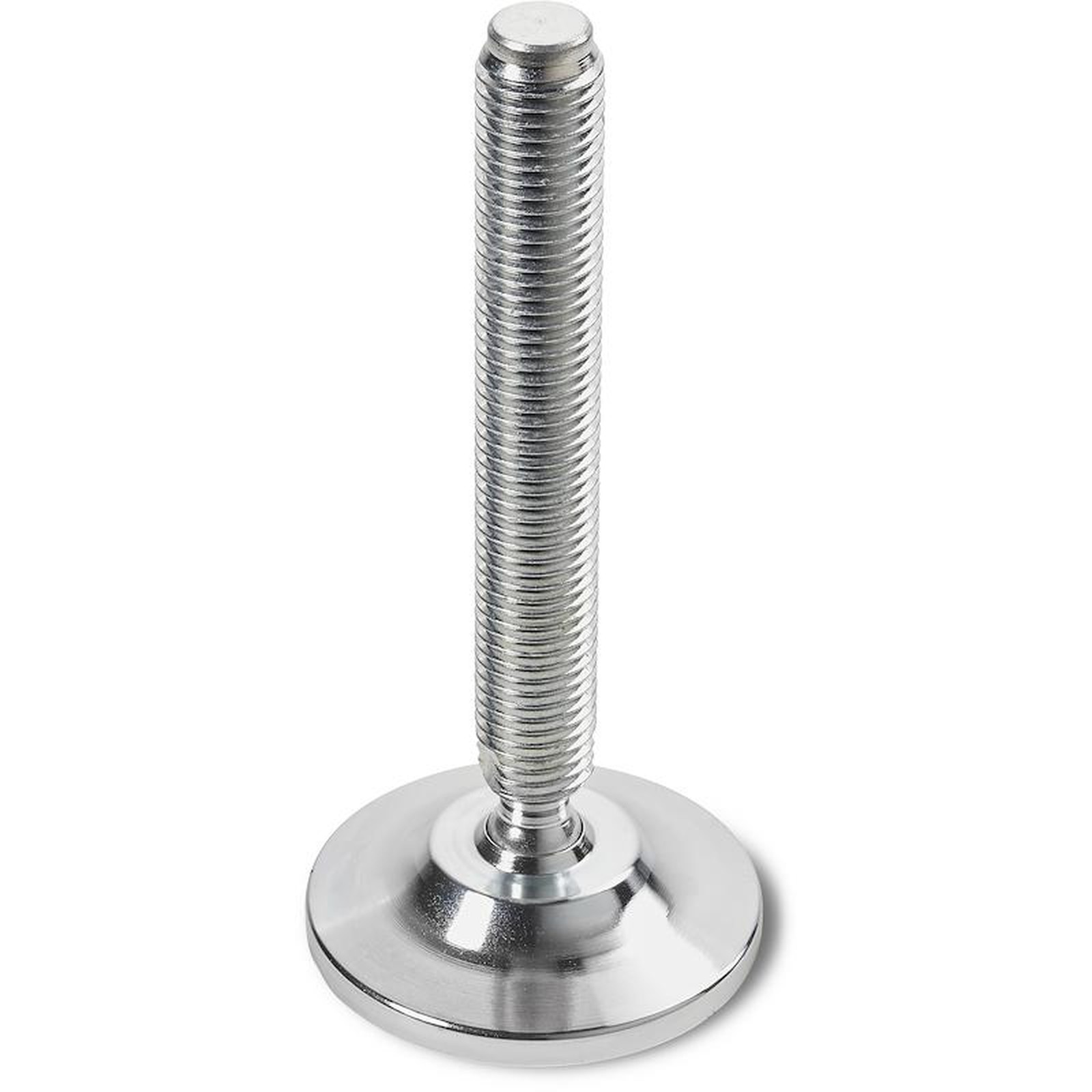

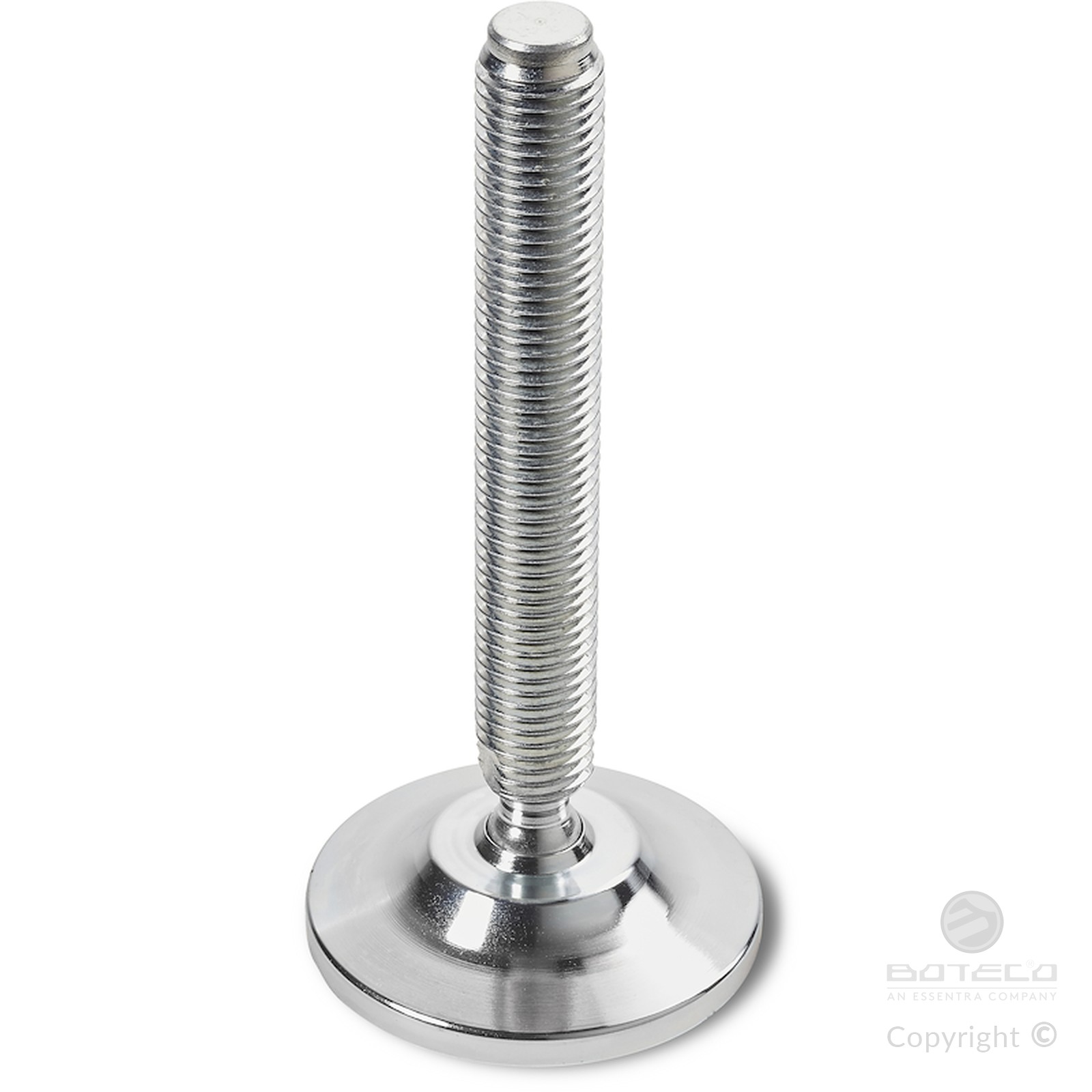

Version P532: Galvanised steel mounting foot with stem type B (with milled seat for wrench) and ball 12.5

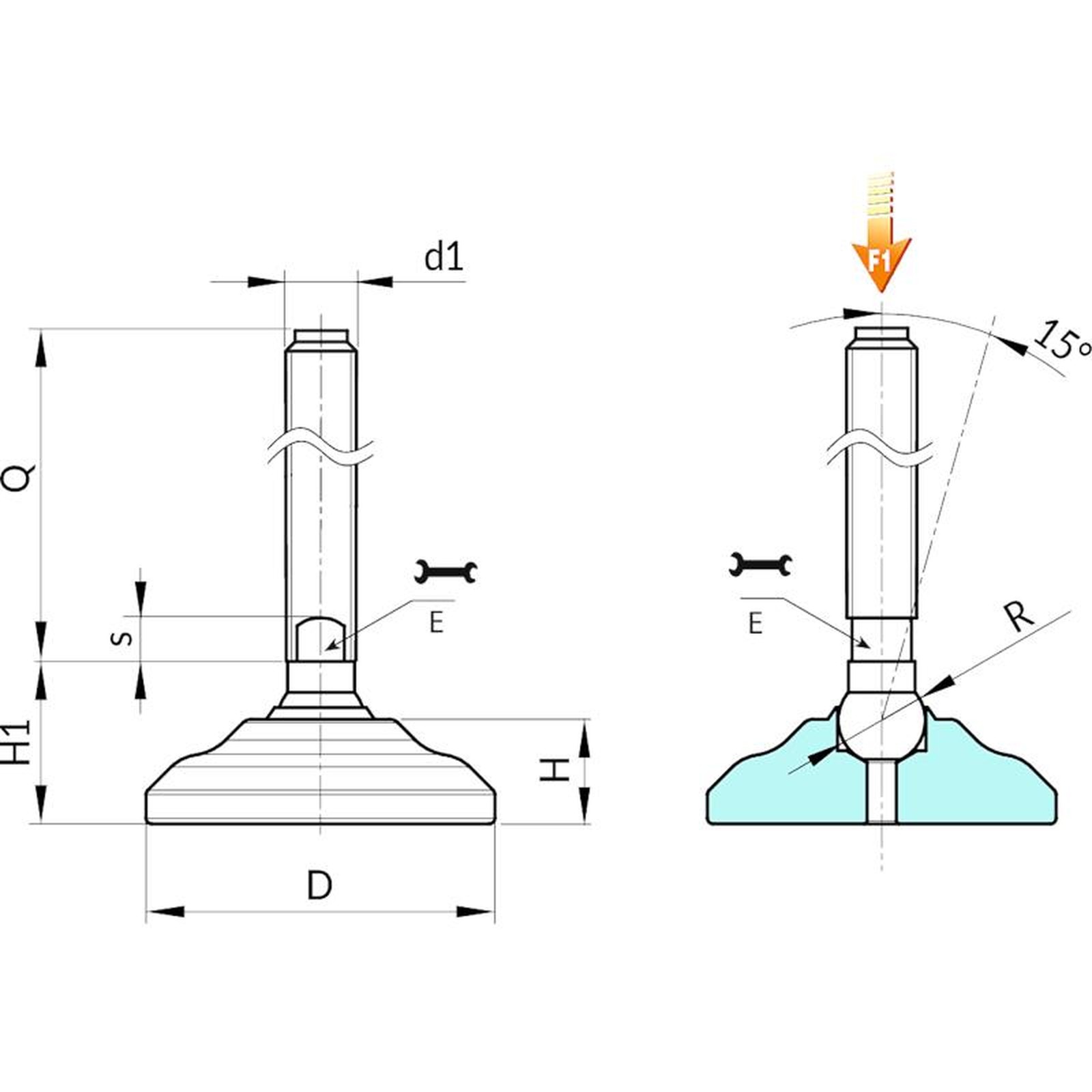

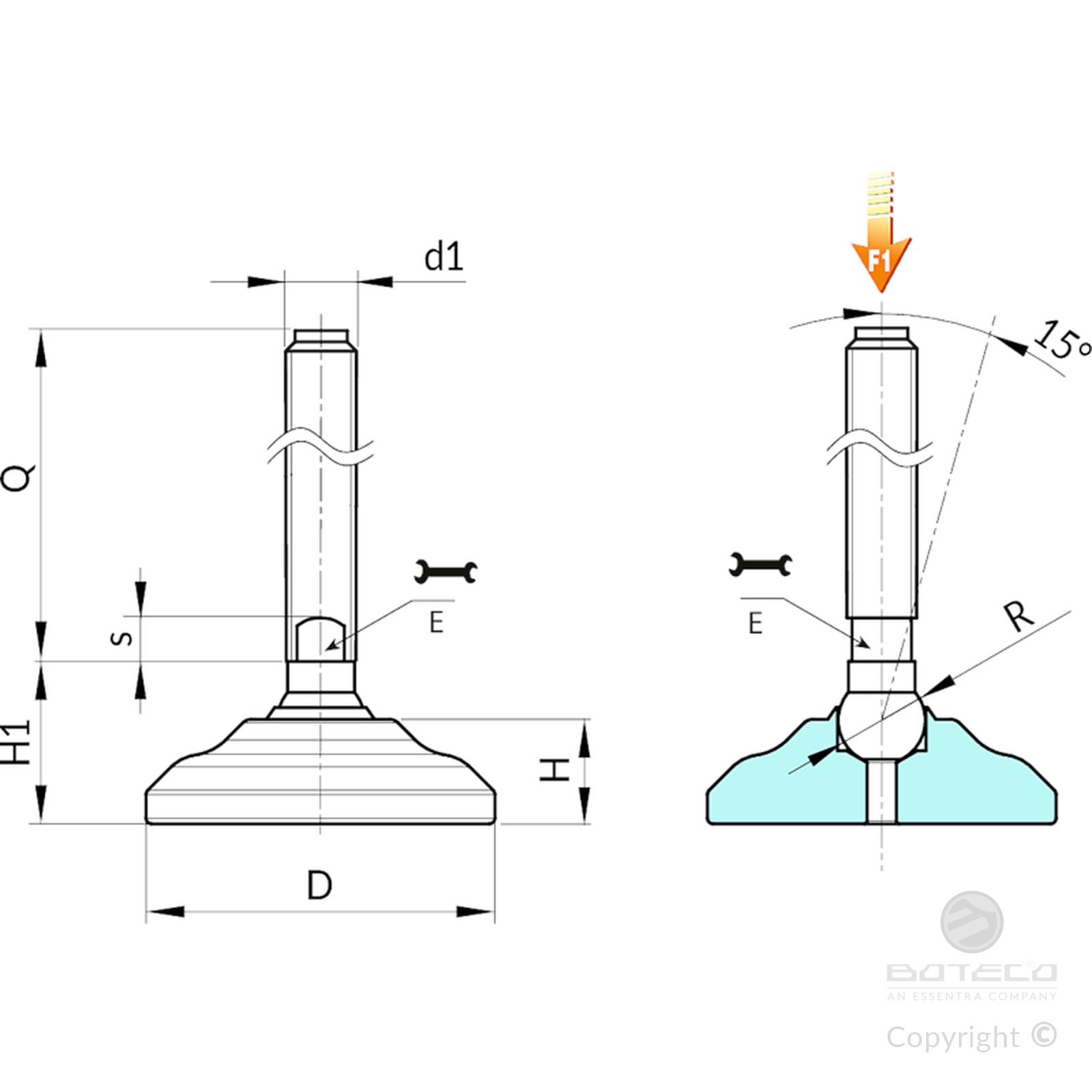

| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P53260.0008 | P53260.VZM16X50 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 50 | 338 | 23 |
| P53260.0009 | P53260.VZM16X70 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 70 | 364 | 23 |
| P53260.0010 | P53260.VZM16X90 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 90 | 390 | 23 |
| P53260.0011 | P53260.VZM16X110 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 110 | 416 | 23 |
| P53260.0012 | P53260.VZM16X130 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 130 | 442 | 23 |
| P53260.0013 | P53260.VZM16X150 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 150 | 468 | 23 |
| P53260.0014 | P53260.VZM16X170 | 60 | 18 | 28 | 13 | 7 | 12.5 | M16 | 170 | 494 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

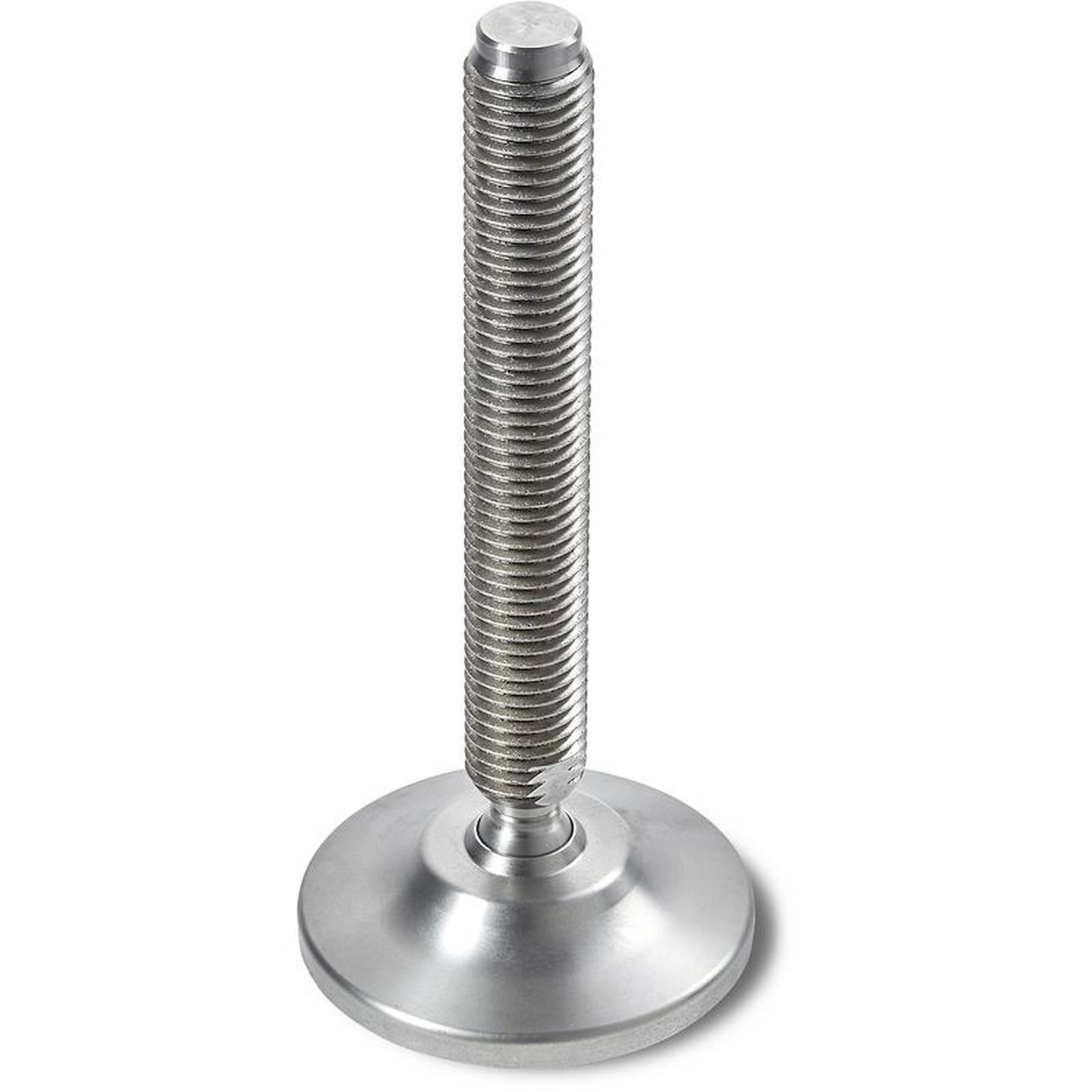

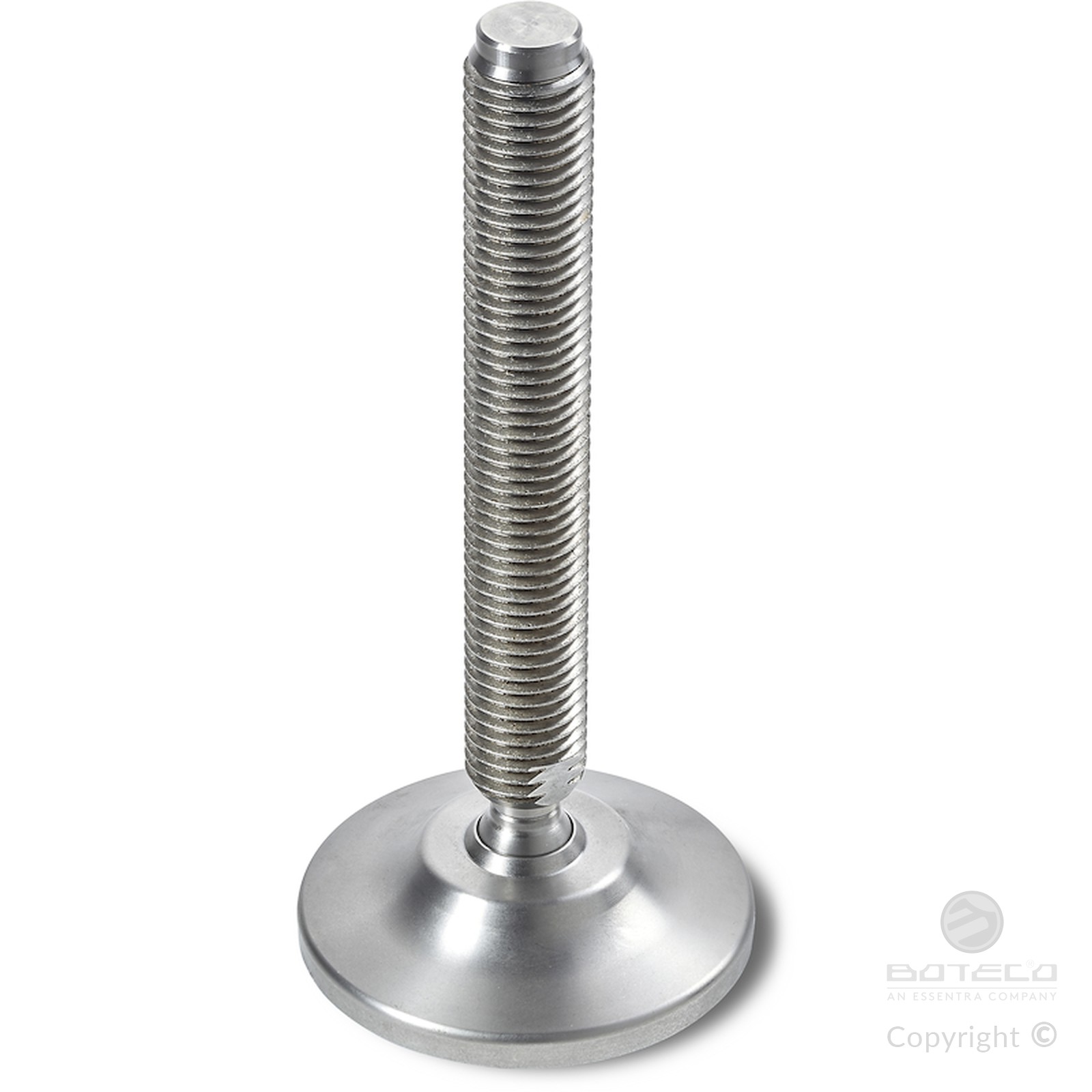

Version P532CIN: Stainless steel mounting foot with stem type B (with milled seat for wrench) and ball 12.5
| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P53260.0001 | P53260.INM16X50CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 50 | 338 | 23 |
| P53260.0002 | P53260.INM16X70CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 70 | 364 | 23 |
| P53260.0003 | P53260.INM16X90CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 90 | 390 | 23 |
| P53260.0004 | P53260.INM16X110CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 110 | 416 | 23 |
| P53260.0005 | P53260.INM16X130CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 130 | 442 | 23 |
| P53260.0006 | P53260.INM16X150CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 150 | 468 | 23 |
| P53260.0007 | P53260.INM16X170CIN | 60 | 18 | 28 | 13 | 7 | 12.4 | M16 | 170 | 494 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
