P530
FULL STEEL MOUNTING FOOT WITH ARTICULATED STEM TYPE A - BALL 12.5
Metal feet with articulated stem
Materials:
P530:
Turned free-cutting steel mounting foot base.
P530CIN:
Turned stainless steel mounting foot base (Aisi 303).
Surface finish:
Smooth.
Colour:
P530:
Standard blue galvanising.
P530CIN:
Natural.
Inserts:
P530:
Galvanised steel threaded and articulated stem (ball 12.5) with hexagonal base (thread tolerance 6g).
P530CIN:
Stainless steel threaded and articulated stem (ball 12.5) with hexagonal base (Aisi 303) (thread tolerance 6g).
Stem fixing method:
The stem cannot be disassembled. The ball cannot be removed as the edge of its seat has been pressed in.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.

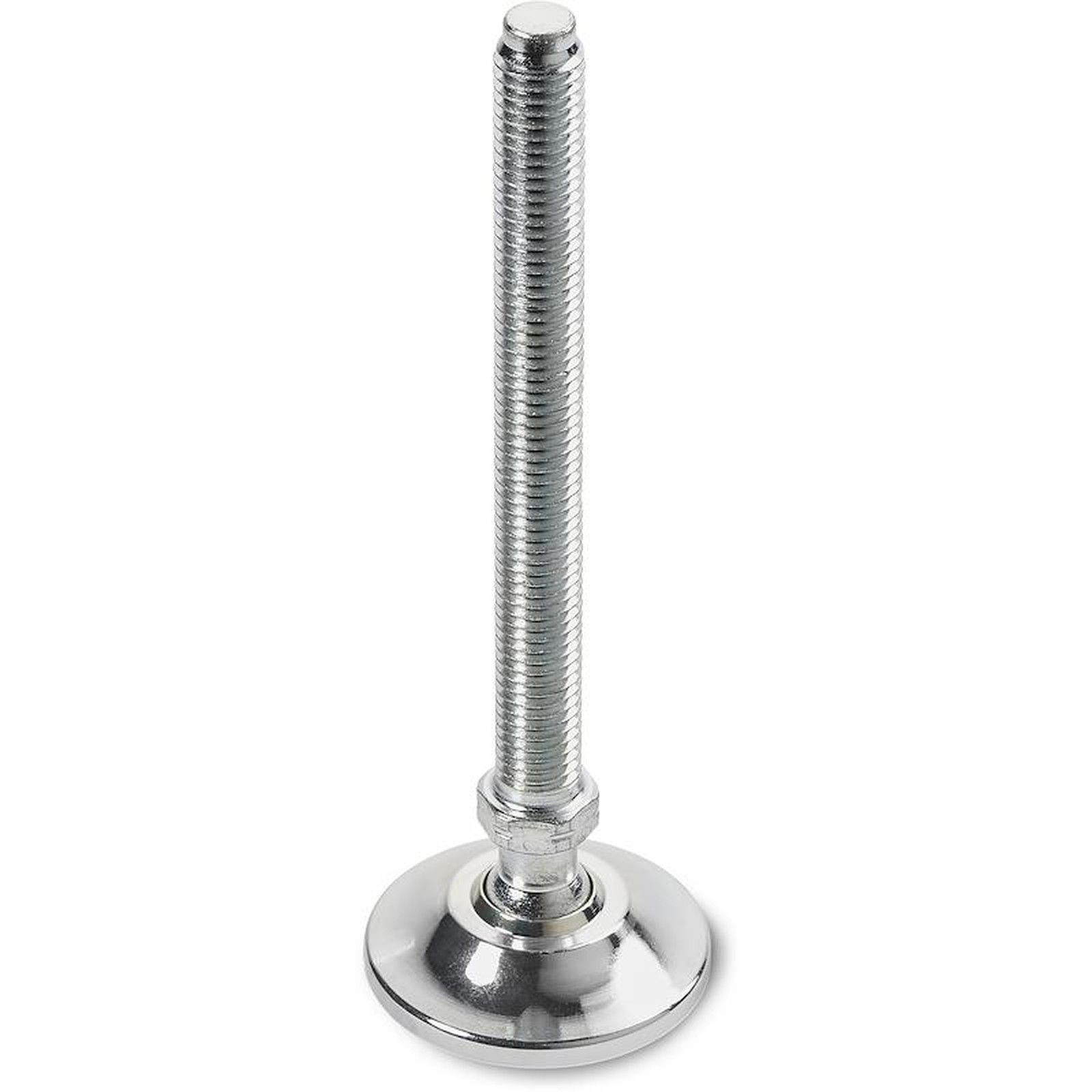

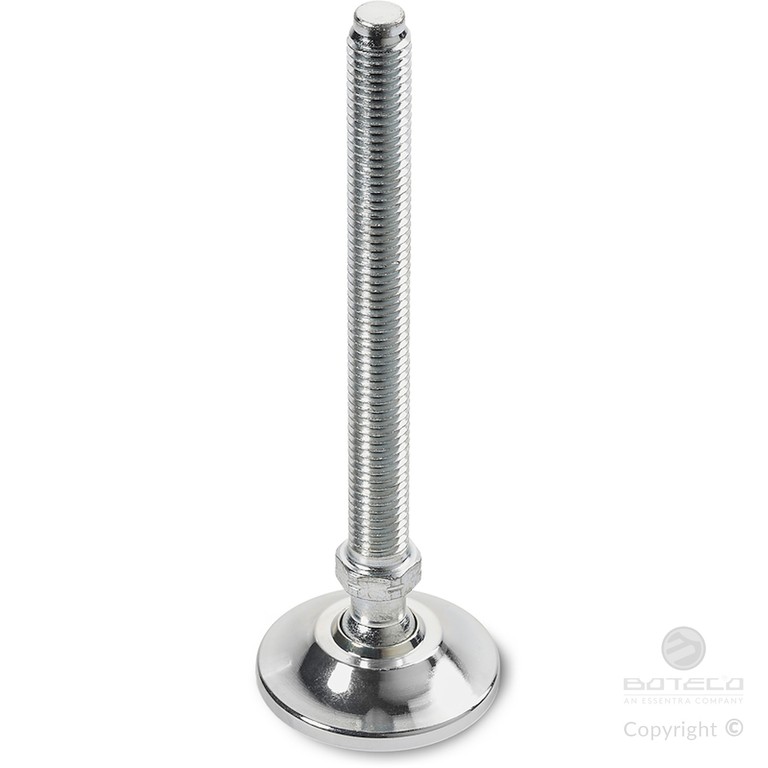

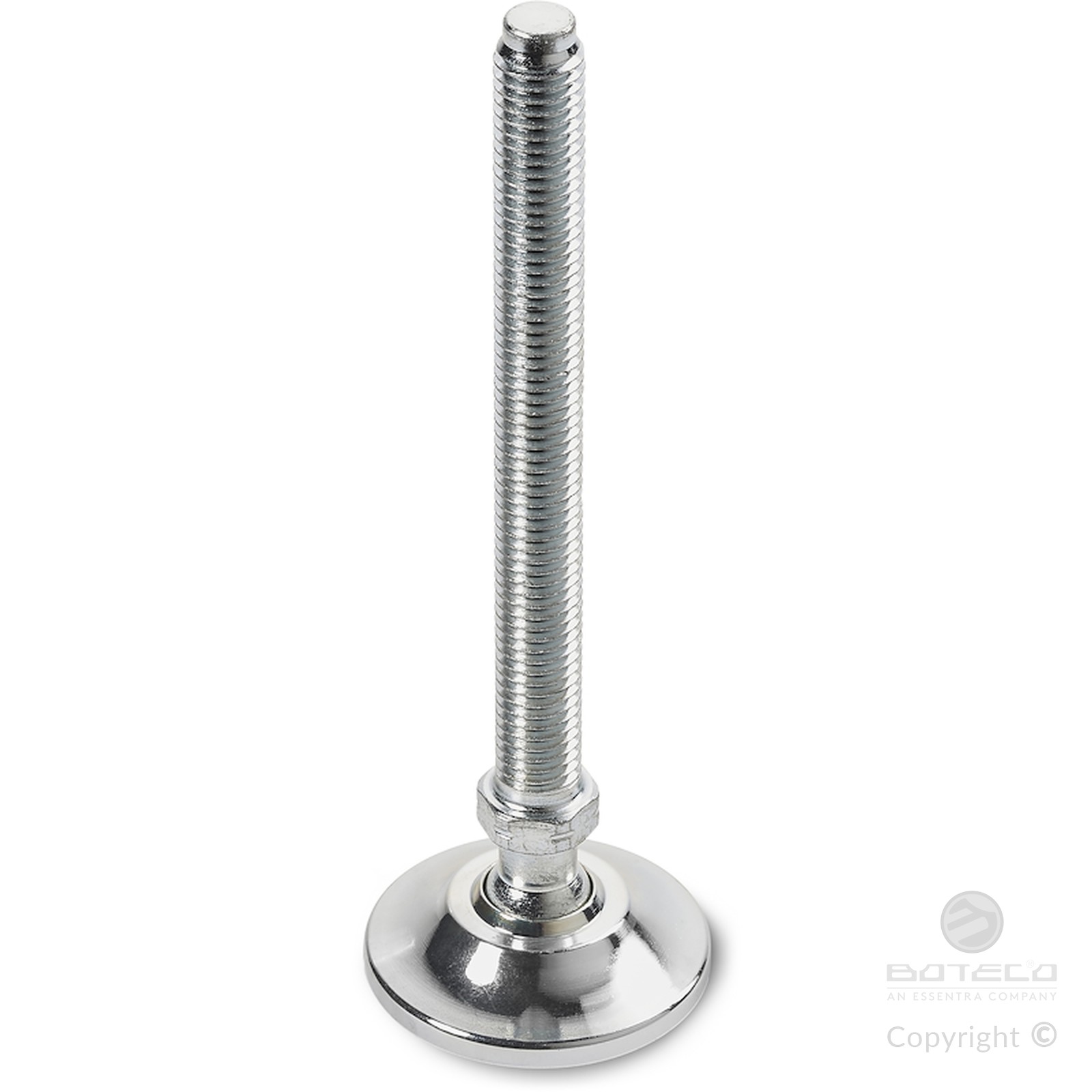

Version P530: Galvanised steel mounting foot with stem type A (with hexagonal base) and ball 12.5

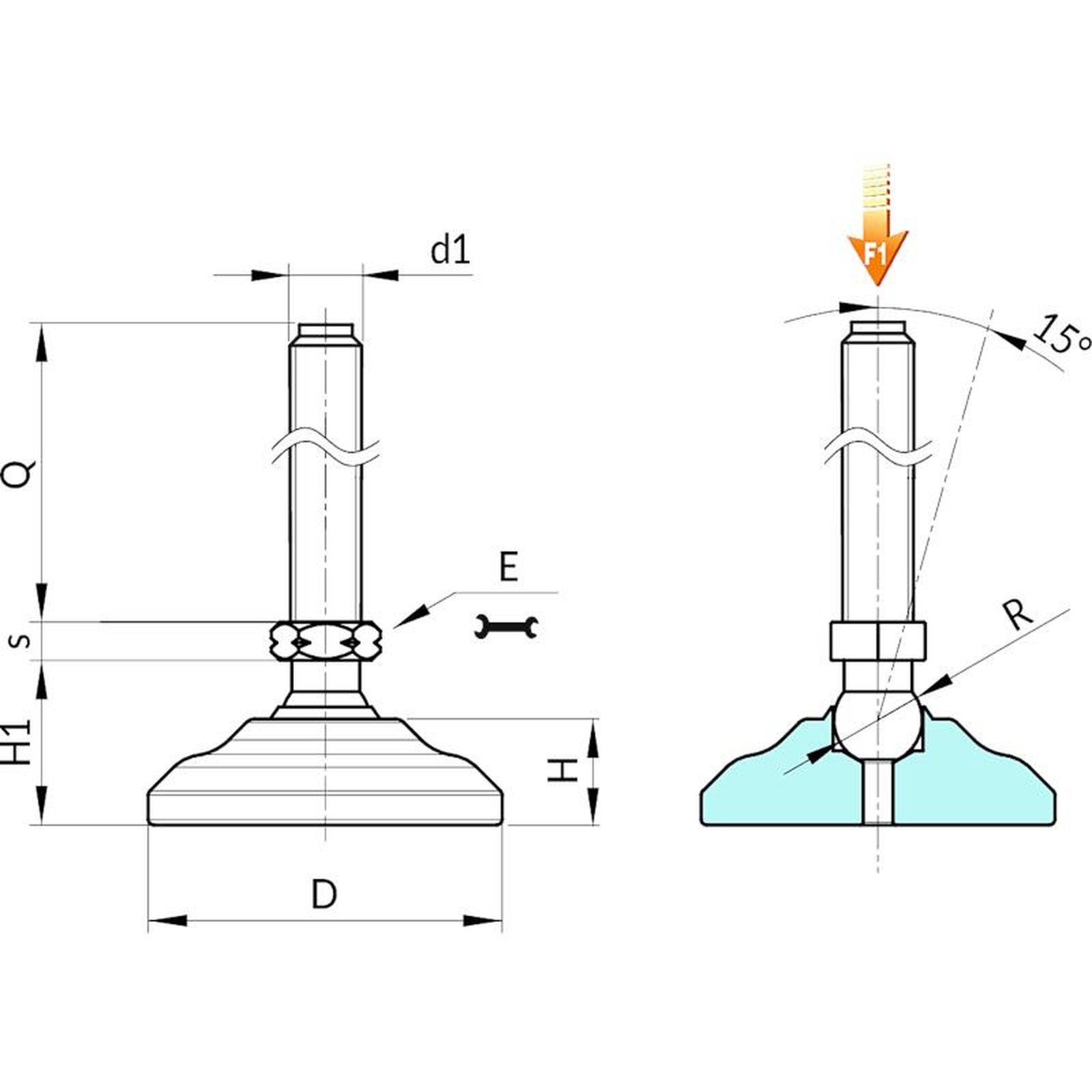

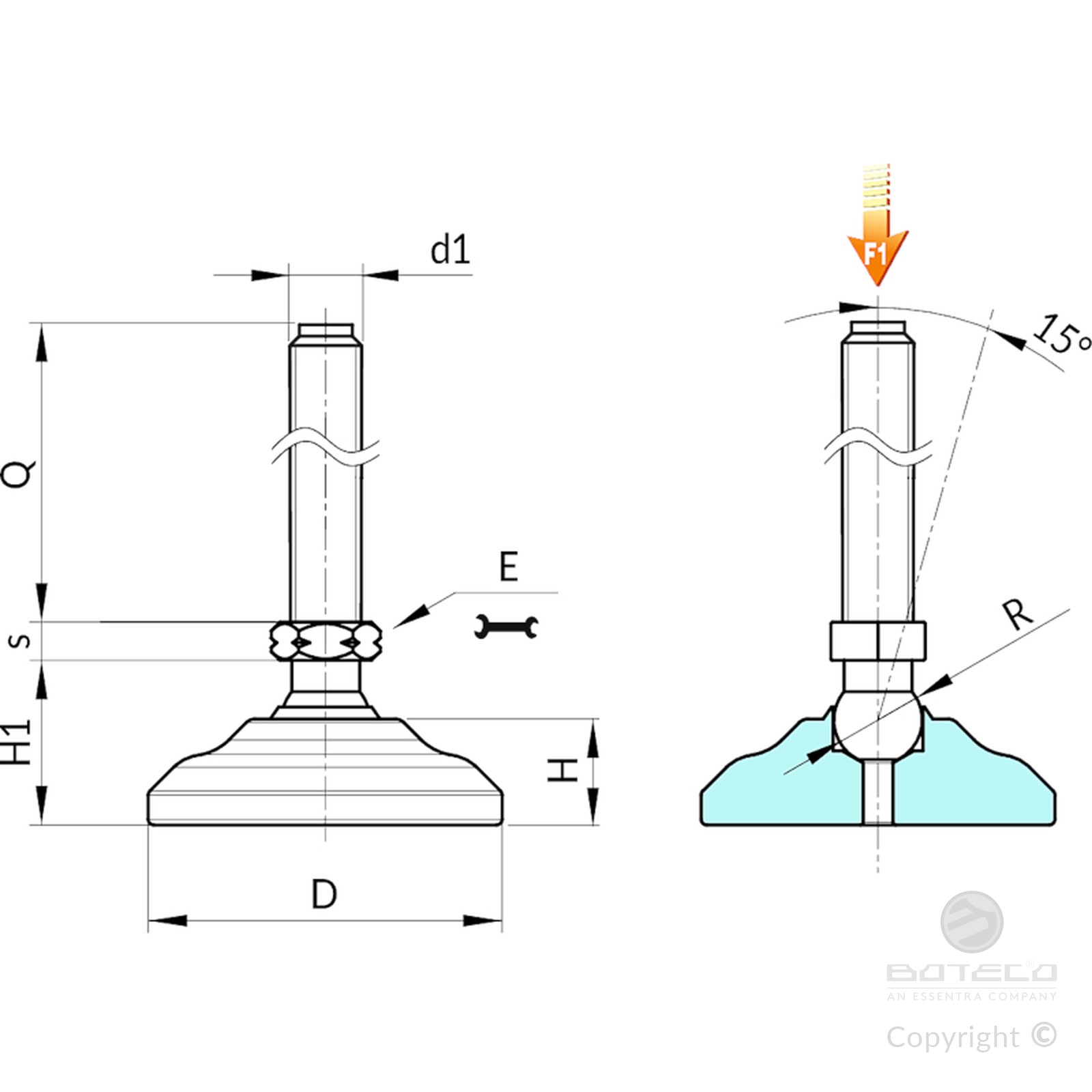

| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P53040.0009 | P53040.VZM08X45 | 40 | 11,5 | 20 | 13 | 5 | 15 | M8 | 45 | 132 | 50 |
| P53040.0010 | P53040.VZM08X70 | 40 | 11,5 | 20 | 13 | 5 | 15 | M8 | 70 | 139 | 50 |
| P53040.0011 | P53040.VZM10X045 | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M10 | 45 | 140 | 23 |
| P53040.0012 | P53040.VZM10X070 | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M10 | 70 | 152 | 23 |
| P53040.0013 | P53040.VZM10X100 | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M10 | 100 | 179 | 23 |
| P53040.0014 | P53040.VZM12X045 | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M12 | 45 | 149 | 23 |
| P53040.0015 | P53040.VZM12X070 | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M12 | 70 | 168 | 23 |
| P53040.0016 | P53040.VZM12X100 | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M12 | 100 | 188 | 23 |
| P53050.0009 | P53050.VZM08X045 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M8 | 45 | 186 | 23 |
| P53050.0010 | P53050.VZM08X070 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M8 | 70 | 196 | 23 |
| P53050.0011 | P53050.VZM10X045 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M10 | 45 | 203 | 23 |
| P53050.0012 | P53050.VZM10X070 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M10 | 70 | 215 | 23 |
| P53050.0013 | P53050.VZM10X100 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M10 | 100 | 240 | 23 |
| P53050.0014 | P53050.VZM12X045 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M12 | 45 | 212 | 23 |
| P53050.0015 | P53050.VZM12X070 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M12 | 70 | 231 | 23 |
| P53050.0016 | P53050.VZM12X100 | 50 | 14,5 | 25 | 13 | 5 | 12.5 | M12 | 100 | 251 | 23 |
| P53060.0009 | P53060.VZM08X045 | 60 | 18 | 28 | 13 | 5 | 12.5 | M8 | 45 | 295 | 13 |
| P53060.0010 | P53060.VZM08X070 | 60 | 18 | 28 | 13 | 5 | 12.5 | M8 | 70 | 302 | 13 |
| P53060.0011 | P53060.VZM10X045 | 60 | 18 | 28 | 13 | 5 | 12.5 | M10 | 45 | 303 | 23 |
| P53060.0012 | P53060.VZM10X070 | 60 | 18 | 28 | 13 | 5 | 12.5 | M10 | 70 | 315 | 23 |
| P53060.0013 | P53060.VZM10X100 | 60 | 18 | 28 | 13 | 5 | 12.5 | M10 | 100 | 340 | 23 |
| P53060.0014 | P53060.VZM12X045 | 60 | 18 | 28 | 13 | 5 | 12.5 | M12 | 45 | 312 | 23 |
| P53060.0015 | P53060.VZM12X070 | 60 | 18 | 28 | 13 | 5 | 12.5 | M12 | 70 | 331 | 23 |
| P53060.0016 | P53060.VZM12X100 | 60 | 18 | 28 | 13 | 5 | 12.5 | M12 | 100 | 351 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

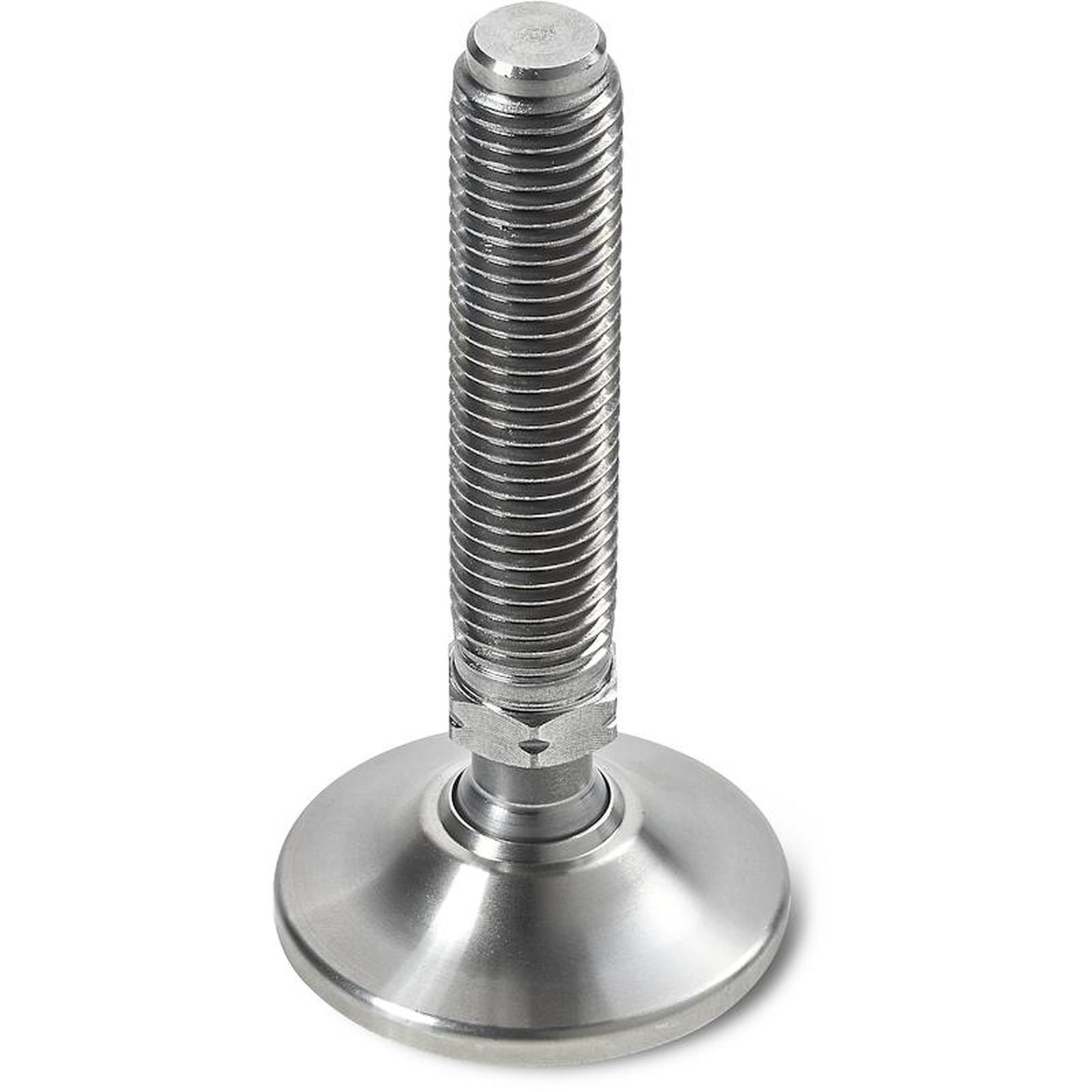

Version P530CIN: Stainless steel mounting foot with stem type A (with hexagonal base) and ball 12.5
| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P53040.0001 | P53040.INM08X045CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M8 | 45 | 132 | 13 |
| P53040.0002 | P53040.INM08X070CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M8 | 70 | 139 | 13 |
| P53040.0003 | P53040.INM10X045CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M10 | 45 | 140 | 23 |
| P53040.0005 | P53040.INM10X70CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M10 | 70 | 152 | 23 |
| P53040.0004 | P53040.INM10X100CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M10 | 100 | 179 | 23 |
| P53040.0006 | P53040.INM12X045CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M12 | 45 | 149 | 23 |
| P53040.0007 | P53040.INM12X070CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M12 | 70 | 168 | 23 |
| P53040.0008 | P53040.INM12X100CIN | 40 | 11,5 | 20 | 13 | 5 | 12.5 | M12 | 100 | 188 | 23 |
| P53050.0001 | P53050.INM08X045CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M8 | 45 | 195 | 13 |
| P53050.0002 | P53050.INM08X070CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M8 | 70 | 202 | 13 |
| P53050.0003 | P53050.INM10X045CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M10 | 45 | 203 | 23 |
| P53050.0004 | P53050.INM10X070CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M10 | 70 | 215 | 23 |
| P53050.0005 | P53050.INM10X100CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M10 | 100 | 240 | 23 |
| P53050.0006 | P53050.INM12X045CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M12 | 45 | 212 | 23 |
| P53050.0007 | P53050.INM12X070CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M12 | 70 | 231 | 23 |
| P53050.0008 | P53050.INM12X100CIN | 50 | 13.5 | 23 | 13 | 5 | 12.5 | M12 | 100 | 251 | 23 |
| P53060.0001 | P53060.INM08X045CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M8 | 45 | 295 | 13 |
| P53060.0002 | P53060.INM08X070CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M8 | 70 | 302 | 13 |
| P53060.0003 | P53060.INM10X045CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M10 | 45 | 303 | 23 |
| P53060.0004 | P53060.INM10X070CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M10 | 70 | 315 | 23 |
| P53060.0005 | P53060.INM10X100CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M10 | 100 | 340 | 23 |
| P53060.0006 | P53060.INM12X045CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M12 | 45 | 312 | 23 |
| P53060.0007 | P53060.INM12X070CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M12 | 70 | 331 | 23 |
| P53060.0008 | P53060.INM12X100CIN | 60 | 18 | 28 | 13 | 5 | 12.5 | M12 | 100 | 351 | 23 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
