P481

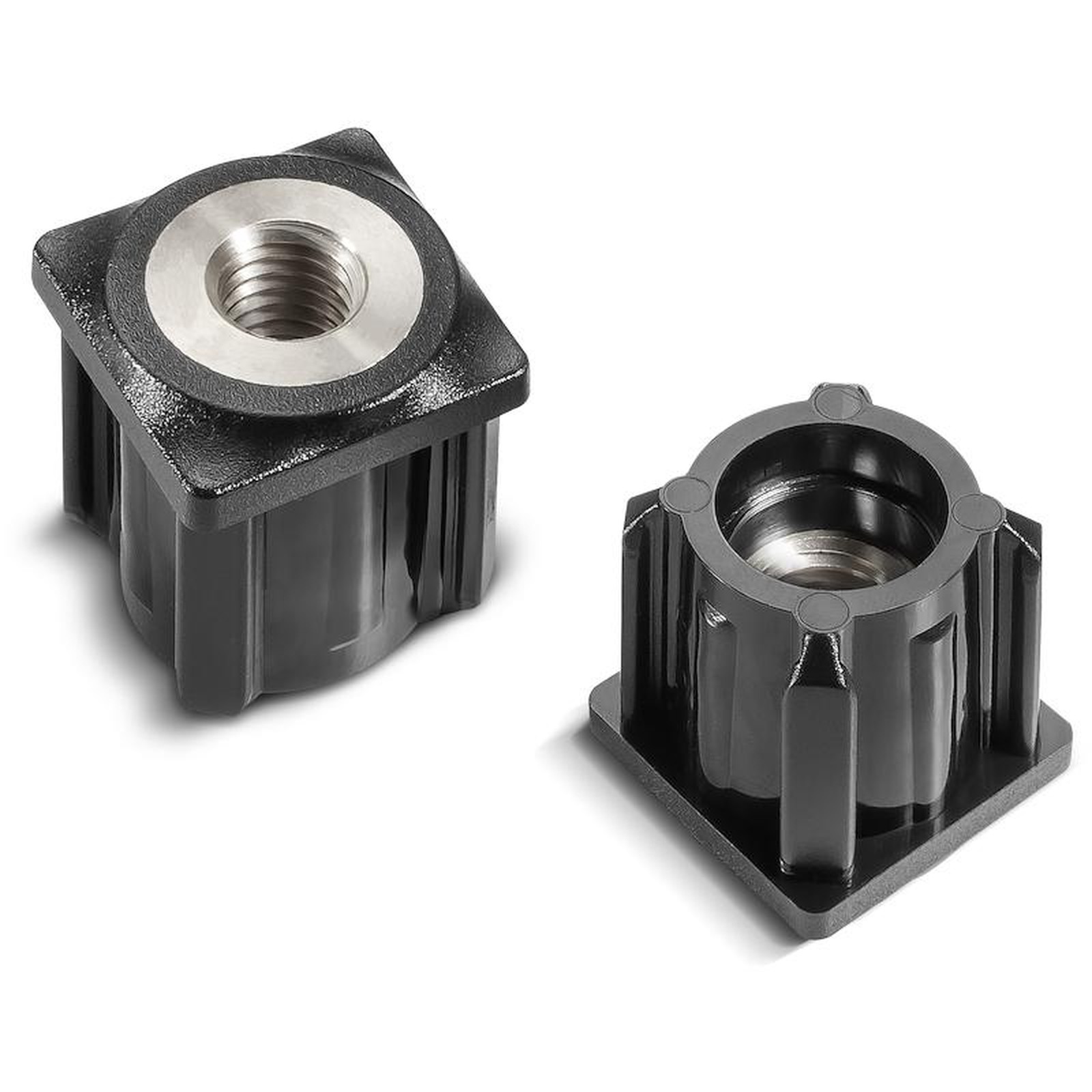

PLUG FOR SQUARE TUBE WITH INSERT WITH THREADED THROUGH HOLE (HEAVY DUTY SERIES)
Caps with threaded hole
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Nickel-plated brass insert with threaded through hole (thread tolerance 6H).
Fixing method:
Push-fit.
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
| Code | art. | A | B | H | h | b thickness of the tube | d1 6H | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| P481030.0009 | ART_P481030.T1.5M0801 | 30 | 30 | 32.5 | 6 | 1,5 | M8 | 26 | 63 | 17 |
| P481030.0001 | ART_P481030.T1.5M1001 | 30 | 30 | 32.5 | 6 | 1,5 | M10 | 26 | 59 | 17 |
| P481030.0002 | ART_P481030.T1.5M1201 | 30 | 30 | 32.5 | 6 | 1,5 | M12 | 26 | 55 | 17 |
| P481030.0003 | ART_P481030.T1.5M1401 | 30 | 30 | 32.5 | 6 | 1,5 | M14 | 26 | 50 | 17 |
| P481030.0004 | ART_P481030.T1.5M1601 | 30 | 30 | 32.5 | 6 | 1,5 | M16 | 26 | 46 | 17 |
