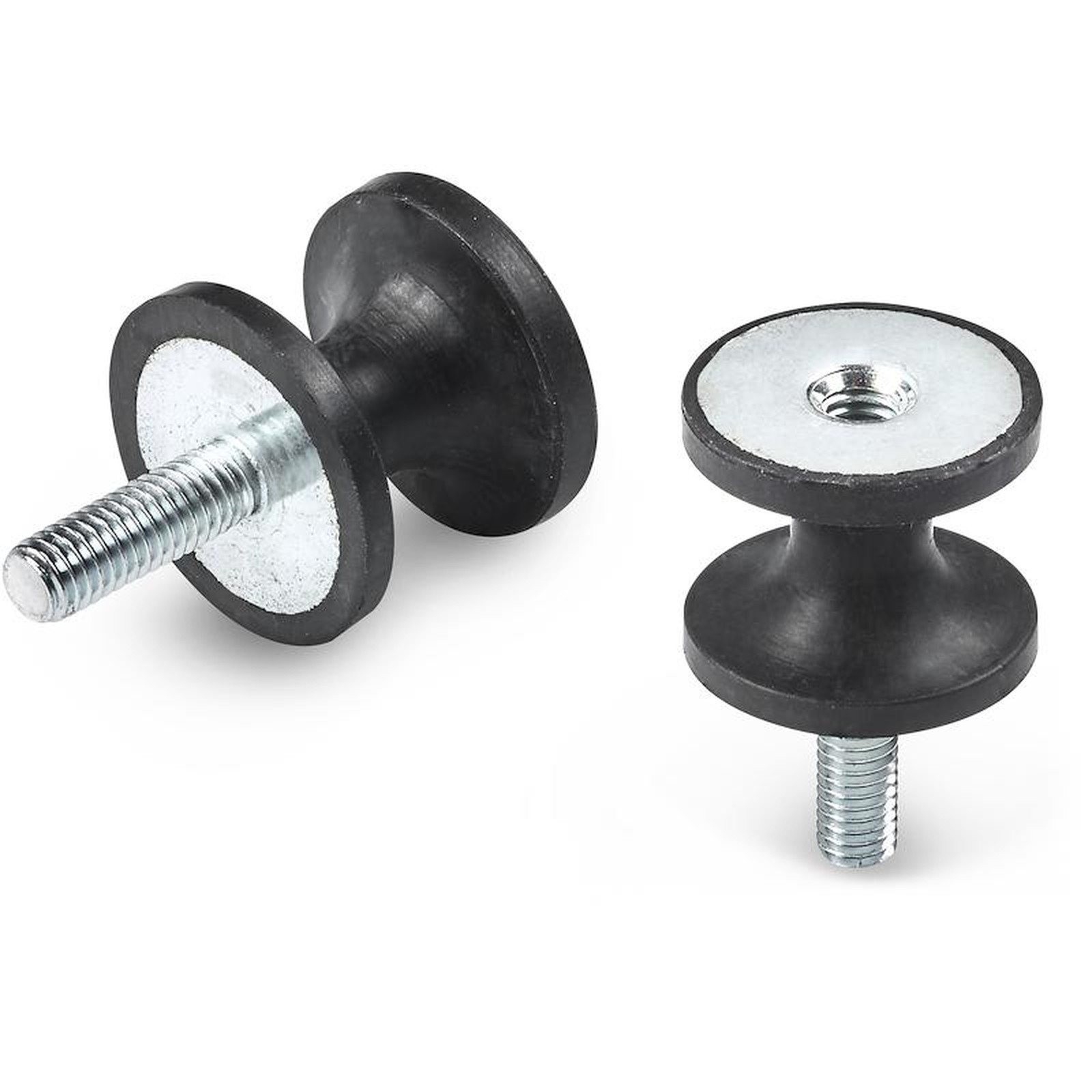

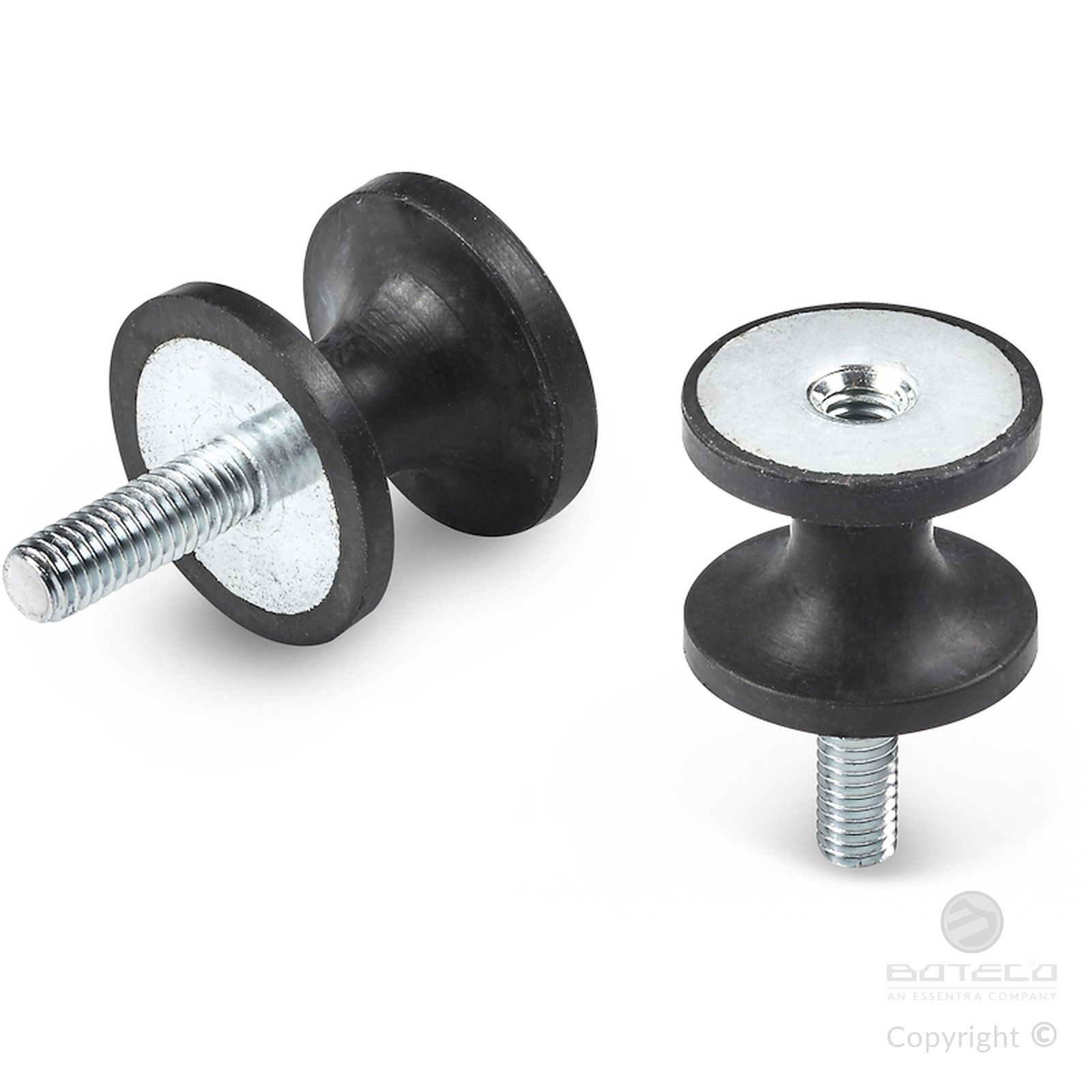

SHAPED ANTI-VIBRATION MOUNT WITH MALE AND FEMALE THREAD
16
P335
Antivibranti
Materials:
Natural rubber (NR),
Rubber hardness:
Hardness 55 Shore A (tolerance ± 5%).
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
(1) Galvanised boron steel threaded stud (thread tolerance 6g).
(2) Galvanised weldable steel washer.
(3) Galvanised boron steel insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied with hardness 45 or 70 Shore A.
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied in different materials:
P336= SBR
P337= NBR
P338= EPDM

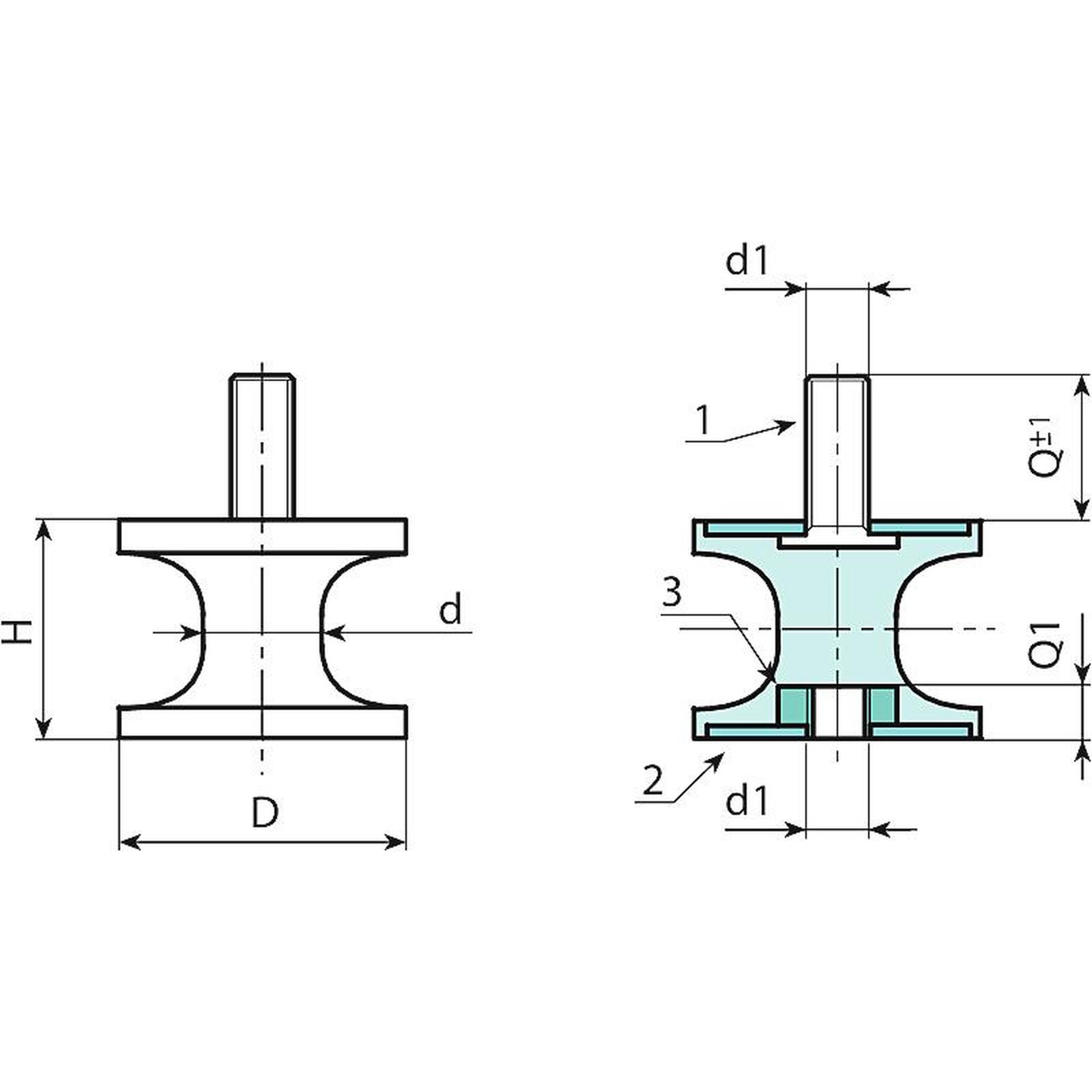

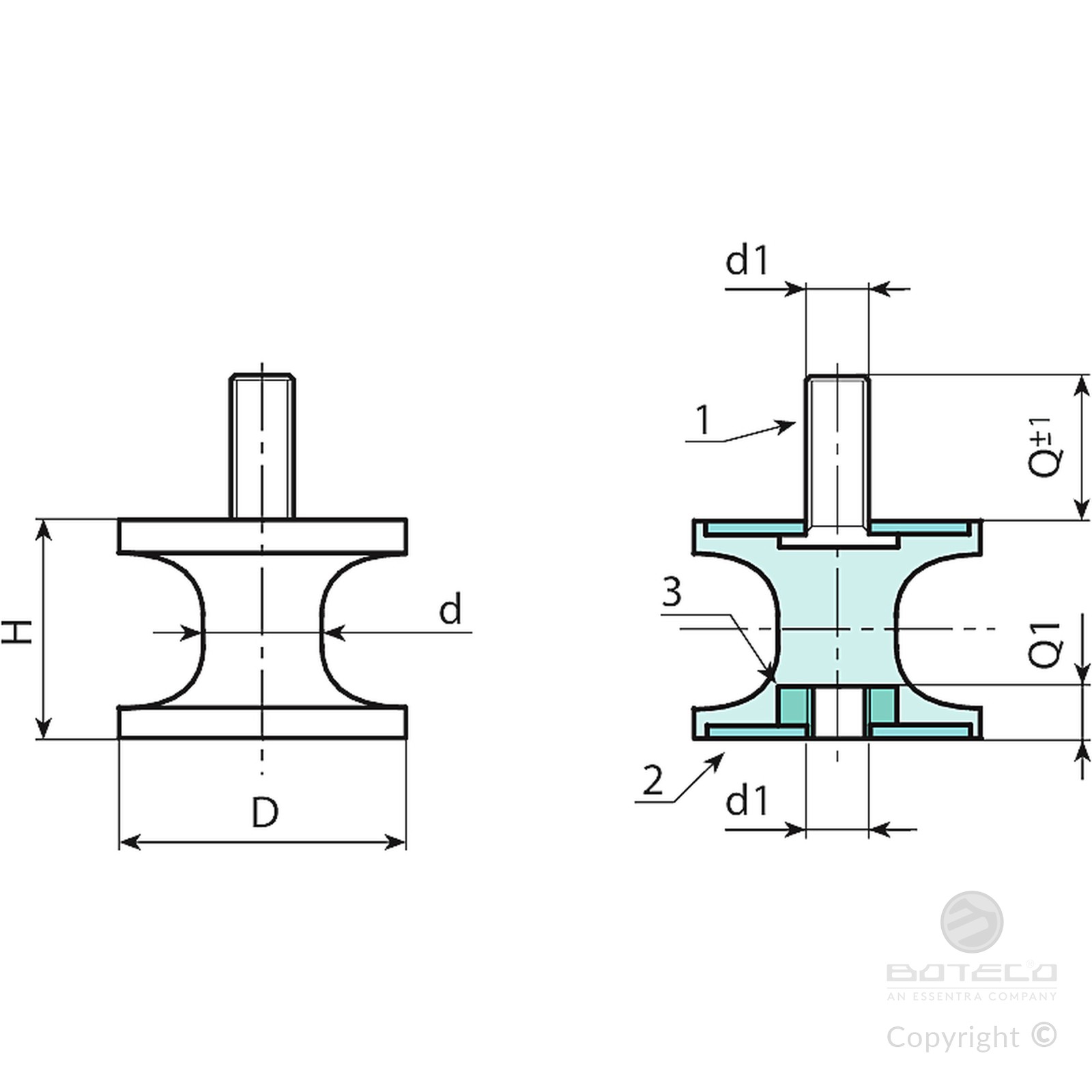

| Code | Art. | D | H | d | d1 6g/6H | Q | Q1 |
|---|---|---|---|---|---|---|---|
| P335020.0001 | P335020.F1510M0655 | 20 | 15 | 7 | M6 | 16 | 6 |
| P335025.0001 | P335025.F2010M0655 | 25 | 20 | 10 | M6 | 18 | 6 |
| P335025.0002 | P335025.F2017M0655 | 25 | 20 | 10 | M6 | 18 | 6 |
| P335030.0001 | P335030.F2020M0855 | 30 | 20 | 17 | M8 | 23 | 8 |
| P335040.0001 | P335040.F3019M0855 | 40 | 30 | 19 | M8 | 23 | 8 |
| P335040.0002 | P335040.F3027M0855 | 40 | 30 | 27 | M8 | 23 | 8 |
| P335040.0004 | P335040.F4835M0855 | 40 | 48 | 35 | M8 | 23 | 8 |
| P335050.0001 | P335050.F3028M1055 | 50 | 30 | 28 | M10 | 28 | 10 |
| P335080.0001 | P335080.F6060M1255 | 80 | 60 | 60 | M12 | 37 | 12 |
