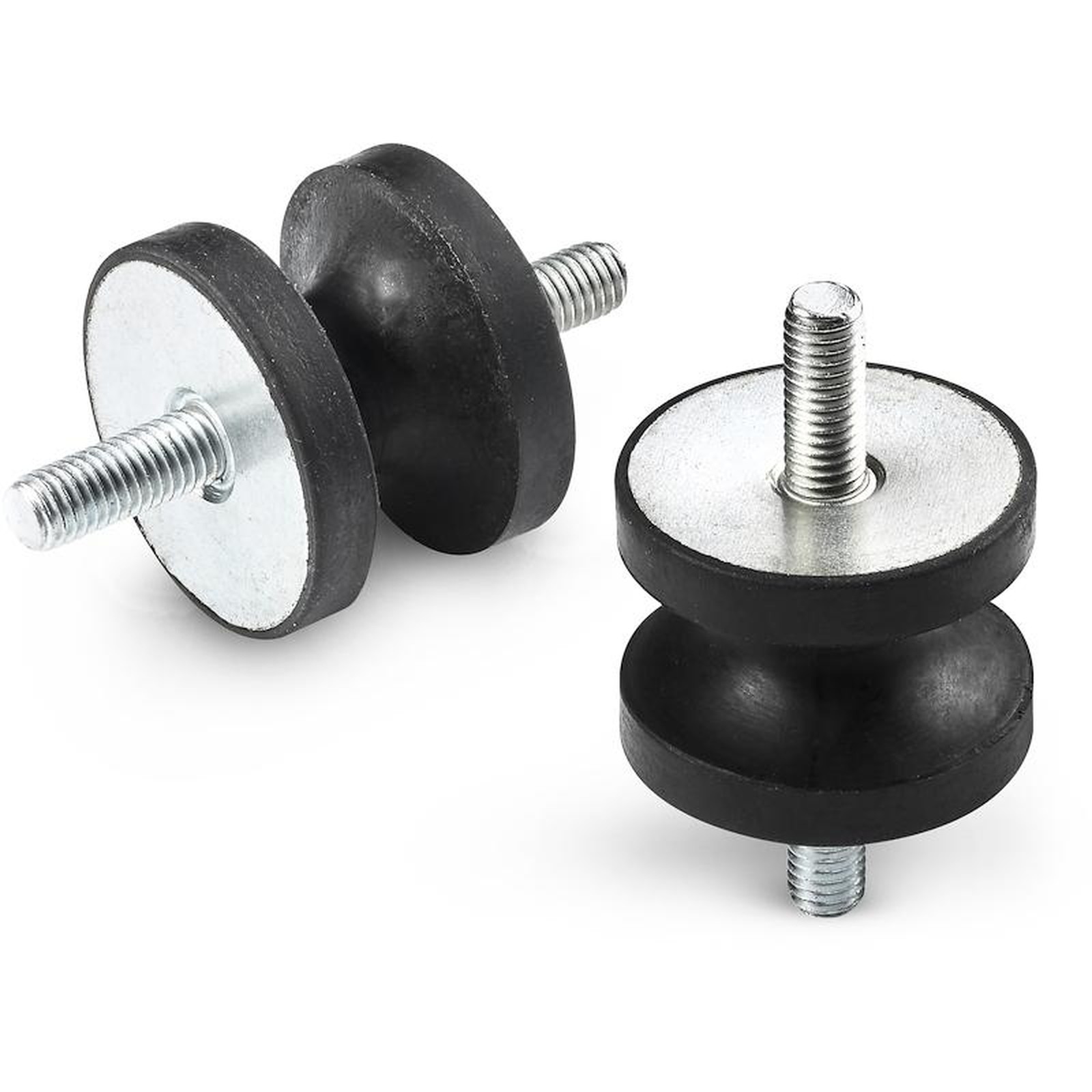

SHAPED ANTI-VIBRATION MOUNT WITH DOUBLE THREADED STUD
16
P330
Antivibranti
Materials:
Natural rubber (NR),
Rubber hardness:
Hardness 55 Shore A (tolerance ± 5%).
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
(1) Galvanised boron steel threaded stud (thread tolerance 6g).
(2) Galvanised weldable steel washer.
Special requests:
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied with hardness 45 or 70 Shore A.
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied in different materials:
P331= SBR
P332= NBR
P333= EPDM

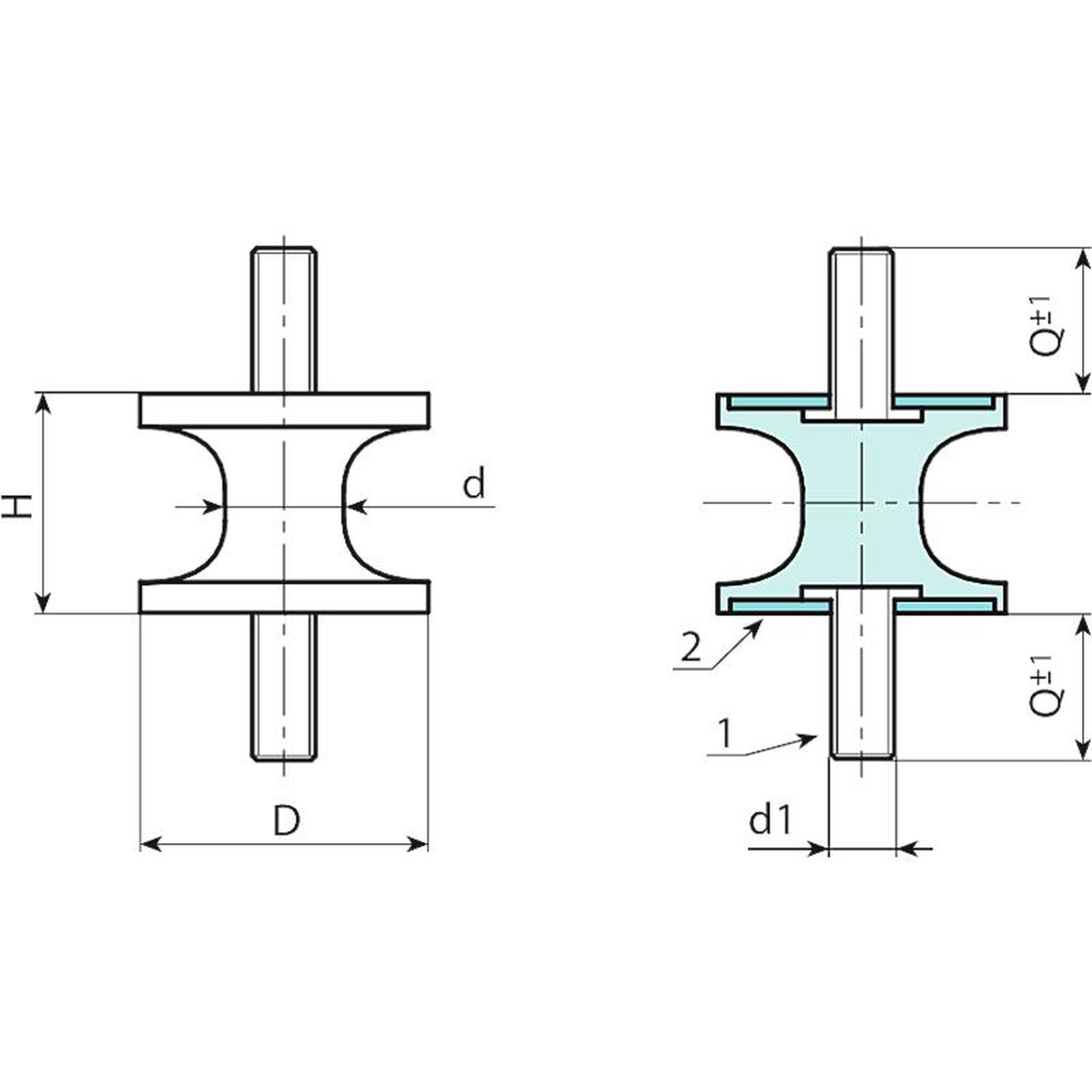

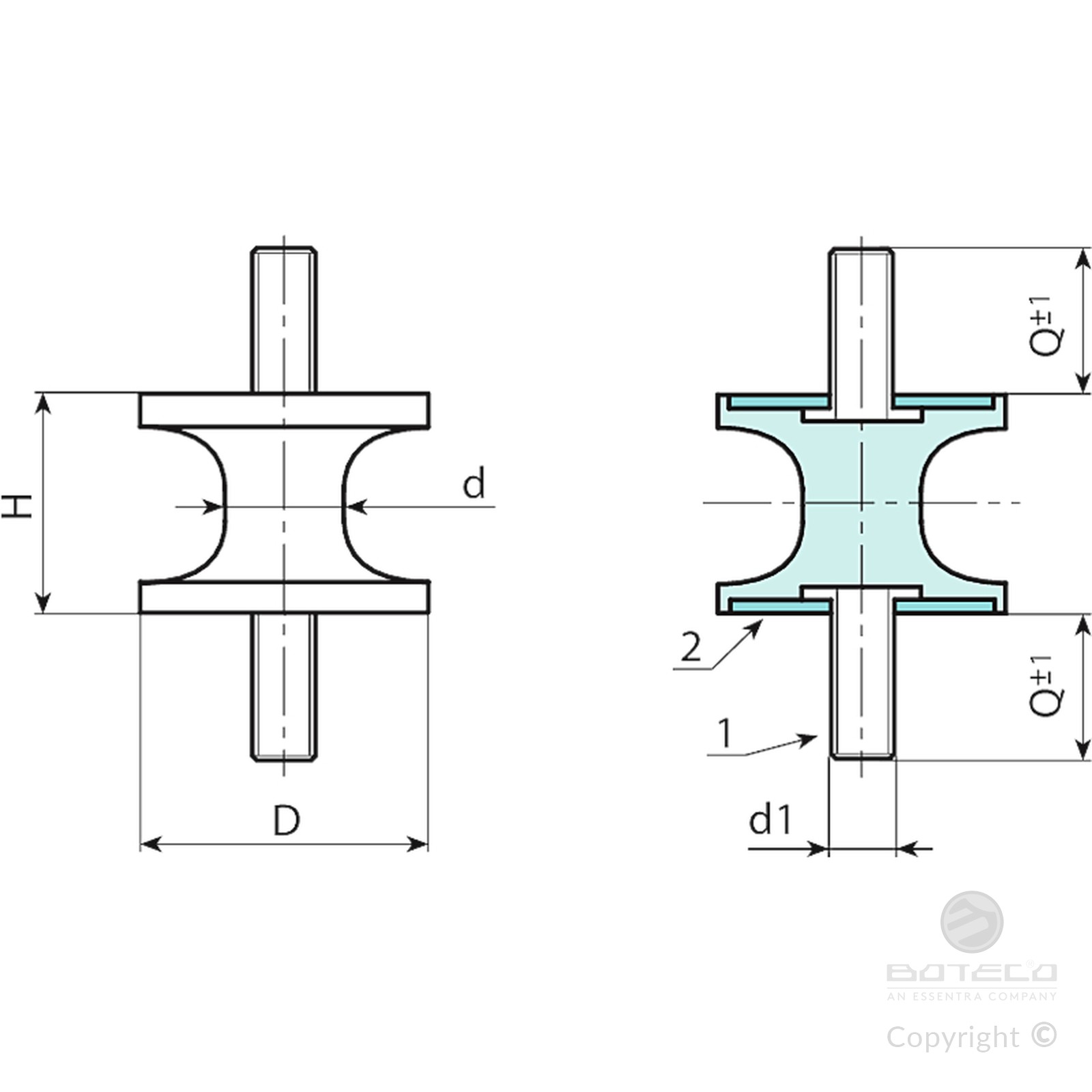

| Code | Art. | D | H | d | d1 6g | Q |
|---|---|---|---|---|---|---|
| P330012.0001 | P330012.F1507M0455 | 12 | 15 | 7 | M4 | 10 |
| P330020.0001 | P330020.F1510M0655 | 20 | 15 | 10 | M6 | 16 |
| P330025.0001 | P330025.F2010M0655 | 25 | 20 | 10 | M6 | 18 |
| P330025.0002 | P330025.F2017M0655 | 25 | 20 | 17 | M6 | 18 |
| P330030.0001 | P330030.F2020M0855 | 30 | 20 | 20 | M8 | 23 |
| P330040.0001 | P330040.F3019M0855 | 40 | 30 | 19 | M8 | 23 |
| P330040.0002 | P330040.F3027M0855 | 40 | 30 | 27 | M8 | 23 |
| P330040.0004 | P330040.F4835M0855 | 40 | 48 | 35 | M8 | 23 |
| P330050.0001 | P330050.F3028M1055 | 50 | 30 | 28 | M10 | 28 |
| P330075.0001 | P330075.F4055M1255 | 75 | 40 | 55 | M12 | 37 |
| P330080.0001 | P330080.F6060M1255 | 80 | 60 | 60 | M12 | 37 |
