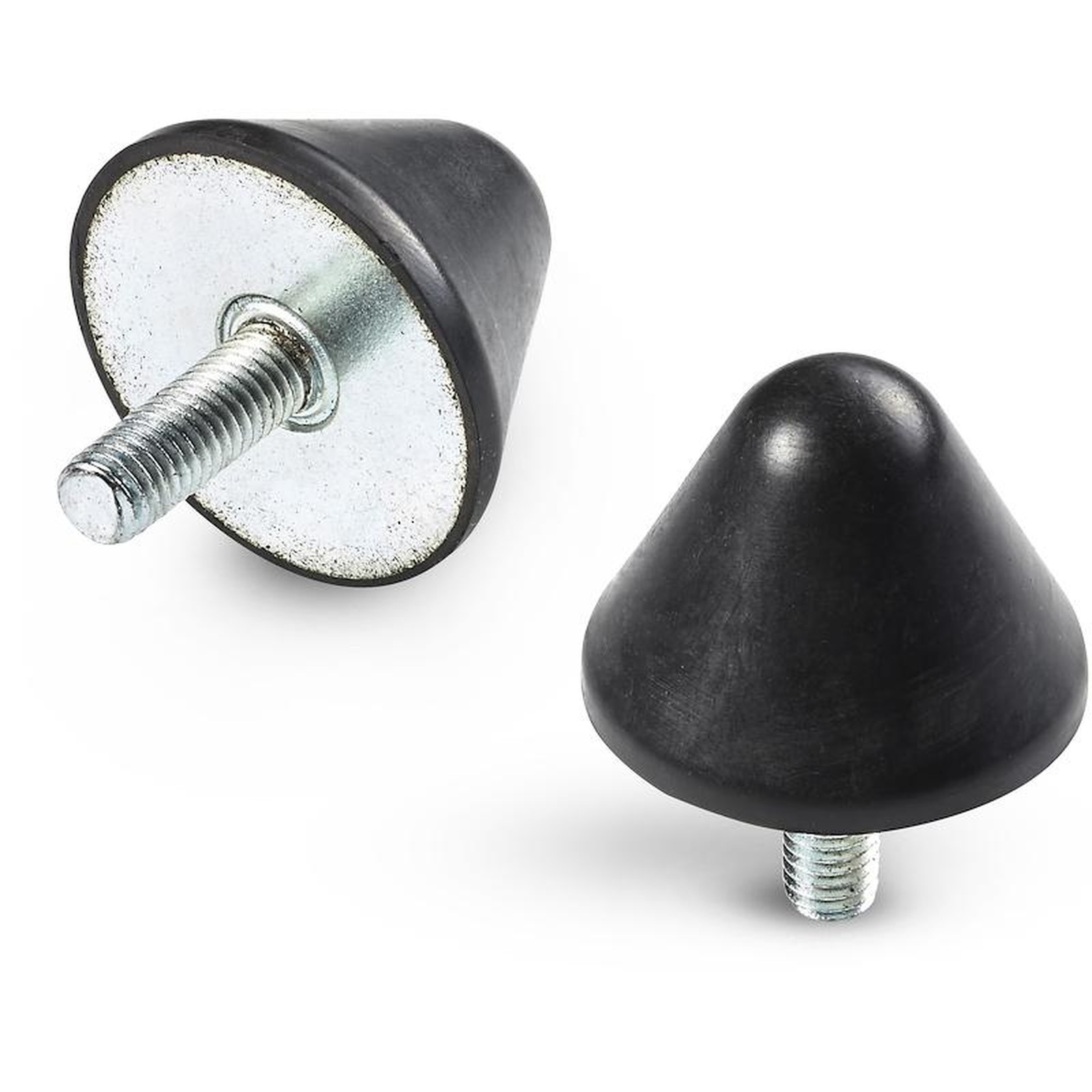

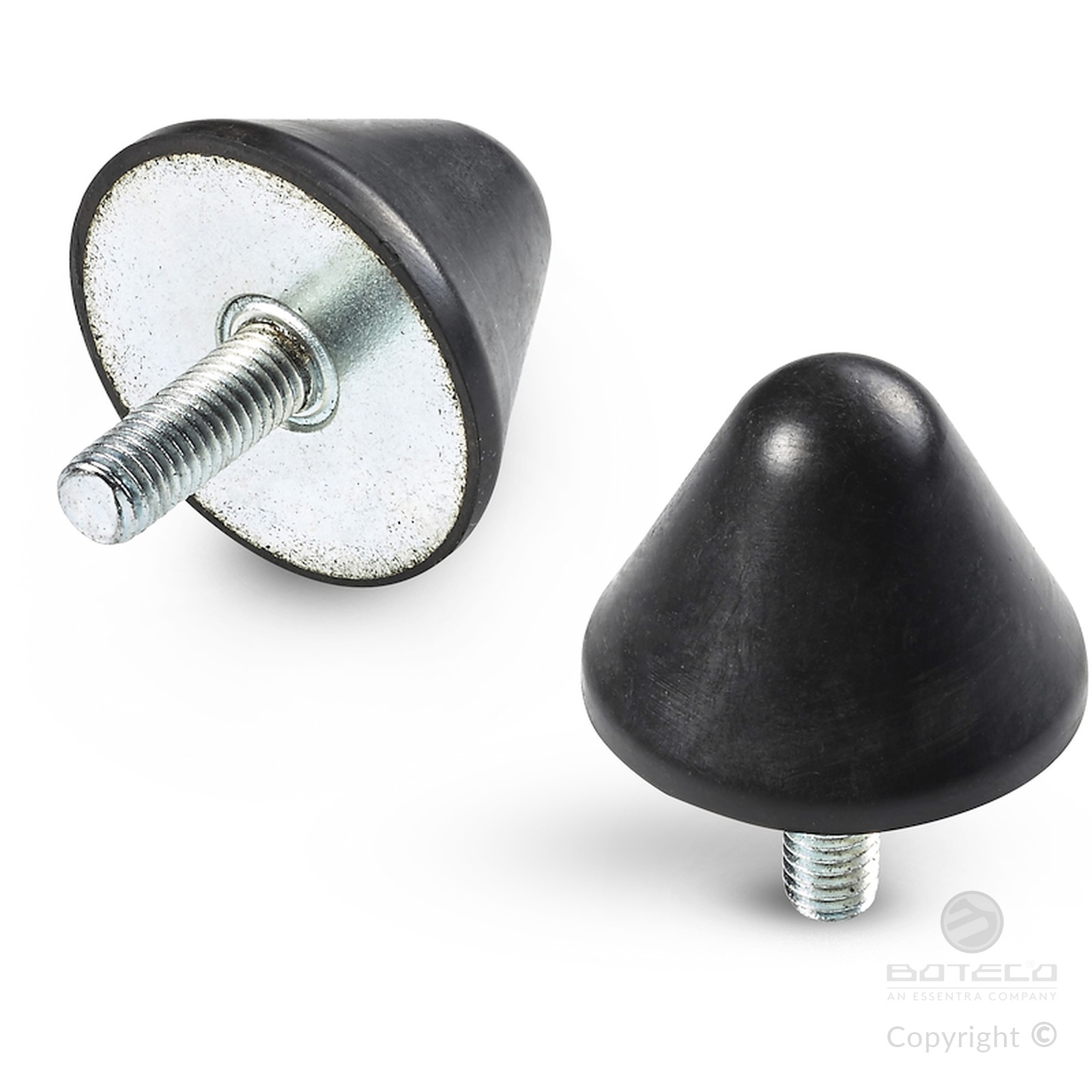

CONICAL ANTI-VIBRATION MOUNT WITH THREADED STUD
16
P325
Antivibranti
Materials:
Natural rubber (NR),
Rubber hardness:
Hardness 55 Shore A (tolerance ± 5%).
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
(1) Galvanised boron steel threaded stud (thread tolerance 6g).
(2) Galvanised weldable steel washer.
Special requests:
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied with hardness 45 or 70 Shore A.
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied in different materials:
P326= SBR
P327= NBR
P328= EPDM

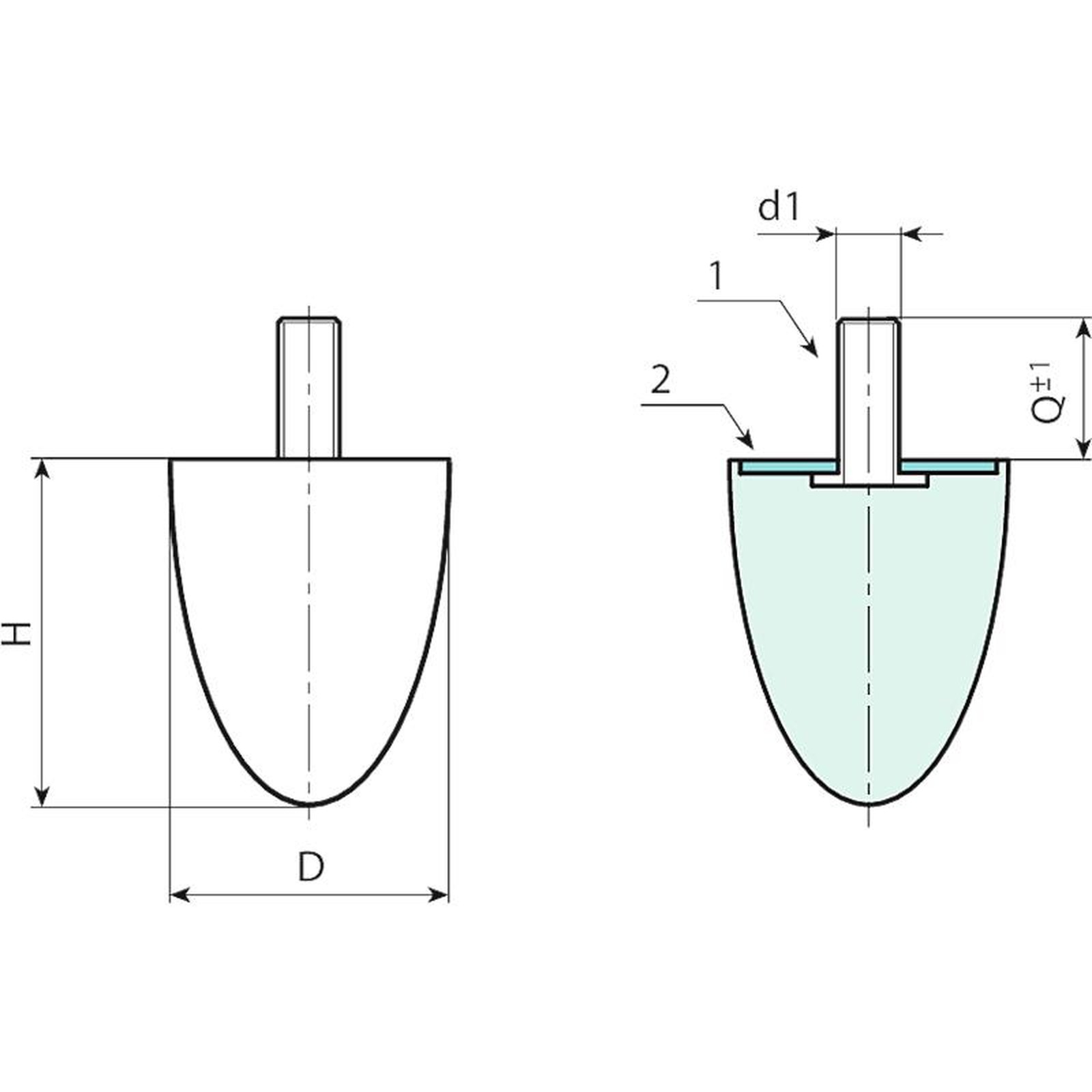

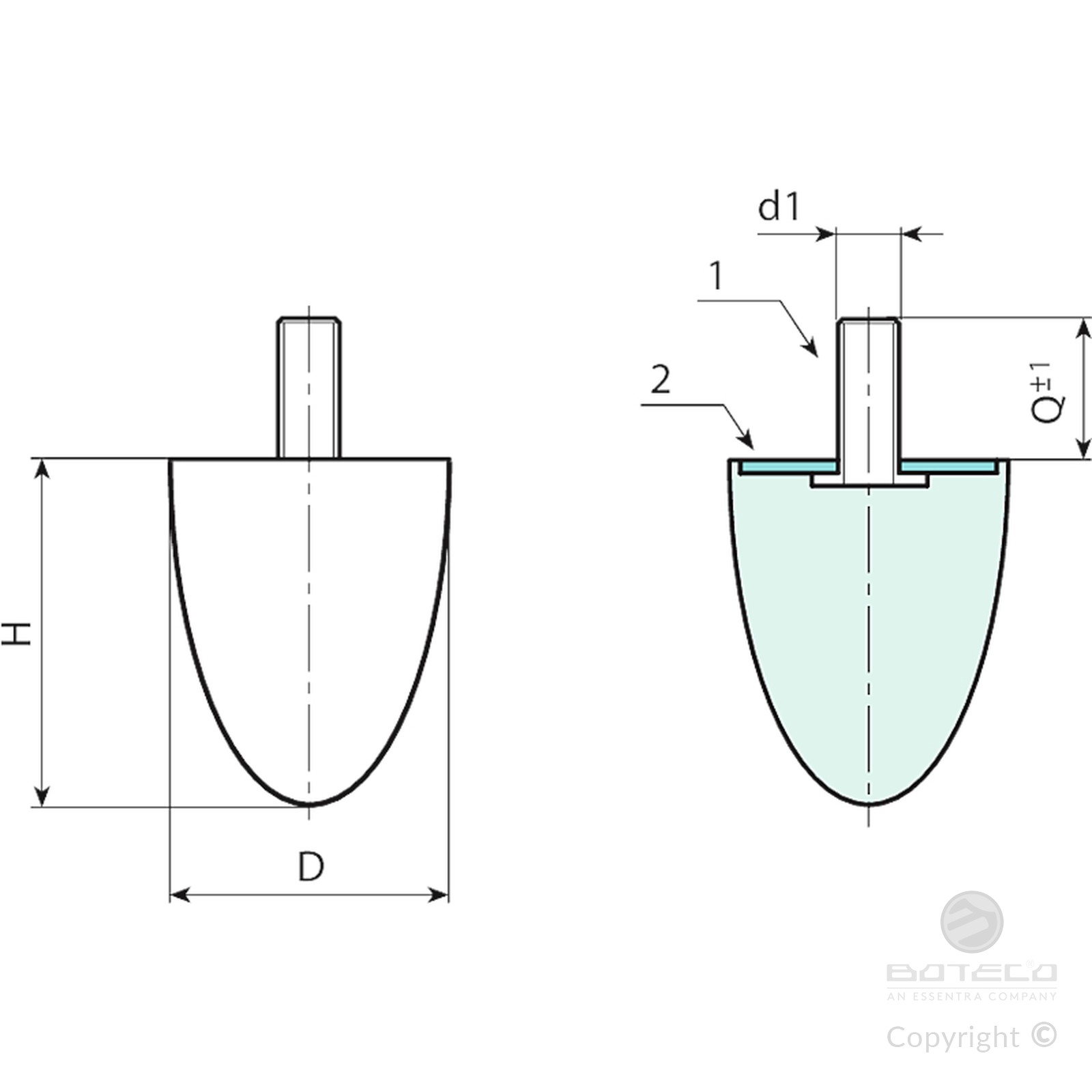

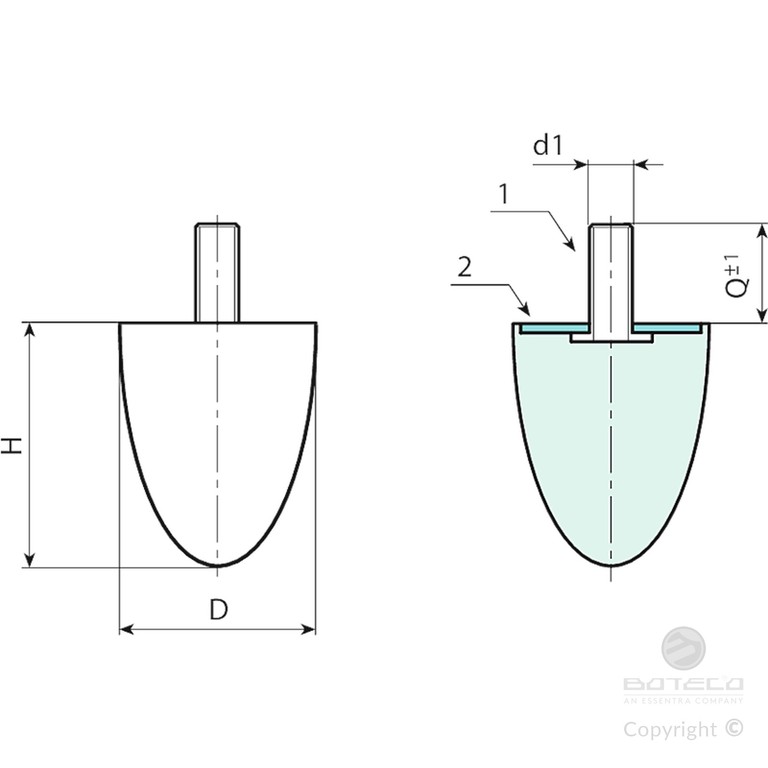

| Code | Art. | D | H | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|
| P325020.0001 | P325020.F24M06X1855 | 20 | 24 | M6 | 18 | 10 |
| P325025.0001 | P325025.F25M06X1855 | 25 | 25 | M8 | 18 | 12 |
| P325030.0001 | P325030.F36M08X2055 | 30 | 36 | M8 | 20 | 35 |
| P325035.0001 | P325035.F40M08X2355 | 35 | 40 | M8 | 23 | 47 |
| P325050.0001 | P325050.F60M10X2855 | 50 | 60 | M10 | 28 | 117 |
| P325050.0003 | P325050.F67M10X2855 | 50 | 67 | M10 | 28 | 125 |
