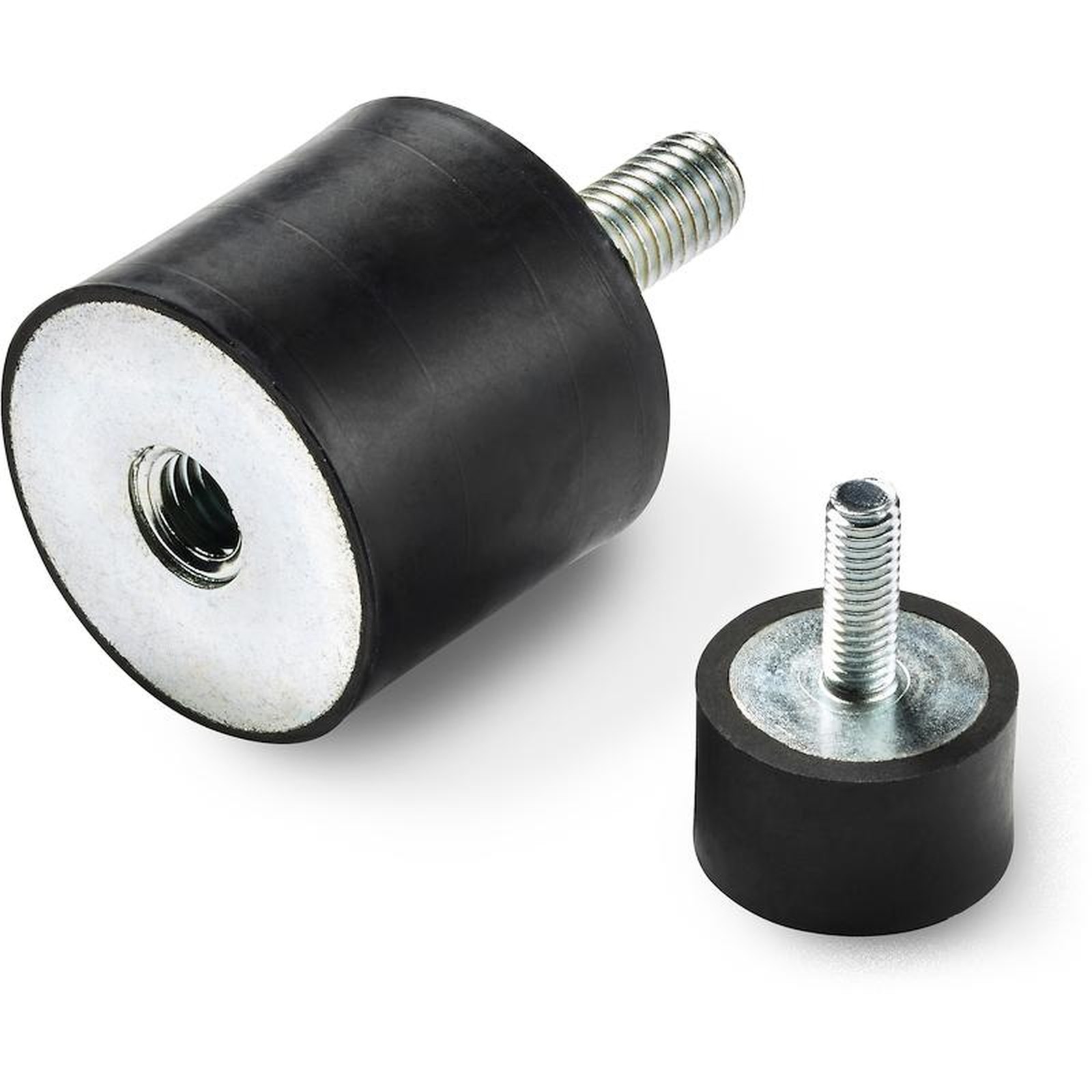

Materials:
Natural rubber (NR),
Rubber hardness:
Hardness 55 Shore A (tolerance ± 5%).
Surface finish:
Smooth.
Colour:
Black(RAL 9011).

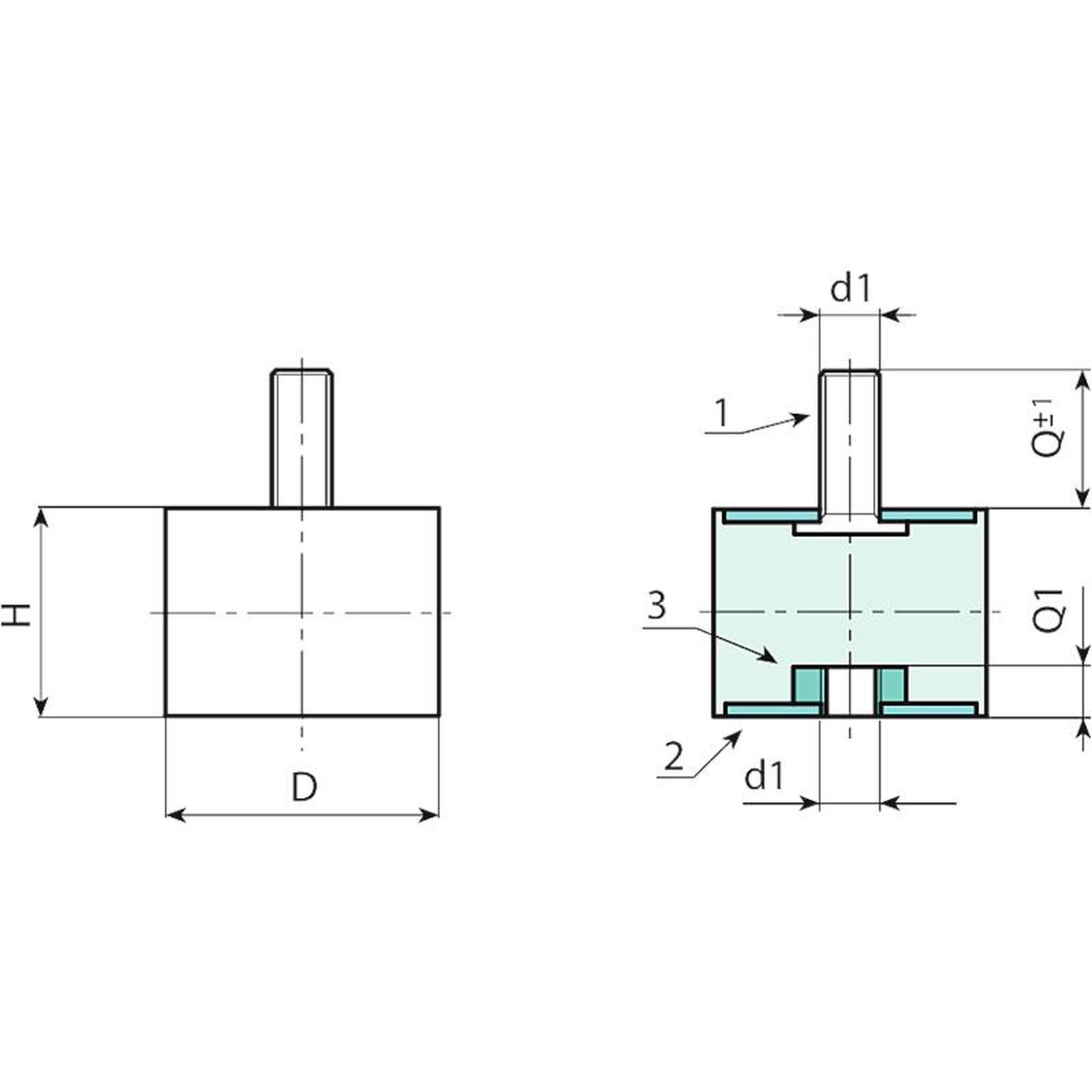

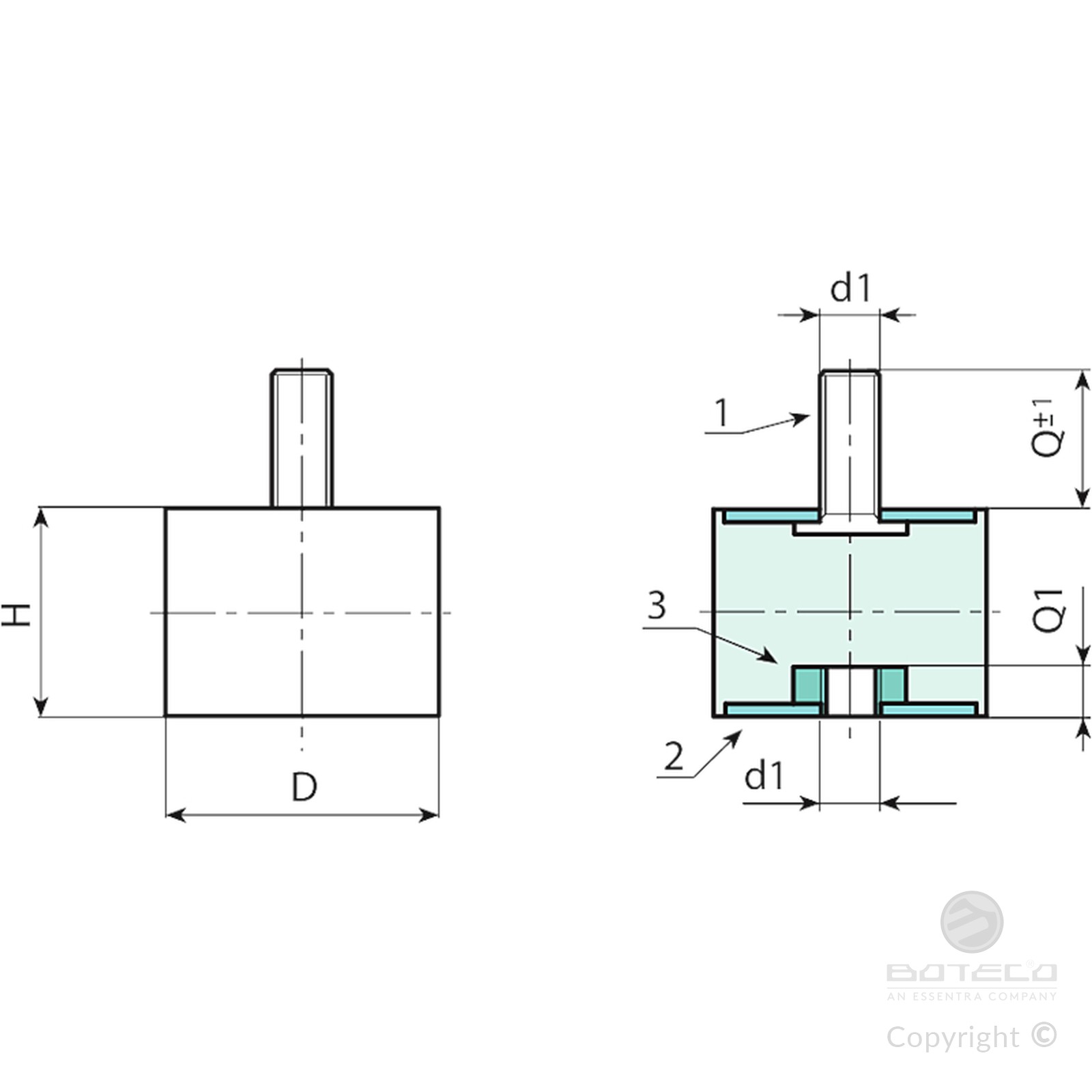

Inserts:
(1) Galvanised boron steel threaded stud (thread tolerance 6g).
(2) Galvanised weldable steel washer.
(3) Galvanised boron steel insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied with hardness 45 or 70 Shore A.
Upon request and for a minimum quantity of 100 pieces anti-vibration mounts can be supplied in different materials:
P306=SBR
P307=NBR
P308=EPDM
| Code | Art. | D | H | d1 6g/6H | Q | Q1 | Weight (g) | Compression stiffness (N/mm) |
|---|---|---|---|---|---|---|---|---|
| P305010.0001 | P305010.F15M04X1055 | 10 | 15 | M4 | 10 | 4 | 5 | 46.6 |
| P305015.0001 | P305015.F15M04X1055 | 15 | 15 | M4 | 10 | 4 | 7 | 57.1 |
| P305015.0002 | P305015.F20M04X1055 | 15 | 20 | M4 | 10 | 4 | 7.5 | 45.1 |
| P305020.0001 | P305020.F20M06X1555 | 20 | 20 | M6 | 15 | 6 | 18 | 79.2 |
| P305020.0003 | P305020.F25M06X1555 | 20 | 25 | M6 | 15 | 6 | 21 | 36.3 |
| P305025.0001 | P305025.F15M06X1855 | 25 | 15 | M6 | 18 | 6 | 27 | 213.8 |
| P305025.0002 | P305025.F20M06X1855 | 25 | 20 | M6 | 18 | 6 | 26 | 131.9 |
| P305025.0003 | P305025.F30M06X1855 | 25 | 30 | M6 | 18 | 8 | 37 | 67.9 |
| P305030.0001 | P305030.F15M08X2055 | 30 | 15 | M8 | 20 | 8 | 41 | 461.7 |
| P305030.0002 | P305030.F20M08X2055 | 30 | 20 | M8 | 20 | 8 | 47 | 192.9 |
| P305030.0003 | P305030.F30M08X2055 | 30 | 30 | M8 | 20 | 8 | 52 | 101.4 |
| P305040.0001 | P305040.F20M08X2355 | 40 | 20 | M8 | 23 | 8 | 73 | 298.3 |
| P305040.0002 | P305040.F30M08X2355 | 40 | 30 | M8 | 23 | 8 | 86 | 180.5 |
| P305040.0004 | P305040.F40M10X2855 | 40 | 40 | M10 | 28 | 10 | 113 | 126.9 |
| P305050.0001 | P305050.F30M10X2855 | 50 | 30 | M10 | 28 | 10 | 142 | 373.2 |
| P305050.0003 | P305050.F40M10X2855 | 50 | 40 | M10 | 28 | 10 | 156 | 245.3 |
| P305050.0004 | P305050.F45M10X2855 | 50 | 45 | M10 | 28 | 10 | 172 | 180.5 |
| P305050.0005 | P305050.F50M10X2855 | 50 | 50 | M10 | 28 | 10 | 176 | 164.4 |
| P305060.0001 | P305060.F30M10X2855 | 60 | 30 | M10 | 28 | 10 | 195 | 591.9 |
| P305060.0002 | P305060.F40M10X2855 | 60 | 40 | M10 | 28 | 10 | 233 | 350.6 |
| P305070.0001 | P305070.F40M10X2855 | 70 | 40 | M10 | 28 | 10 | 314 | 510.2 |
| P305075.0001 | P305075.F25M12X3755 | 75 | 25 | M12 | 37 | 12 | 296 | 1177.1 |
| P305075.0002 | P305075.F40M12X3755 | 75 | 40 | M12 | 37 | 12 | 383 | 598.5 |
| P305075.0004 | P305075.F55M14X3755 | 75 | 55 | M14 | 37 | 14 | 482 | 412.7 |
| P305100.0001 | P305100.F40M16X4255 | 100 | 40 | M16 | 42 | 16 | 768 | 1478.5 |
| P305100.0002 | P305100.F55M16X4255 | 100 | 55 | M16 | 42 | 16 | 865 | 888.3 |
| P305100.0004 | P305100.F75M16X4255 | 100 | 75 | M16 | 42 | 16 | 1058 | 541.5 |
