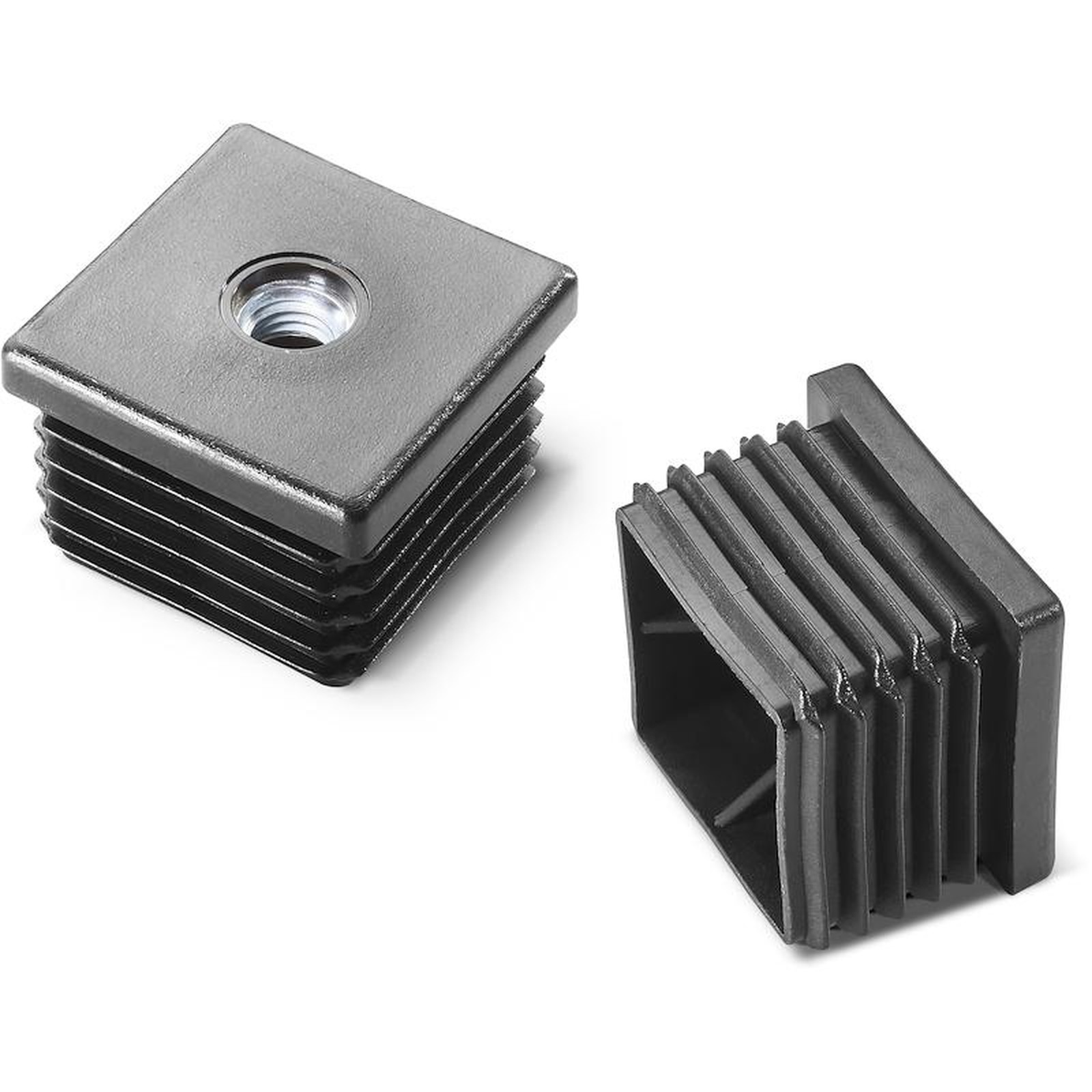

SQUARE PLUG FOR TUBE WITH INSERT WITH THREADED THROUGH HOLE (MEDIUM DUTY SERIES)
16
P281
Tappi con foro filettato
Materials:
Square plug with round lamellar insert in Polyethylene (HDPE).
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded nut DIN 934.
Fixing method:
Push-fit.
Special requests:
None.

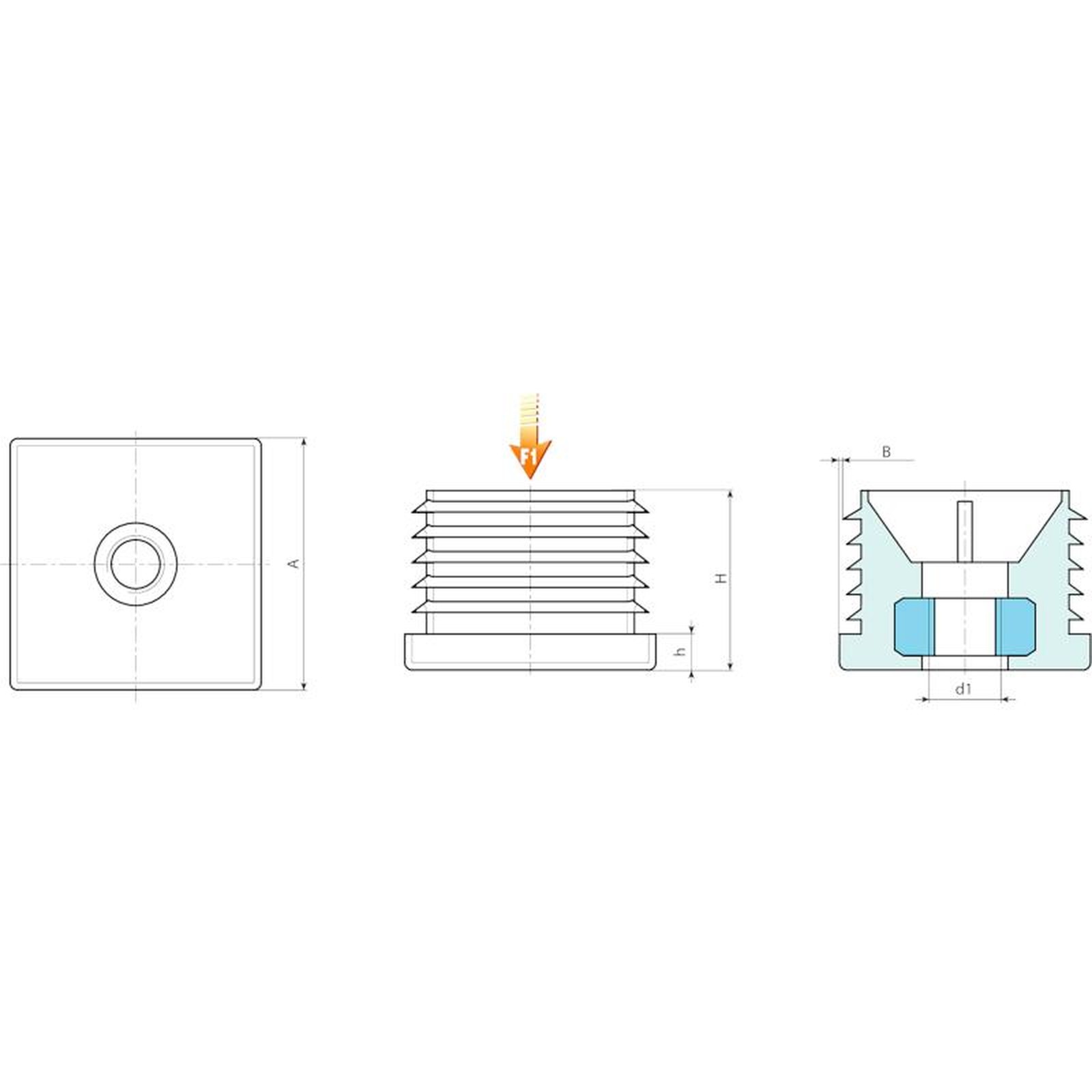

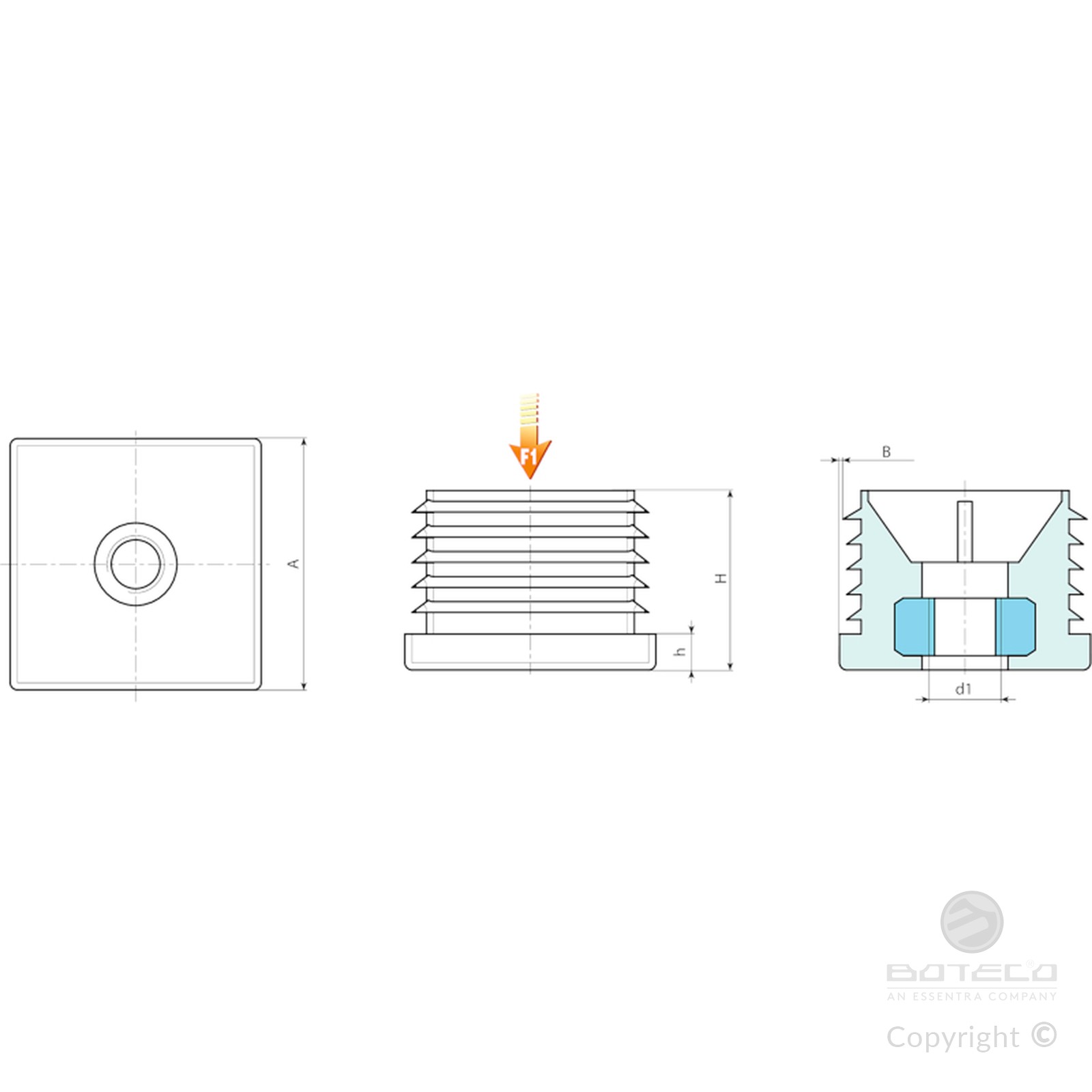

| Code | art. | A | H | h | B thickness of the tube (min - max) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|
| P281019.0001 | P281019.EM0601 | 19 | 25 | 5 | 1-1,5 | M6 | - |
| P281020.0001 | P281020.EM0601 | 20 | 25 | 5 | 1-1,5 | M6 | - |
| P281020.0002 | P281020.EM0801 | 20 | 25 | 5 | 1-1,5 | M8 | - |
| P281025.0001 | P281025.EM0601 | 25 | 25 | 5 | 1-1,5 | M6 | - |
| P281025.0002 | P281025.EM0801 | 25 | 25 | 5 | 1-1,5 | M8 | - |
| P281030.0001 | P281030.EM0801 | 30 | 25 | 5 | 1-1,5 | M8 | - |
| P281030.0002 | P281030.EM1001 | 30 | 25 | 5 | 1-1,5 | M10 | - |
| P281035.0001 | P281035.EM0801 | 35 | 25 | 5 | 1-1,5 | M8 | - |
| P281035.0002 | P281035.EM1001 | 35 | 25 | 5 | 1-1,5 | M10 | - |
| P281040.0001 | P281040.EM0801 | 40 | 25 | 5 | 1-1,5 | M8 | - |
| P281040.0002 | P281040.EM1001 | 40 | 25 | 5 | 1-1,5 | M10 | - |
| P281040.0003 | P281040.EM1201 | 40 | 25 | 5 | 1-1,5 | M12 | - |
| P281050.0001 | P281050.EM0801 | 50 | 25 | 5 | 1-1,5 | M8 | - |
| P281050.0002 | P281050.EM1001 | 50 | 25 | 5 | 1-1,5 | M10 | - |
| P281050.0003 | P281050.EM1201 | 50 | 25 | 5 | 1-1,5 | M12 | - |
