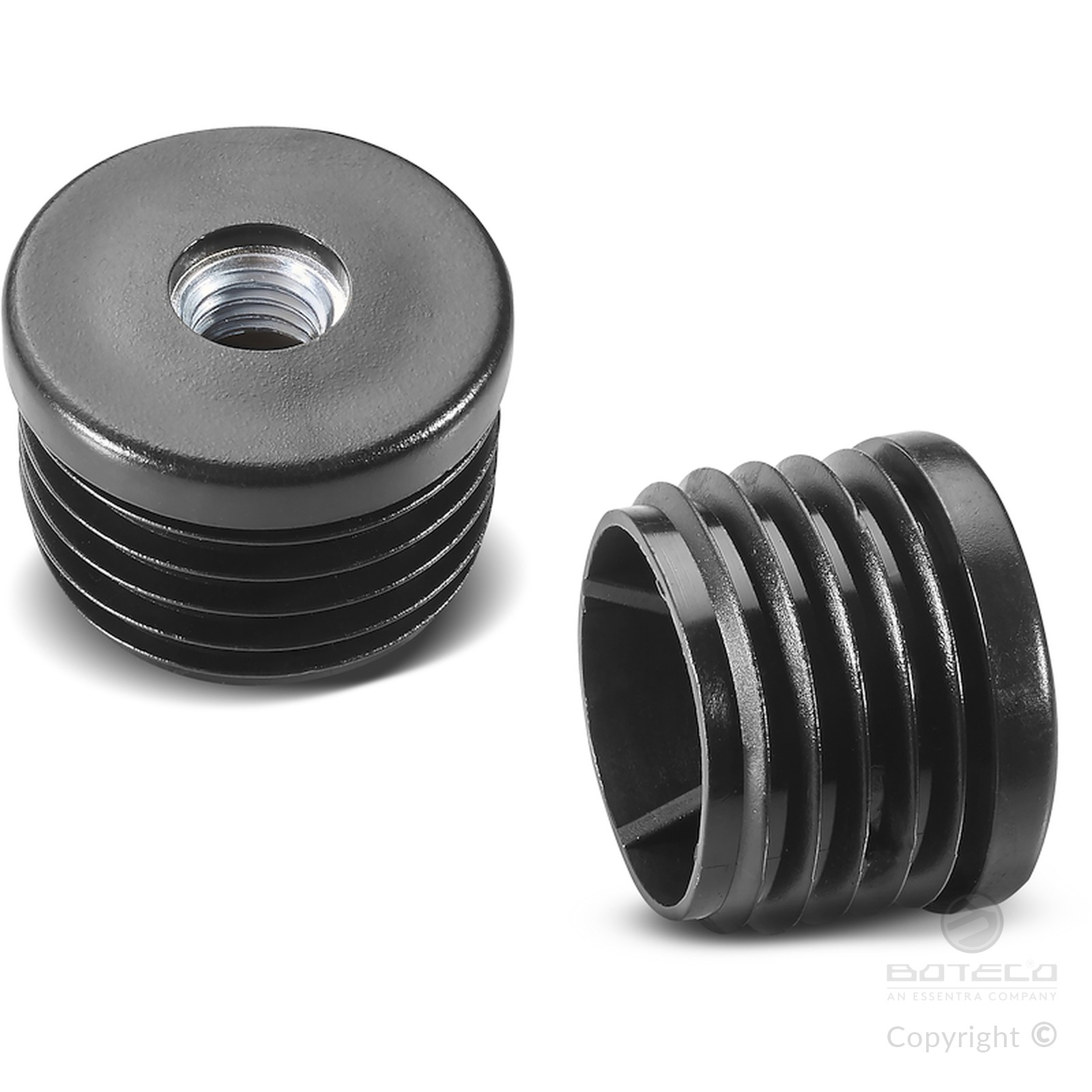

ROUND PLUG FOR TUBE WITH INSERT WITH THREADED THROUGH HOLE (MEDIUM DUTY SERIES)
16
P280
Tappi con foro filettato
Materials:
Round plug with round lamellar insert in Polyethylene (HDPE).
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded nut DIN 934.
Fixing method:
Push-fit.
Special requests:
None.

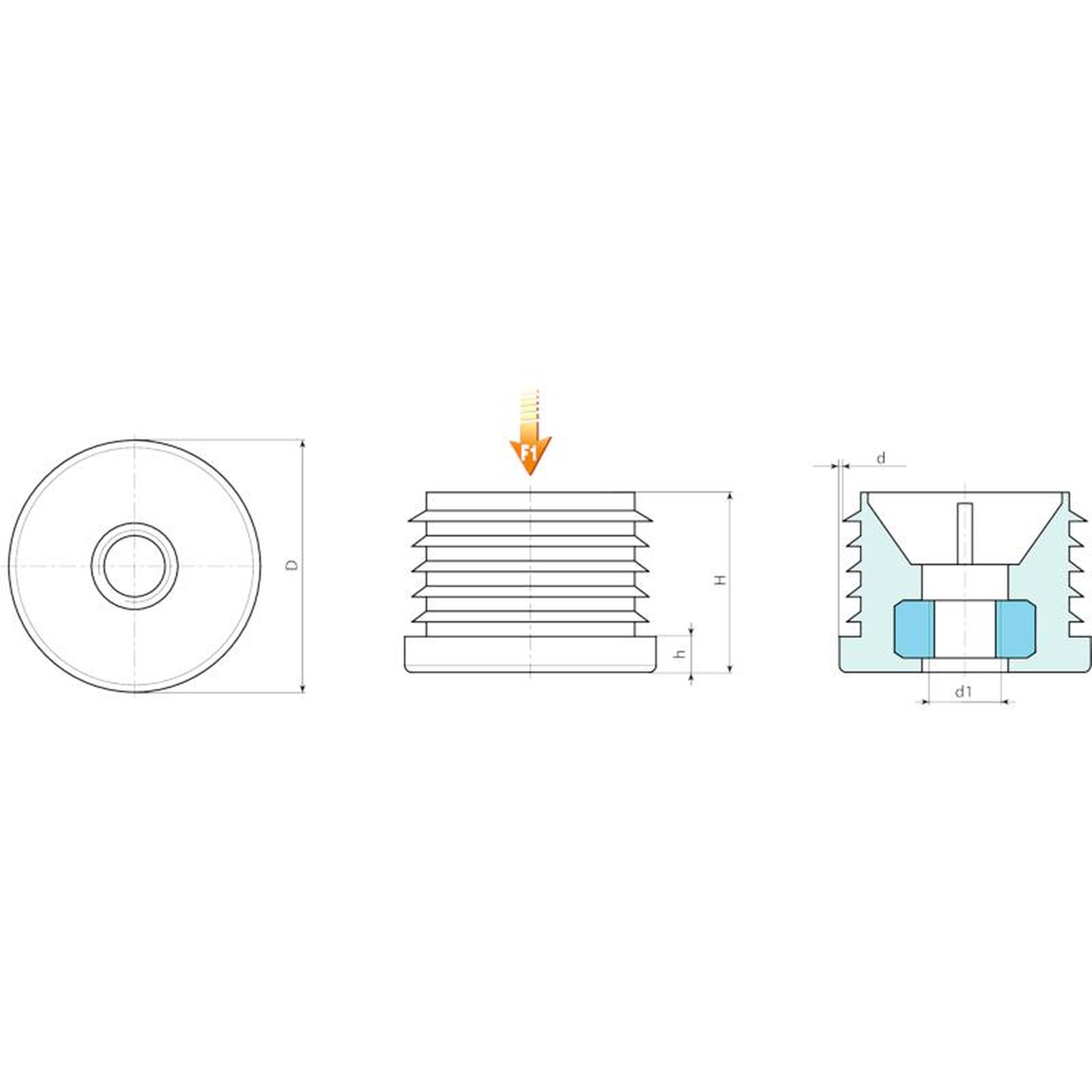

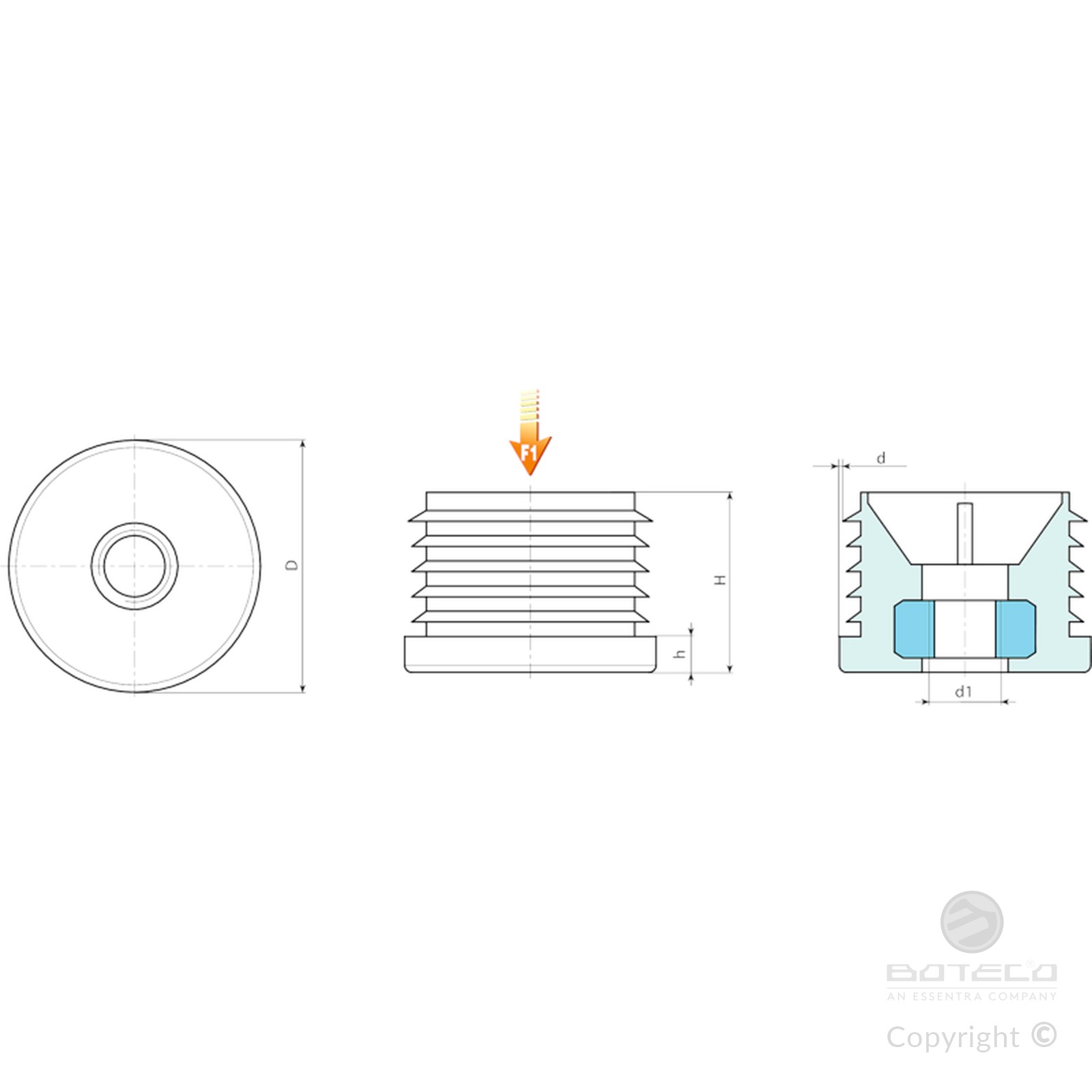

| Code | art. | D | H | h | d thickness of the tube (min - max) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|
| P280019.0001 | P280019.EM0601 | 19 | 25 | 5 | 1-1,5 | M6 | - |
| P280020.0001 | P280020.EM0601 | 20 | 25 | 5 | 1-1,5 | M6 | - |
| P280020.0002 | P280020.EM0801 | 20 | 25 | 5 | 1-1,5 | M8 | - |
| P280025.0001 | P280025.EM0601 | 25 | 25 | 5 | 1-1,5 | M6 | - |
| P280025.0002 | P280025.EM0801 | 25 | 25 | 5 | 1-1,5 | M8 | - |
| P280030.0001 | P280030.EM0801 | 30 | 25 | 5 | 1-1,5 | M8 | - |
| P280030.0002 | P280030.EM1001 | 30 | 25 | 5 | 1-1,5 | M10 | - |
| P280032.0001 | P280032.EM0801 | 32 | 25 | 5 | 1-1,5 | M8 | - |
| P280032.0002 | P280032.EM1001 | 32 | 25 | 5 | 1-1,5 | M10 | - |
| P280035.0001 | P280035.EM0801 | 35 | 25 | 5 | 1-1,5 | M8 | - |
| P280035.0002 | P280035.EM1001 | 35 | 25 | 5 | 1-1,5 | M10 | - |
| P280038.0001 | P280038.EM0801 | 38 | 25 | 5 | 1-1,5 | M8 | - |
| P280038.0002 | P280038.EM1001 | 38 | 25 | 5 | 1-1,5 | M10 | - |
| P280038.0003 | P280038.EM1201 | 38 | 25 | 5 | 1-1,5 | M12 | - |
| P280040.0001 | P280040.EM0801 | 40 | 25 | 5 | 1-1,5 | M8 | - |
| P280040.0002 | P280040.EM1001 | 40 | 25 | 5 | 1-1,5 | M10 | - |
| P280040.0003 | P280040.EM1201 | 40 | 25 | 5 | 1-1,5 | M12 | - |
| P280050.0001 | P280050.EM0801 | 50 | 25 | 5 | 1-1,5 | M8 | - |
| P280050.0002 | P280050.EM1001 | 50 | 25 | 5 | 1-1,5 | M10 | - |
| P280050.0003 | P280050.EM1201 | 50 | 25 | 5 | 1-1,5 | M12 | - |
| P280060.0001 | P280060.EM0801 | 60 | 25 | 5 | 1-1,5 | M8 | - |
| P280060.0002 | P280060.EM1001 | 60 | 25 | 5 | 1-1,5 | M10 | - |
| P280060.0003 | P280060.EM1201 | 60 | 25 | 5 | 1-1,5 | M12 | - |
