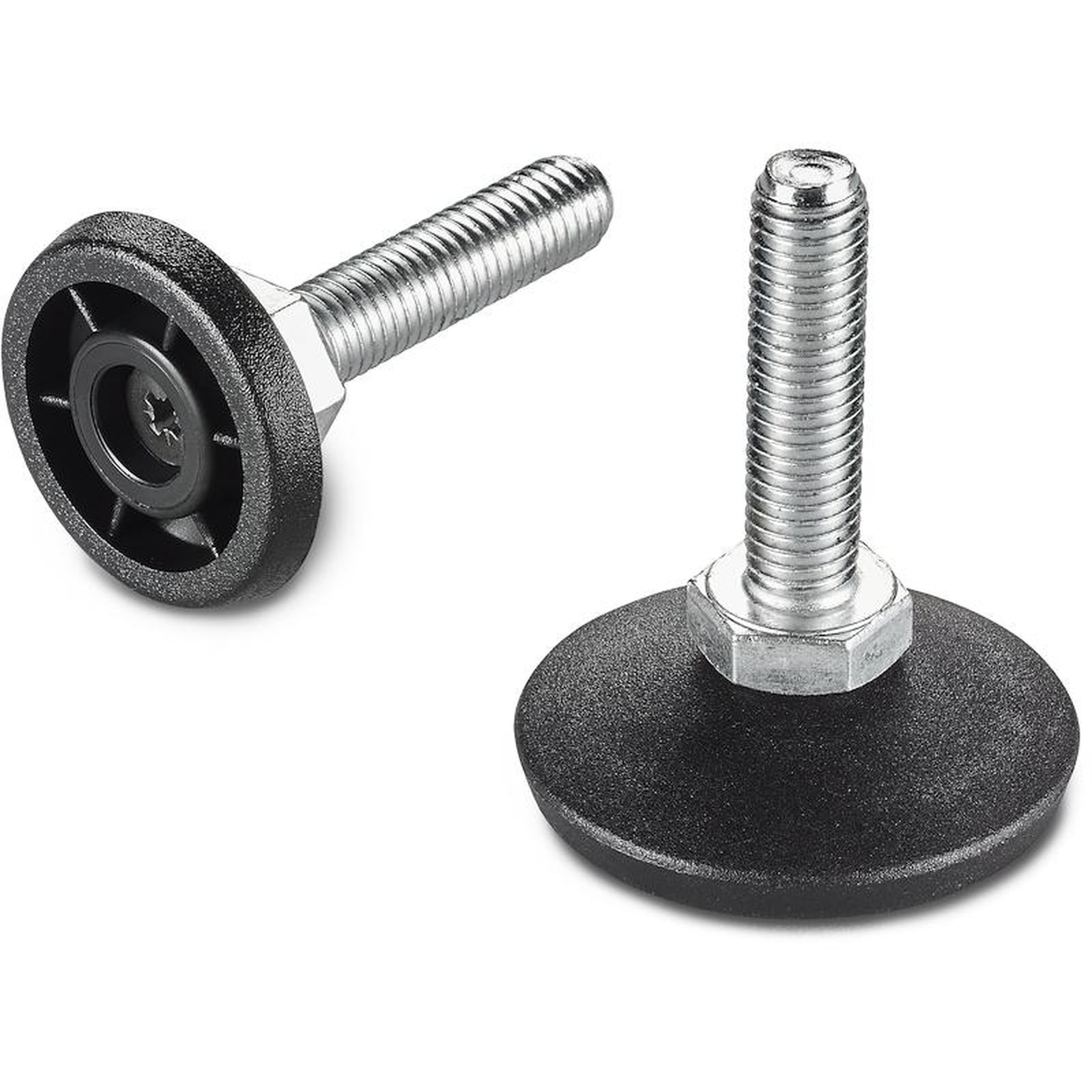

MOUNTING FOOT WITH REVOLVING THREADED STUD
16
P203
Piedi con stelo girevole
Materials:
High density polyethylene.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Revolving threaded stud in galvanised steel (thread tolerance 6g).
Special requests:
None.

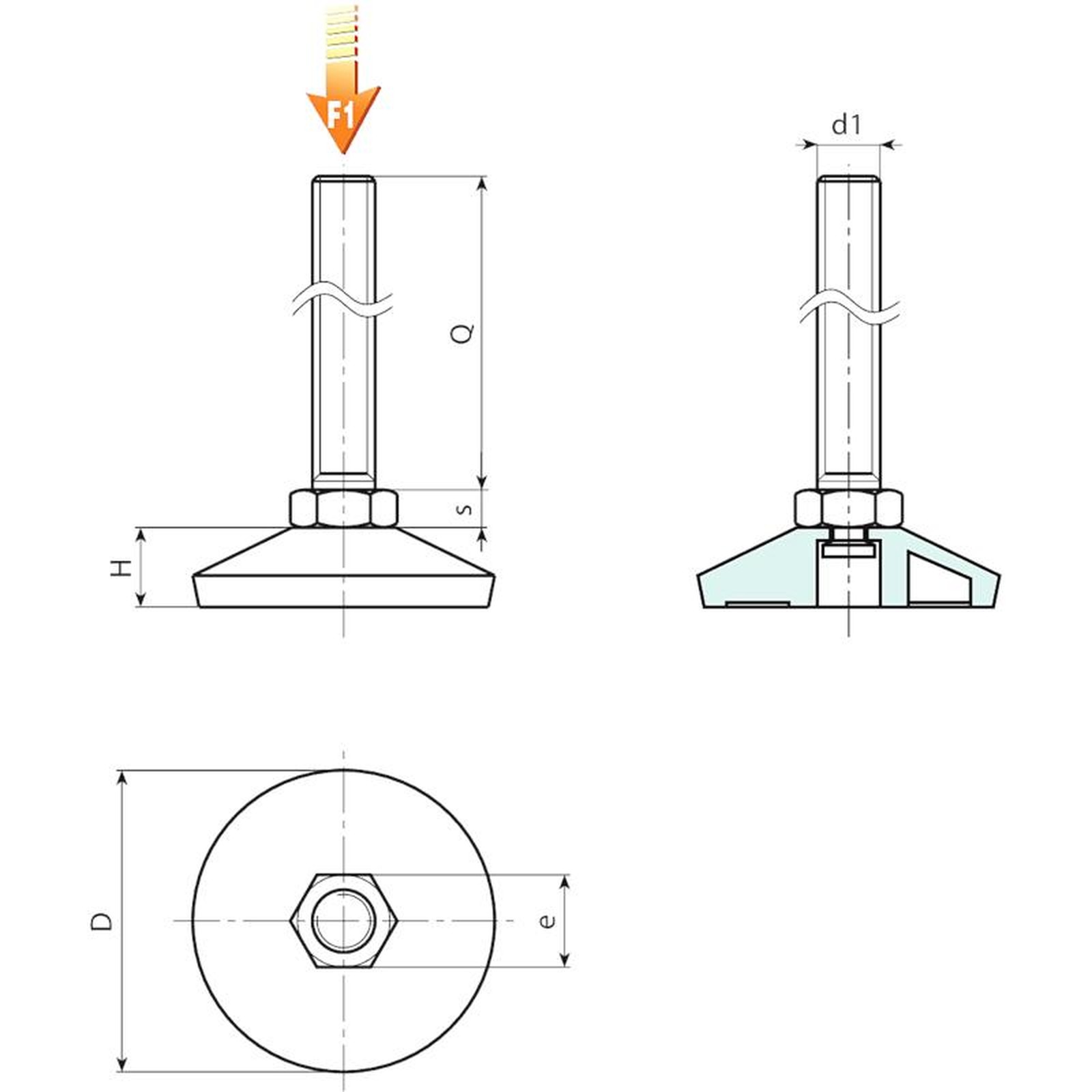

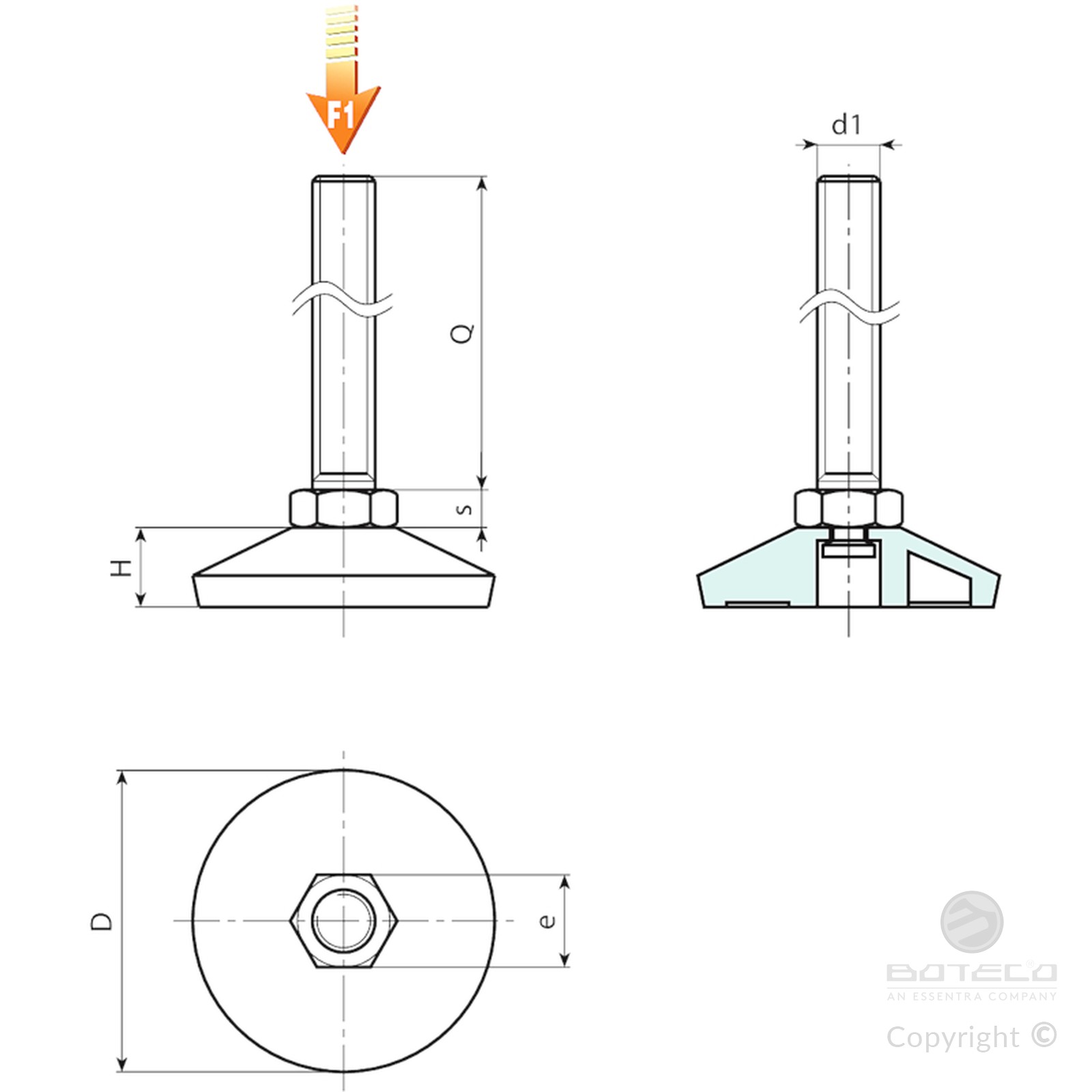

| Code | Art. | D | H | e | s | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|
| P20340.0001 | P20340.TM10X4001 | 37 | 11.5 | 17 | 6.5 | M10 | 40 | 39 | 2000 |
| P20340.0003 | P20340.TM10X6001 | 37 | 11.5 | 17 | 6.5 | M10 | 60 | 49 | 2000 |
| P20350.0001 | P20350.TM10X4001 | 49 | 13 | 17 | 6.5 | M10 | 40 | 44 | 2000 |
| P20350.0002 | P20350.TM10X6001 | 49 | 13 | 17 | 6.5 | M10 | 60 | 54 | 2000 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
