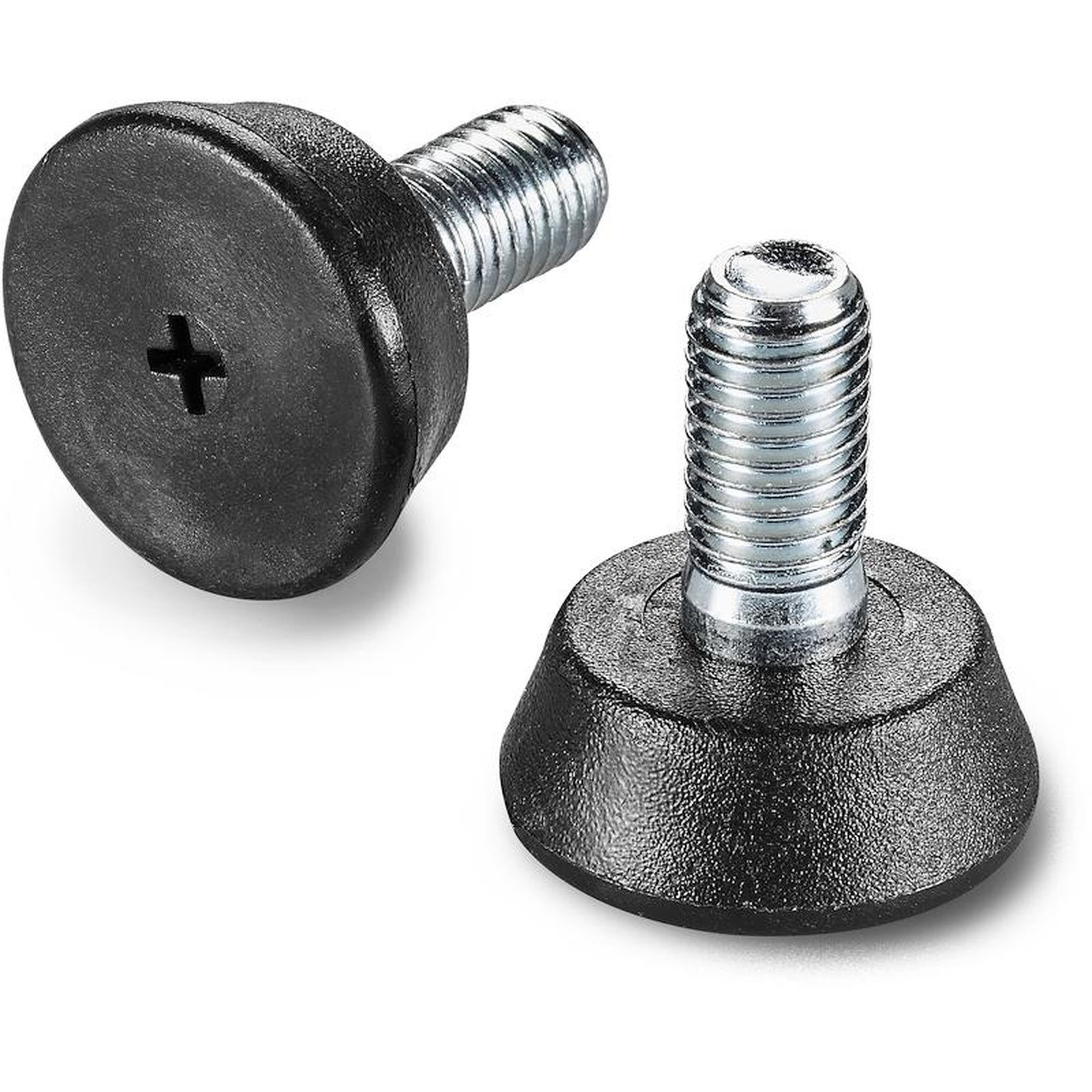

MOUNTING FOOT WITH FIXED THREADED STUD
16
P202
Piedi con prigioniero fisso
Materials:
High density polyethylene.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths (minimum quantity 10,000).

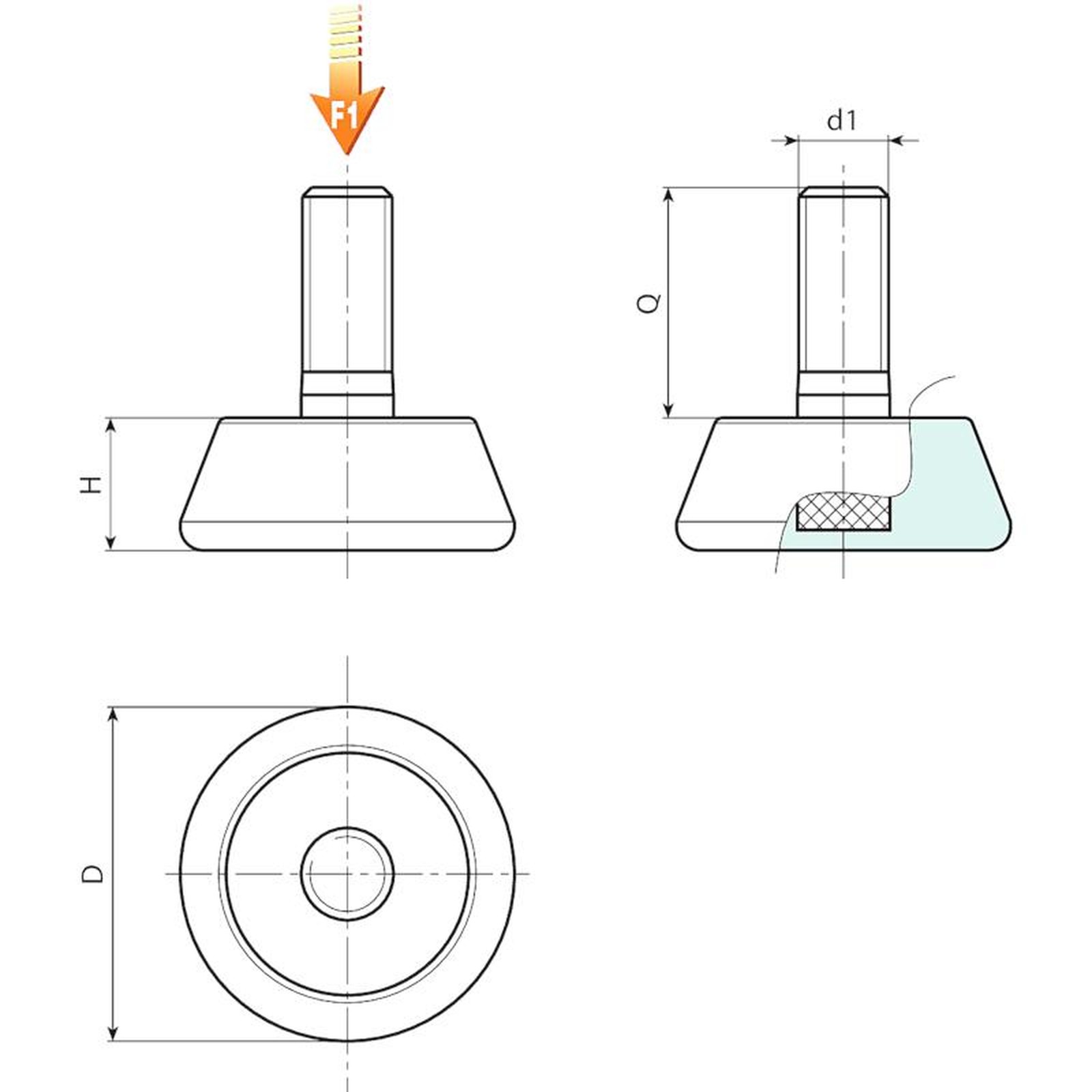

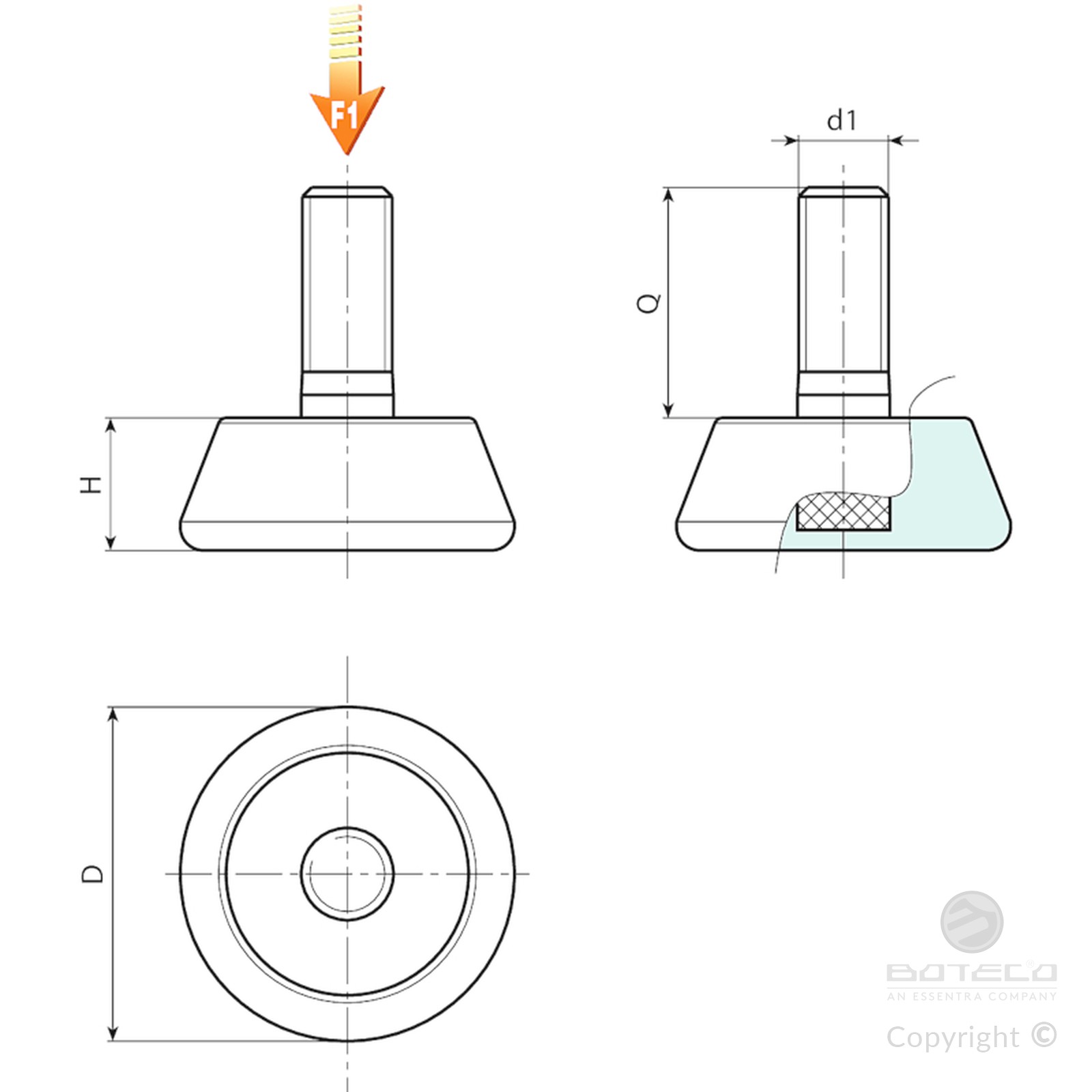

| Code | Art. | D | H | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| P20230.0001 | P20230.TM08X2001 | 29 | 11.5 | M8 | 20 | 17 | 1000 |
| P20230.0002 | P20230.TM10X2001 | 29 | 11.5 | M10 | 20 | 20 | 1000 |
| P20240.0001 | P20240.TM08X2501 | 40 | 13.5 | M8 | 25 | 29 | 1000 |
| P20240.0002 | P20240.TM10X2501 | 40 | 13.5 | M10 | 25 | 33 | 1000 |
| P20250.0001 | P20250.TM10X3501 | 48.5 | 16.5 | M10 | 35 | 54 | 1000 |
| P20250.0002 | P20250.TM12X3501 | 48.5 | 16.5 | M12 | 35 | 65 | 1000 |
| P20260.0001 | P20260.TM10X3701 | 60 | 18,5 | M10 | 37 | 78 | 1000 |
| P20260.0002 | P20260.TM12X3701 | 60 | 18,5 | M12 | 37 | 80 | 1000 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
