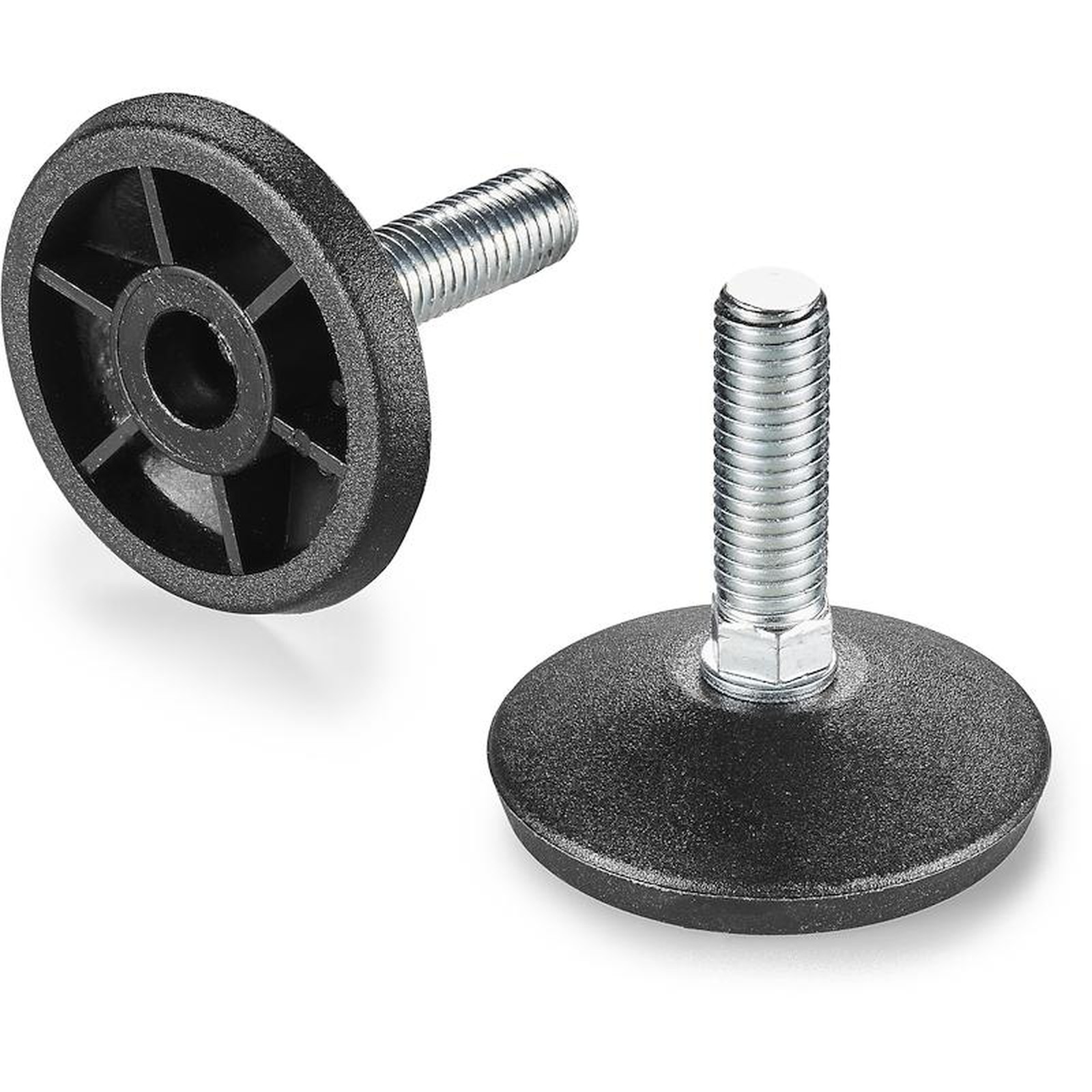

MOUNTING FOOT WITH REVOLVING THREADED STUD
16
P201
Piedi con stelo girevole
Materials:
High density polyethylene.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Revolving threaded stud in galvanised steel (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths (minimum quantity 10,000).

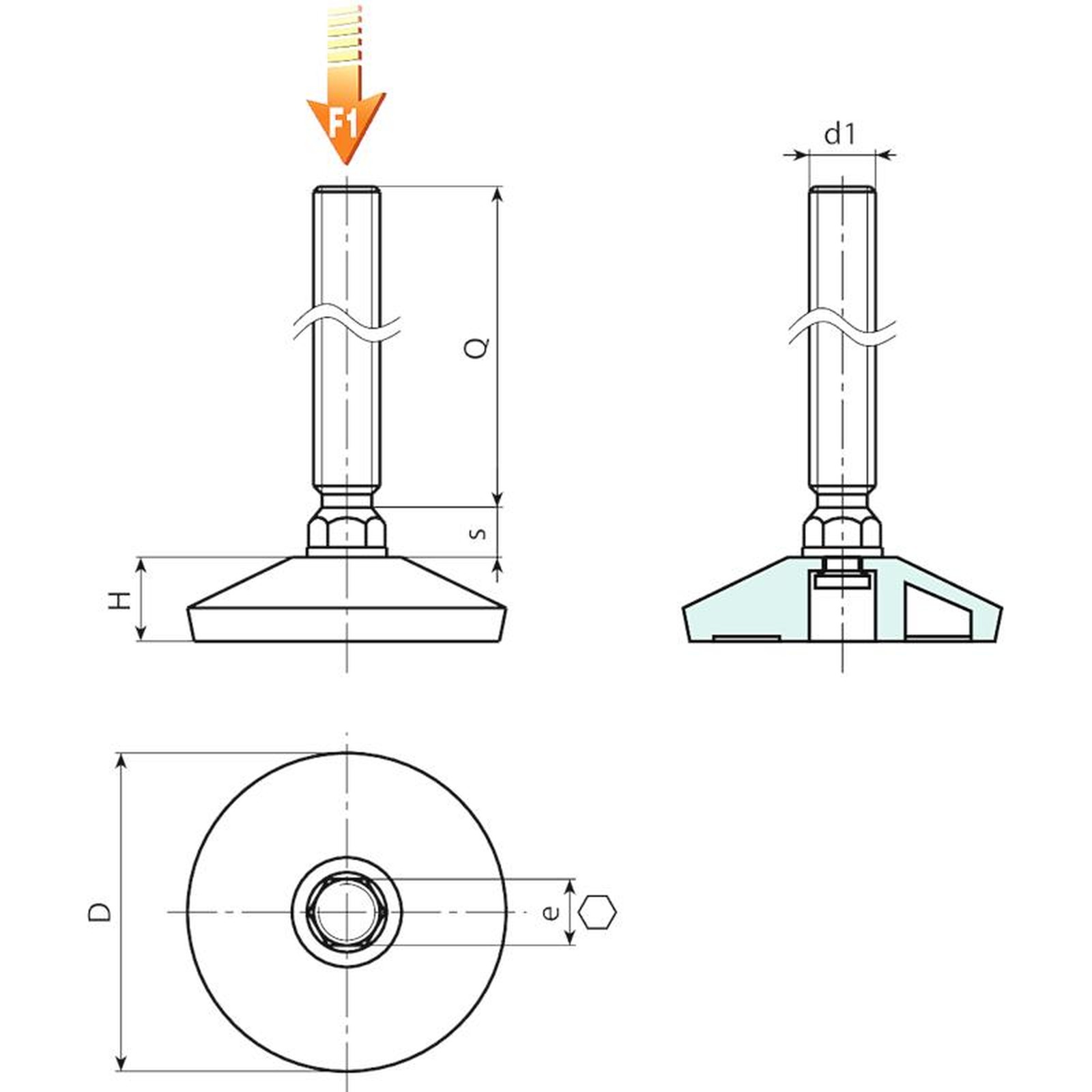

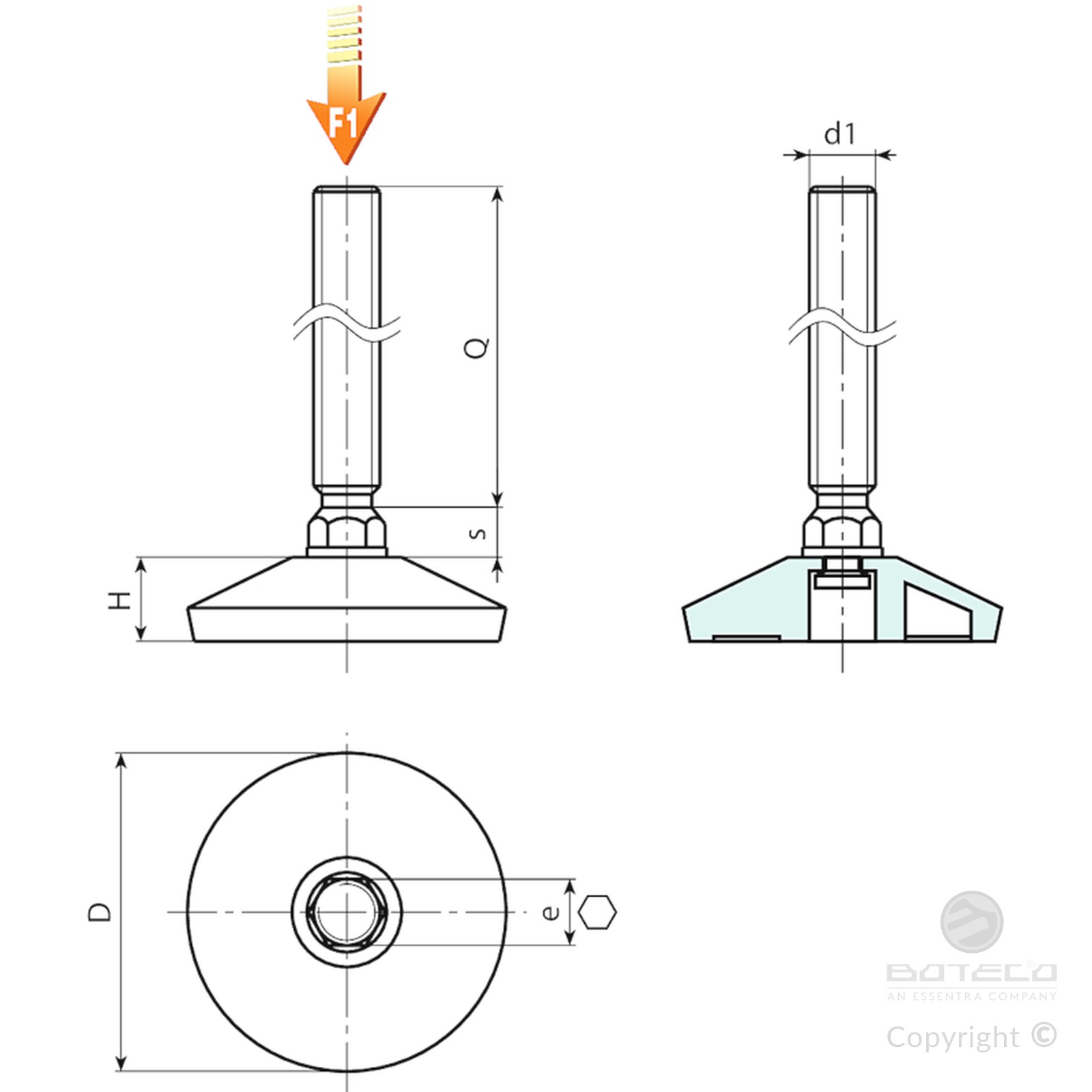

| Code | Art. | D | H | e | s | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|
| P20140.0001 | P20140.TM10X2501 | 37 | 11.5 | 10 | 6 | M10 | 25 | 28 | 2000 |
| P20150.0001 | P20150.TM10X3001 | 48.5 | 12.5 | 10 | 6 | M10 | 30 | 35 | 2000 |
| P20150.0002 | P20150.TM12X3501 | 49 | 13 | 12 | 6 | M12 | 34 | 48 | 2000 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
