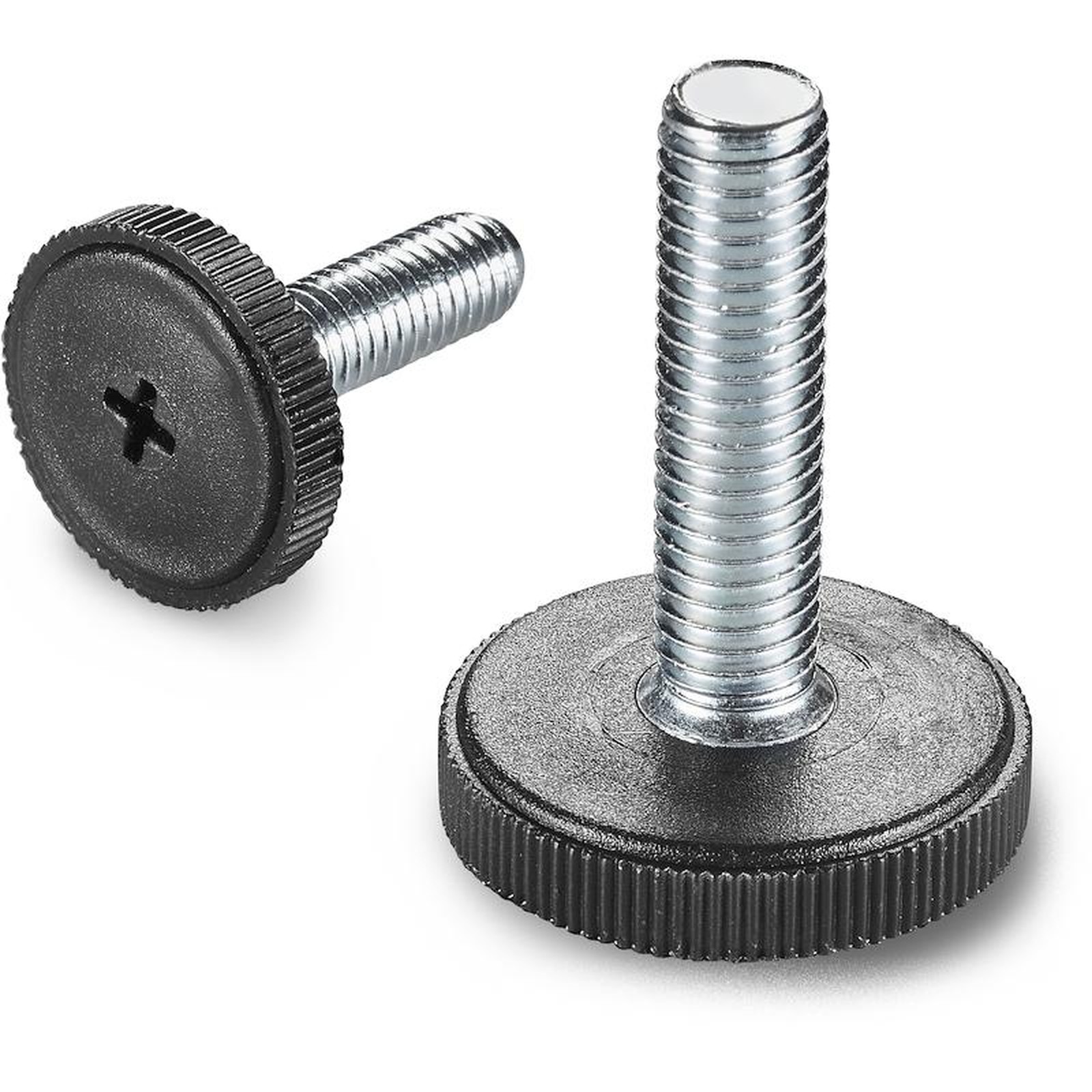

Materials:
High density polyethylene.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths (minimum quantity 10,000).

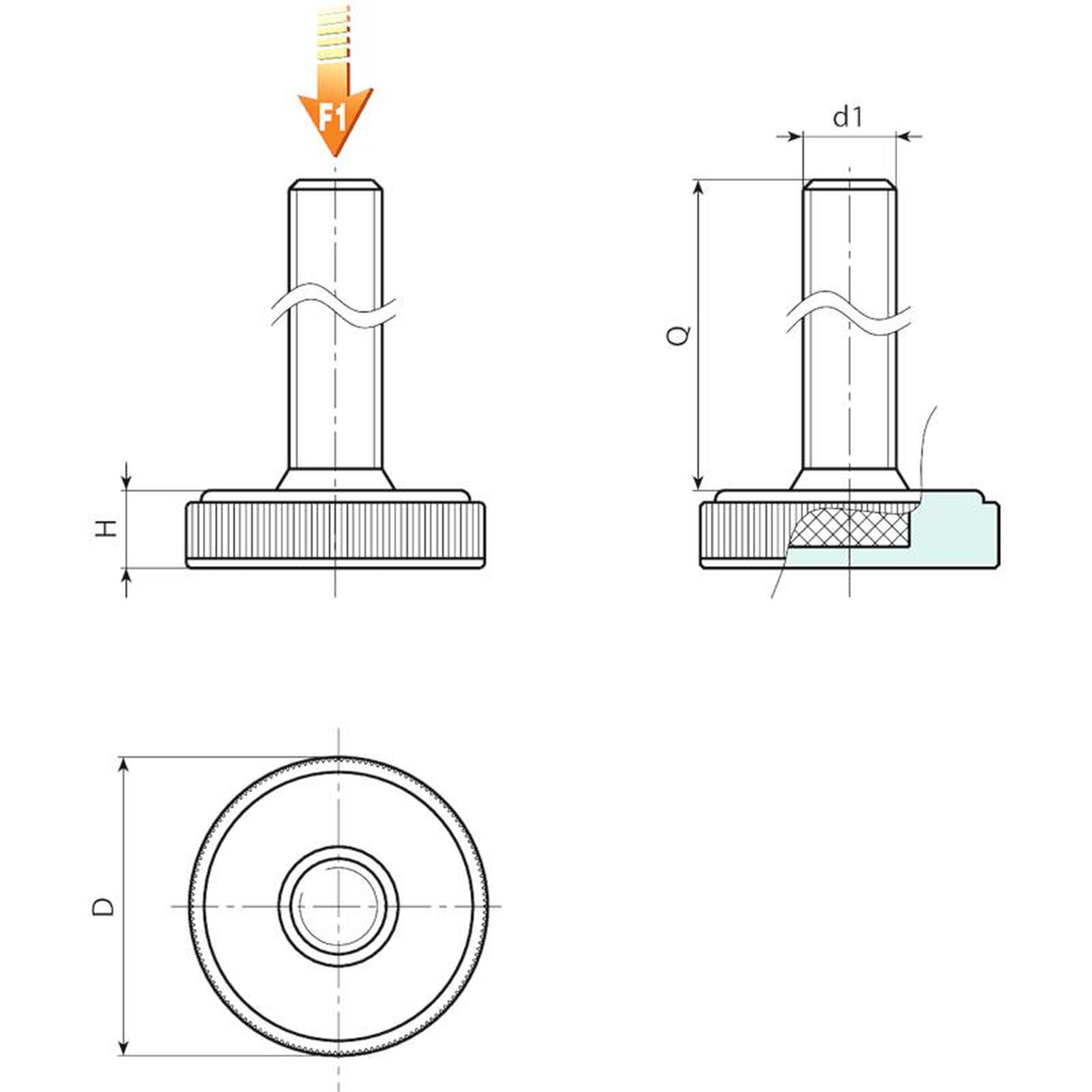

| Code | Art. | D | H | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| P20025.0001 | P20025.TM06X1701 | 25 | 6 | M6 | 17 | 7 | 1000 |
| P20025.0002 | P20025.TM08X2501 | 25 | 6 | M8 | 25 | 14 | 1000 |
| P20025.0003 | P20025.TM10X3501 | 25 | 6 | M10 | 35 | 25 | 1000 |
| P20035.0001 | P20035.TM08X2501 | 35 | 8 | M8 | 25 | 18 | 1000 |
| P20035.0002 | P20035.TM10X2501 | 35 | 8 | M10 | 25 | 25 | 1000 |
| P20035.0005 | P20035.TM10X4001 | 35 | 8 | M10 | 40 | 32 | 1000 |
| P20040.0001 | P20040.TM10X3501 | 40 | 9 | M10 | 35 | 35 | 1000 |
| P20050.0001 | P20050.TM10X3501 | 50 | 10 | M10 | 35 | 40 | 1000 |
| P20060.0001 | P20060.TM10X3501 | 60 | 10.5 | M10 | 35 | 50 | 1000 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
