T440

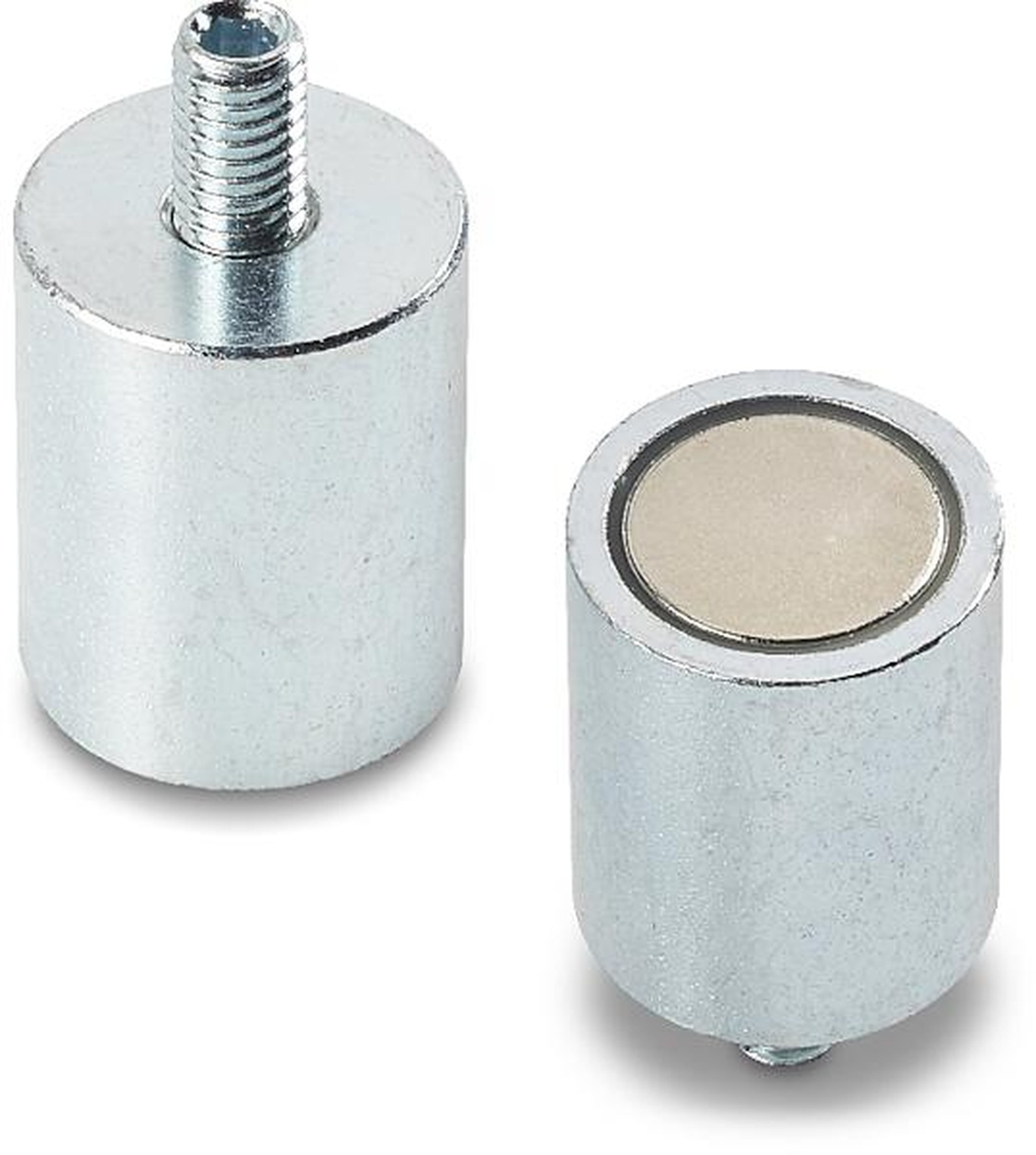

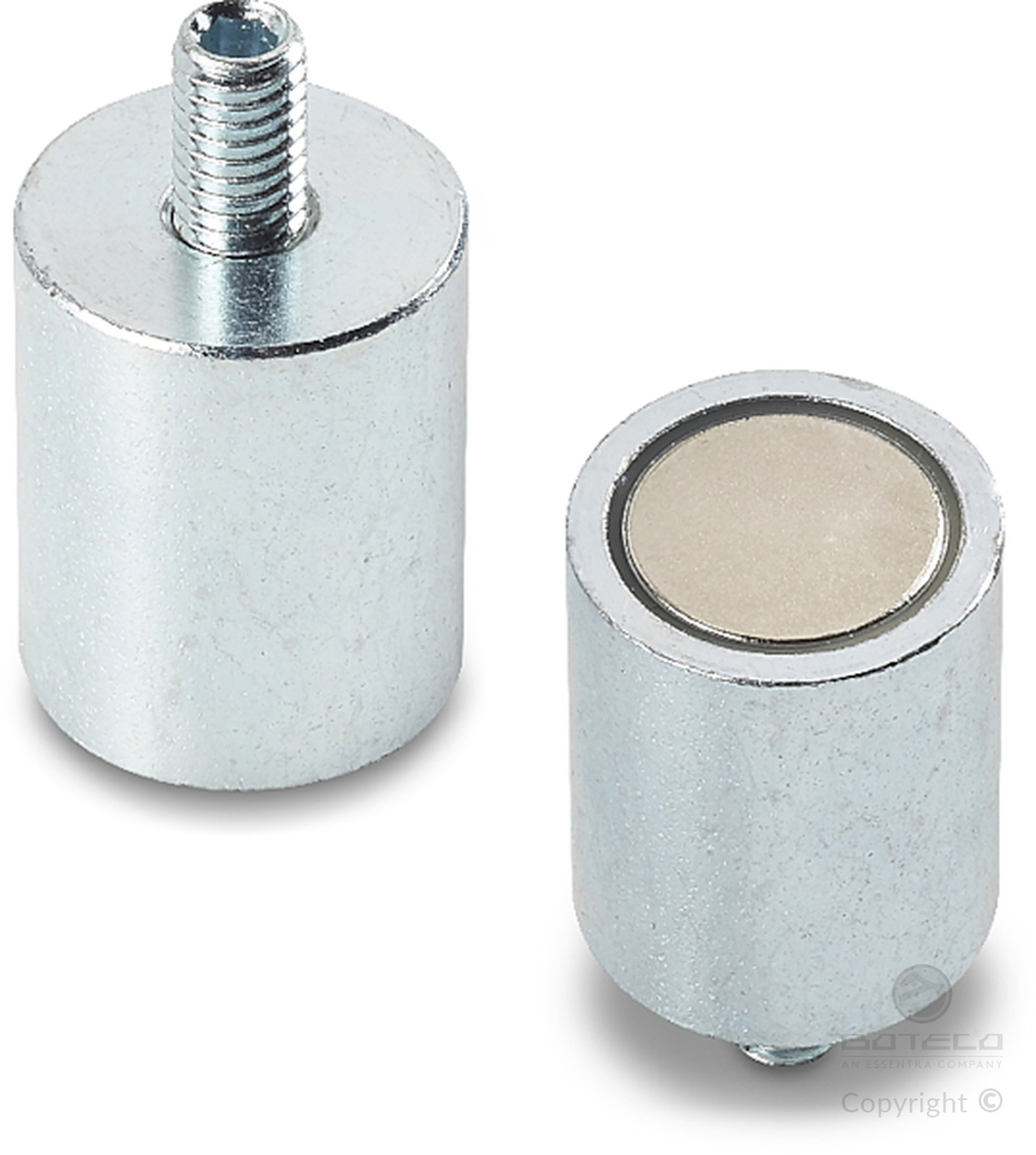

NEODYMIUM CYLINDRICAL MAGNET WITH GALVANISED STEEL SHELL WITH THREADED STUD
Neodymium magnets (NdFeB)

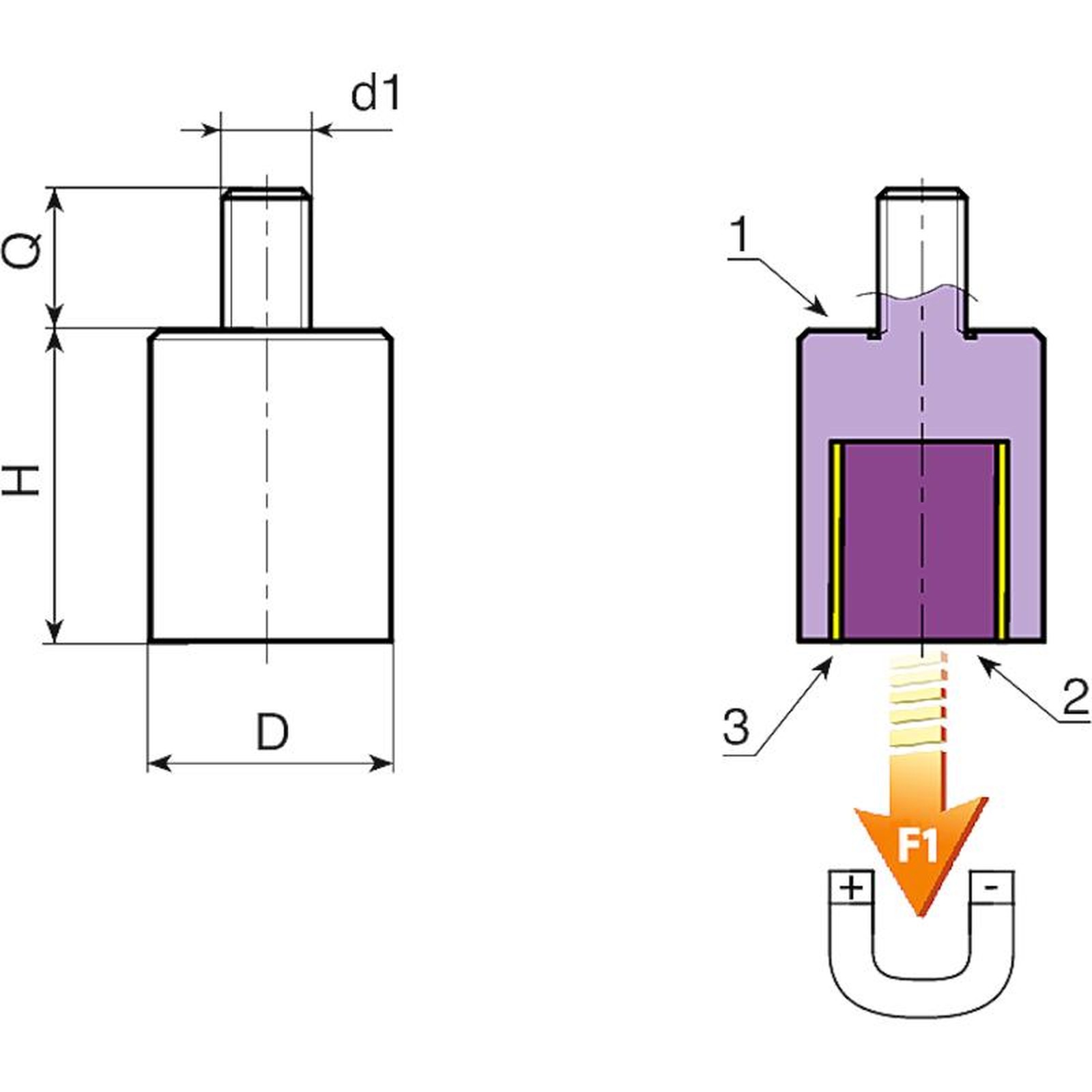

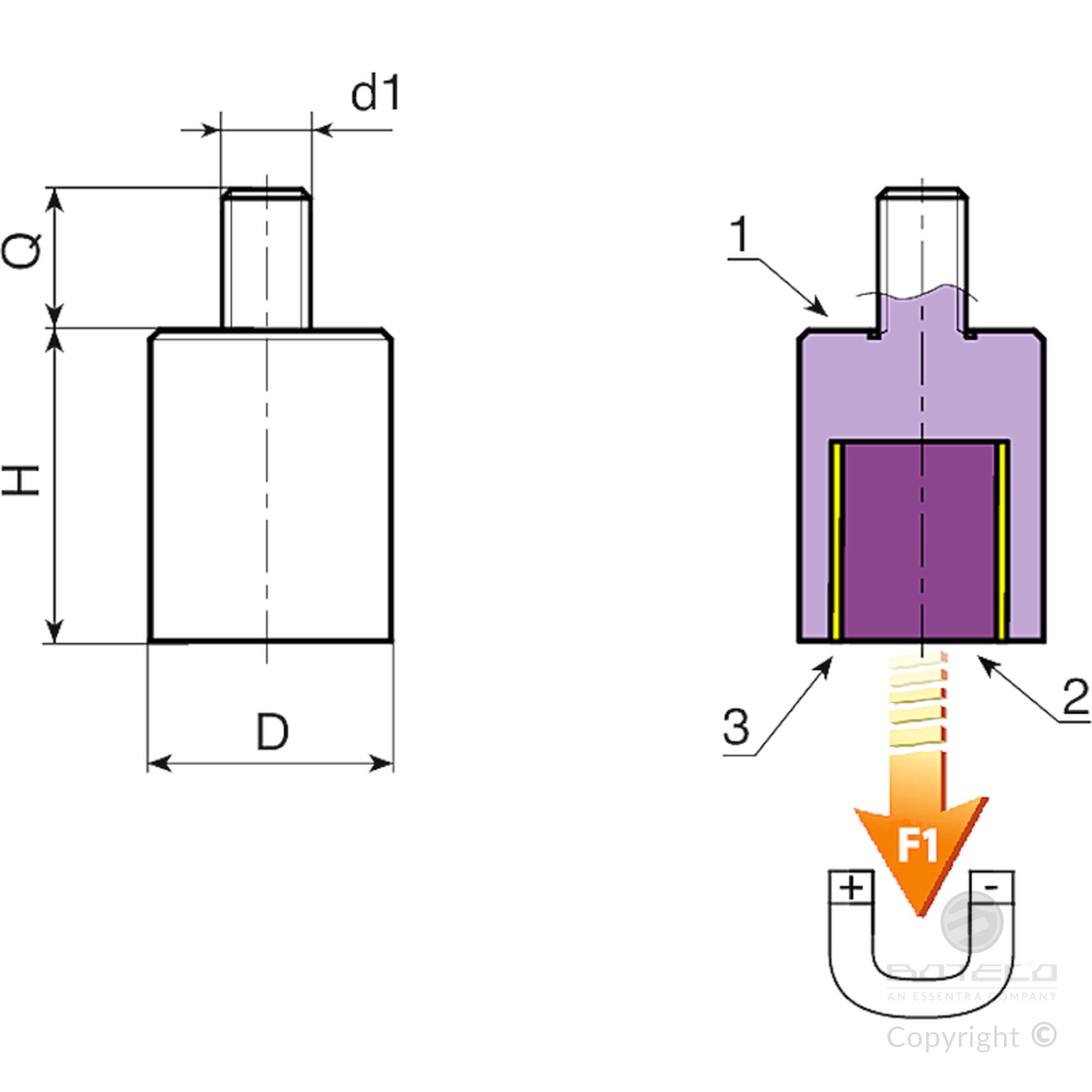

Materials:
(1) Turned free-cutting steel shell with threaded stud and hexagonal fixing hole (thread tolerance 6g).
(2) Cylindrical neodymium-iron-boron magnet (NdFeB).
(3) Brass spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
None.
| Code | art. | D ±0,1 | H ±0,2 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T440006.0001 | T440006.VZM03X07 | 06 | 20 | M3 | 07 | 4 | 6 |
| T440006.0001 | T440006.VZM03X07 | 08 | 20 | M3 | 07 | 7,5 | 12 |
| T440010.0001 | T440010.VZM04X08 | 10 | 20 | M4 | 08 | 11 | 24 |
| T440013.0001 | T440013.VZM04X08 | 13 | 20 | M4 | 08 | 20 | 60 |
| T440016.0001 | T440016.VZM04X10 | 16 | 20 | M4 | 10 | 30 | 90 |
| T440020.0001 | T440020.VZM06X10 | 20 | 25 | M6 | 10 | 58 | 135 |
| T440032.0001 | T440032.VZM08X12 | 32 | 40 | M8 | 12 | 243 | 340 |
| T440050.0001 | T440050.VZM10X15 | 50 | 60 | M10 | 15 | 915 | 1.000 |
| T440063.0001 | T440063.VZM12X20 | 63 | 65 | M12 | 20 | 1.579 | 1.700 |
