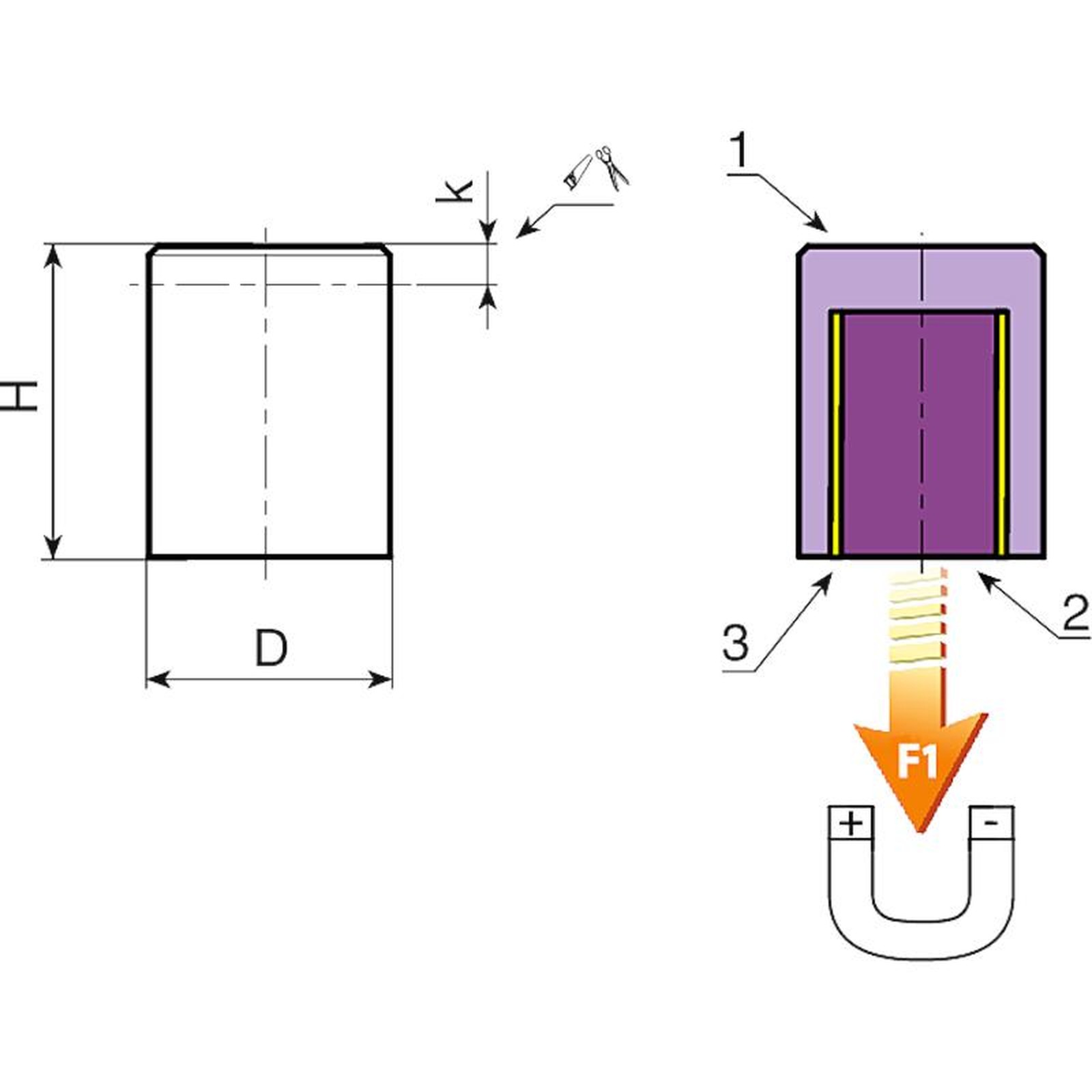

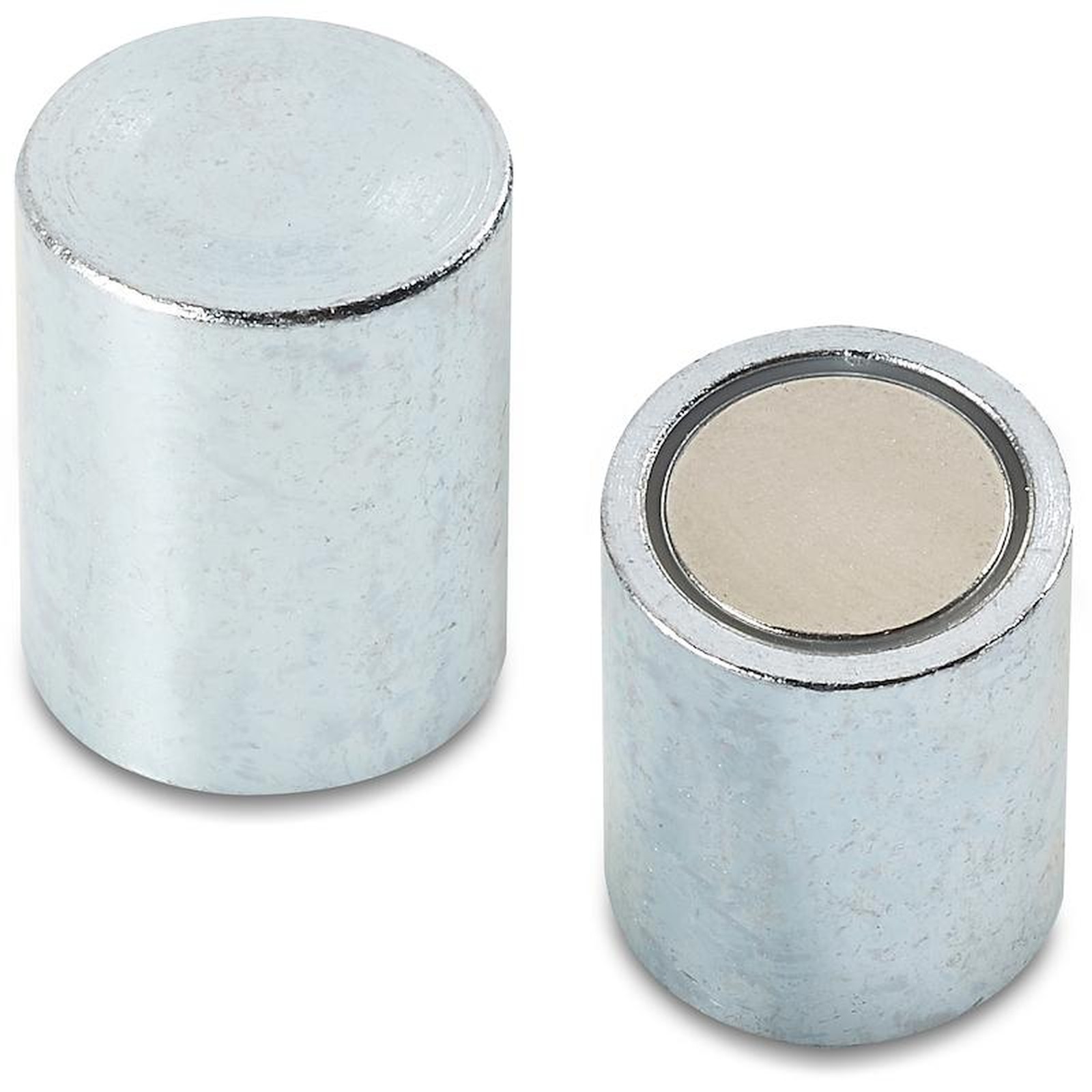

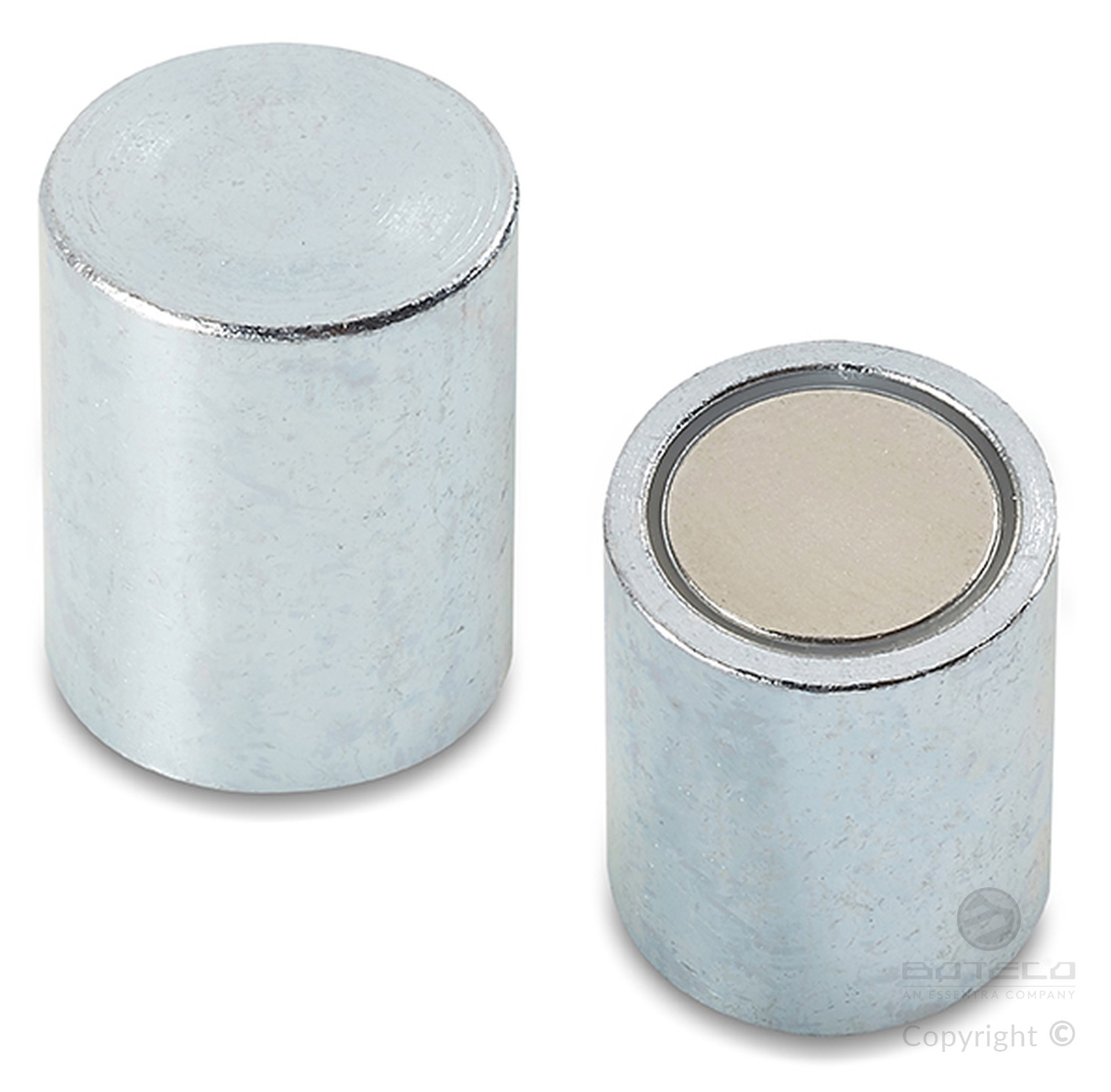

Materials:
(1) Turned free-cutting steel shell.
(2) Cylindrical neodymium-iron-boron magnet (NdFeB).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
ATTENTION:
The magnet can be made shorter or machined to value k without sustaining damage.
Special requests:
None.
| Code | art. | D ±0,1 | H ±0,2 | k | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|
| T432004.0001 | T432004.VZ | 04 | 20 | 15 | 2 | 2,5 |
| T432005.0001 | T432005.VZ | 05 | 20 | 15 | 3 | 4,5 |
| T432006.0001 | T432006.VZ | 06 | 20 | 15 | 4,5 | 6 |
| T432008.0001 | T432008.VZ | 08 | 20 | 15 | 8 | 12 |
| T432010.0001 | T432010.VZ | 10 | 20 | 15 | 12 | 24 |
| T432013.0001 | T432013.VZ | 13 | 20 | 15 | 21 | 60 |
| T432016.0001 | T432016.VZ | 16 | 20 | 15 | 31 | 90 |
| T432020.0001 | T432020.VZ | 20 | 25 | 18 | 61 | 135 |
| T432025.0001 | T432025.VZ | 25 | 35 | 27 | 133 | 190 |
| T432032.0001 | T432032.VZ | 32 | 40 | 32 | 249 | 340 |
