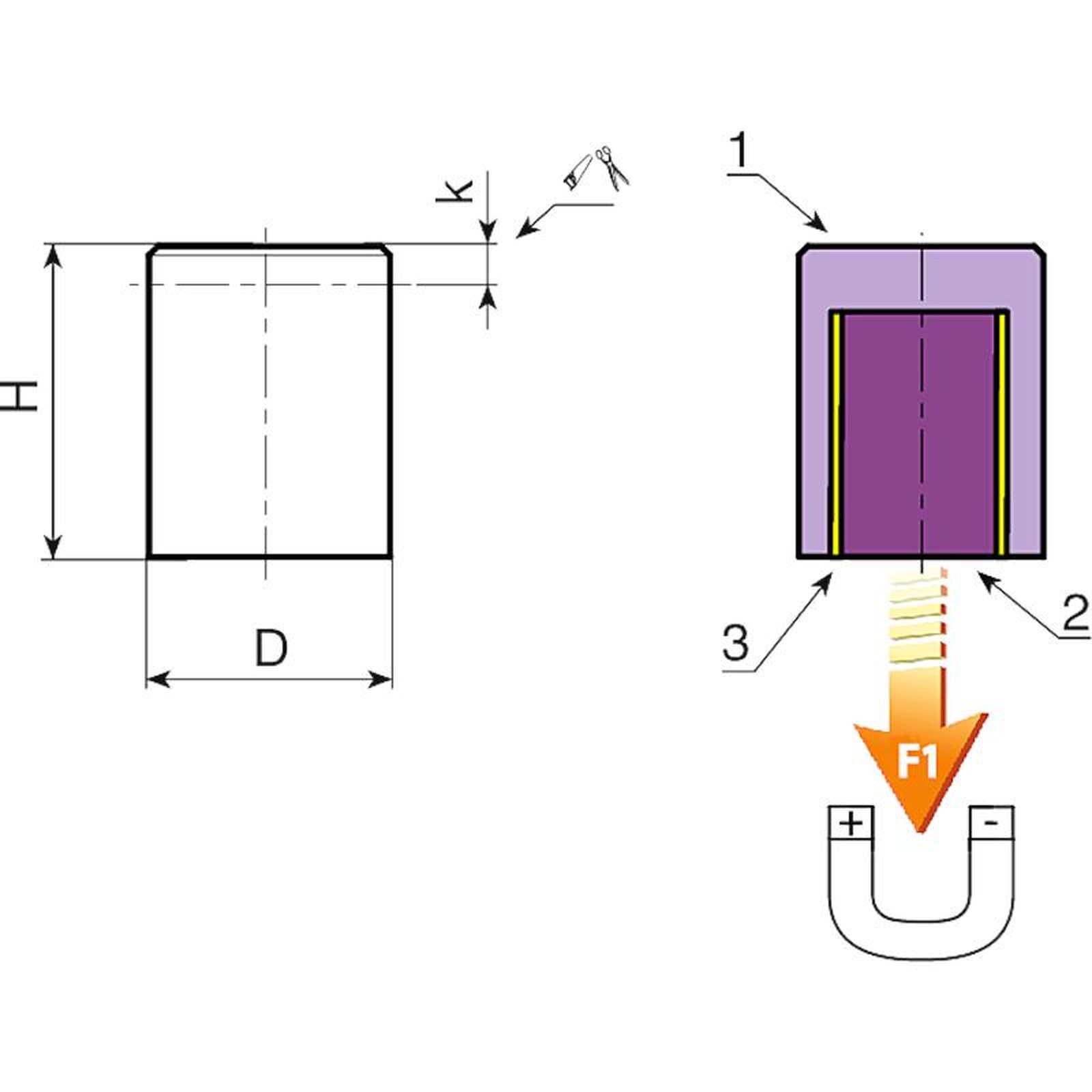

Materials:
(1) Turned free-cutting steel shell.
(2) Cylindrical aluminium-nickel-cobalt magnet (AlNiCo).
(3) Brass spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
ATTENTION:
The magnet can be made shorter or machined to value k without sustaining damage.
Special requests:
None.
| Code | art. | D ±0,1 | H ±0,2 | k | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|
| T430006.0001 | T430006.VZ | 06 | 20 | 12 | 4,5 | 2 |
| T430008.0001 | T430008.VZ | 08 | 20 | 11 | 7,5 | 4 |
| T430010.0001 | T430010.VZ | 10 | 20 | 10 | 12 | 8,5 |
| T430013.0001 | T430013.VZ | 13 | 20 | 8 | 19 | 12 |
| T430016.0001 | T430016.VZ | 16 | 20 | 6 | 30 | 20 |
| T430020.0001 | T430020.VZ | 20 | 25 | 5 | 58 | 40 |
| T430025.0001 | T430025.VZ | 25 | 35 | 13 | 125 | 60 |
| T430032.0001 | T430032.VZ | 32 | 40 | 9 | 220 | 160 |
| T430040.0001 | T430040.VZ | 40 | 50 | 10 | 440 | 240 |
| T430050.0001 | T430050.VZ | 50 | 60 | 10 | 813 | 400 |
| T430063.0001 | T430063.VZ | 63 | 65 | 10 | 1.306 | 660 |
