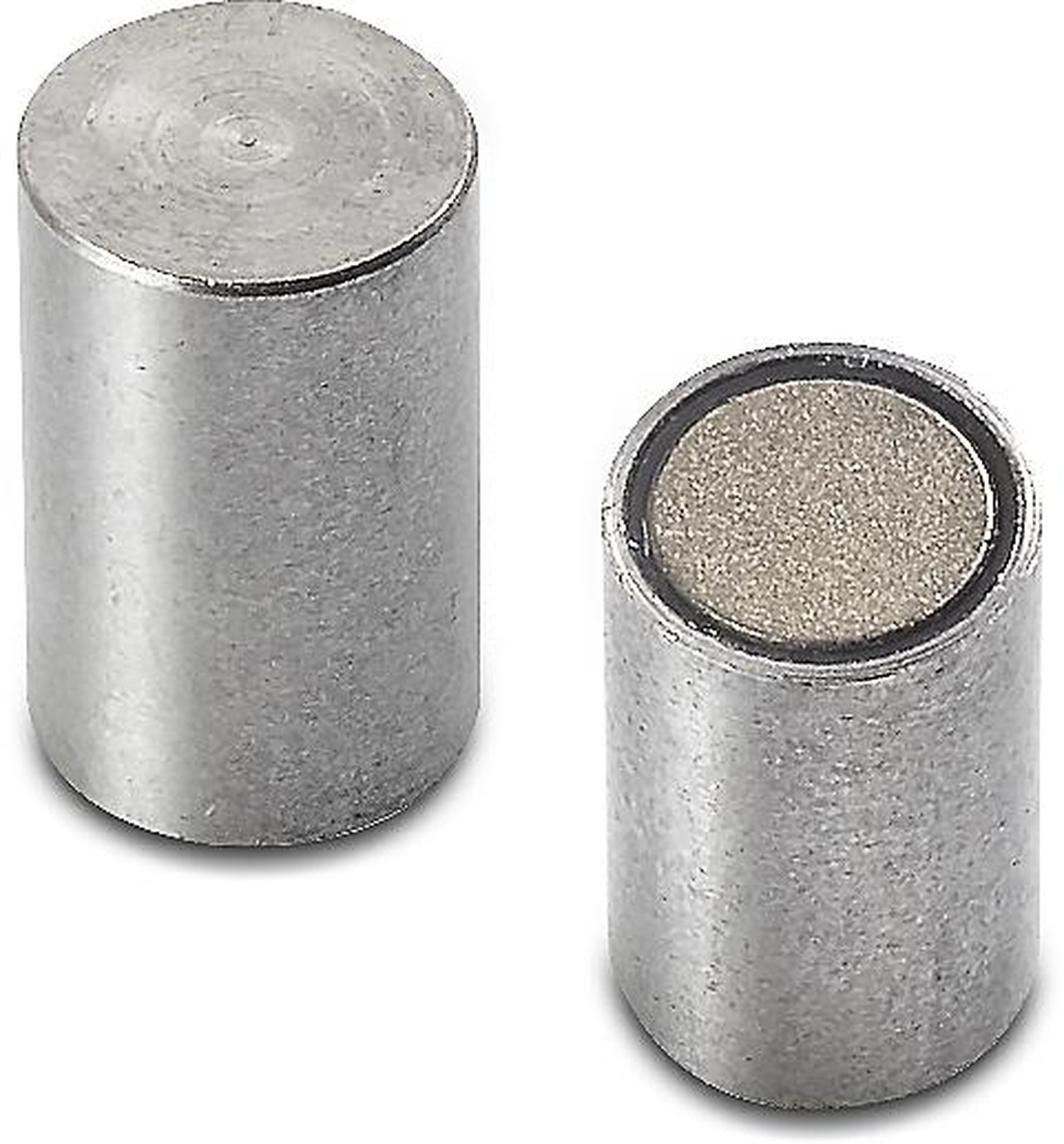

SAMARIUM-COBALT CYLINDRICAL MAGNET WITH GALVANISED STEEL SHELL WITH h6 TOLERANCE
18
T429
Magneti Samario (SaCo)

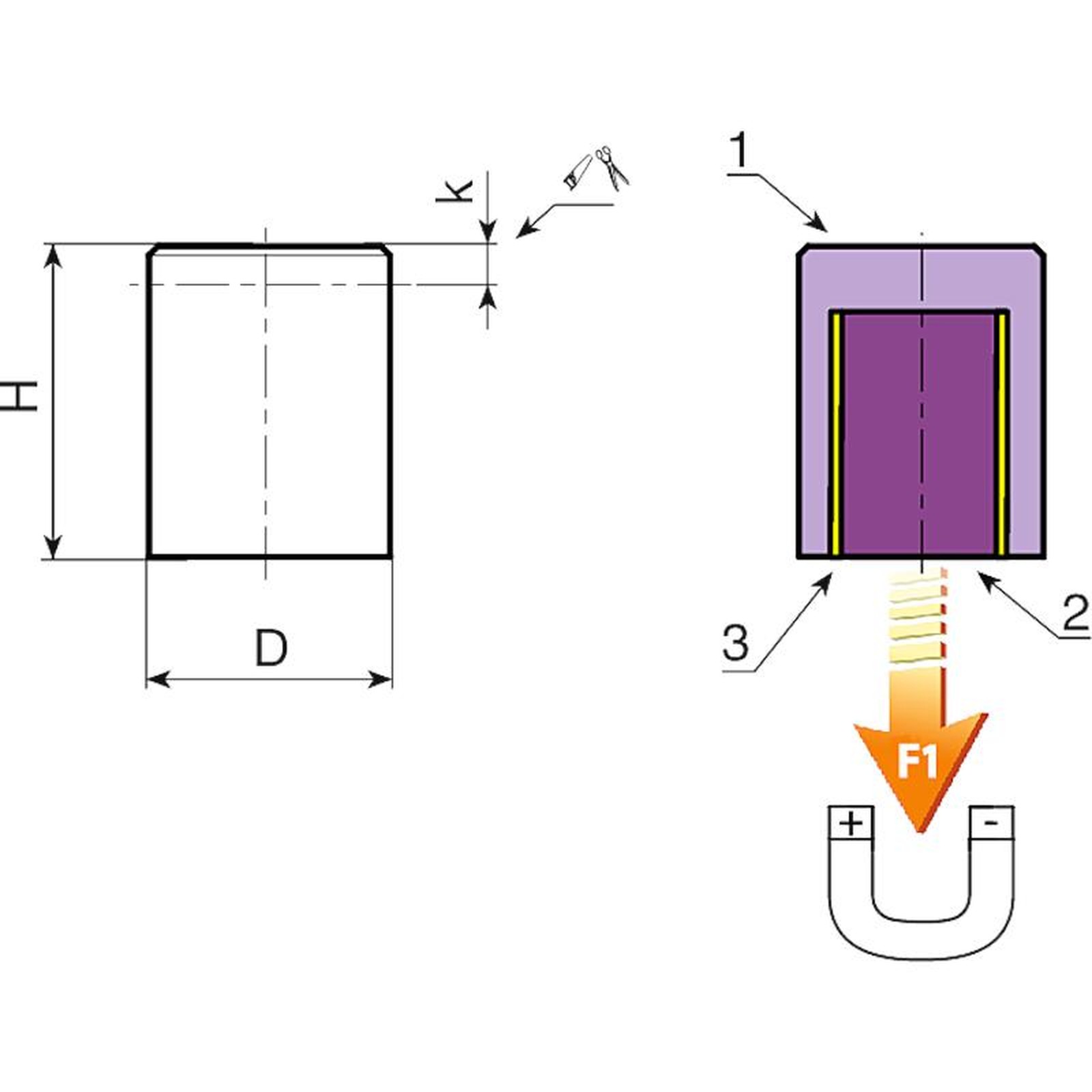

Materials:
(1) Turned free-cutting steel shell, with external tolerance h6.
(2) Cylindrical samarium-cobalt magnet (SmCo).
(3) Brass spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
ATTENTION:
The magnet can be made shorter or machined to value k without sustaining damage.
Special requests:
None.
| Code | art. | D h6 | H ±0,2 | k | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|
| T429004.0001 | T429004.VZ | 04 | 20 | 15 | 1 | 2 |
| T429005.0001 | T429005.VZ | 05 | 20 | 15 | 3 | 4 |
| T429006.0001 | T429006.VZ | 06 | 20 | 15 | 4,5 | 6 |
| T429008.0001 | T429008.VZ | 08 | 20 | 15 | 8 | 10 |
| T429010.0001 | T429010.VZ | 10 | 16 | 11 | 10 | 25 |
