Materials:

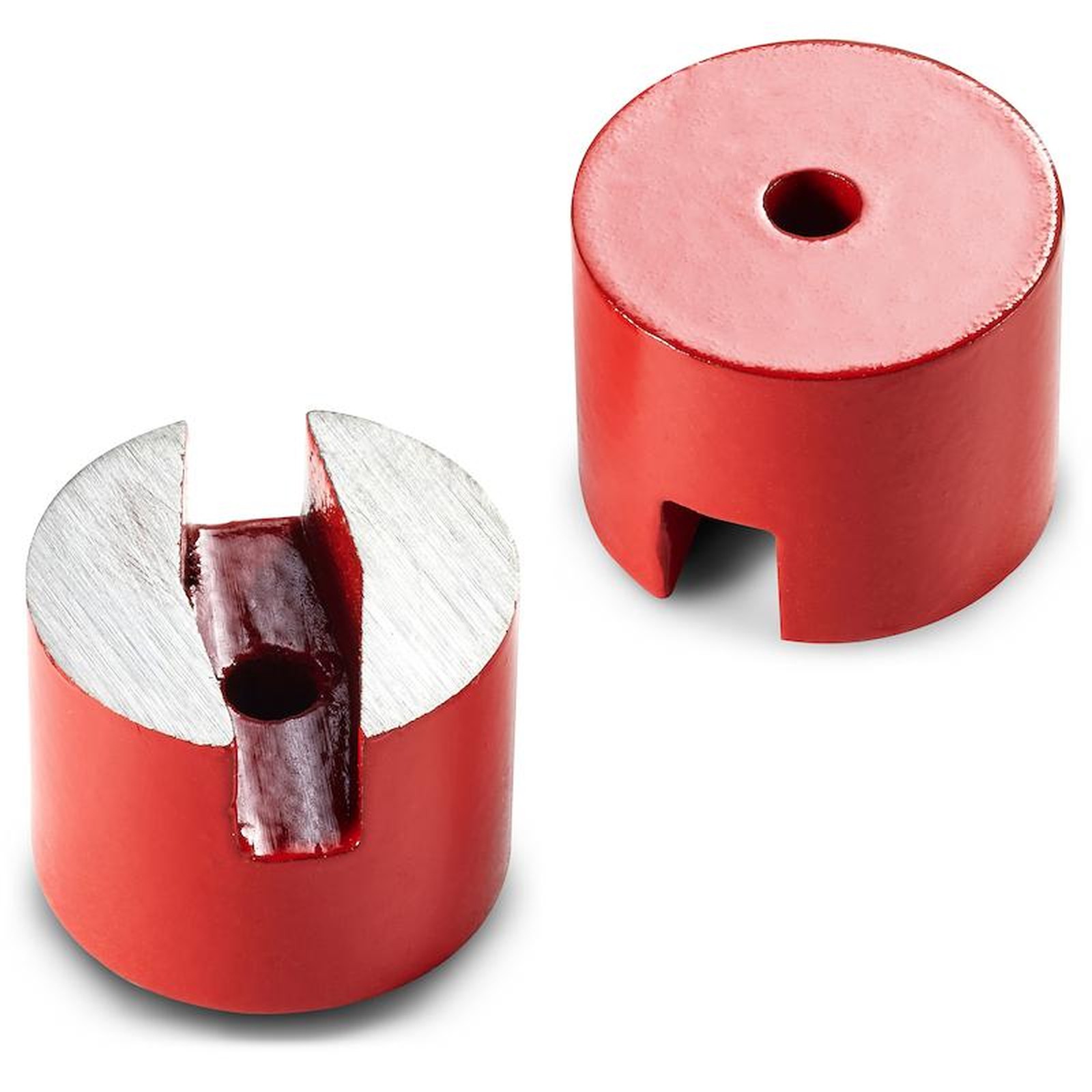

One-piece aluminium-nickel-cobalt (AlNiCo) horseshoe magnet.
Surface finish:
Painted.
Colour:
Red.
Special requests:
The magnet can be supplied, upon request, unpainted with resistance to heat up to 400°C.

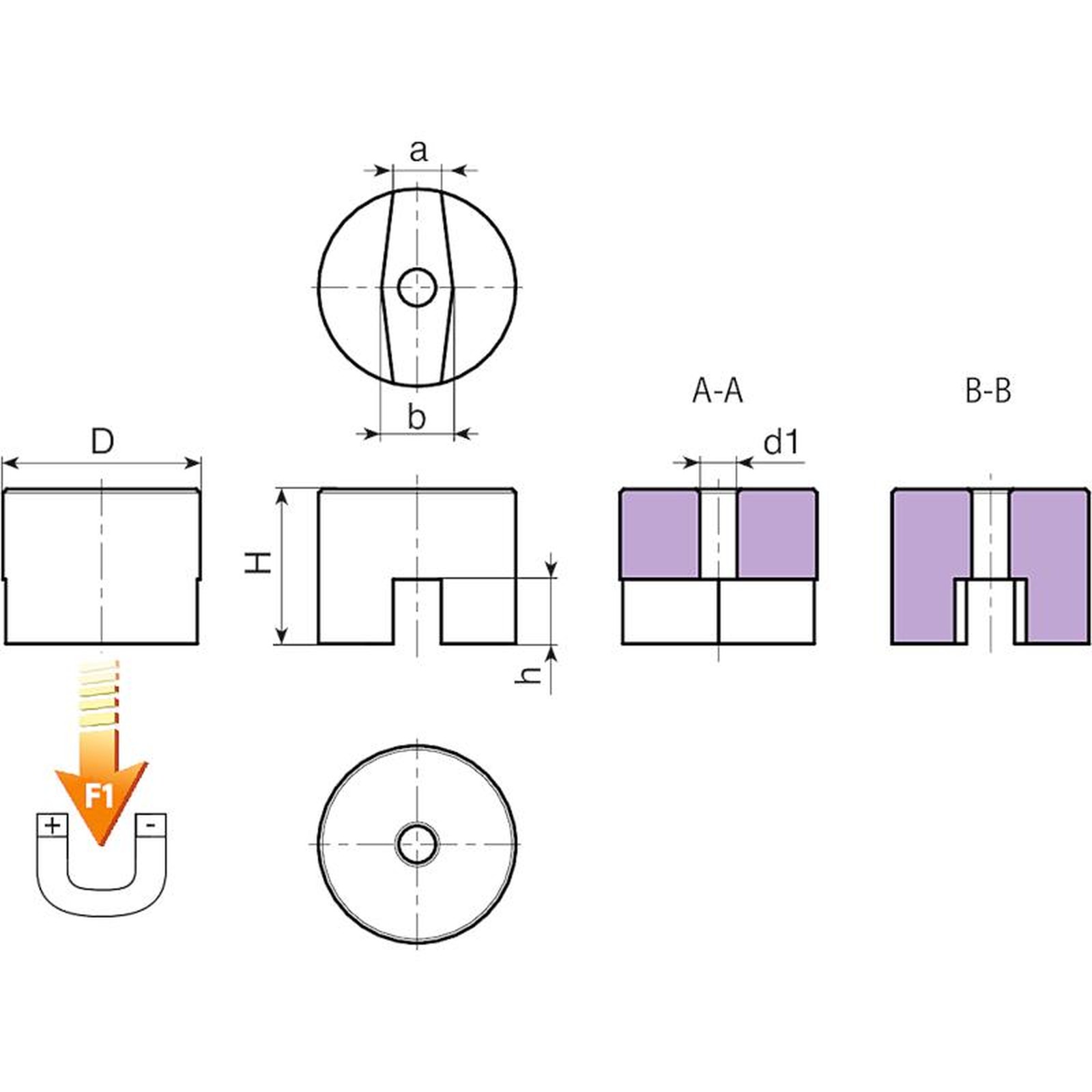

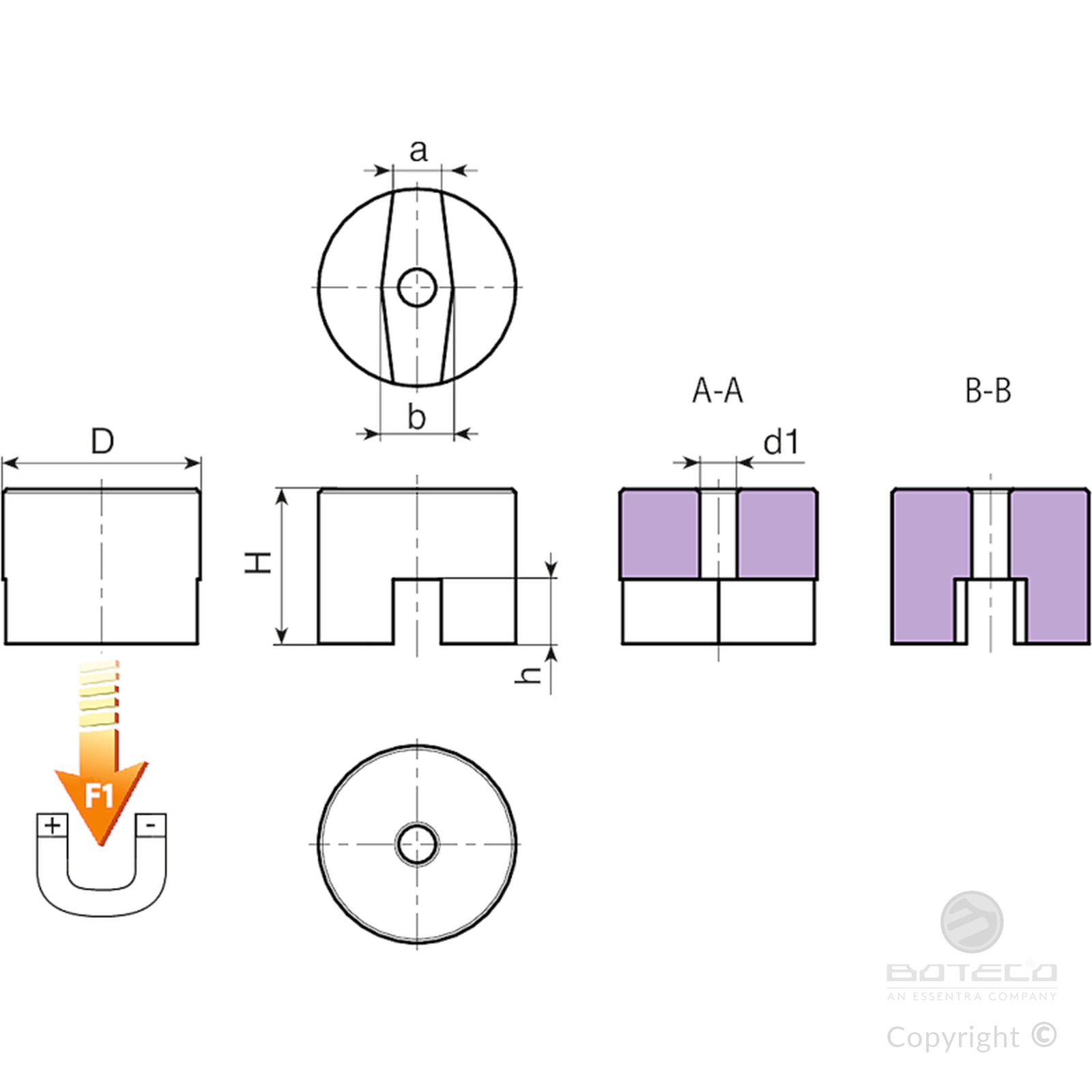

| Code | art. | D | H | h | a | b | d1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|
| T425013.0001 | T425013.D04.516 | 13 | 9,7 | 5 | 4,5 | 7 | 4,5 | 9 | 7 |
| T425019.0001 | T425019.D04.816 | 19,1 | 12,7 | 6,5 | 5,6 | 8,7 | 4,8 | 25 | 18 |
| T425025.0001 | T425025.D04.516 | 25,4 | 20 | 8 | 5,6 | 8,5 | 4,5 | 72 | 40 |
| T425032.0001 | T425032.D07.516 | 31,8 | 25,4 | 12,7 | 8 | 12,7 | 7,5 | 132 | 66 |
