Materials:

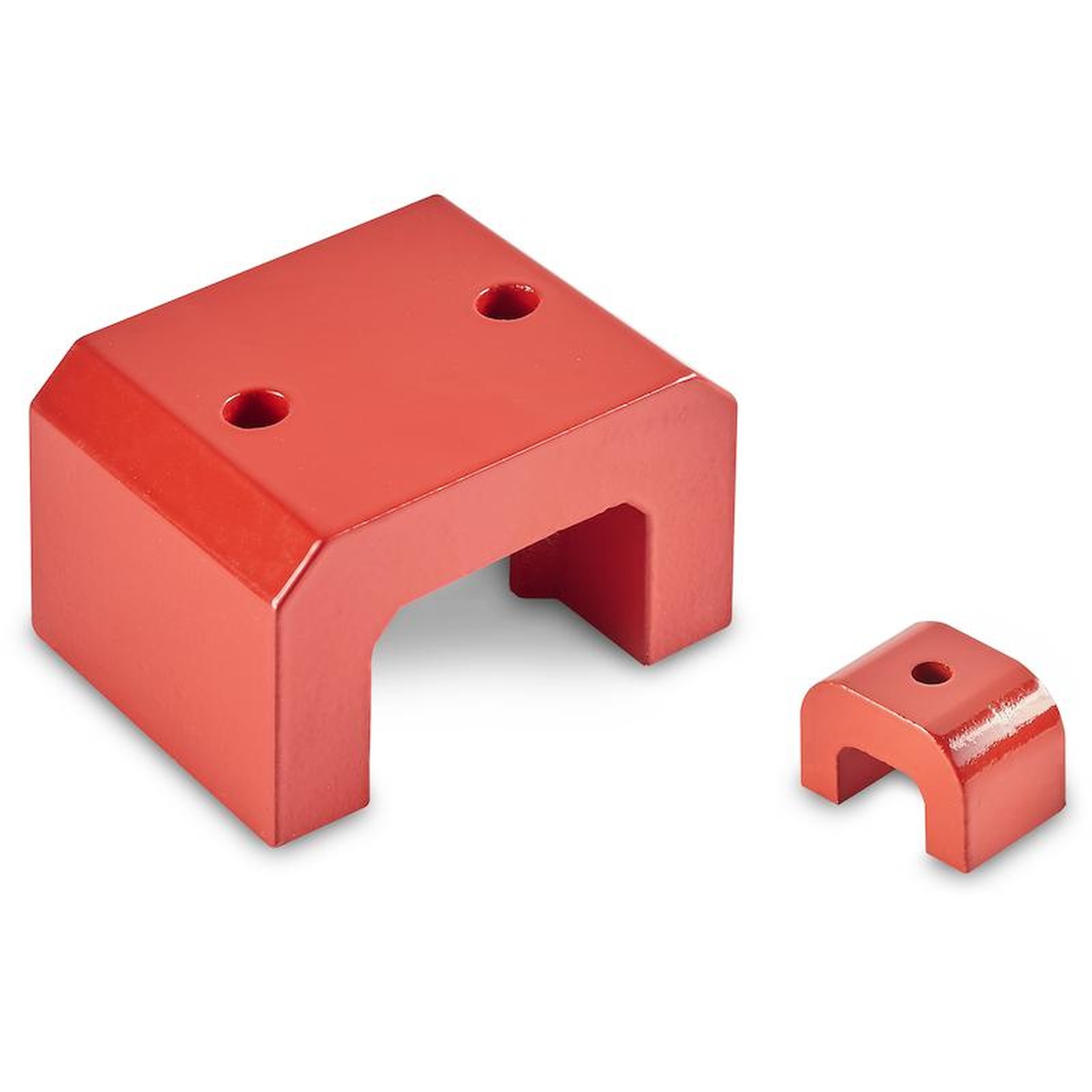

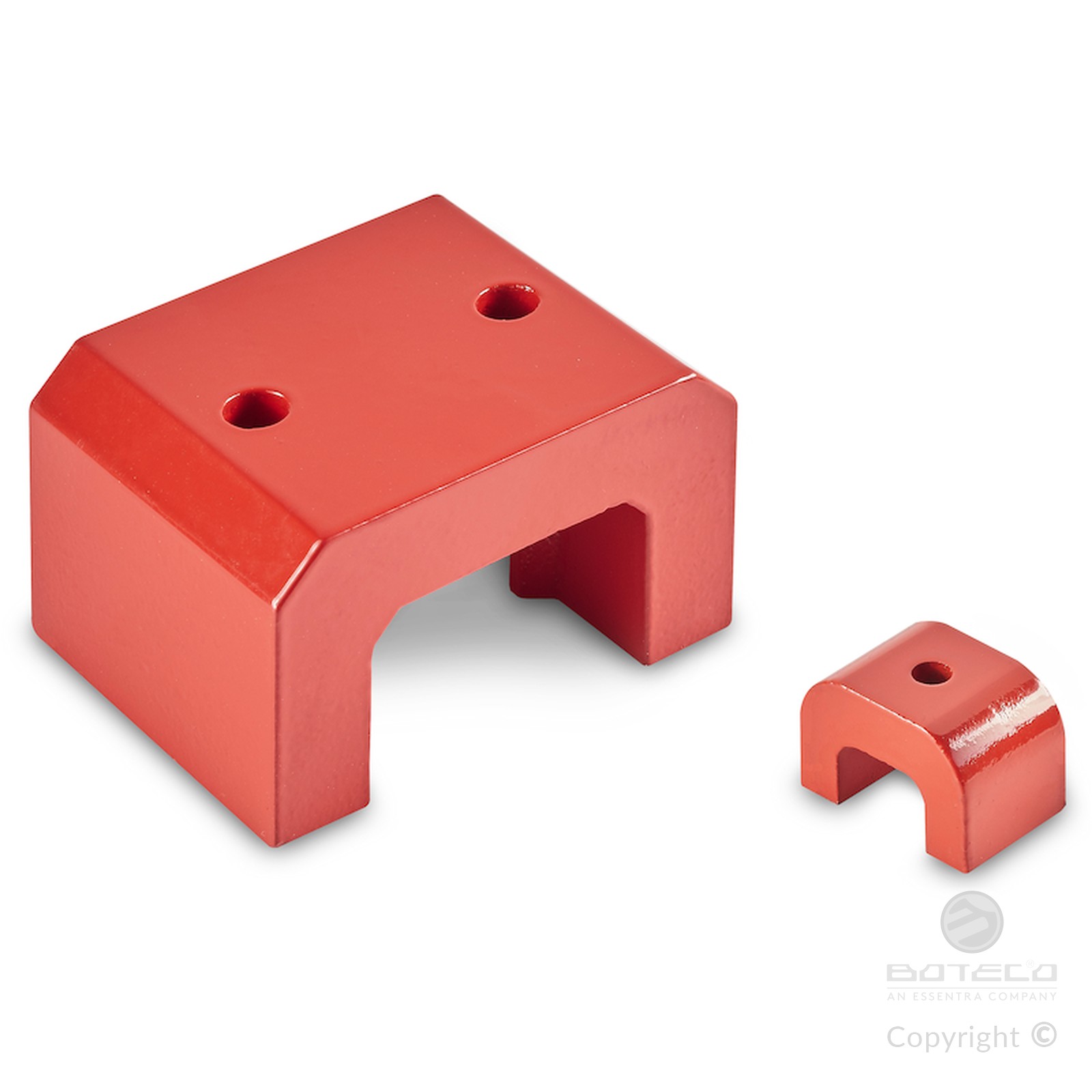

One-piece aluminium-nickel-cobalt bridge magnet (AlNiCo).
Surface finish:
Painted.
Colour:
Red.
Special requests:
The magnet can be supplied, upon request, unpainted with resistance to heat up to 400°C.

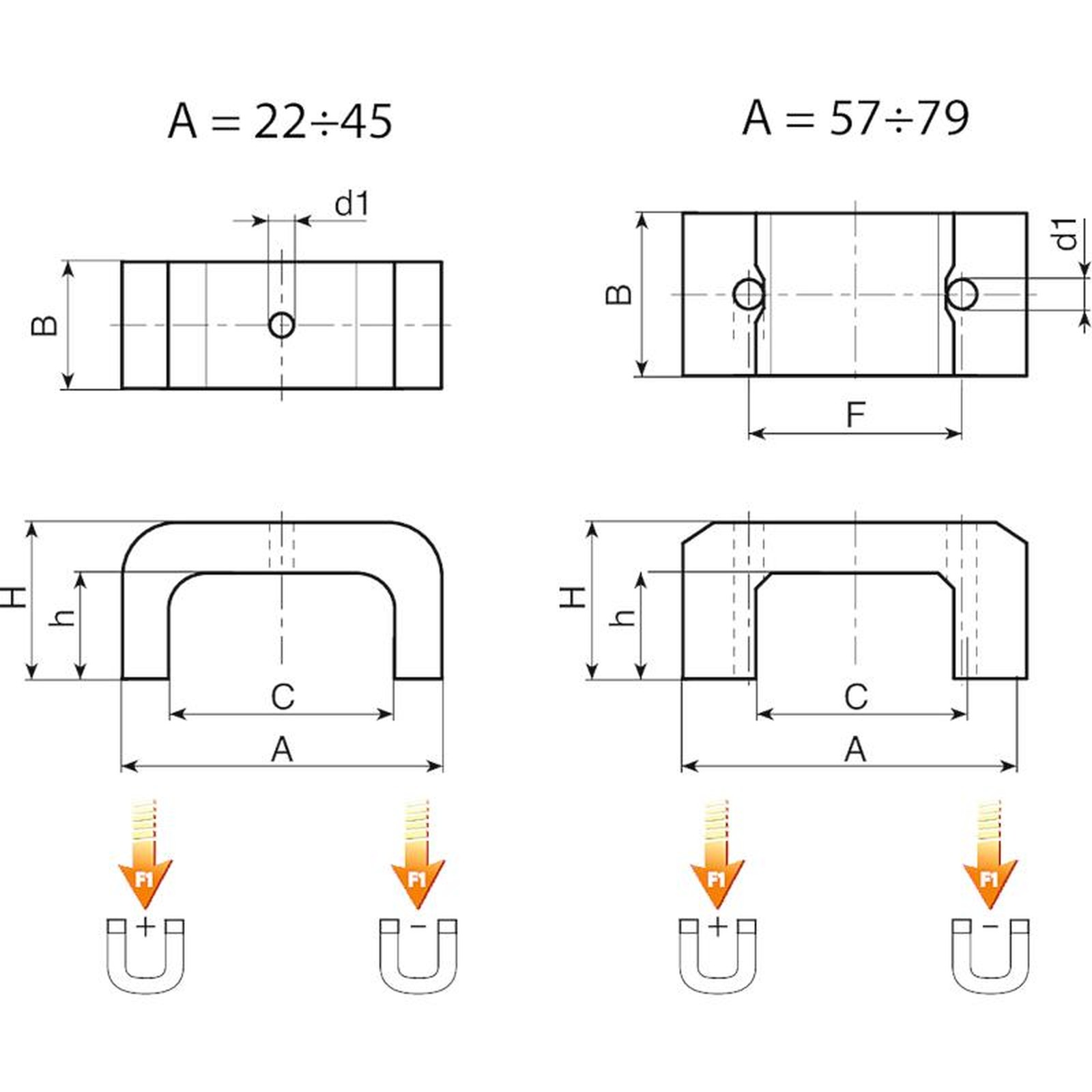

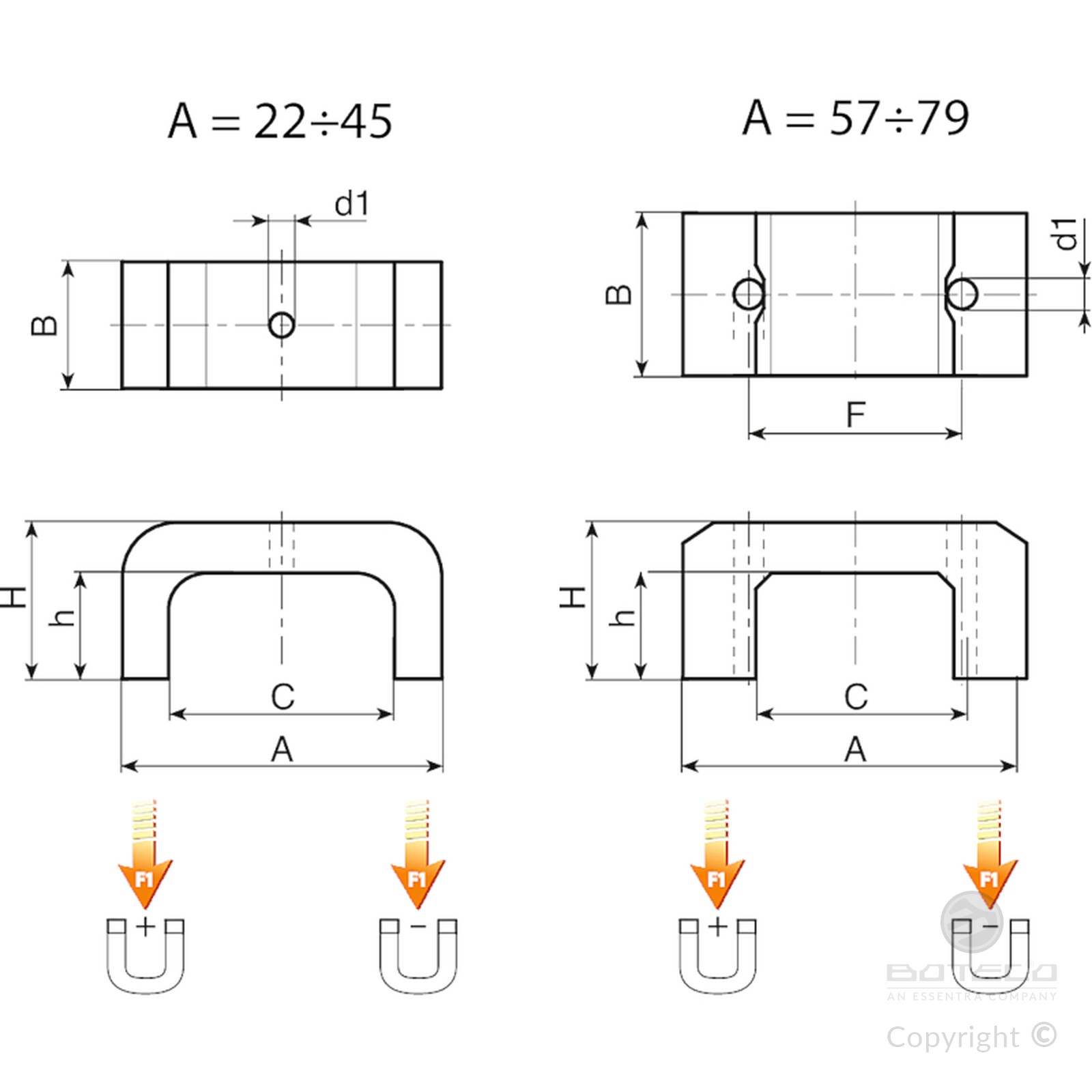

| Code | art. | A | B | H | C | F | h | d1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| T424022.0001 | T424022.D7.016 | 22 | 25 | 17 | 8 | - | 9 | 7,0 | 64 | 30 |
| T424030.0001 | T424030.D5.016 | 30 | 20 | 20 | 15 | - | 11 | 5,0 | 56 | 45 |
| T424039.0001 | T424039.D4.716 | 39 | 25 | 25 | 19 | - | 14 | 4,7 | 140 | 90 |
| T424045.0001 | T424045.D5.216 | 45 | 30 | 30 | 22 | - | 17 | 5,2 | 209 | 120 |
| T424057.0001 | T424057.D8.016 | 57 | 44,5 | 35 | 27,8 | 35 | 23 | 8,0 | 500 | 180 |
| T424070.0001 | T424070.D8.016 | 70 | 57 | 41 | 35 | 41 | 25 | 8,0 | 905 | 320 |
| T424078.0001 | T424078.D9.516 | 79,6 | 82 | 54 | 38,5 | 47,6 | 36 | 9,5 | 1.570 | 470 |
