T423

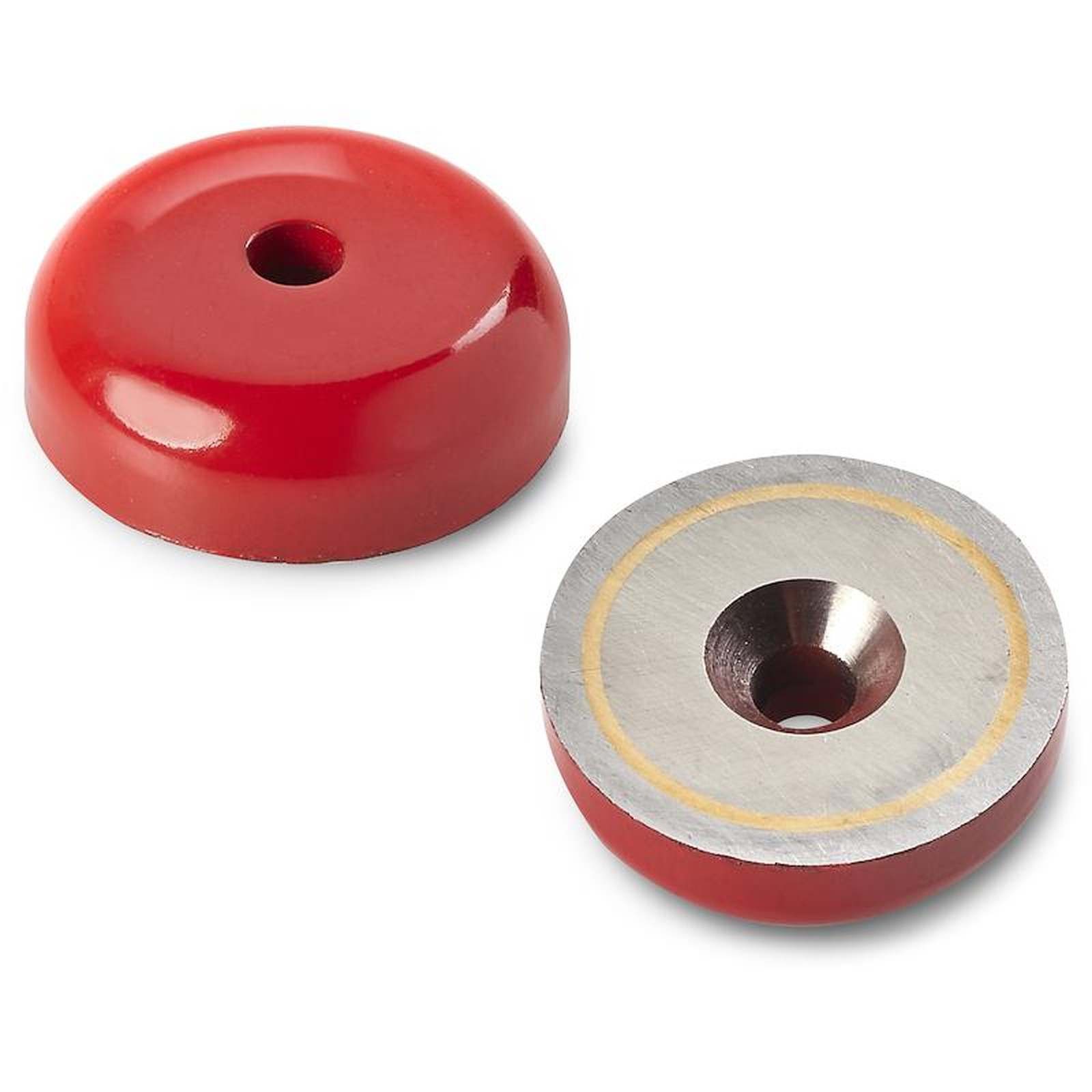

AlNiCo FLAT ROUND DISC MAGNET WITH PAINTED STEEL SHELL AND SMOOTH THROUGH BORE
Magnets (AlNiCo)

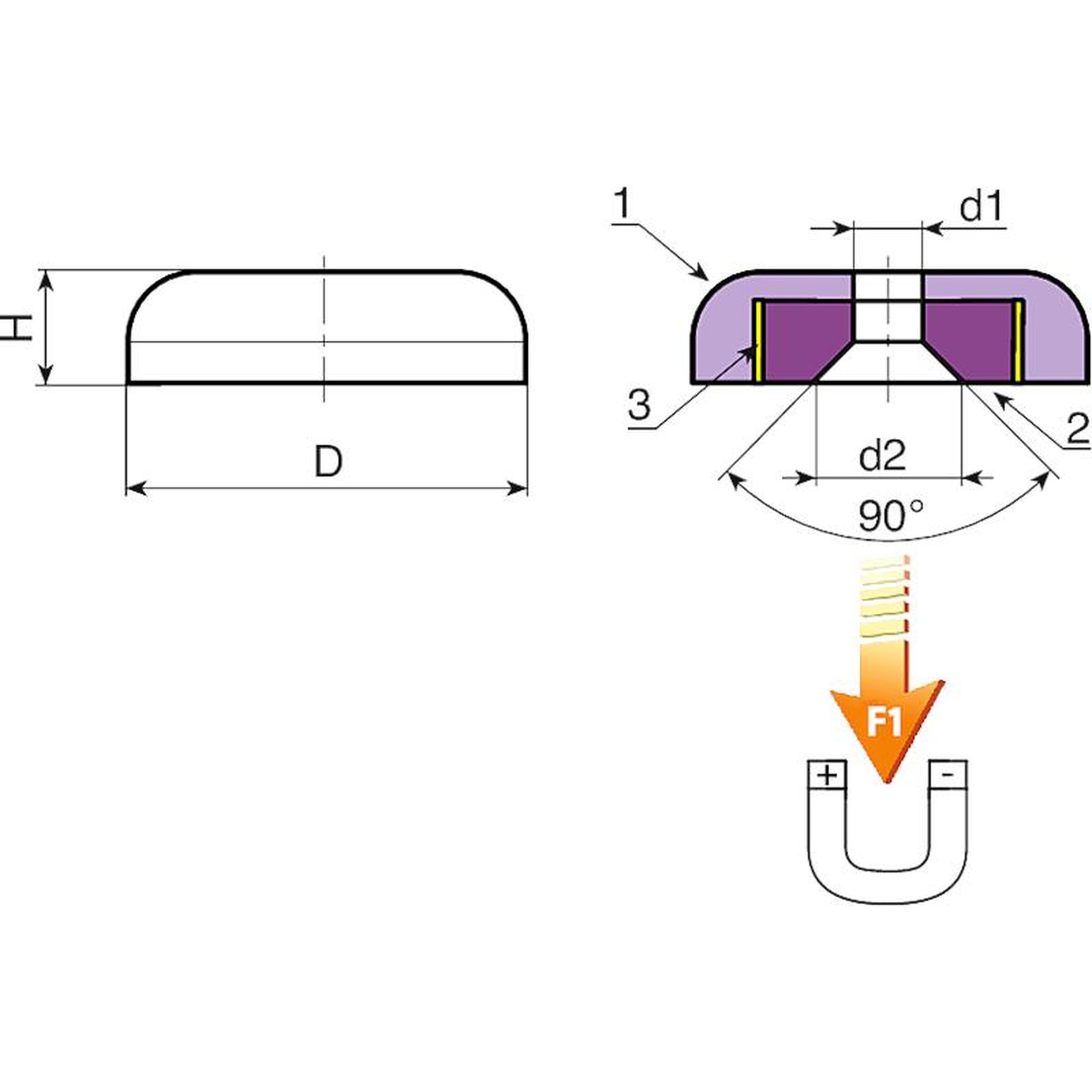

Materials:
(1) Standard steel shell.
(2) Flat aluminium-nickel-cobalt magnet (AlNiCo).
(3) Brass spacer.
Surface finish:
Painted.
Colour:
Red.
Special requests:
Upon request and for special quantities the steel shell can be supplied galvanised.
| Code | art. | D ±1 | H ±0,5 | d2 | d1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T423019.0001 | T423019.SD03.716 | 19,1 | 7,5 | 8,7 | 3,7 | 17 | 30 |
| T423028.0001 | T423028.SD04.816 | 28,6 | 8,5 | 10,5 | 4,8 | 43 | 40 |
| T423038.0001 | T423038.SD04.816 | 38,1 | 10,4 | 10,5 | 4,8 | 82 | 80 |
