SAMARIUM-COBALT ROUND DISC MAGNET WITH GALVANISED STEEL SHELL AND FEMALE THREADED STUD
18
T420
Magneti Samario (SaCo)

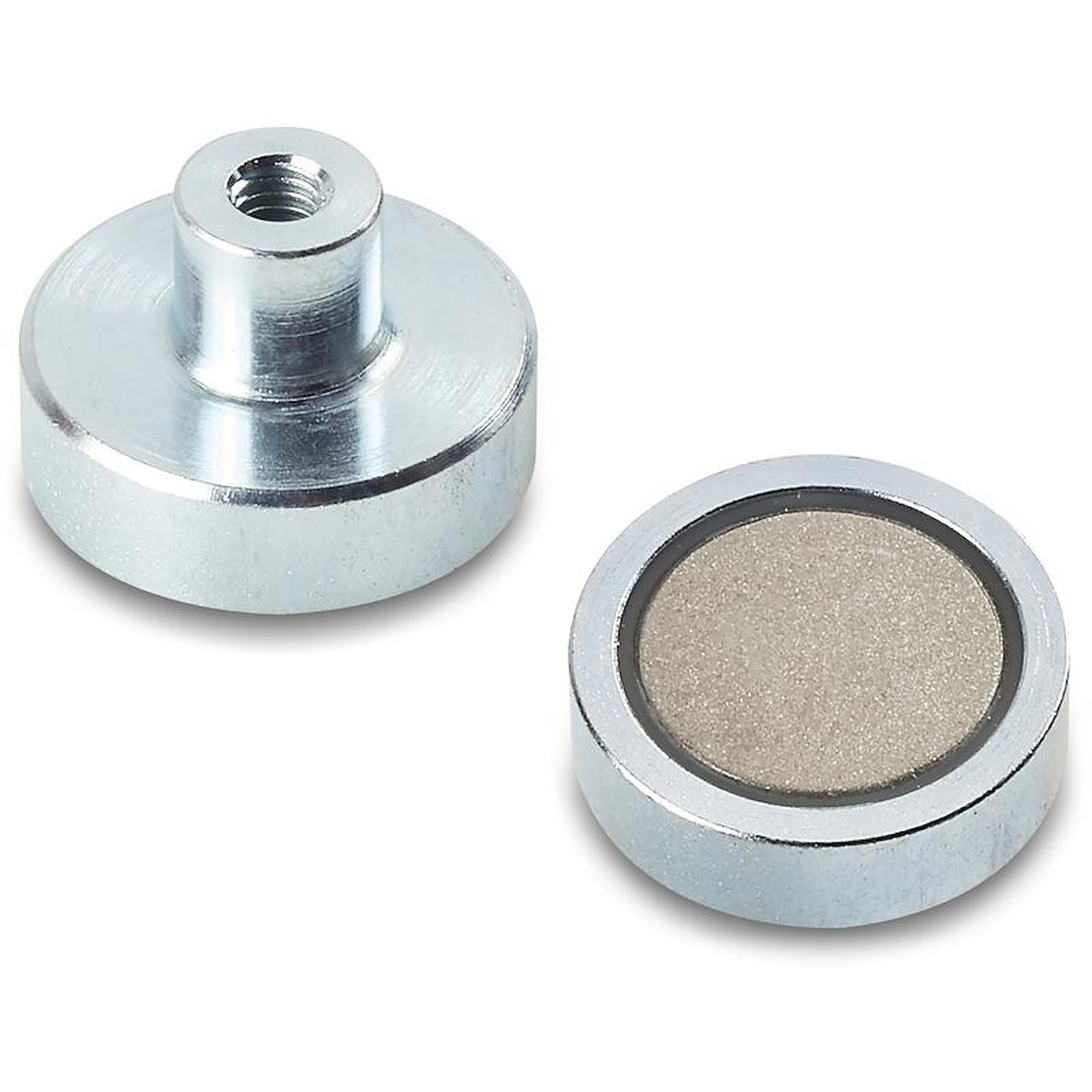

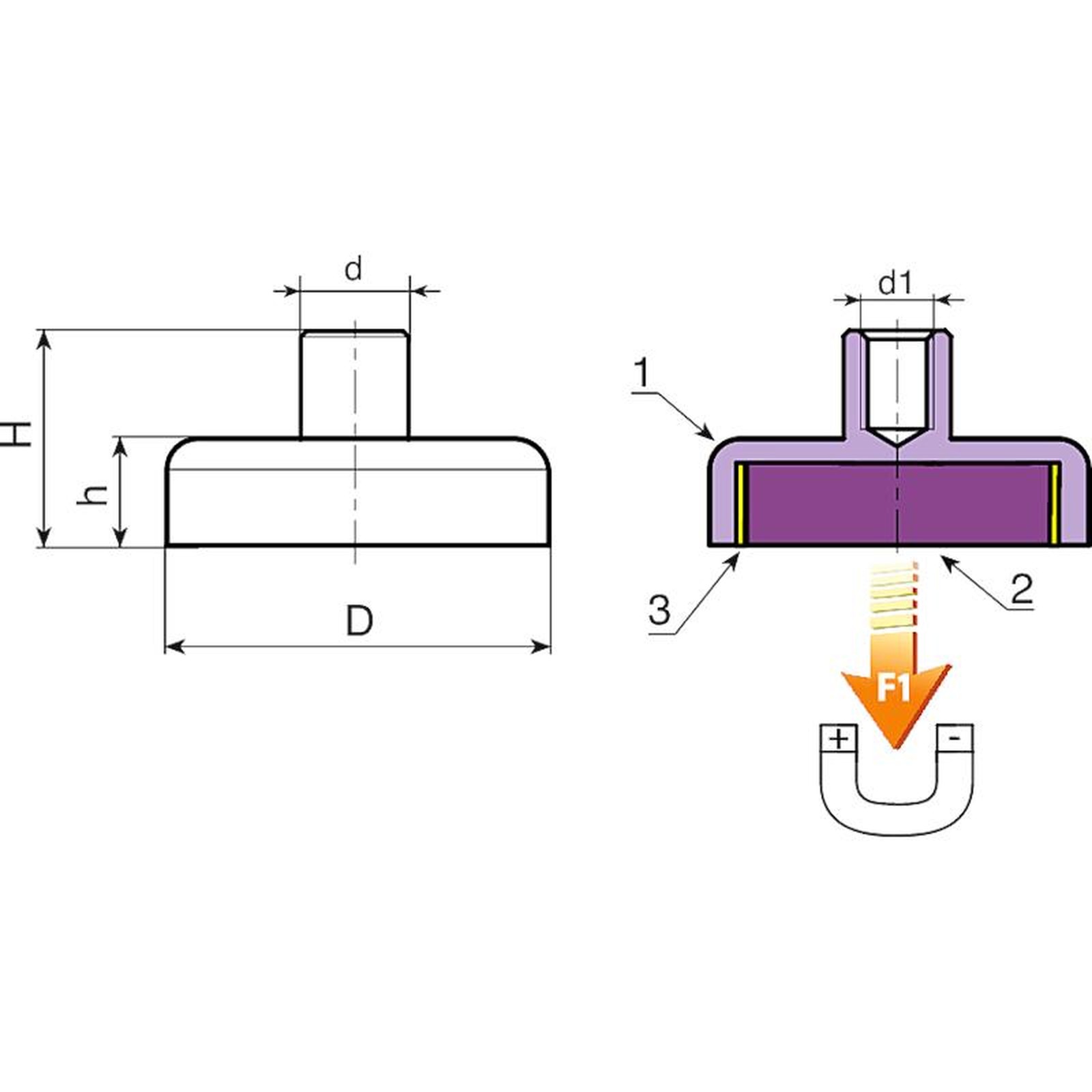

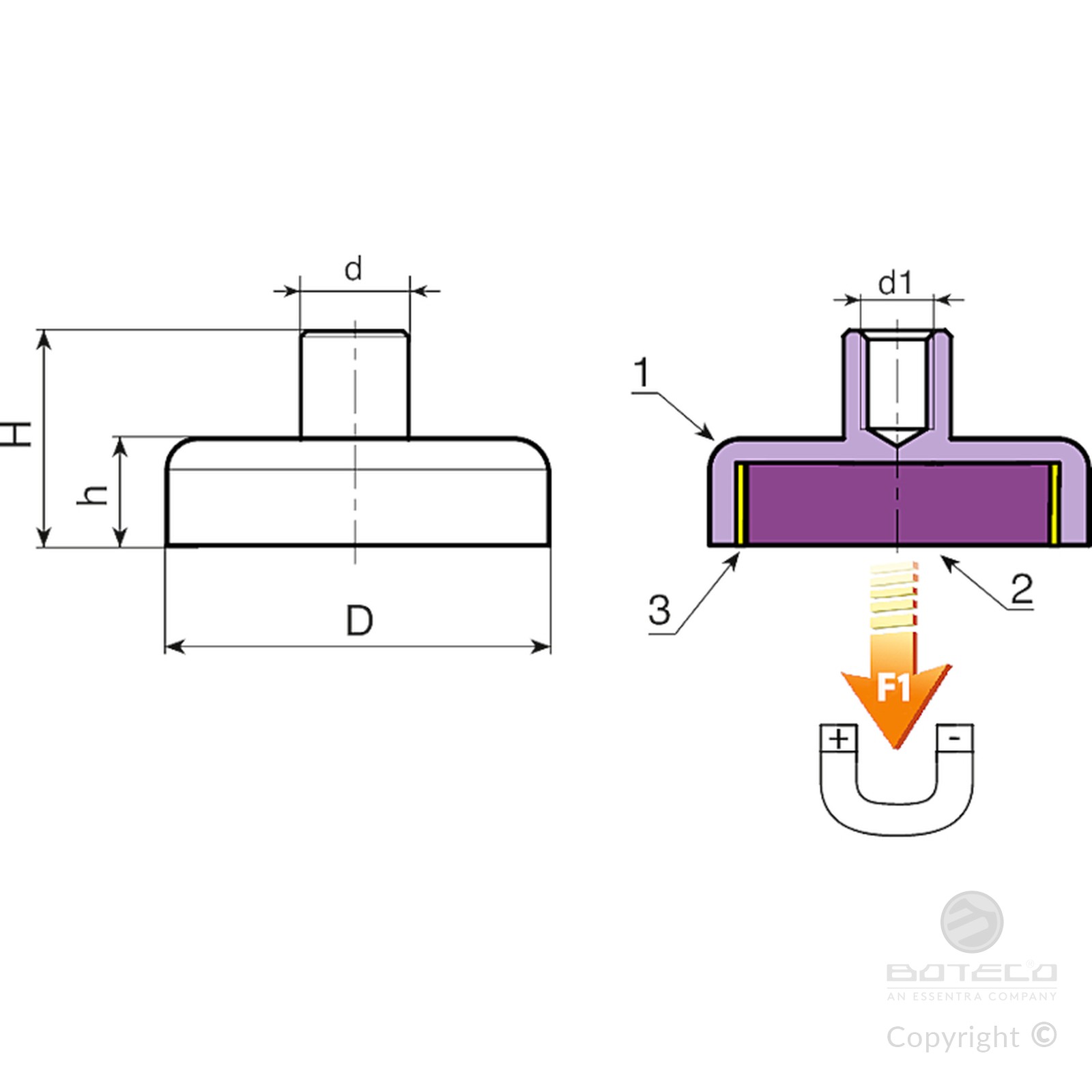

Materials:
(1) Turned free-cutting steel shell with female threaded stud (thread tolerance 6H).
(2) Flat samarium-cobalt magnet (SmCo).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell of model T420 can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D +0,1 | h ±0,2 | H ±0,2 | d ±0,2 | d1 6H | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|
| T420006.0001 | T420006.VZM03 | 06 | 4,5 | 11,5 | 6 | M3 | 2 | 5 |
| T420008.0001 | T420008.VZM03 | 08 | 4,5 | 11,5 | 6 | M3 | 3 | 11 |
| T420010.0001 | T420010.VZM03 | 10 | 4,5 | 11,5 | 6 | M3 | 4 | 20 |
| T420013.0001 | T420013.VZM03 | 13 | 4,5 | 11,5 | 6 | M3 | 6 | 40 |
| T420016.0001 | T420016.VZM04 | 16 | 4,5 | 11,5 | 6 | M4 | 7 | 60 |
| T420020.0001 | T420020.VZM04 | 20 | 6 | 13 | 8 | M4 | 16 | 90 |
| T420025.0001 | T420025.VZM04 | 25 | 7 | 14 | 8 | M4 | 28 | 150 |
| T420032.0001 | T420032.VZM05 | 32 | 7 | 15,5 | 10 | M5 | 47 | 220 |
