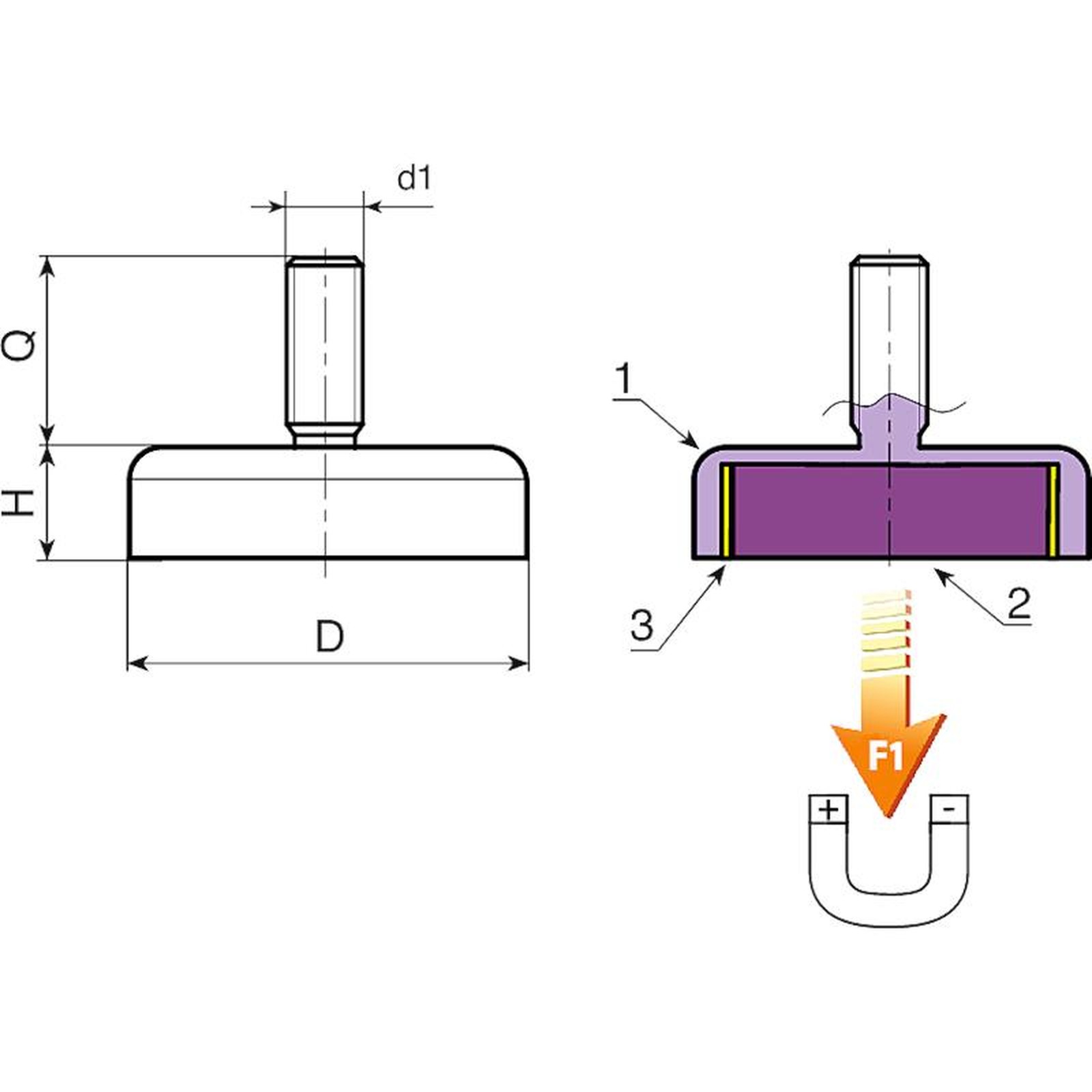

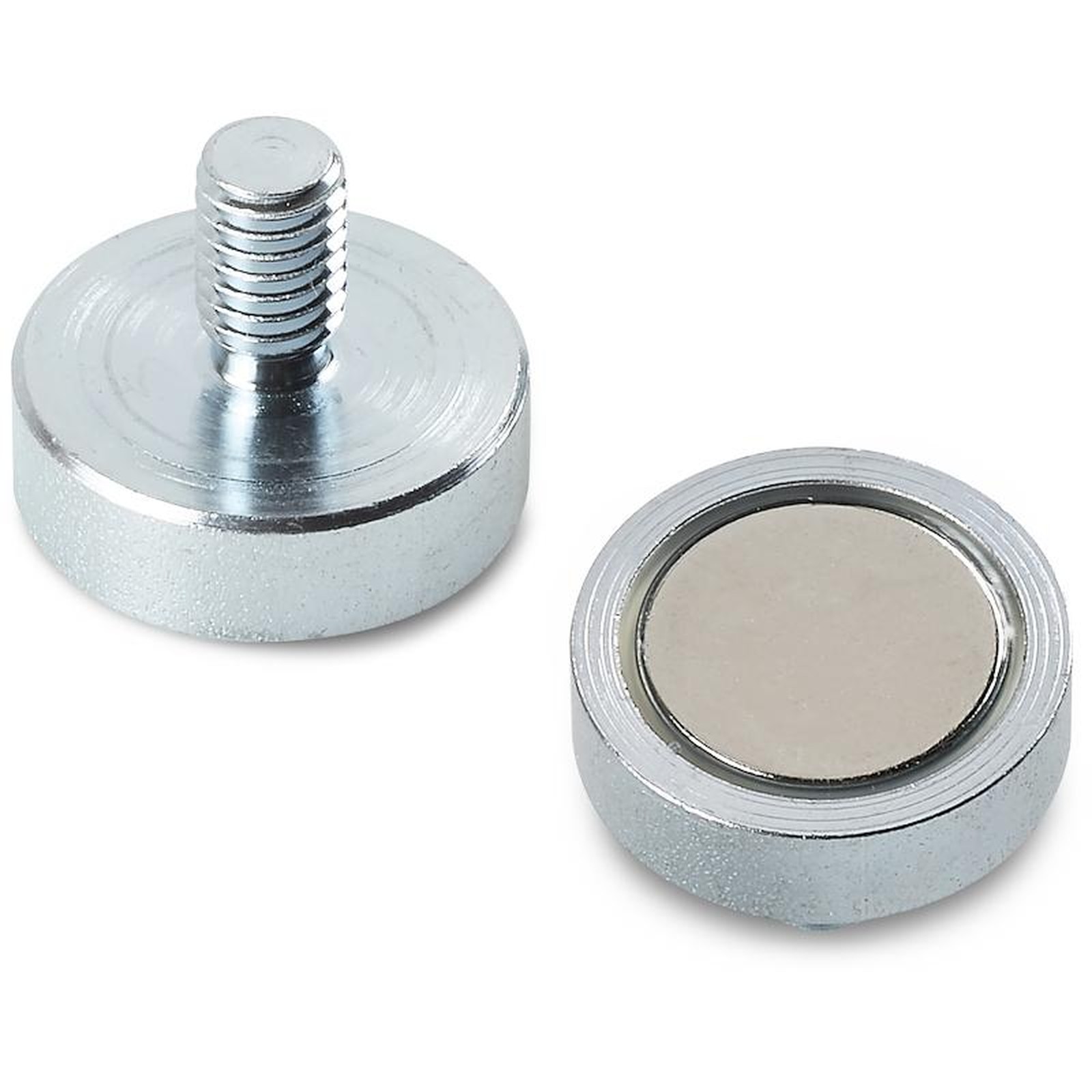

Materials:
(1) Turned free-cutting steel shell with threaded stud (thread tolerance 6g).
(2) Flat neodymium-iron-boron magnet (NdFeB).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell of model T417 can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D ±0,1 | H ±0,2 | d1 6g | Q ±0,5 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T417006.0001 | T417006.VZM03X07 | 06 | 4,5 | M3 | 07 | 1,3 | 5 |
| T417008.0001 | T417008.VZM04X08 | 08 | 4,5 | M4 | 08 | 2,3 | 13 |
| T417010.0001 | T417010.VZM03X07 | 10 | 4,5 | M3 | 07 | 2,5 | 25 |
| T417010.0002 | T417010.VZM04X08 | 10 | 4,5 | M4 | 08 | 3 | 25 |
| T417013.0001 | T417013.VZM05X08 | 13 | 4.5 | M5 | 08 | 5 | 60 |
| T417016.0001 | T417016.VZM06X08 | 16 | 4,5 | M6 | 08 | 8 | 95 |
| T417020.0001 | T417020.VZM06X10 | 20 | 6 | M6 | 10 | 15 | 140 |
| T417025.0001 | T417025.VZM06X10 | 25 | 7 | M6 | 10 | 27 | 200 |
| T417032.0001 | T417032.VZM06X10 | 32 | 7 | M6 | 10 | 42 | 350 |
| T417040.0001 | T417040.VZM08X12 | 40 | 8 | M8 | 12 | 80 | 670 |
