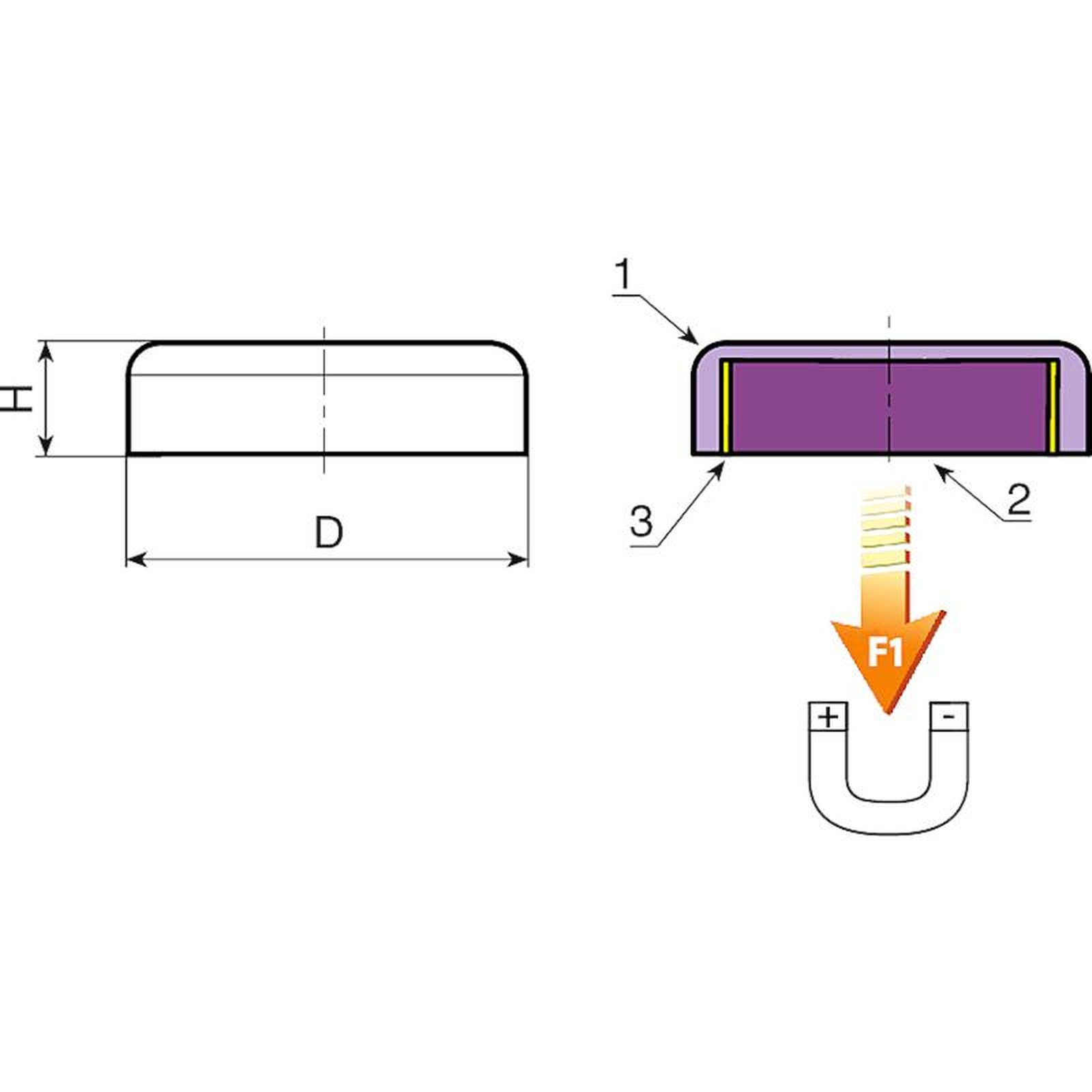

Materials:
(1) Turned free-cutting steel shell.
(2) Flat samarium-cobalt magnet (SmCo).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell of model T415 can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D ±0,1 | H ±0,2 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|
| T415006.0001 | T415006.VZ | 06 | 4,5 | 1 | 5 |
| T415008.0001 | T415008.VZ | 08 | 4,5 | 2 | 11 |
| T415010.0001 | T415010.VZ | 10 | 4,5 | 3 | 20 |
| T415013.0001 | T415013.VZ | 13 | 4,5 | 4 | 40 |
| T415016.0001 | T415016.VZ | 16 | 4,5 | 7 | 60 |
| T415020.0001 | T415020.VZ | 20 | 6 | 14 | 90 |
| T415025.0001 | T415025.VZ | 25 | 7 | 26 | 150 |
| T415032.0001 | T415032.VZ | 32 | 7 | 42 | 220 |
