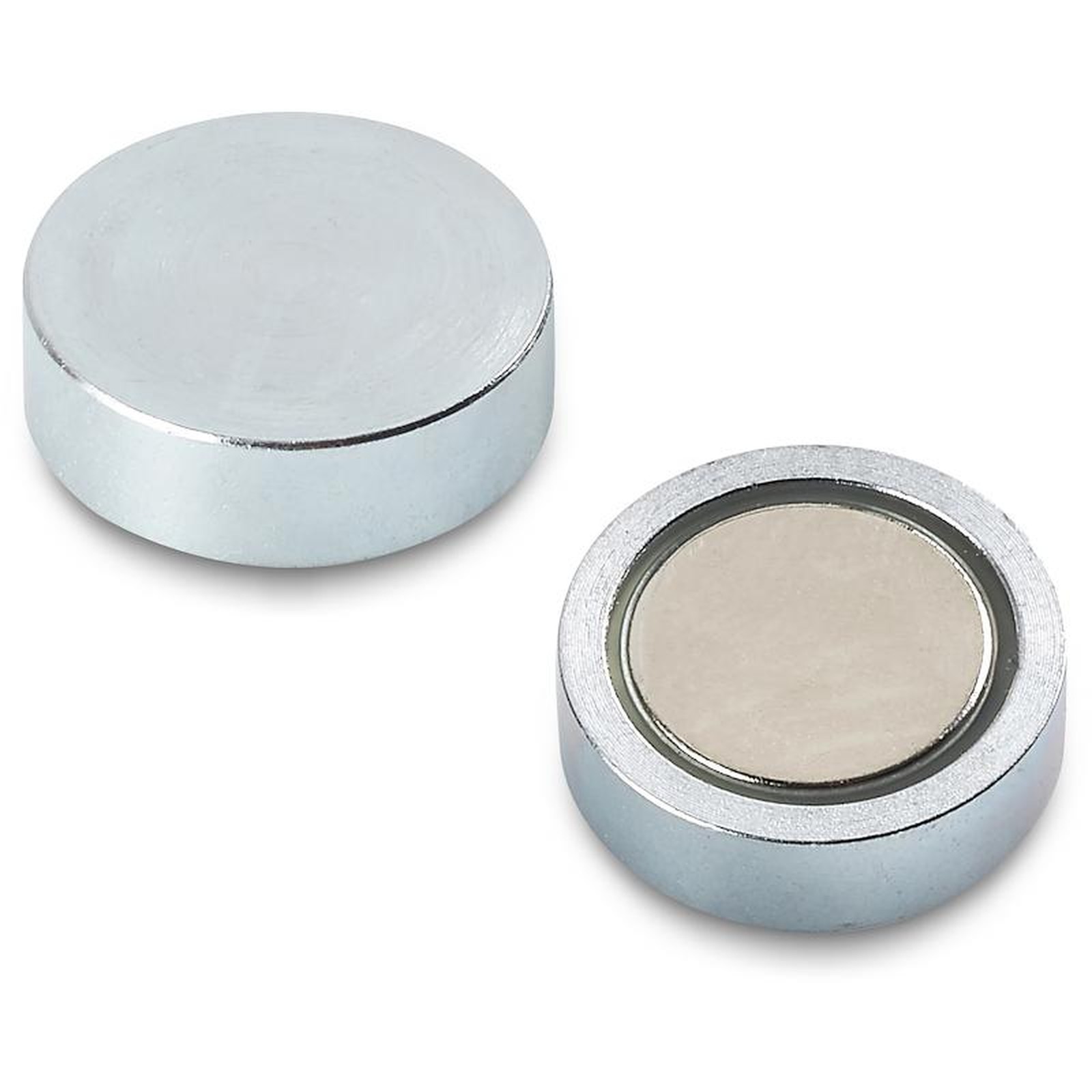

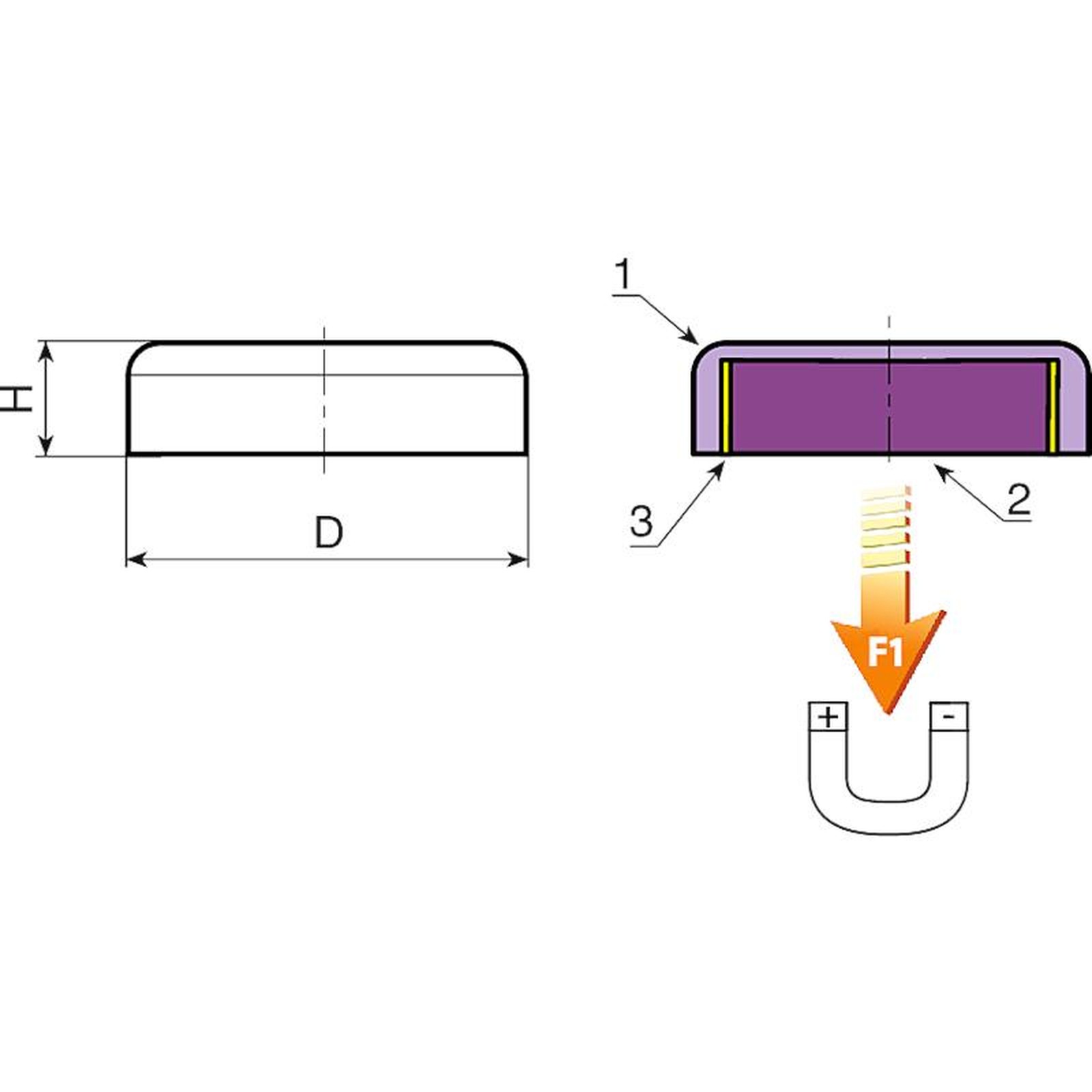

Materials:
(1) Turned free-cutting steel shell.
(2) Flat neodymium-iron-boron magnet (NdFeB).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell of model T414 can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D ±0,1 | H ±0,2 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|
| T414006.0001 | T414006.VZ | 06 | 4,5 | 1 | 5 |
| T414008.0001 | T414008.VZ | 08 | 4,5 | 2 | 13 |
| T414010.0001 | T414010.VZ | 10 | 4,5 | 2,5 | 25 |
| T414013.0001 | T414013.VZ | 13 | 4,5 | 4 | 60 |
| T414016.0001 | T414016.VZ | 16 | 4,5 | 6 | 95 |
| T414020.0001 | T414020.VZ | 20 | 6 | 14 | 140 |
| T414025.0001 | T414025.VZ | 25 | 7 | 25 | 200 |
| T414032.0001 | T414032.VZ | 32 | 7 | 41 | 350 |
