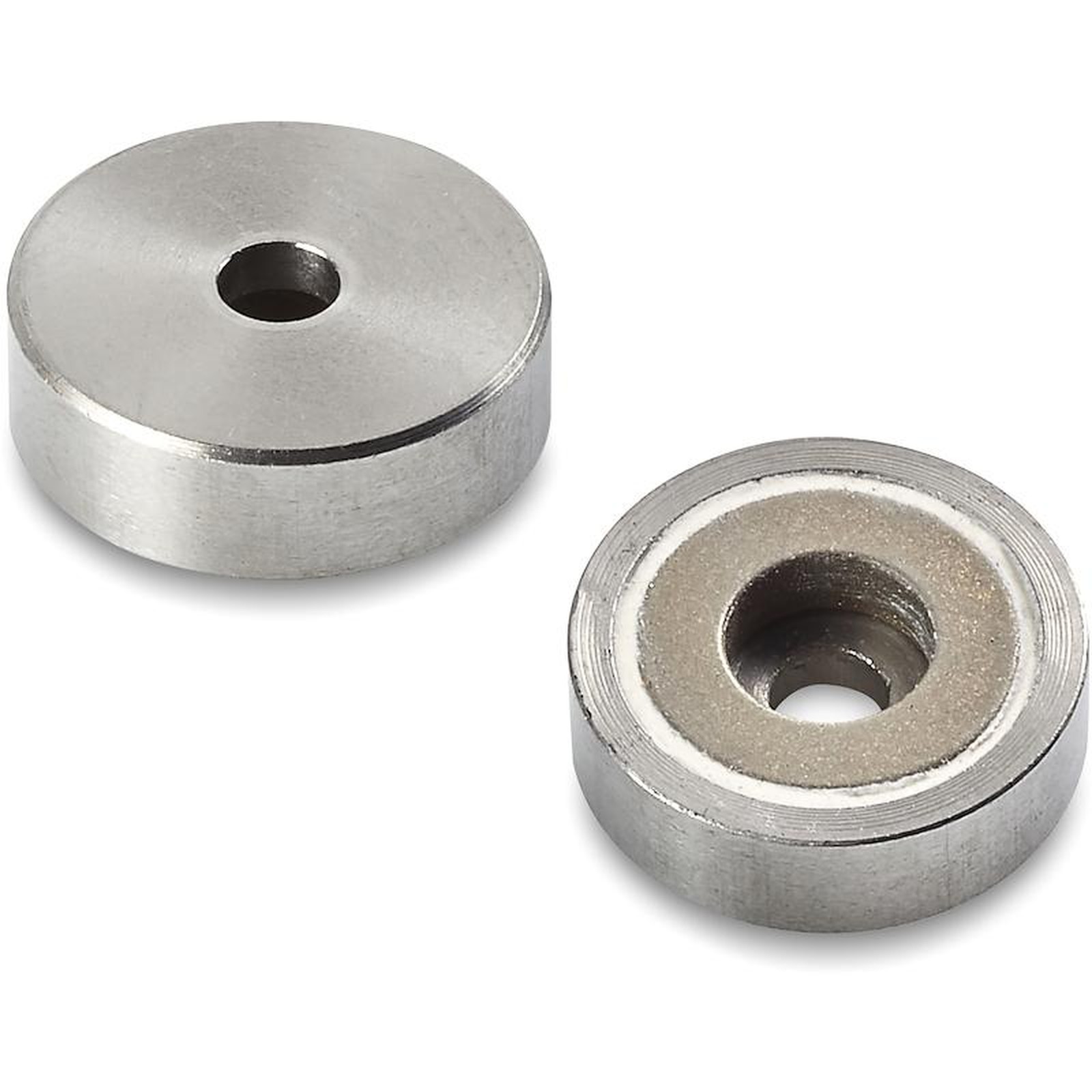

Materials:
(1) Turned stainless steel shell (Aisi 304) with smooth through bore.
(2) Flat samarium-cobalt magnet (SmCo).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Natural.
Special requests:
None.

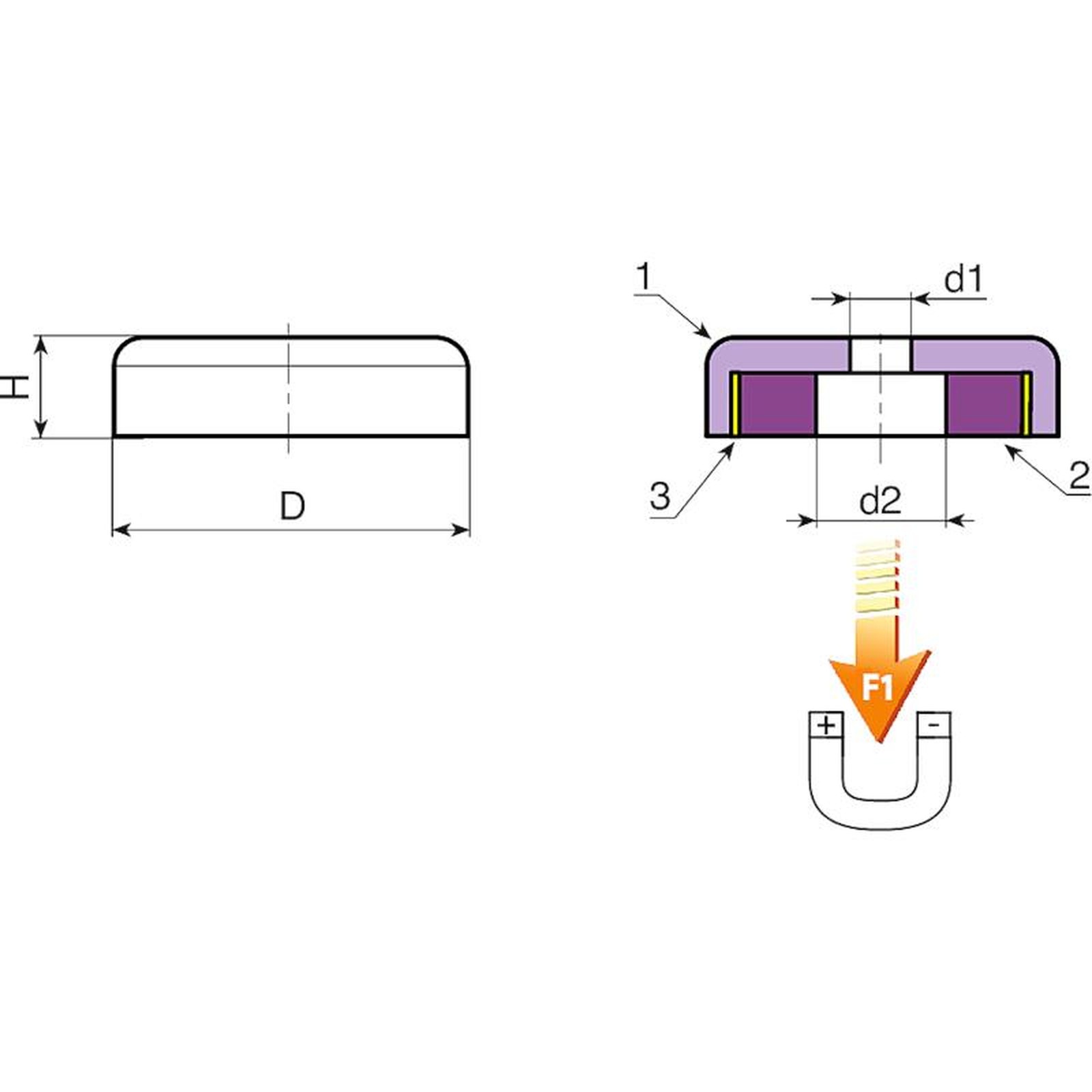

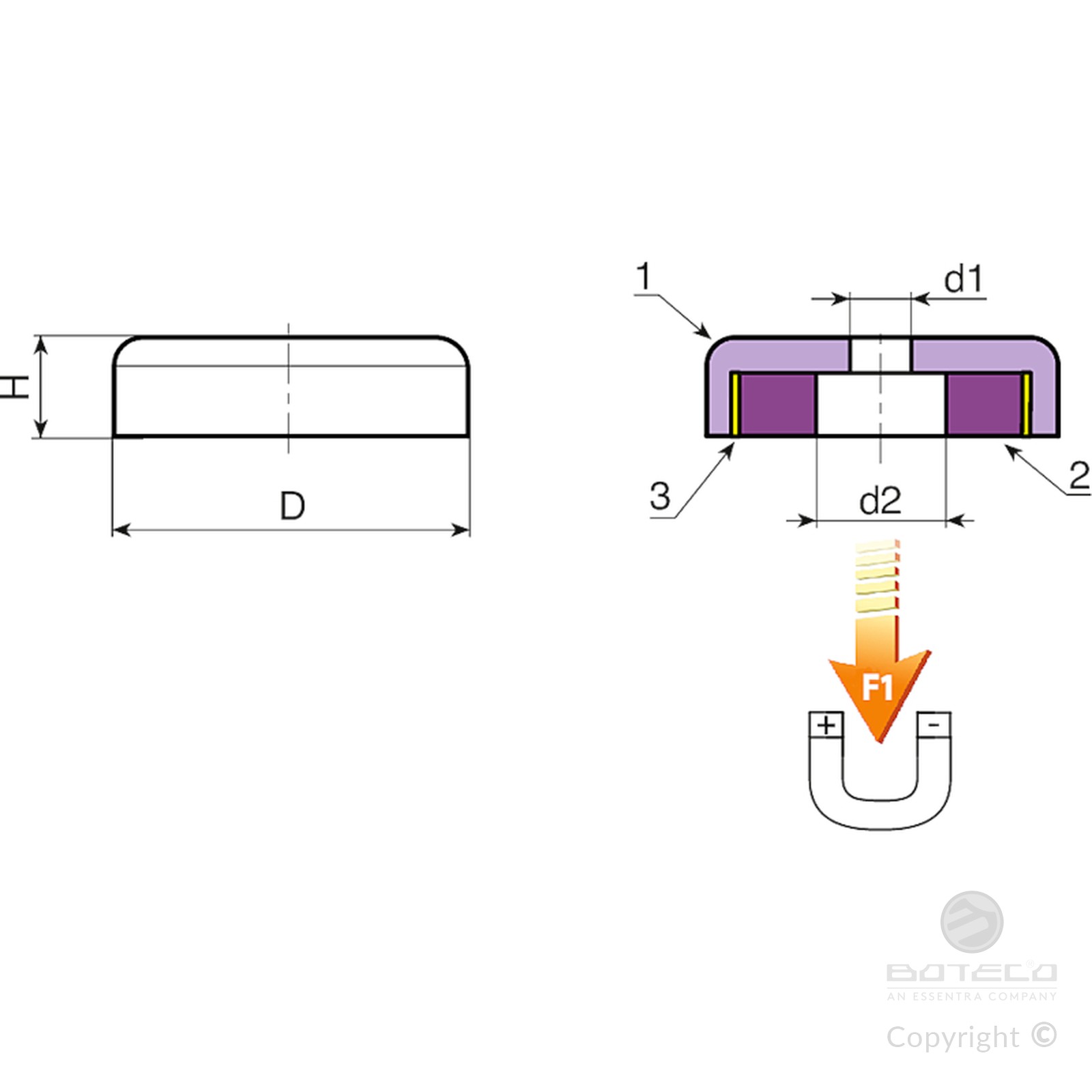

| Code | art. | D ±0,1 | H ±0,2 | h | d2 ±0,1 | d1 ±0,1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|
| T412020.0001 | T412020.HND04.5PIN | 20 | 6 | 3,5 | 8 | 4,5 | 13 | 60 |
| T412025.0001 | T412025.HND04.5PIN | 25 | 7 | 4 | 8 | 4,5 | 24 | 80 |
| T412032.0001 | T412032.HND05.5PIN | 32 | 7 | 4 | 11 | 5,5 | 39 | 200 |
| T412040.0001 | T412040.HND05.5PIN | 40 | 8 | 4 | 10,5 | 5,5 | 75 | 420 |
