T412

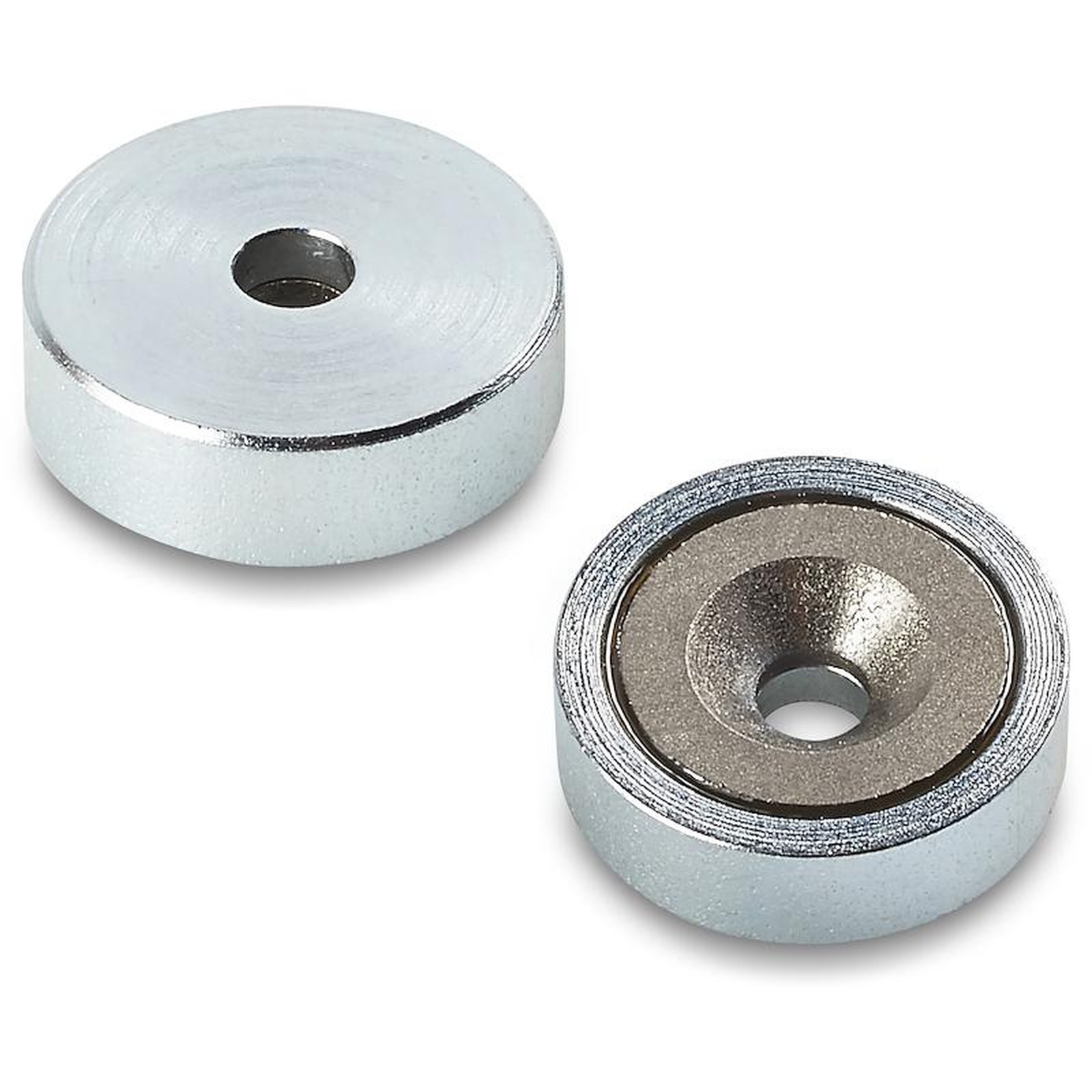

SAMARIUM-COBALT ROUND DISC MAGNET WITH STEEL SHELL AND SMOOTH THROUGH BORE
Samarium magnets (SaCo)

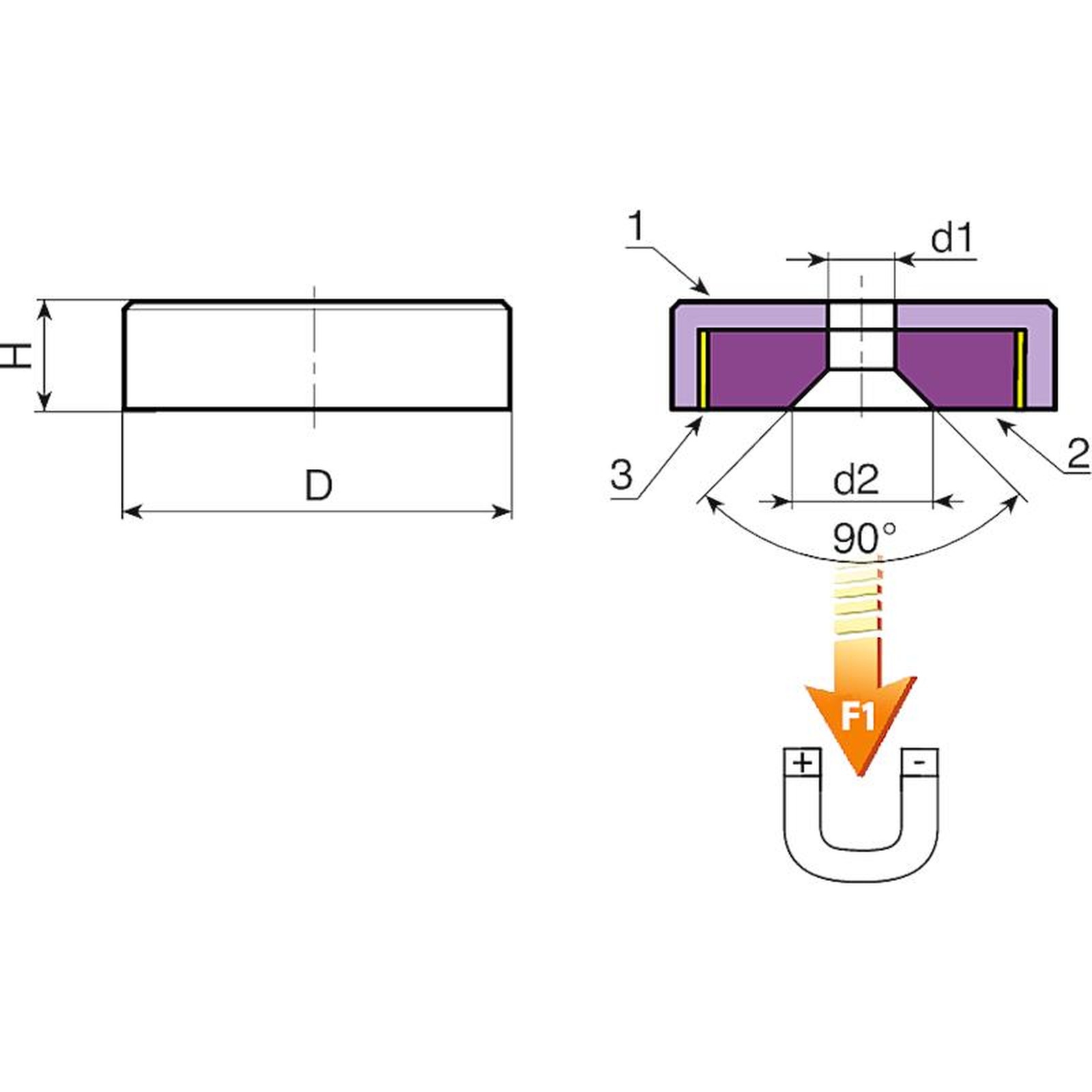

Materials:
(1) Turned free-cutting steel shell with smooth through bore.
(2) Flat samarium-cobalt magnet (SmCo).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell of model T412 can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D ±0,1 | H ±0,1 | d2 +1 | d1 ±0,1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T412016.0001 | T412016.VZD03.5 | 16 | 4,5 | 6,6 | 3,5 | 6 | 57 |
| T412020.0002 | T412020.VZD04.5 | 20 | 6 | 9,3 | 4,5 | 13 | 81 |
| T412025.0002 | T412025.VZD04.5 | 25 | 7 | 9,2 | 4,5 | 25 | 105 |
| T412032.0002 | T412032.VZD05.5 | 32 | 7 | 11,5 | 5,5 | 40 | 235 |
| T412040.0002 | T412040.VZD05.5 | 40 | 8 | 11,5 | 5,5 | 75 | 540 |
