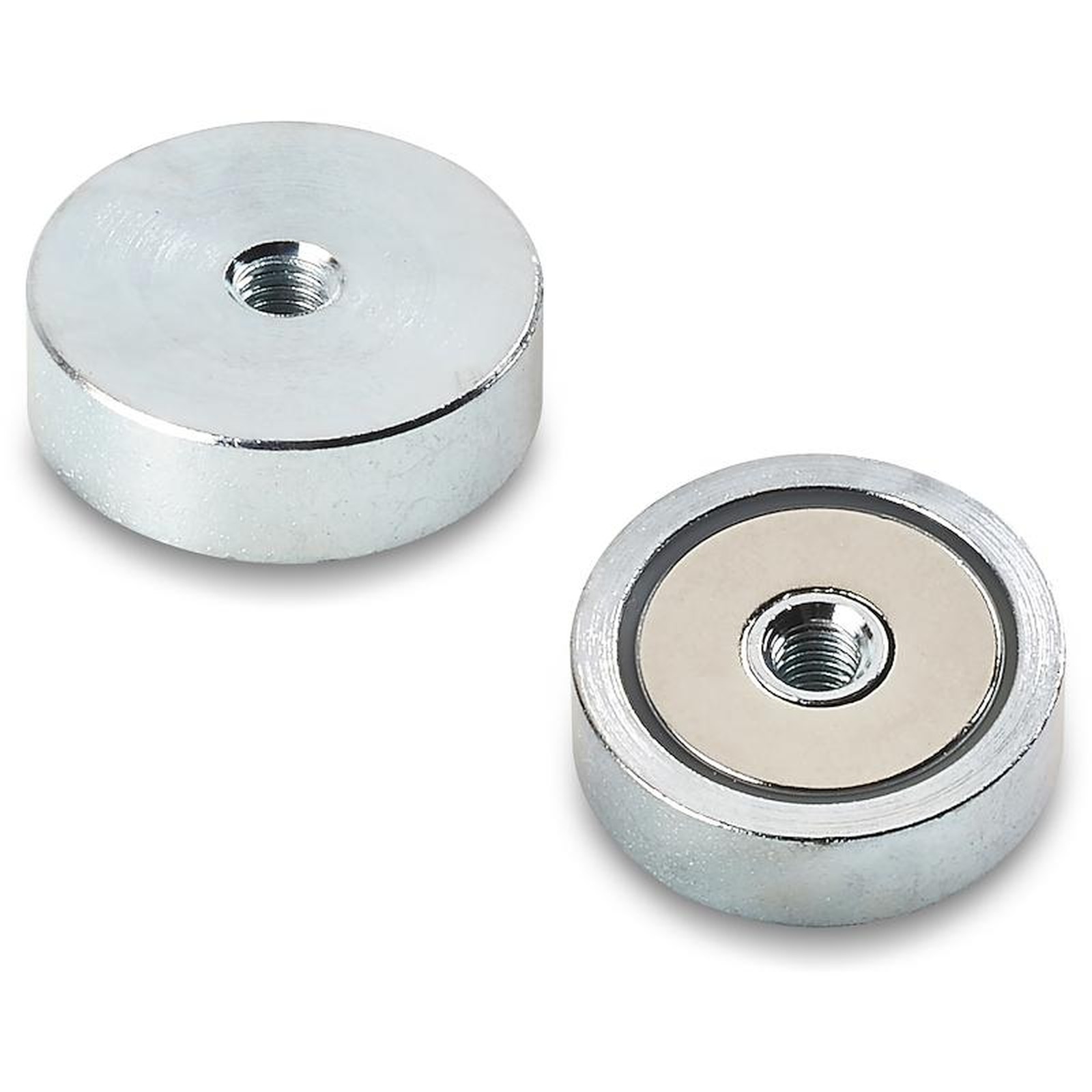

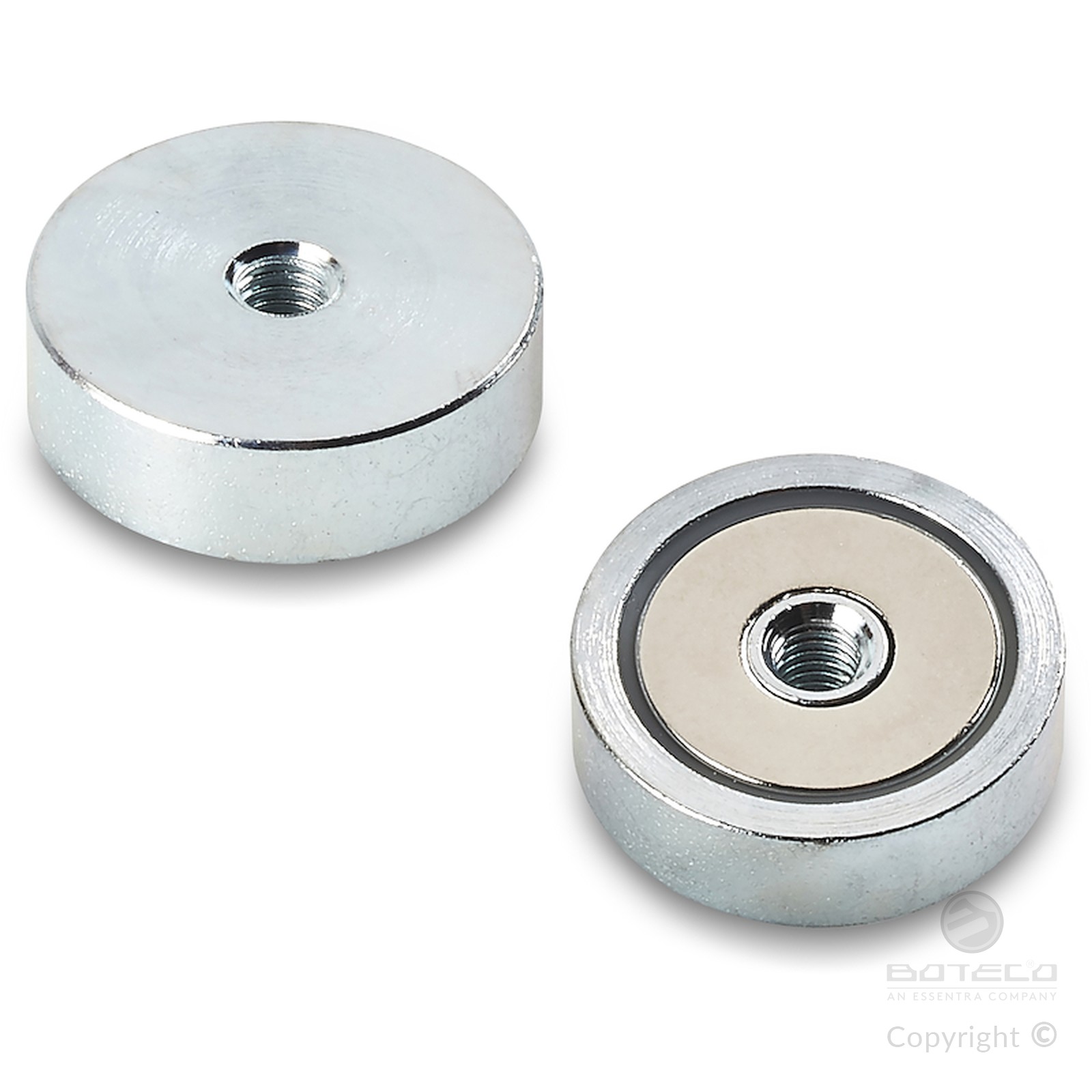

NEODYMIUM ROUND DISC MAGNET WITH STEEL SHELL AND THREADED THROUGH HOLE
18
T411M
Magneti Neodimio (NdFeB)

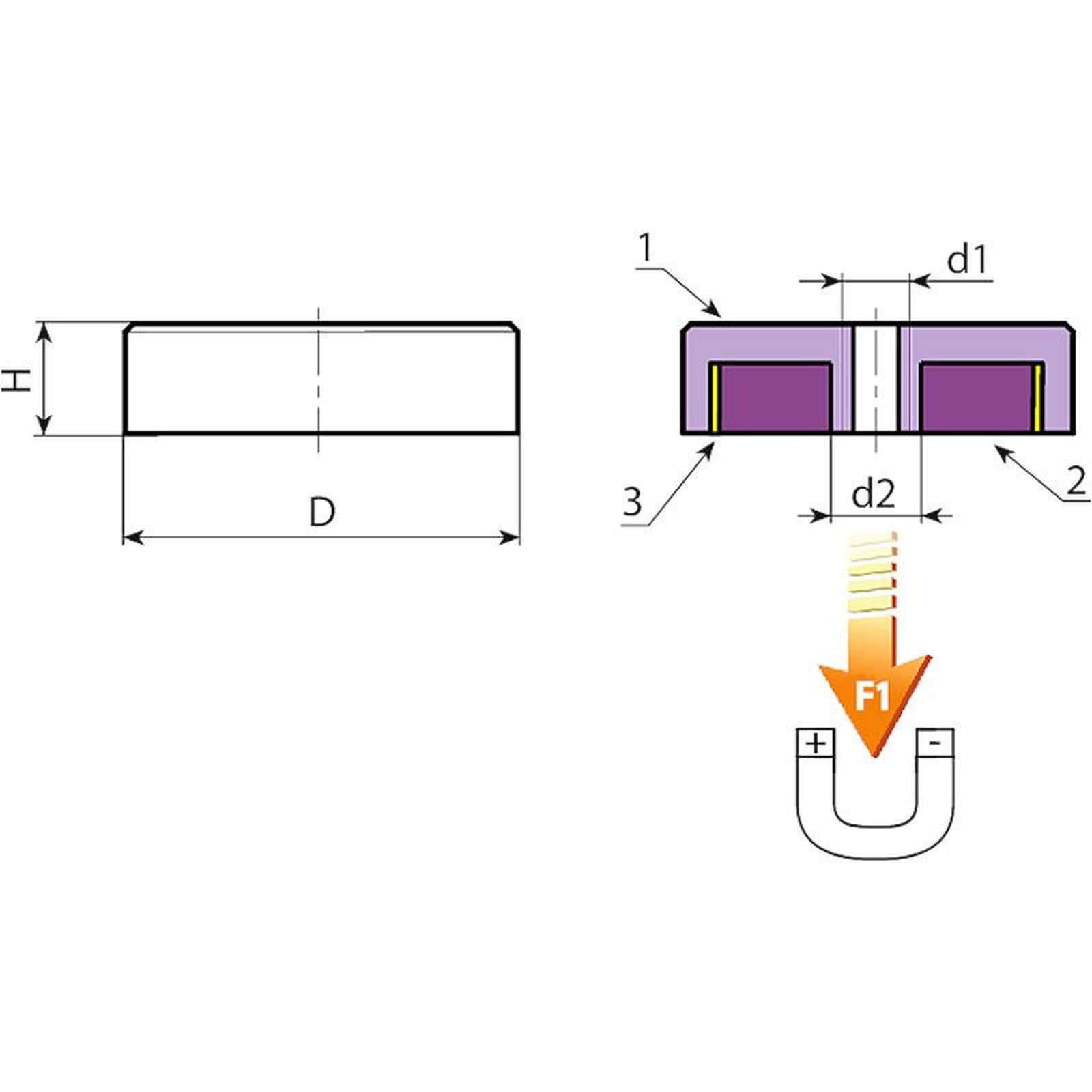

Materials:
(1) Turned free-cutting steel shell with threaded through hole (thread tolerance 6H).
(2) Flat neodymium-iron-boron magnet (NdFeB).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D ±0,1 | H ±0,2 | d2 | d1 6H | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T411010.0002 | T411010.VZM03 | 10 | 4,5 | 4,5 | M3 | 2 | 19 |
| T411013.0002 | T411013.VZM03 | 13 | 4,5 | 4,5 | M3 | 4 | 40 |
| T411020.0002 | T411020.VZM04 | 20 | 6 | 6 | M4 | 13 | 105 |
| T411025.0002 | T411025.VZM04 | 25 | 7 | 4,5 | M4 | 24 | 160 |
| T411032.0002 | T411032.VZM05 | 32 | 7 | 5,5 | M5 | 40 | 330 |
| T411040.0002 | T411040.VZM05 | 40 | 8 | 10,5 | M5 | 74 | 500 |
| T411050.0001 | T411050.VZM08 | 50 | 10 | 10,5 | M8 | 140 | 800 |
| T411063.0001 | T411063.VZM10 | 63 | 14 | 11,7 | M10 | 315 | 1.100 |
| T411074.0001 | T411074.VZM10 | 74,6 | 15 | 11,7 | M10 | 479 | 1.750 |
