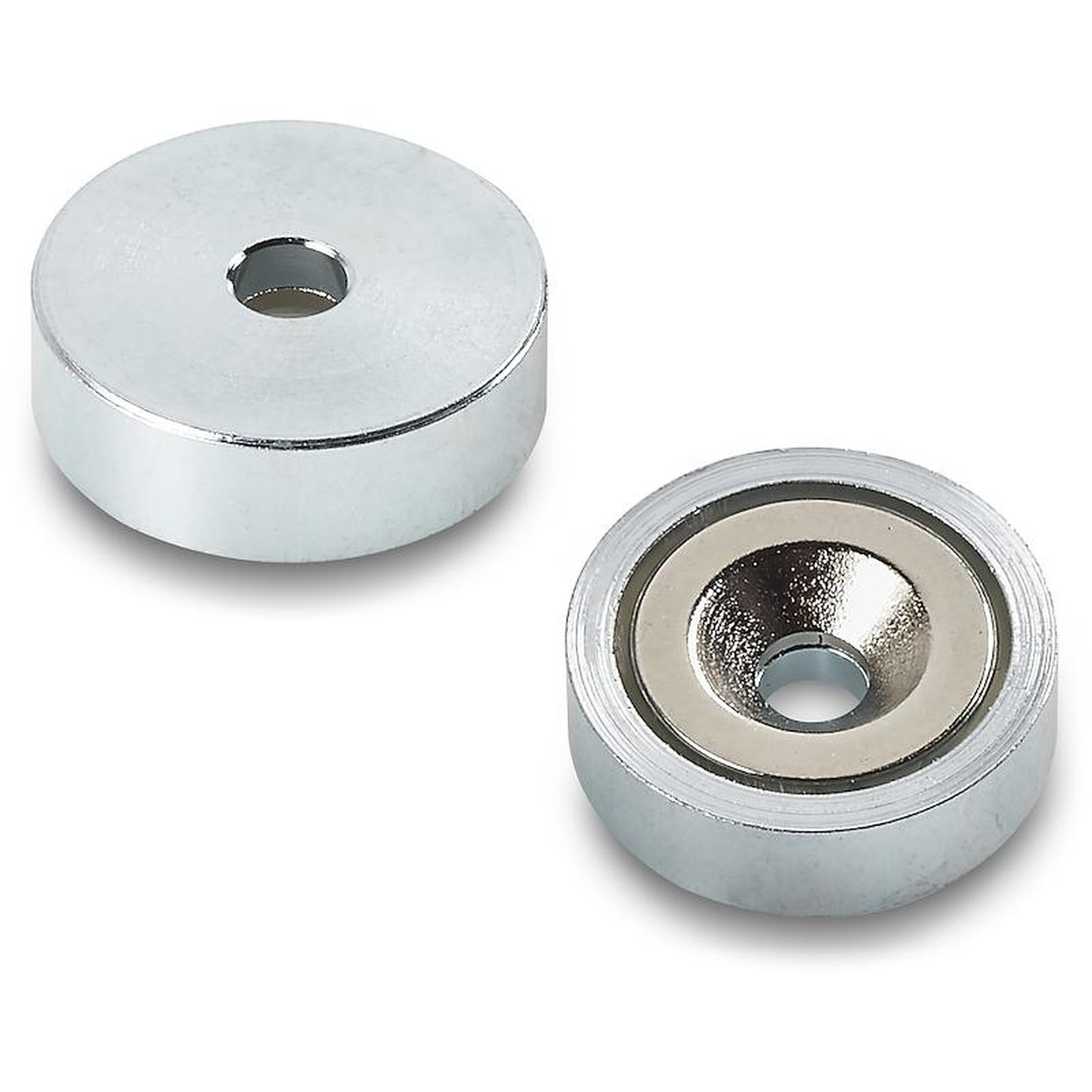

NEODYMIUM ROUND DISC MAGNET WITH STEEL SHELL AND SMOOTH THROUGH BORE
18
T411
Magneti Neodimio (NdFeB)

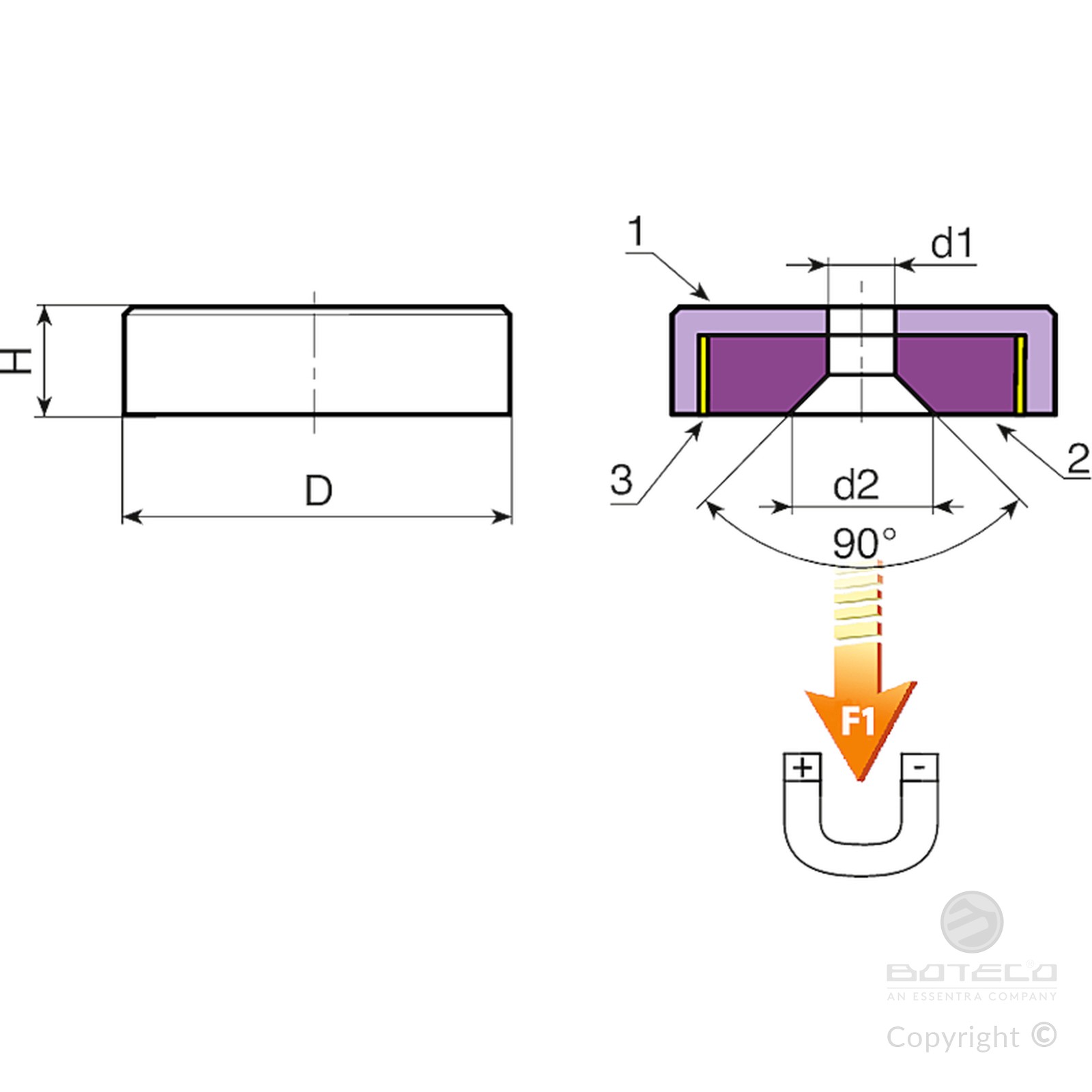

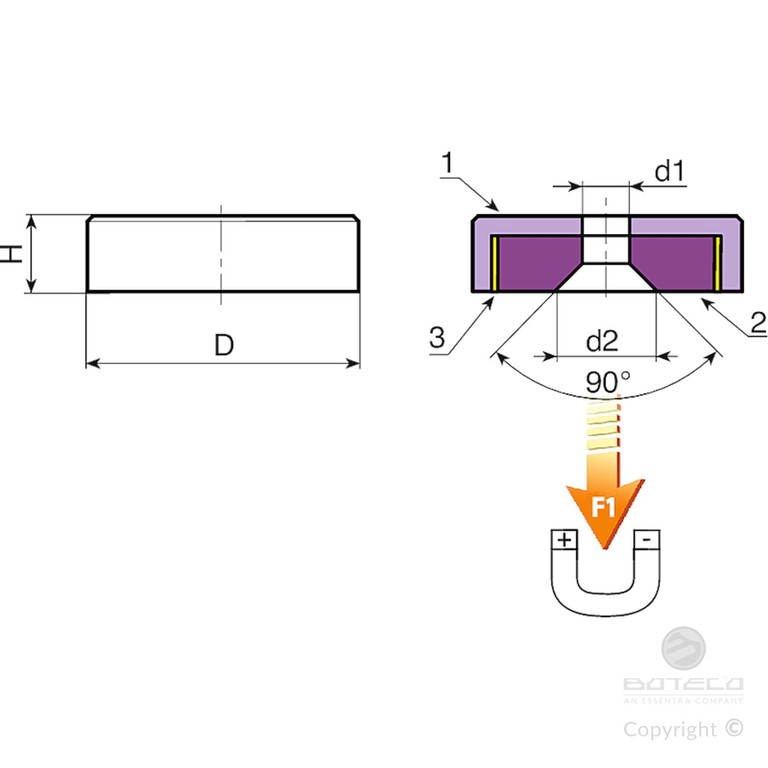

Materials:
(1) Turned free-cutting steel shell with smooth through bore.
(2) Flat neodymium-iron-boron magnet (NdFeB).
(3) Plastic spacer.
Surface finish:
Smooth.
Colour:
Standard blue galvanising.
Special requests:
Upon request and for special quantities the steel shell of model T411 can be supplied black galvanised (720h salt spray resistance).
| Code | art. | D ±0,1 | H ±0,2 | d2 +1 | d1 ±0,1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T411010.0001 | T411010.VZD02.6 | 10 | 4,5 | 5,2 | 2,6 | 2 | 19 |
| T411013.0001 | T411013.VZD03.5 | 13 | 4,5 | 6,6 | 3,5 | 4 | 40 |
| T411016.00001 | T411016.VZD03.5 | 16 | 4,5 | 6,6 | 3,5 | 6 | 75 |
| T411020.0001 | T411020.VZD04.5 | 20 | 6 | 9,3 | 4,5 | 13 | 105 |
| T411025.0001 | T411025.VZD04.5 | 25 | 7 | 9 | 4,5 | 24 | 160 |
| T411032.0001 | T411032.VZD05.5 | 32 | 7 | 11 | 5,5 | 39 | 310 |
| T411040.0001 | T411040.VZD05.5 | 40 | 8 | 10,3 | 5,5 | 73 | 500 |
