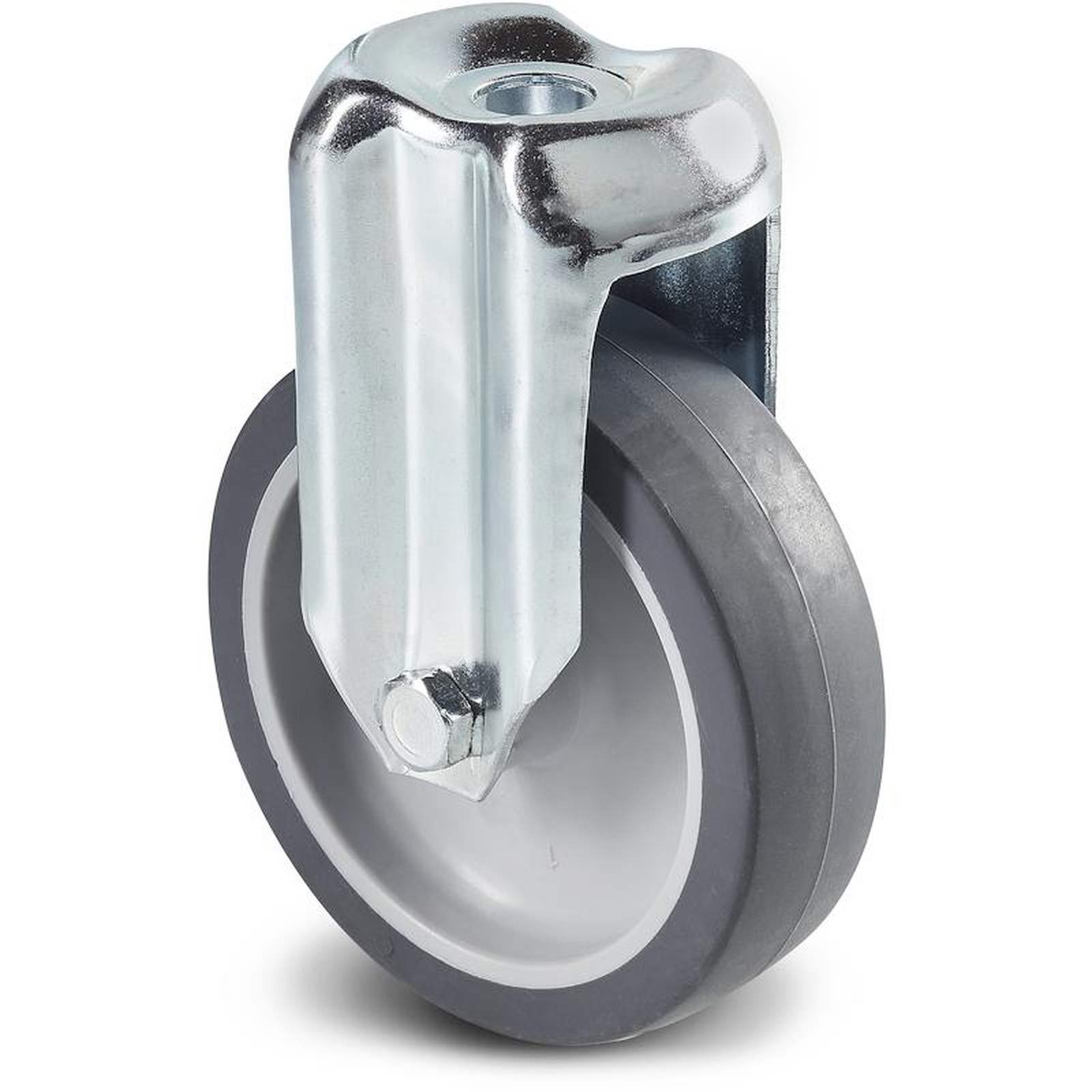

POLYPROPYLENE / RUBBER WHEEL WITH RIGID STEEL FORK AND SMOOTH THROUGH BORE
18
R610
Ruote in PP/Gomma sintetica (Colletività)

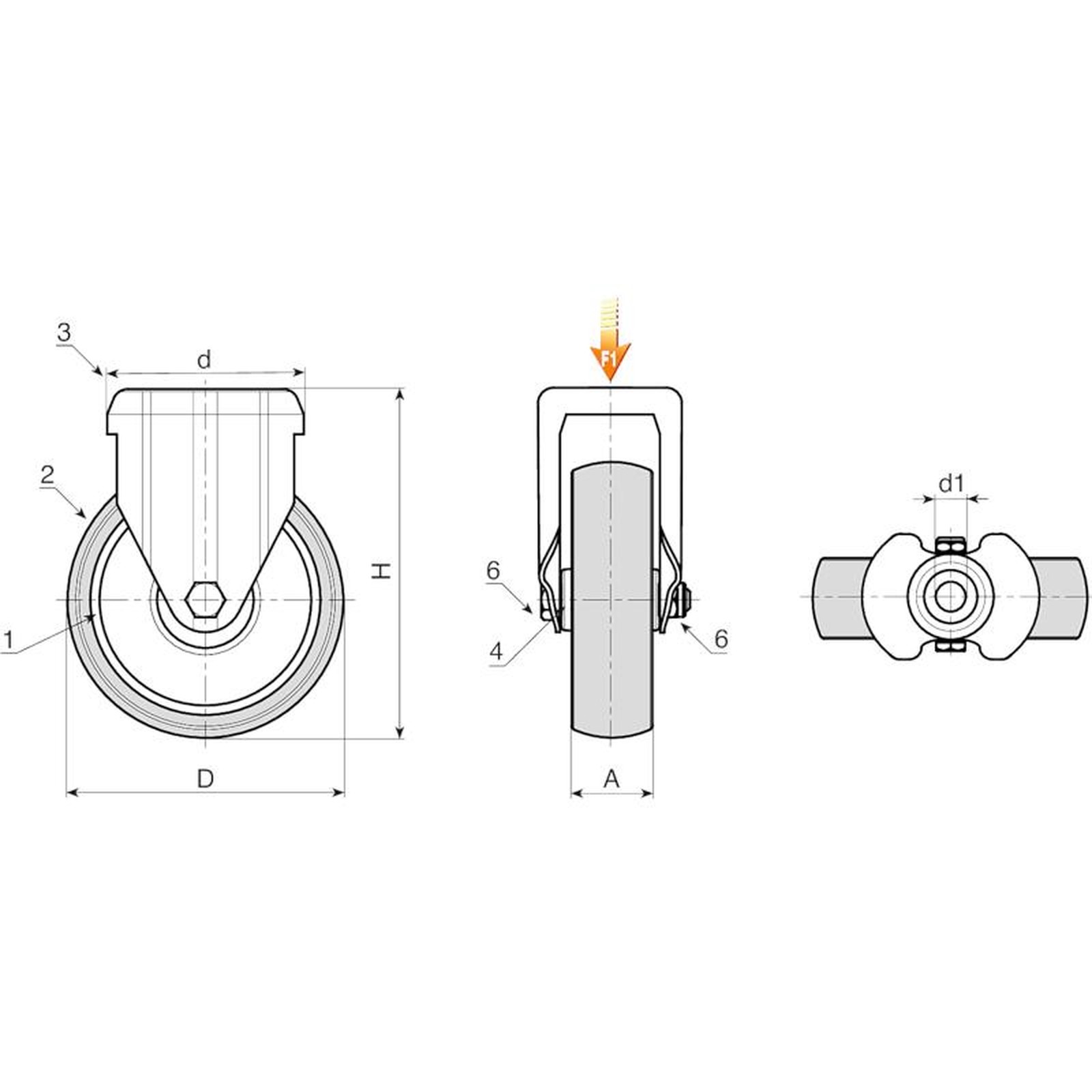

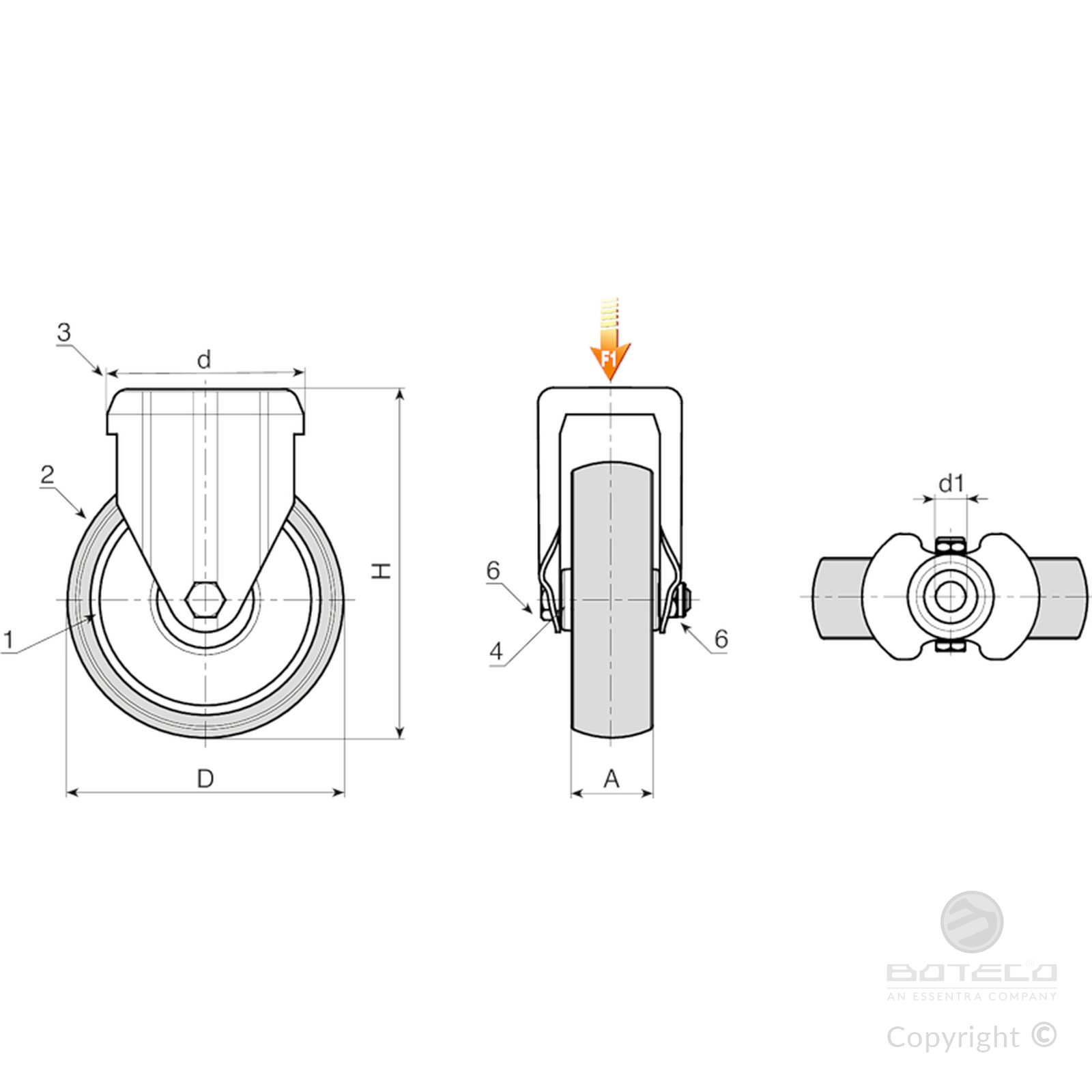

Materials:
Wheel body:
Polypropylene.
Tread:
Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.
Surface finish:
Smooth.
Colour:
(1) Dark grey.
(2) Light grey.
(3-4-5-6-7) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel (DD13) fork, with mounting hole (hole tolerance H7).
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request the wheel can be supplied in material with high electrical conductivity (ESD).
| Code | art. | D | A | H | d | d1 H7 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|
| R610050.0001 | R610050.T18D12 | 50 | 18 | 70 | 48 | 12 | - | 40 |
| R610063.0001 | R610063.T22D12 | 63 | 22 | 90 | 48 | 12 | - | 60 |
| R610080.0001 | R610080.T22D12 | 80 | 22 | 109 | 48 | 12 | - | 60 |
| R610100.0001 | R610100.T27D12 | 100 | 27 | 134 | 57 | 12 | - | 80 |
| R610125.0001 | R610125.T27D12 | 125 | 27 | 159 | 57 | 12 | - | 80 |
| Code | art. | D | A | H | d | d1 H7 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|
| R610050.0002 | R610050.T18D12ESD | 50 | 18 | 70 | 48 | 12 | - | 40 |
| R610060.0001 | R610060.T22D12ESD | 60 | 22 | 90 | 48 | 12 | - | 60 |
| R610080.0002 | R610080.T24D12ESD | 80 | 24 | 109 | 48 | 12 | - | 60 |
| R610100.0002 | R610100.T29D12ESD | 100 | 29 | 134 | 57 | 12 | - | 80 |
| R610125.0002 | R610125.T29D12ESD | 125 | 29 | 159 | 57 | 12 | - | 80 |
