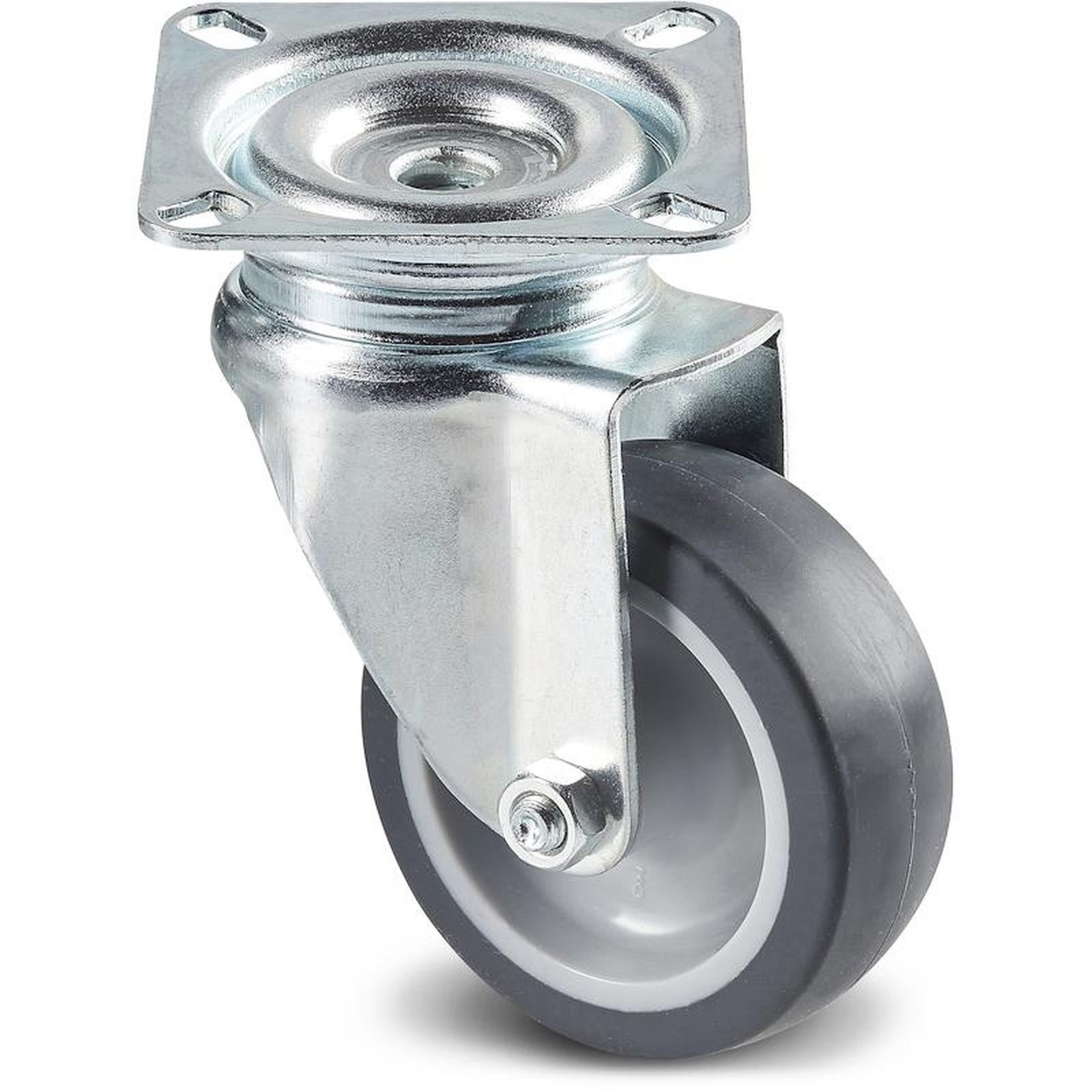

POLYPROPYLENE / RUBBER WHEEL WITH RECTANGULAR SWIVEL STEEL PLATE
18
R607
Ruote in PP/Gomma sintetica (Colletività)
Materials:
Wheel body:
Polypropylene.
Tread:
Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.
Surface finish:
Smooth.
Colour:
(1) Dark grey.
(2) Light grey.
(3-4-5-6-7) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13).
Rotating assembly (5):
Steel rotating assembly with double ball race, and rectangular swivel plate with four slotted mounting holes.
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request the wheel can be supplied in material with high electrical conductivity (ESD).

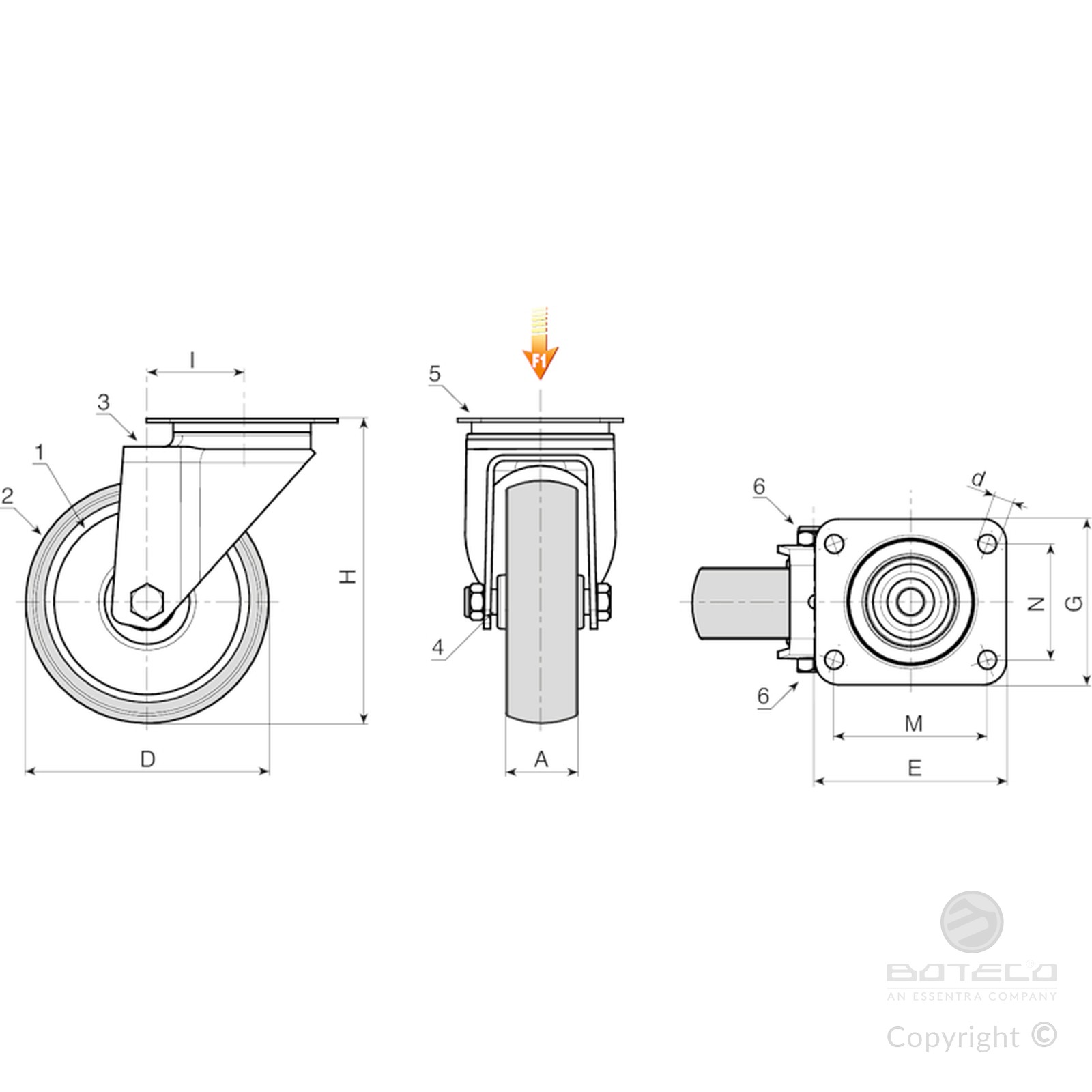

| Code | art. | D | A | H | I | E | G | M | N | d | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R607050.0001 | R607050.T18P045X045 | 50 | 18 | 70 | 26 | 60 | 60 | 45 | 45 | 6,5 | - | 40 |
| R607063.0001 | R607063.T22P045X045 | 63 | 22 | 90 | 26 | 60 | 60 | 45 | 45 | 6,5 | - | 60 |
| R607080.0001 | R607080.T22P045X045 | 80 | 22 | 109 | 25 | 60 | 60 | 45 | 45 | 6,5 | - | 60 |
| R607100.0001 | R607100.T27P060X050 | 100 | 27 | 134 | 36 | 76 | 70 | 60 | 50 | 8,3 | - | 80 |
| R607125.0001 | R607125.T27P060X050 | 125 | 27 | 159 | 35 | 76 | 70 | 60 | 50 | 8,3 | - | 80 |
| Code | art. | D | A | H | I | E | G | M | N | d | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R607050.0002 | R607050.T18P045X045ESD | 50 | 18 | 70 | 26 | 60 | 60 | 45 | 45 | 6,5 | - | 40 |
| R607060.0001 | R607060.T22P045X045ESD | 60 | 22 | 90 | 26 | 60 | 60 | 45 | 45 | 6,5 | - | 60 |
| R607080.0002 | R607080.T24P045X045ESD | 80 | 24 | 109 | 25 | 60 | 60 | 45 | 45 | 6,5 | - | 60 |
| R607100.0002 | R607100.T29P060X050ESD | 100 | 29 | 134 | 36 | 76 | 70 | 60 | 50 | 8,3 | - | 80 |
| R607125.0002 | R607125.T29P060X050ESD | 125 | 29 | 159 | 35 | 76 | 70 | 60 | 50 | 8,3 | - | 80 |
