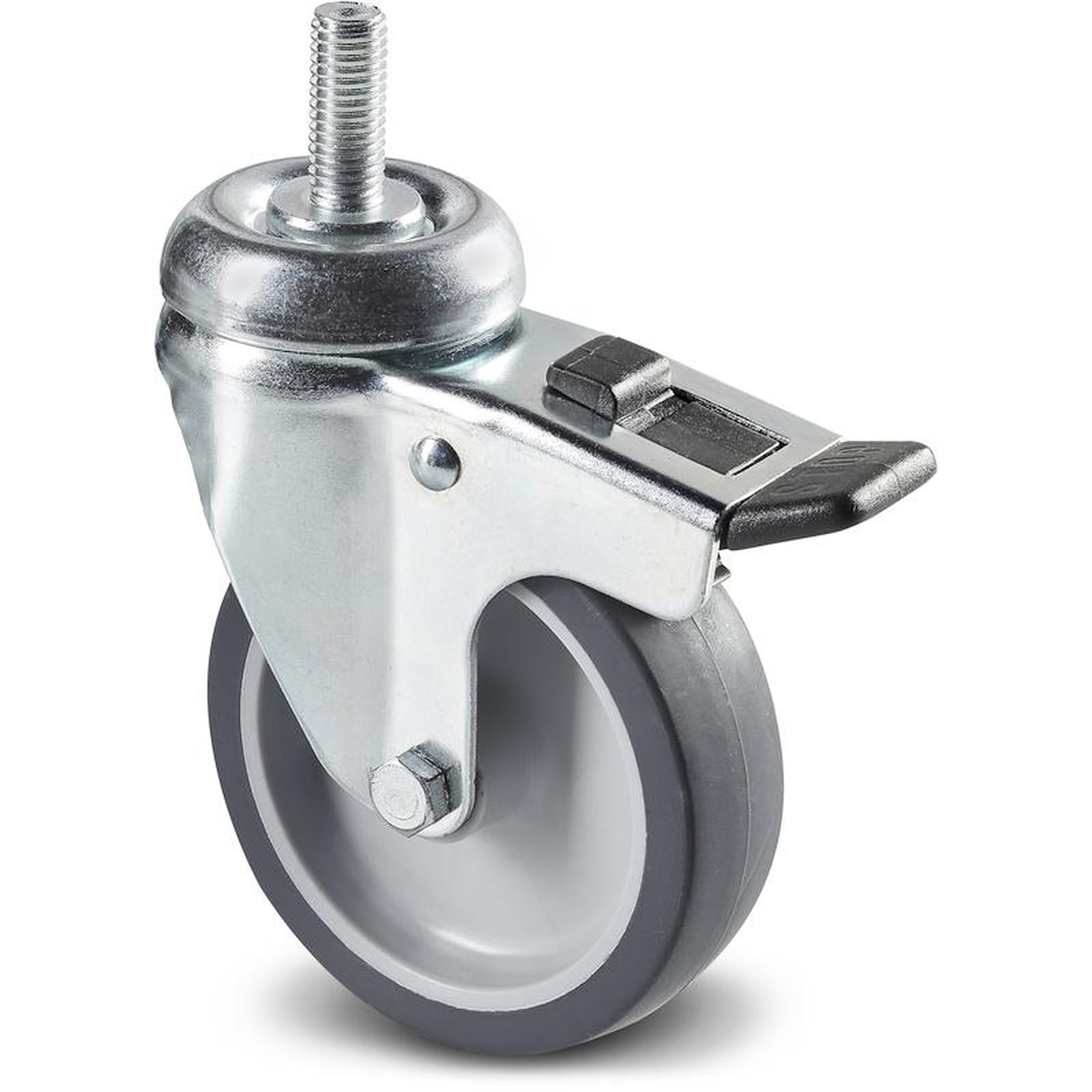

POLYPROPYLENE / RUBBER WHEEL WITH ROUND STEEL SWIVEL SUPPORT AND THREADED STUD WITH BRAKE
18
R604
Ruote in PP/Gomma sintetica (Colletività)

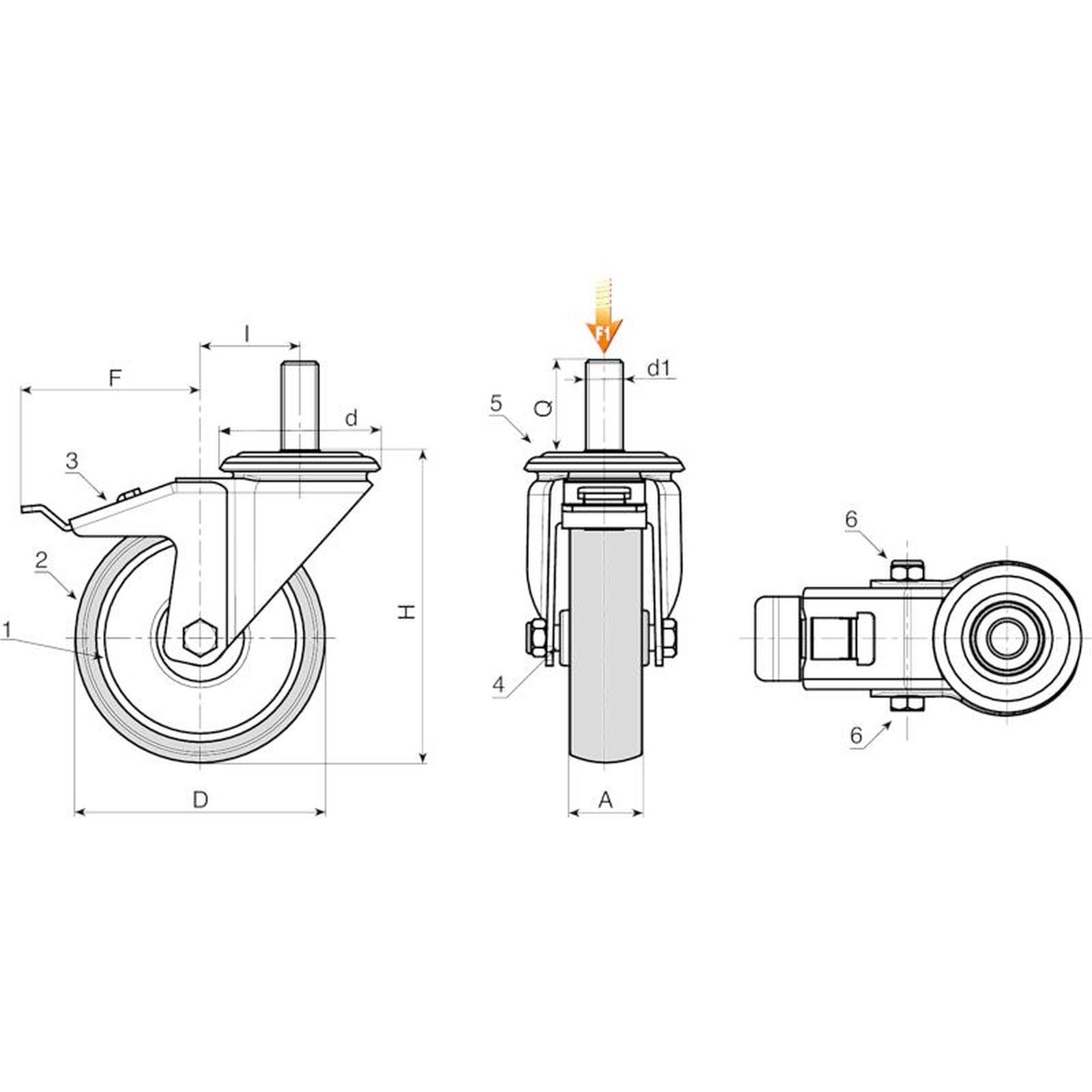

Materials:
Wheel body:
Polypropylene.
Tread:
Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.
Surface finish:
Smooth.
Colour:
(1) Dark grey.
(2) Light grey.
(3-4-5-6-7) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13), with integrated brake. Brake actuation lever moulded in grey plastic.
Rotating assembly (5):
Steel rotating assembly with double ball race and threaded stud (thread tolerance 6g).
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
With a minimum of 100 pieces, M12 threaded studs can be supplied instead of M10, and vice versa.
Upon request the wheel can be supplied in material with high electrical conductivity (ESD).
| Code | art. | D | A | H | I | d | F | d1 6g | Q | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R604050.0001 | R604050.T18M10X25 | 50 | 18 | 70 | 26 | 48 | 80 | M10 | 25 | - | 40 |
| R604063.0001 | R604063.T22M10X25 | 63 | 22 | 90 | 26 | 48 | 84 | M10 | 25 | - | 60 |
| R604080.0001 | R604080.T22M10X25 | 80 | 22 | 109 | 25 | 48 | 84 | M10 | 25 | - | 60 |
| R604100.0001 | R604100.T27M12X30 | 100 | 27 | 134 | 36 | 57 | 106 | M12 | 30 | - | 80 |
| R604125.0001 | R604125.T27M12X30 | 125 | 27 | 159 | 35 | 57 | 106 | M12 | 30 | - | 80 |
| Code | art. | D | A | H | I | d | F | d1 6g | Q | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R604050.0002 | R604050.T18M10X25ESD | 50 | 18 | 70 | 26 | 48 | 80 | M10 | 25 | - | 40 |
| R604060.0001 | R604060.T22M10X25ESD | 60 | 22 | 90 | 26 | 48 | 84 | M10 | 25 | - | 60 |
| - | R604080.T24M10X25ESD | 80 | 24 | 109 | 25 | 48 | 84 | M10 | 25 | - | 60 |
| - | R604100.T29M12X30ESD | 100 | 29 | 134 | 36 | 57 | 106 | M12 | 30 | - | 80 |
| - | R604125.T29M12X30ESD | 125 | 29 | 159 | 35 | 57 | 106 | M12 | 30 | - | 80 |
