R602

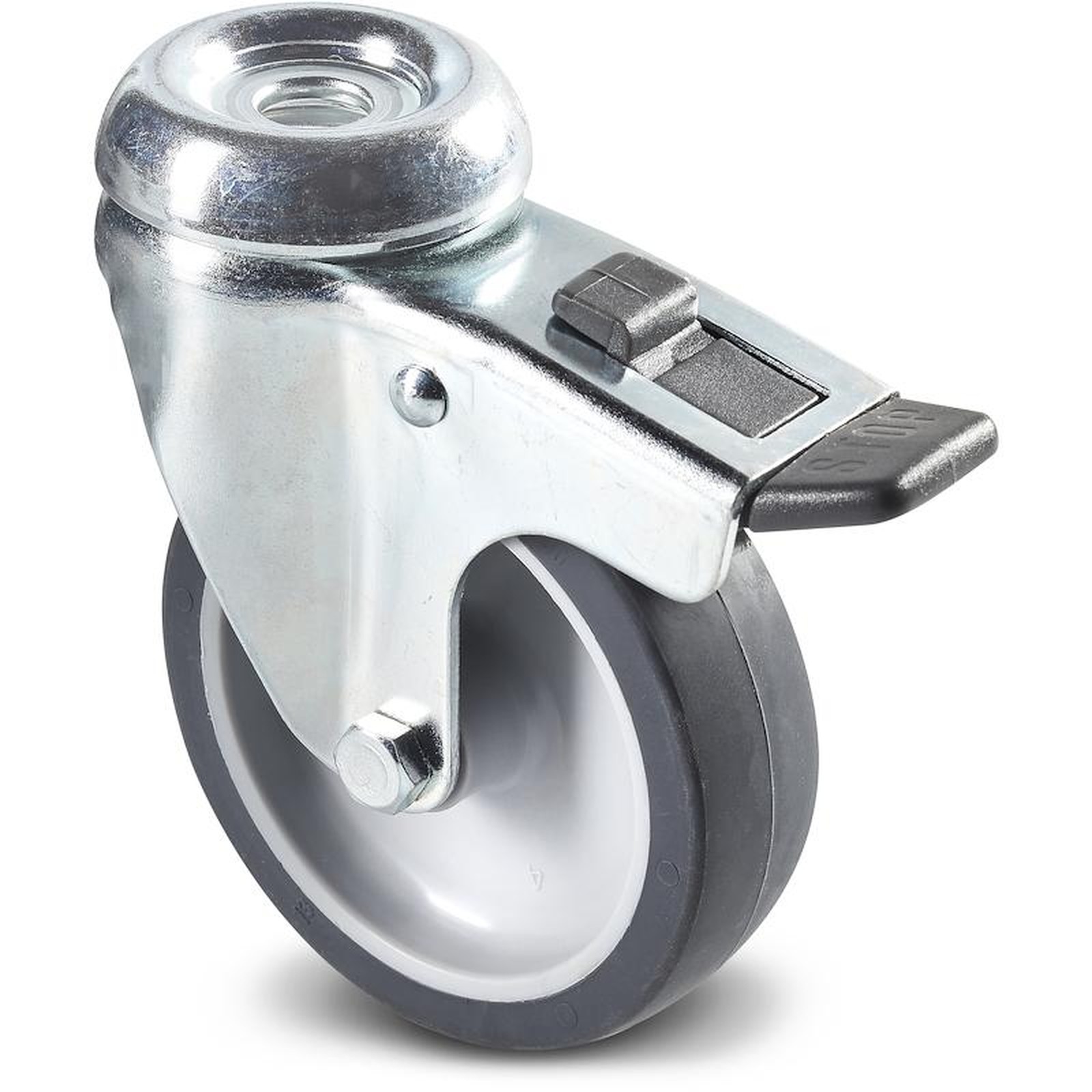

POLYPROPYLENE / RUBBER WHEEL WITH ROUND STEEL SWIVEL SUPPORT AND SMOOTH THROUGH HOLE WITH BRAKE
PP/Synthetic rubber wheels (institutional)
Materials:
Wheel body:
Polypropylene.
Tread:
Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.
Surface finish:
Smooth.
Colour:
(1) Dark grey.
(2) Light grey.
(3-4-5-6-7) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13), with integrated brake. Brake actuation lever moulded in grey plastic.
Rotating assembly (5):
Steel rotating assembly with double ball race and smooth fixing hole, (hole tolerance H7).
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request the wheel can be supplied in material with high electrical conductivity (ESD).
| Code | art. | D | A | H | I | d | F | d1 H7 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| R602050.0001 | R602050.T18D12 | 50 | 18 | 70 | 26 | 48 | 80 | 12 | - | 40 |
| R602063.0001 | R602063.T22D12 | 63 | 22 | 90 | 26 | 48 | 84 | 12 | - | 60 |
| R602080.0001 | R602080.T22D12 | 80 | 22 | 109 | 25 | 48 | 84 | 12 | - | 60 |
| R602100.0001 | R602100.T27D12 | 100 | 27 | 134 | 36 | 57 | 106 | 12 | - | 80 |
| R602125.0001 | R602125.T27D12 | 125 | 27 | 159 | 35 | 57 | 106 | 12 | - | 80 |
| Code | art. | D | A | H | I | d | F | d1 H7 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| R602050.0002 | R602050.T18D12ESD | 50 | 18 | 70 | 26 | 48 | 80 | 12 | - | 40 |
| R602060.0001 | R602060.T22D12ESD | 60 | 22 | 90 | 26 | 48 | 84 | 12 | - | 60 |
| R602080.0002 | R602080.T24D12ESD | 80 | 24 | 109 | 25 | 48 | 84 | 12 | - | 60 |
| R602100.0002 | R602100.T29D12ESD | 100 | 29 | 134 | 36 | 57 | 106 | 12 | - | 80 |
| R602125.0002 | R602125.T29D12ESD | 125 | 29 | 159 | 35 | 57 | 106 | 12 | - | 80 |
