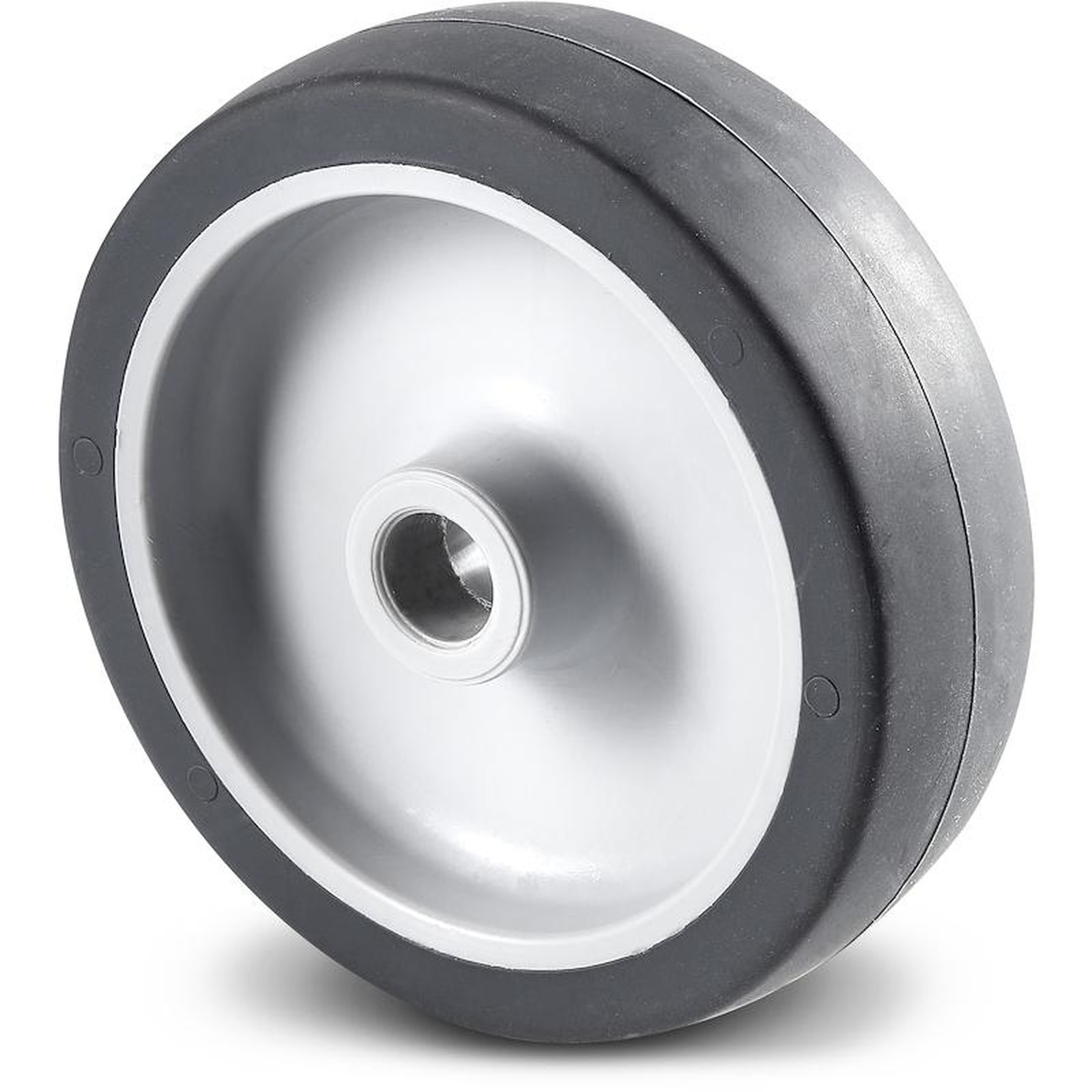

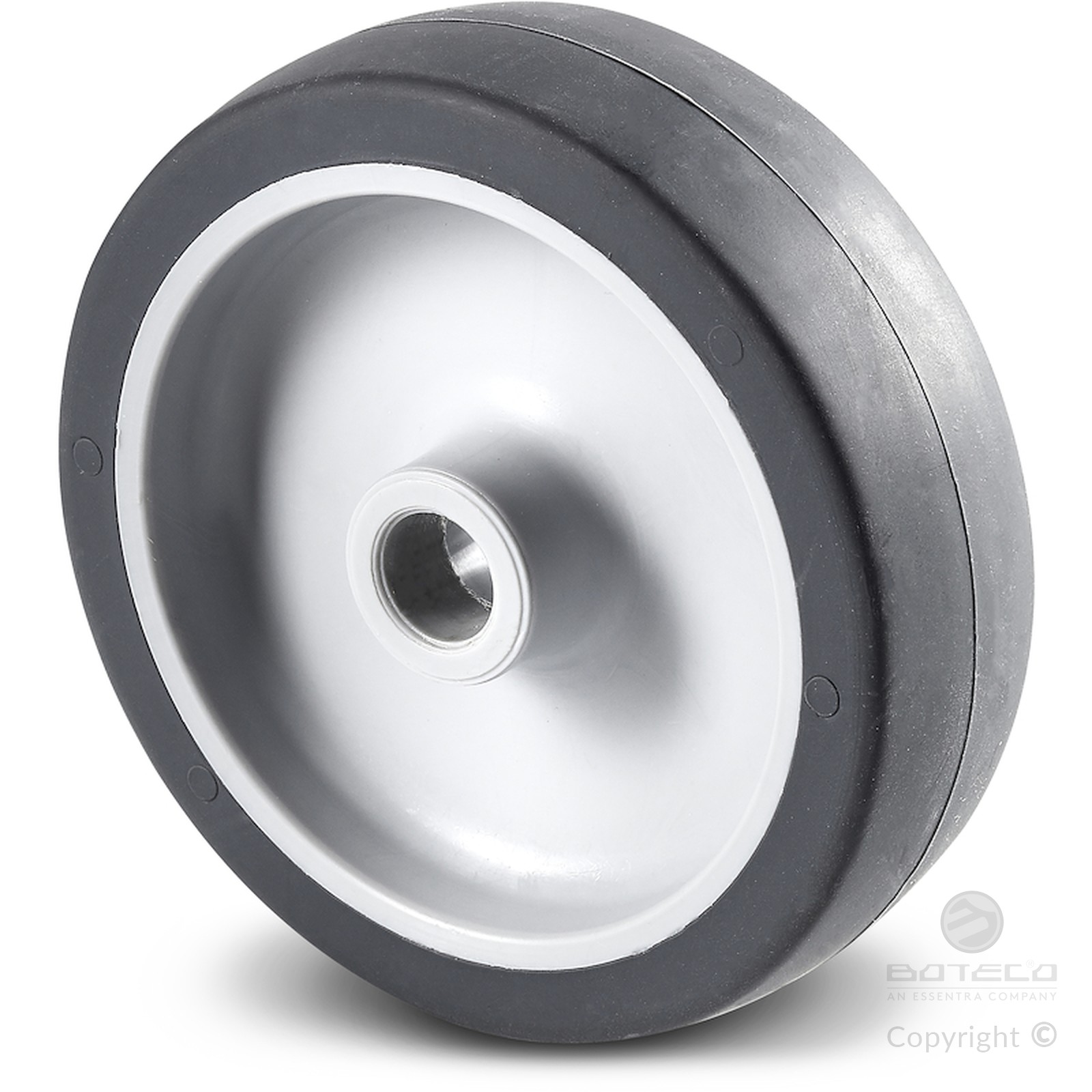

WHEEL WITH POLYPROPYLENE BODY AND THERMOPLASTIC RUBBER TREAD (WITHOUT RIG)
18
R600
Ruote in PP/Gomma sintetica (Colletività)
Materials:
Wheel body:
Polypropylene.
Tread:
Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.
Surface finish:
Smooth.
Colour:
Body:
Light grey.
Tread:
Dark grey.
Wheel rotation:
The hole for the pivot pin is formed by plastic moulding.
Special requests:
Upon request the wheel can be supplied in material with high electrical conductivity (ESD).

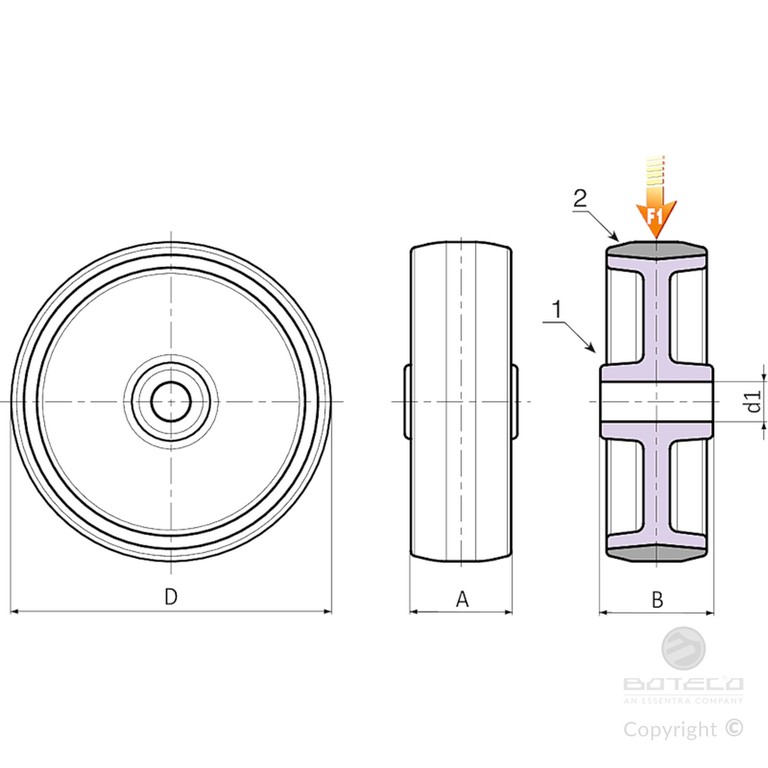

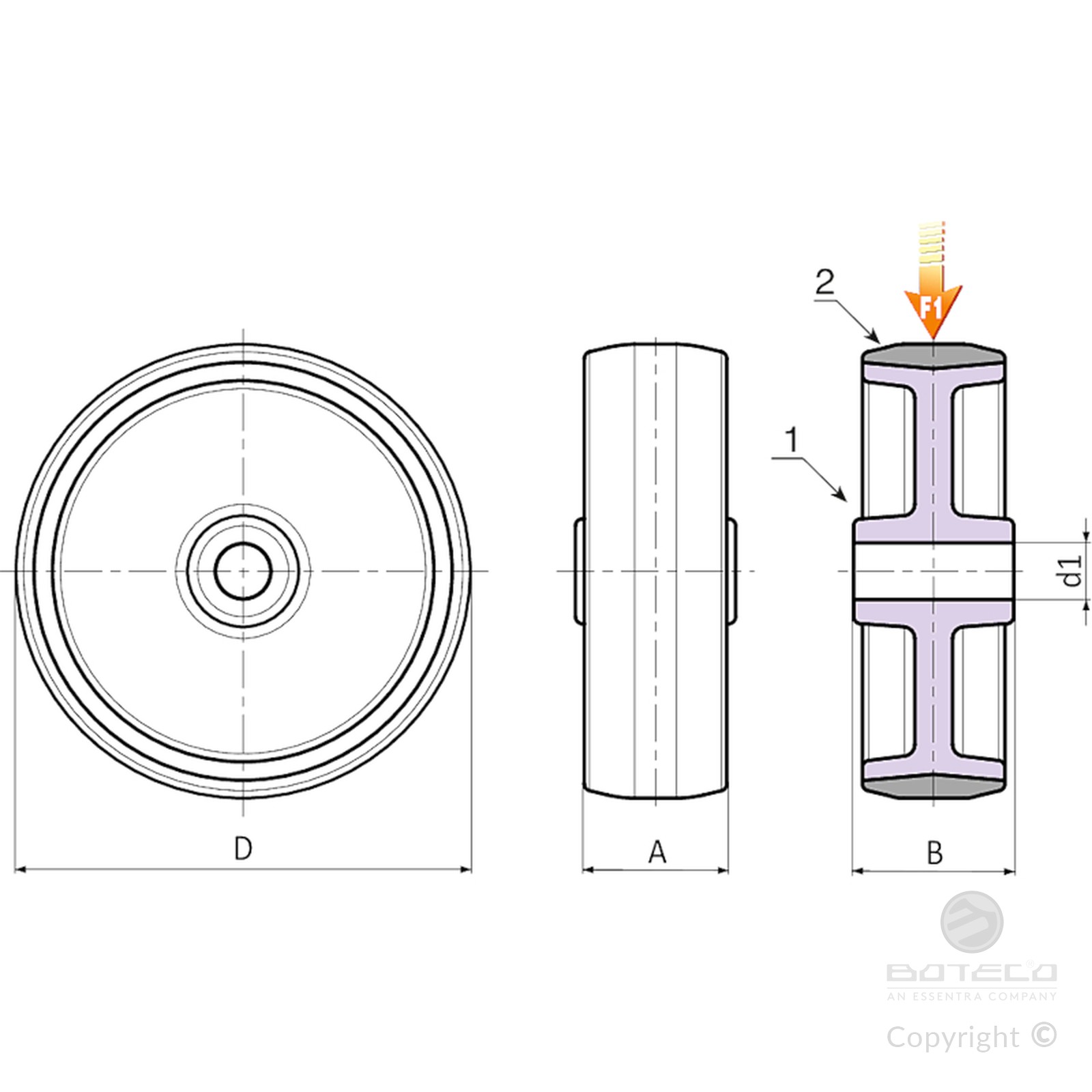

| Code | art. | D | A | B | d1 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|
| R600050.0001 | R600050.T18D08 | 50 | 18 | 22 | 8 | - | 40 |
| R600063.0001 | R600063.T22D10 | 63 | 22 | 27 | 10 | - | 60 |
| R600080.0002 | R600080.T22D10 | 80 | 22 | 27 | 10 | - | 60 |
| R600100.0001 | R600100.T27D12 | 100 | 27 | 32 | 12 | - | 80 |
| R600125.0001 | R600125.T27D12 | 125 | 27 | 32 | 12 | - | 80 |
| Code | art. | D | A | B | d1 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|
| R600050.0002 | R600050.T18D08ESD | 50 | 18 | 21 | 8 | - | 40 |
| R600060.0001 | R600060.T22D10ESD | 60 | 22 | 29 | 10 | - | 60 |
| R600080.0001 | R600080.T24D10ESD | 80 | 24 | 29 | 10 | - | 60 |
| R600100.0002 | R600100.T29D12ESD | 100 | 29 | 34 | 12 | - | 80 |
| R600125.0002 | R600125.T29D12ESD | 125 | 29 | 32 | 12 | - | 80 |
