R403
POLYPROPYLENE / RUBBER WHEEL WITH ROUND STEEL SWIVEL SUPPORT AND THREADED STUD
PP/Synthetic rubber wheels (institutional)
Materials:
Wheel body:
Polypropylene.
Tread:
Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.
Surface finish:
Smooth.
Colour:
(1) Black (RAL 9011).
(2) Light grey.
(3-4-5-6-7) Galvanised blue.
Wheel rotation (4):
The hole for the pivot pin is formed by plastic moulding. A galvanised steel tube is positioned between the stud and the hole for protection.
Bracket (3):
Steel fork (DD13).
Rotating assembly (5):
Steel rotating assembly with double ball race and threaded stud (thread tolerance 6g).
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Thread guards (7):
Sheared steel thread guard disk fixed on both sides.
Special requests:
With a minimum of 100 pieces, M12 threaded studs can be supplied instead of M10, and vice versa.

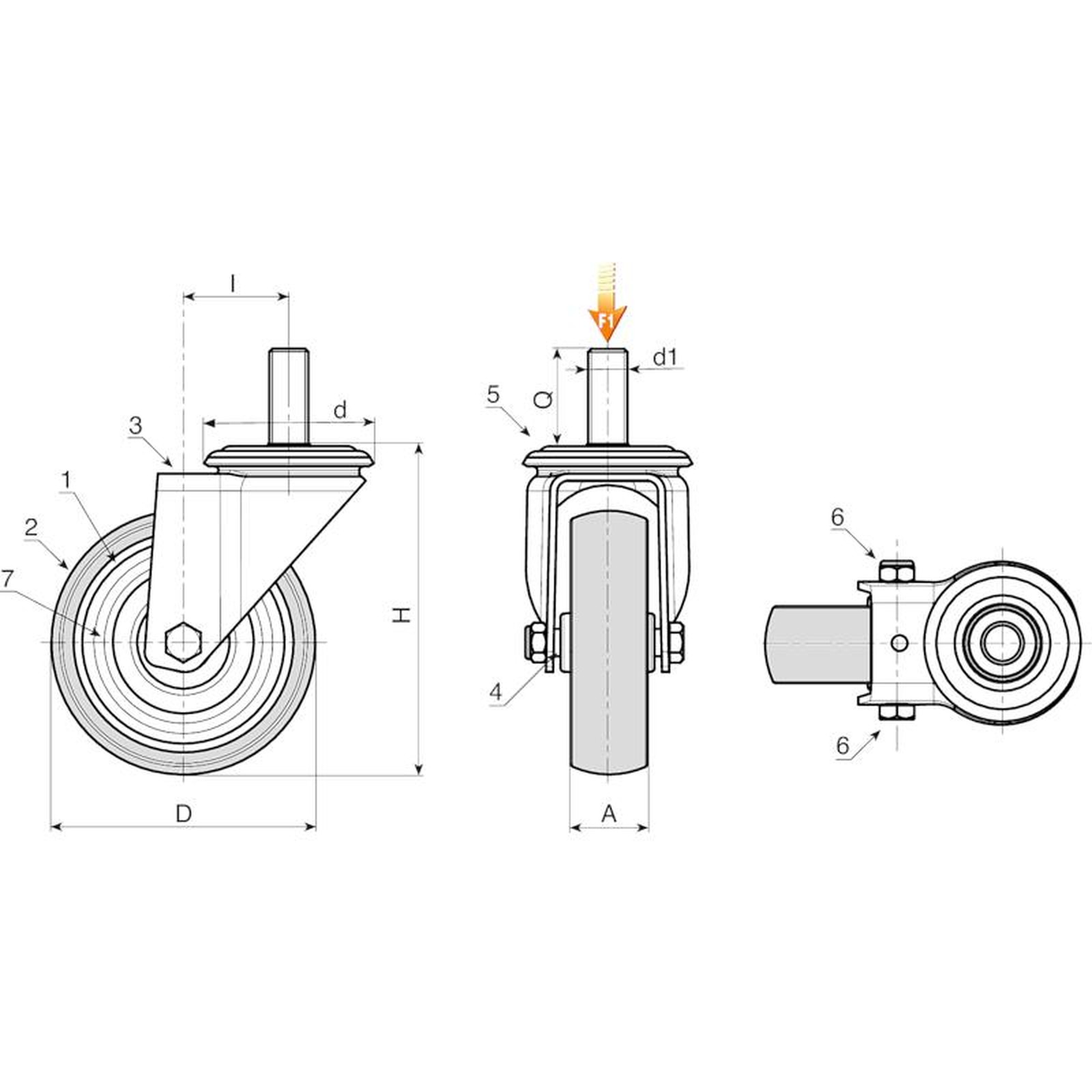

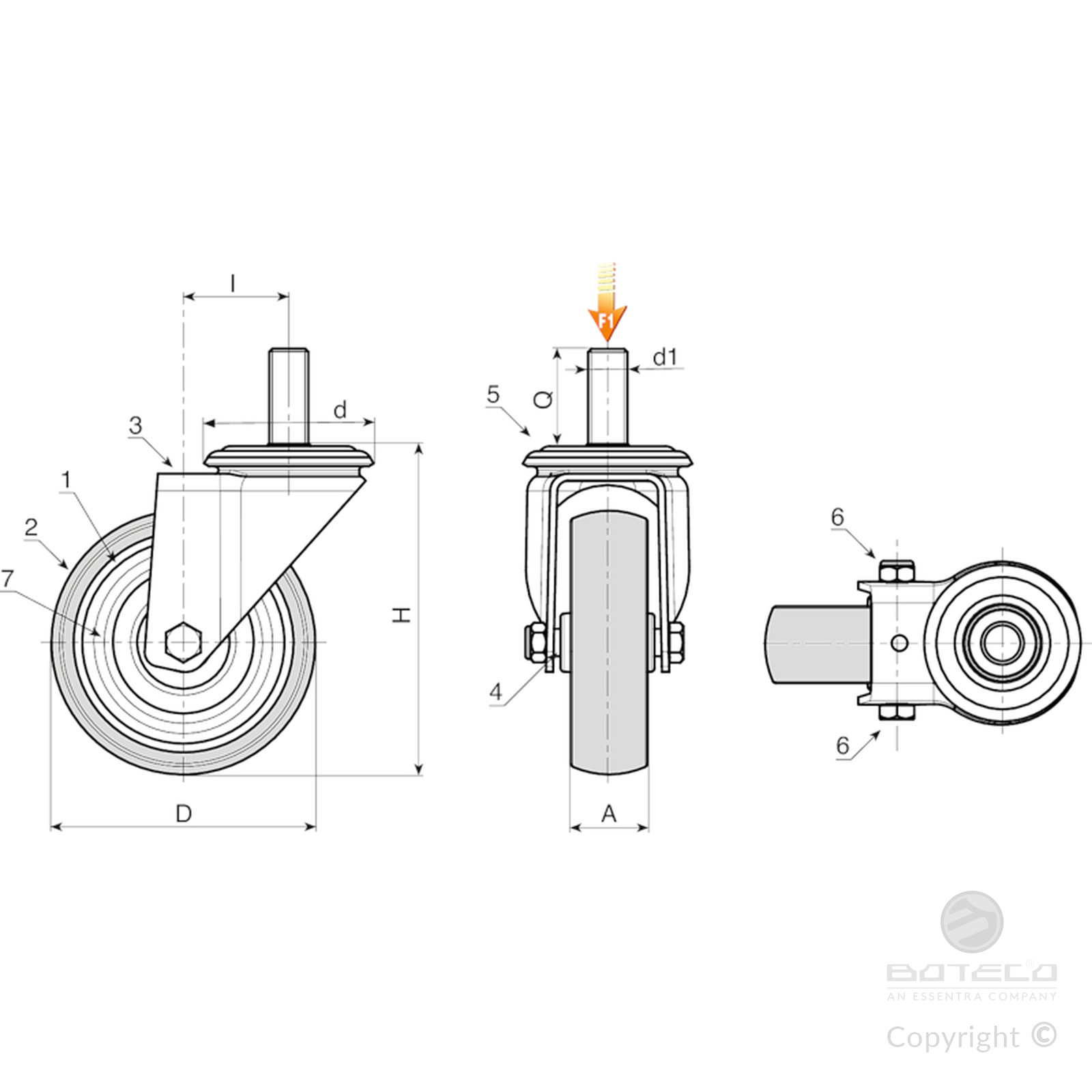

| Code | art. | D | A | H | I | d | d1 6g | Q | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| R403050.0001 | R403050.T18M10X25 | 50 | 18 | 70 | 26 | 48 | M10 | 25 | - | 40 |
| R403063.0001 | R403063.T22M10X25 | 63 | 22 | 90 | 26 | 48 | M10 | 25 | - | 60 |
| R403080.0001 | R403080.T22M10X25 | 80 | 22 | 109 | 25 | 48 | M10 | 25 | - | 60 |
| R403100.0001 | R403100.T27M12X30 | 100 | 27 | 134 | 36 | 57 | M12 | 30 | - | 80 |
| R403125.0001 | R403125.T27M12X30 | 125 | 27 | 159 | 35 | 57 | M12 | 30 | - | 80 |
