18

R400

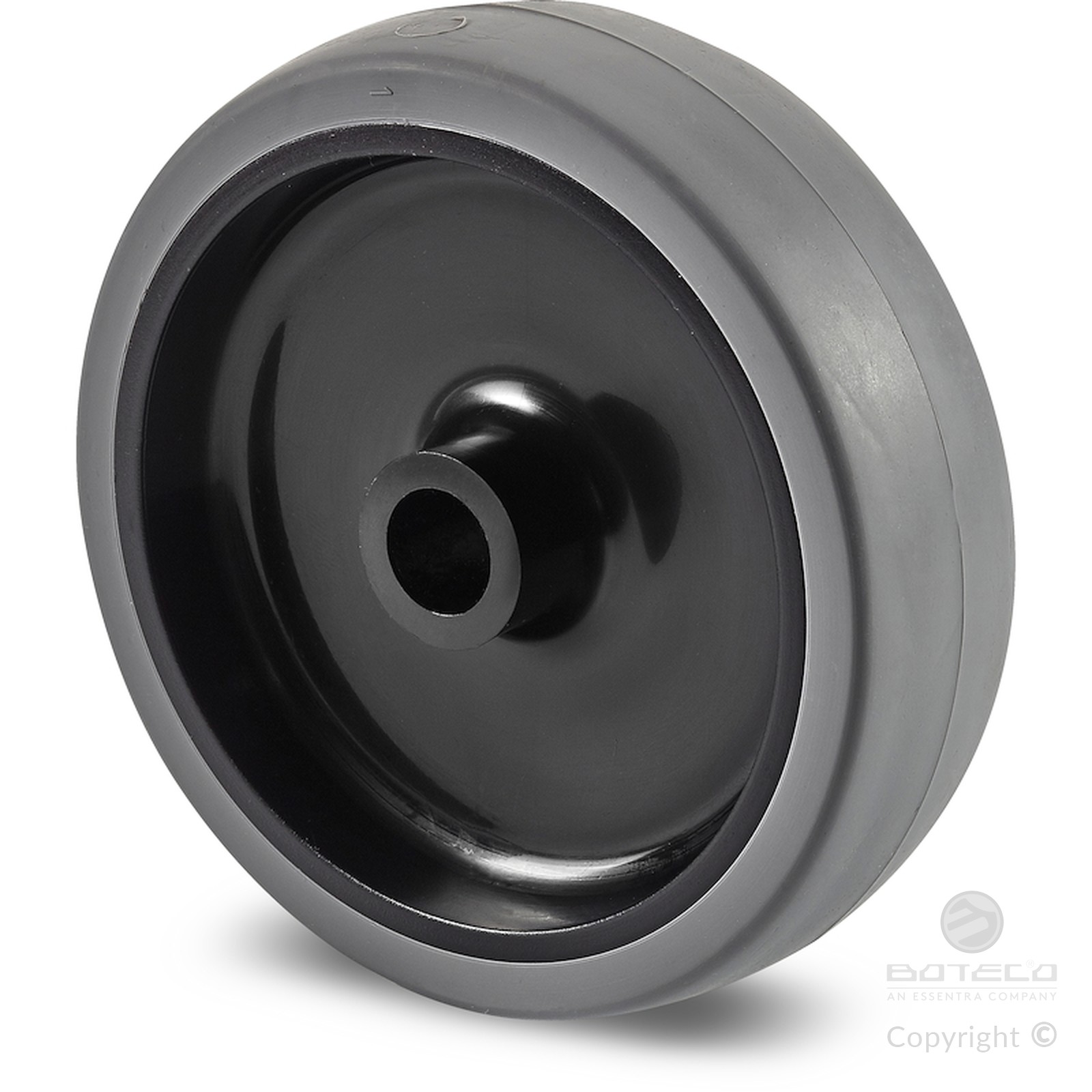

WHEEL WITH POLYPROPYLENE BODY AND THERMOPLASTIC RUBBER TREAD (WITHOUT RIG)

PP/Synthetic rubber wheels (institutional)

Data sheet More information

Alternative products

18

R100

POLYAMIDE MONOLITHIC WHEEL (WITHOUT RIG)

Nylon monolithic wheels
18

R150

POLYAMIDE MONOLITHIC WHEEL WITH BALL BEARING WITHOUT RIG (HEAVY DUTY)

Nylon monolithic wheels
18

R200

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD (WITHOUT RIG)

Nylon/Polyurethane wheels
18

R250

WHEEL WITH POLYAMIDE BODY AND INJECTED POLYURETHANE TREAD WITH BALL BEARINGS WITHOUT RIG (HEAVY DUTY SERIES)

Nylon/Polyurethane wheels
18

R300

WHEEL WITH SHEET METAL RIM AND RUBBER TREAD (WITHOUT RIG)

Sheet metal/natural rubber wheels

Materials:

Wheel body:

Polypropylene.

Tread:

Synthetic thermoplastic rubber. Hardness 93 ± 3 Shore A.

Surface finish:

Smooth.

Colour:

Body:

Black (Ral 9011).

Tread:

Light grey.

Wheel rotation:

The hole for the pivot pin is formed by plastic moulding.

Special requests:

None.

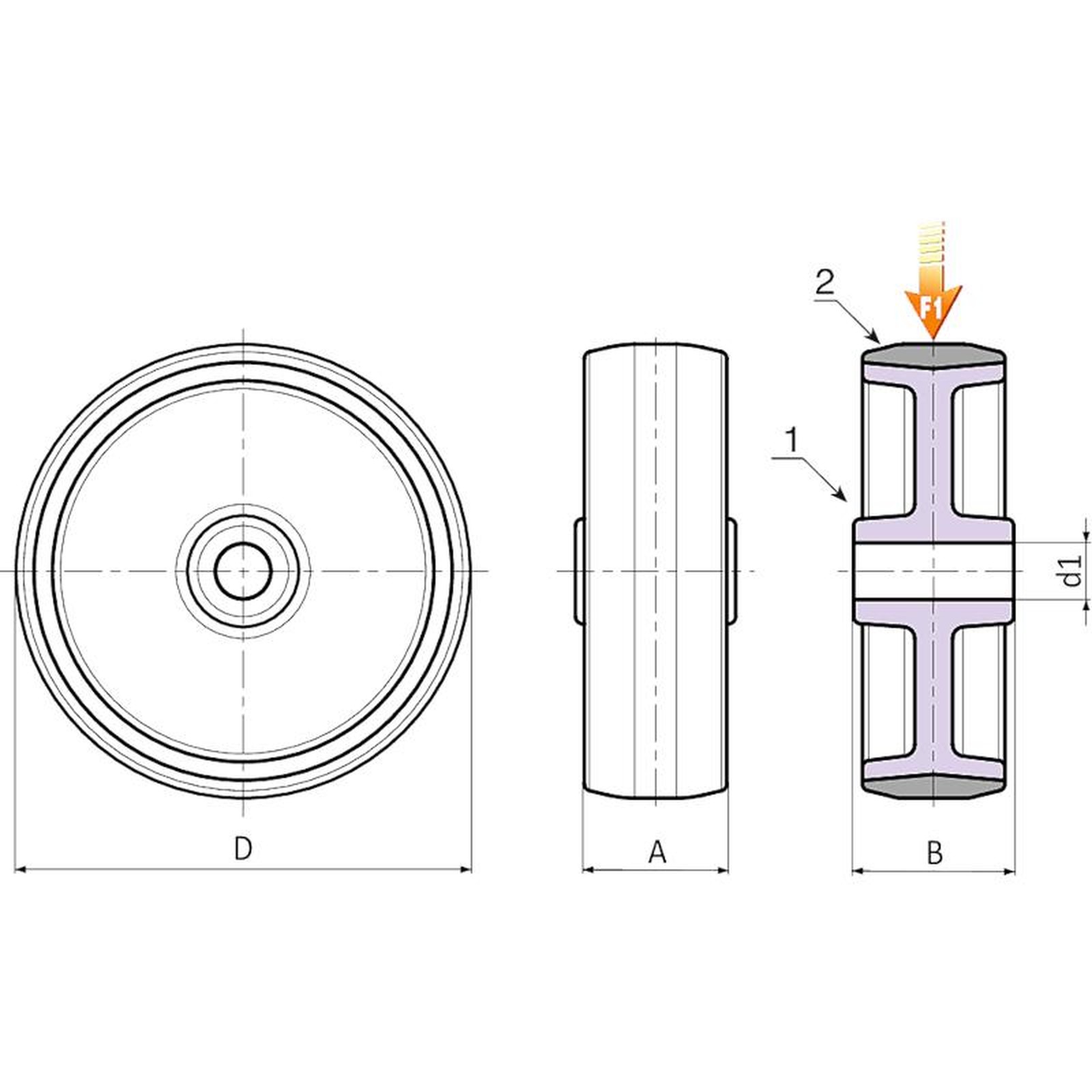

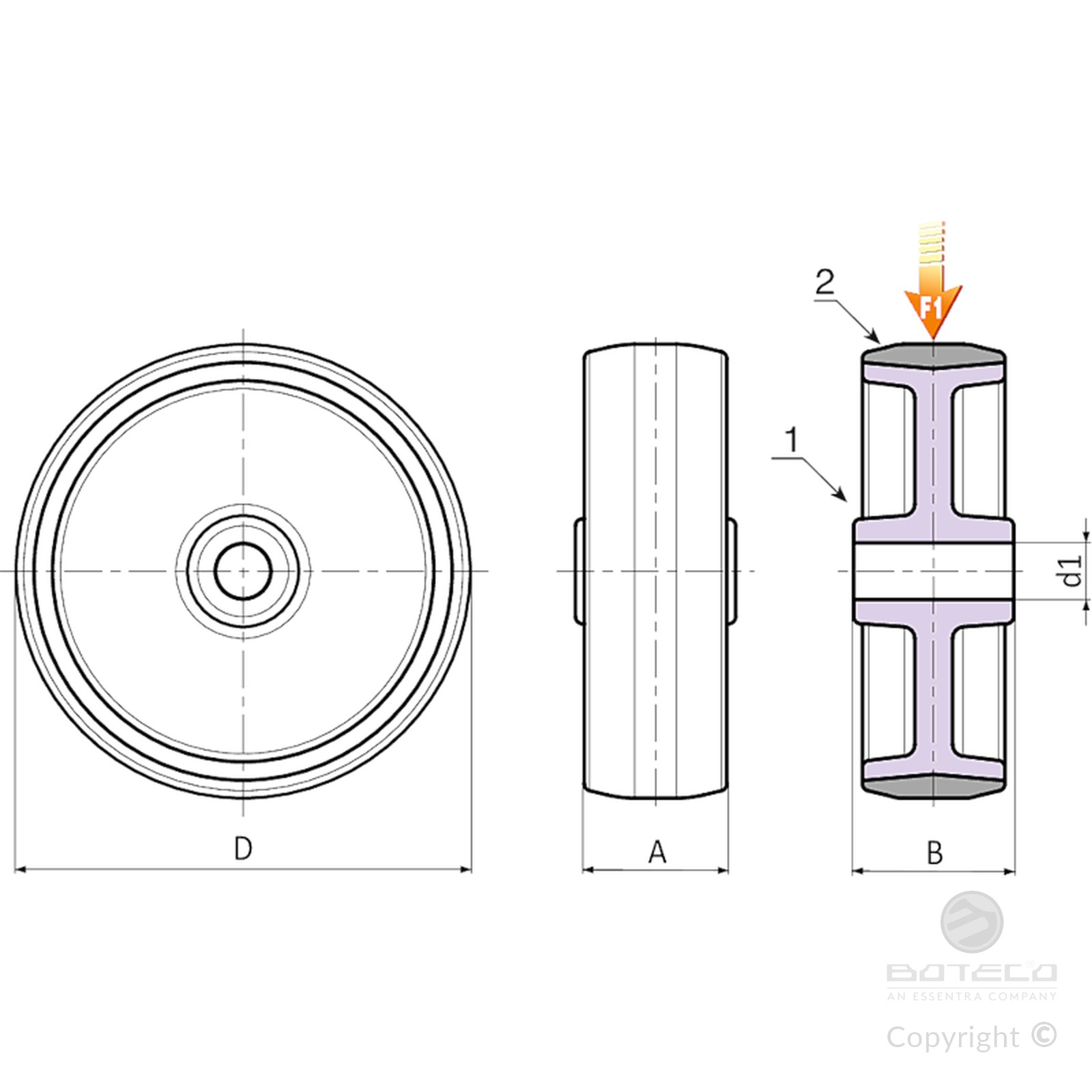

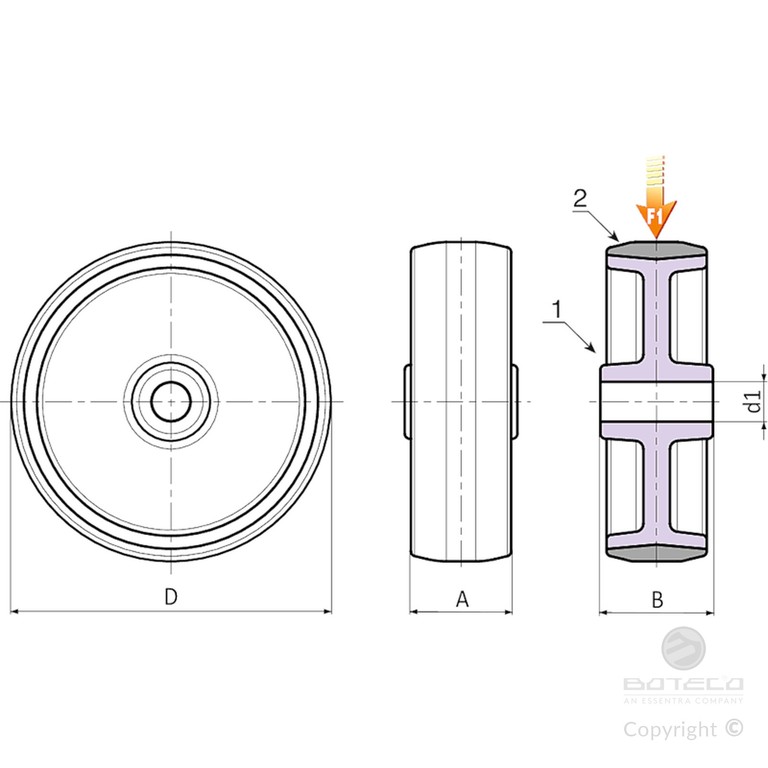

Code	art.	D	A	B	d1	Weight (g)	F1 (Kg)
R400050.0001	R400050.T18D08	50	18	22	8	-	40
R400063.0001	R400063.T22D10	63	22	27	10	-	60
R400075.0001	R400075.T24D08	75	24	27	8	-	60
R400075.0001	R400080.T22D10	80	22	27	10	-	60
R400100.0001	R400100.T27D12	100	27	32	12	-	80
R400125.0001	R400125.T27D12	125	27	32	12	-	80
