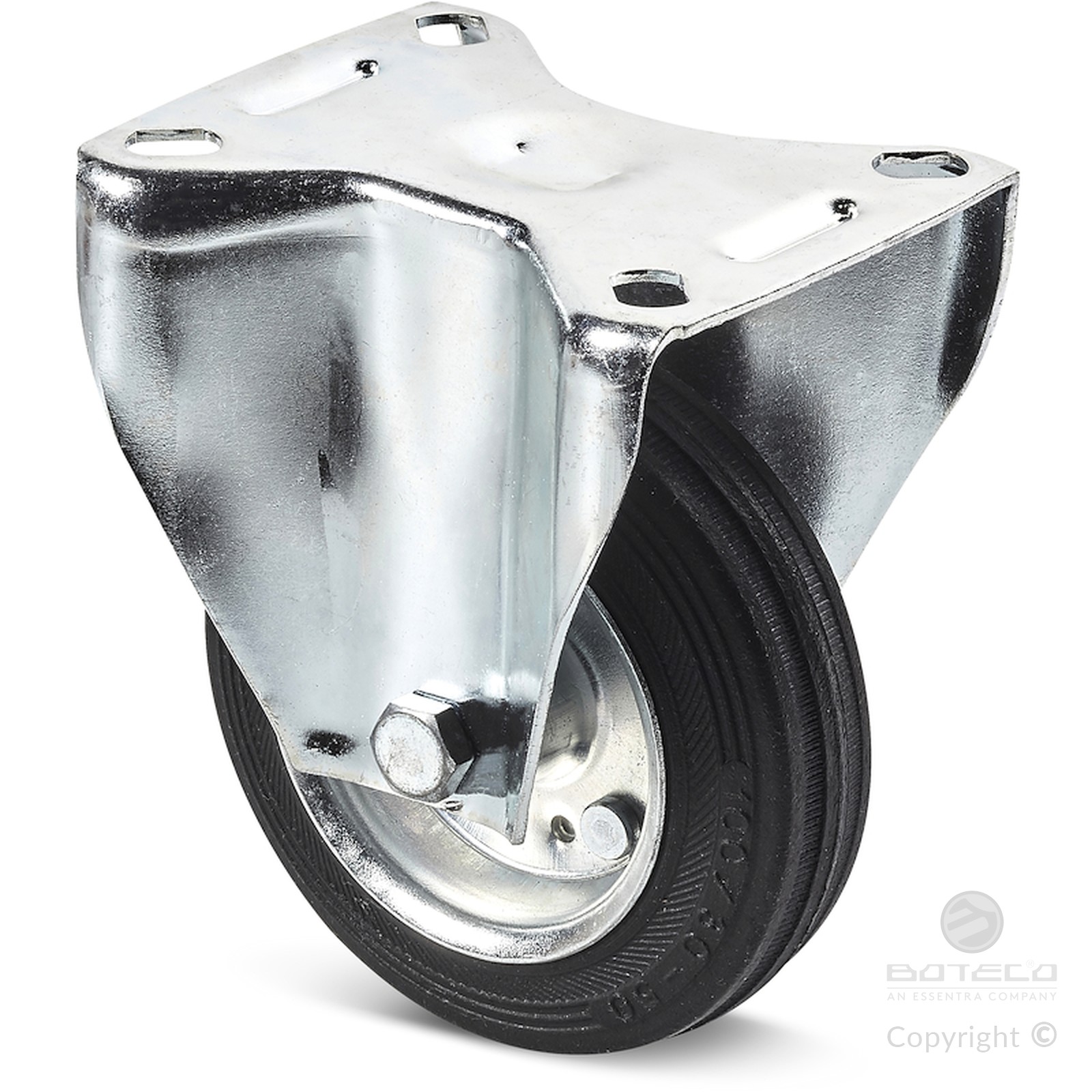

SHEET METAL RIM / RUBBER WHEEL WITH RIGID STEEL FORK
18
R309
Ruote in Lamiera/Gomma Naturale
Materials:
Wheel body:
Two stamped sheet metal disks (steel DD13) riveted together to create a single body.
Tread:
Natural rubber trapezoidal tread. Hardness 85 ± 4 Shore A.
Surface finish:
Smooth.
Colour:
(2) Black (RAL 9011).
(1-3-4-6) Galvanised blue.
Wheel rotation:
The hole for the pivot pin is stamped in sheet metal. A black polyamide insert is positioned between the pin and the hole for protection.
Bracket (3):
Steel (DD13) fork, with mounting holes in the base.
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R309 with code no. R339).

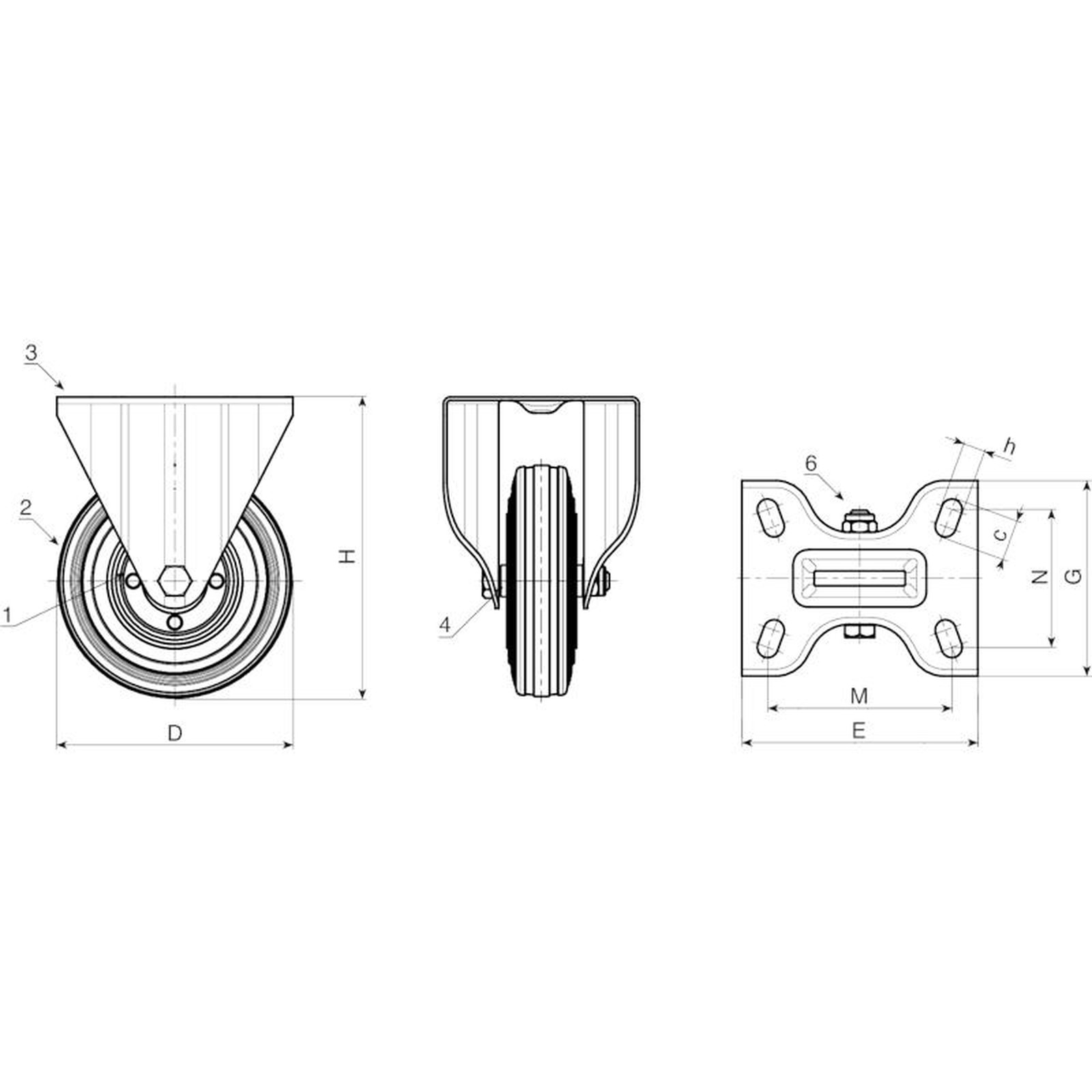

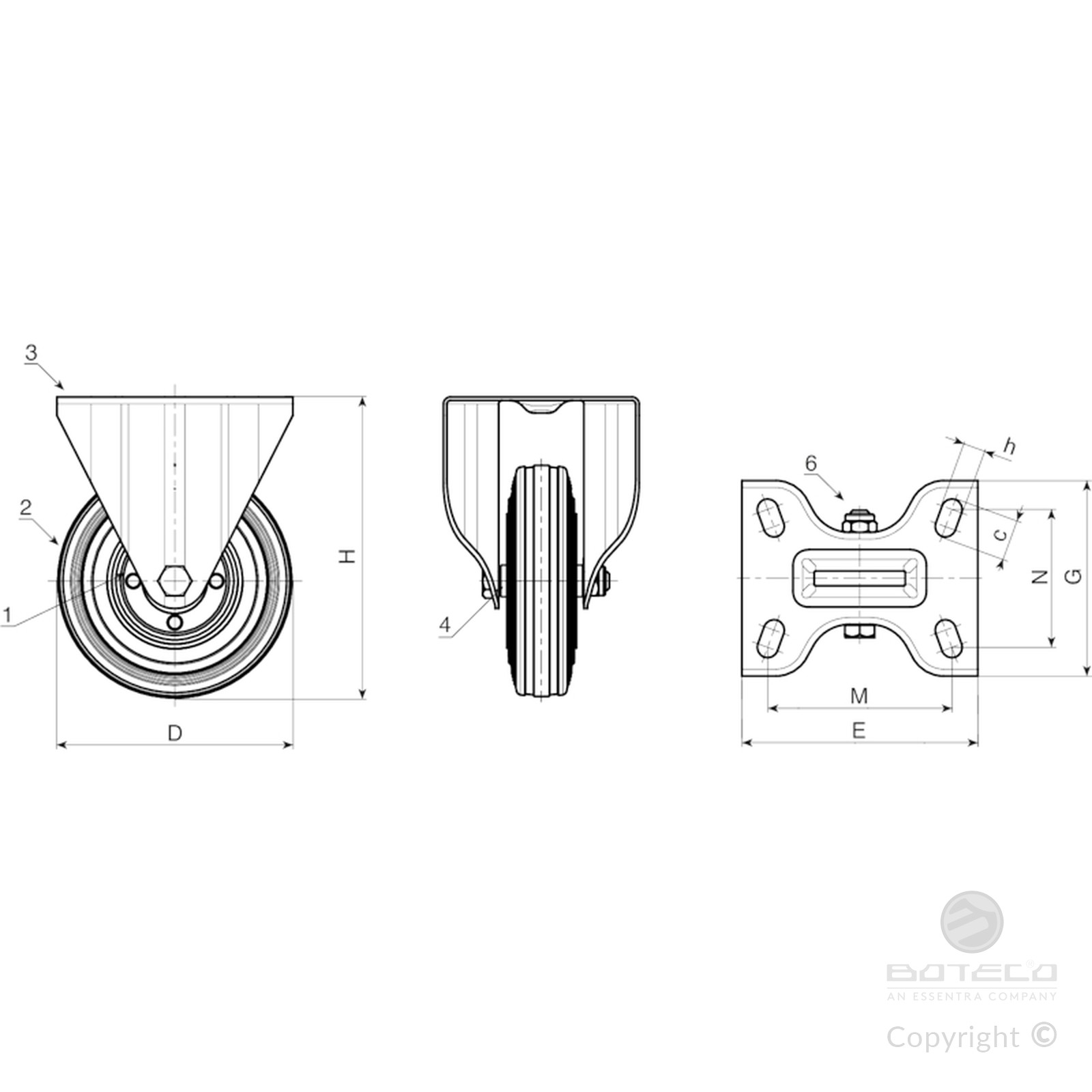

| Code | art. | D | A | H | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R309080.0001 | R309080.T25P080X060 | 80 | 25 | 108 | 102 | 84 | 80 | 60 | 12 | 9 | - | 50 |
| R309100.0001 | R309100.T30P080X060 | 100 | 30 | 127 | 102 | 84 | 80 | 60 | 12 | 9 | - | 70 |
| R309125.0001 | R309125.T37P080X060 | 125 | 37.5 | 155 | 100 | 84 | 80 | 60 | 12 | 9 | - | 100 |
| R309150.0001 | R309150.T37P080X060 | 150 | 37.5 | 183 | 100 | 84 | 80 | 60 | 12 | 9 | - | 140 |
| R309180.0001 | R309180.T45P105X080 | 180 | 45 | 230 | 135 | 110 | 105 | 80 | 23 | 11 | - | 180 |
| R309200.0001 | R309200.T50P105X080 | 200 | 50 | 240 | 135 | 110 | 105 | 80 | 23 | 11 | - | 220 |
