R308

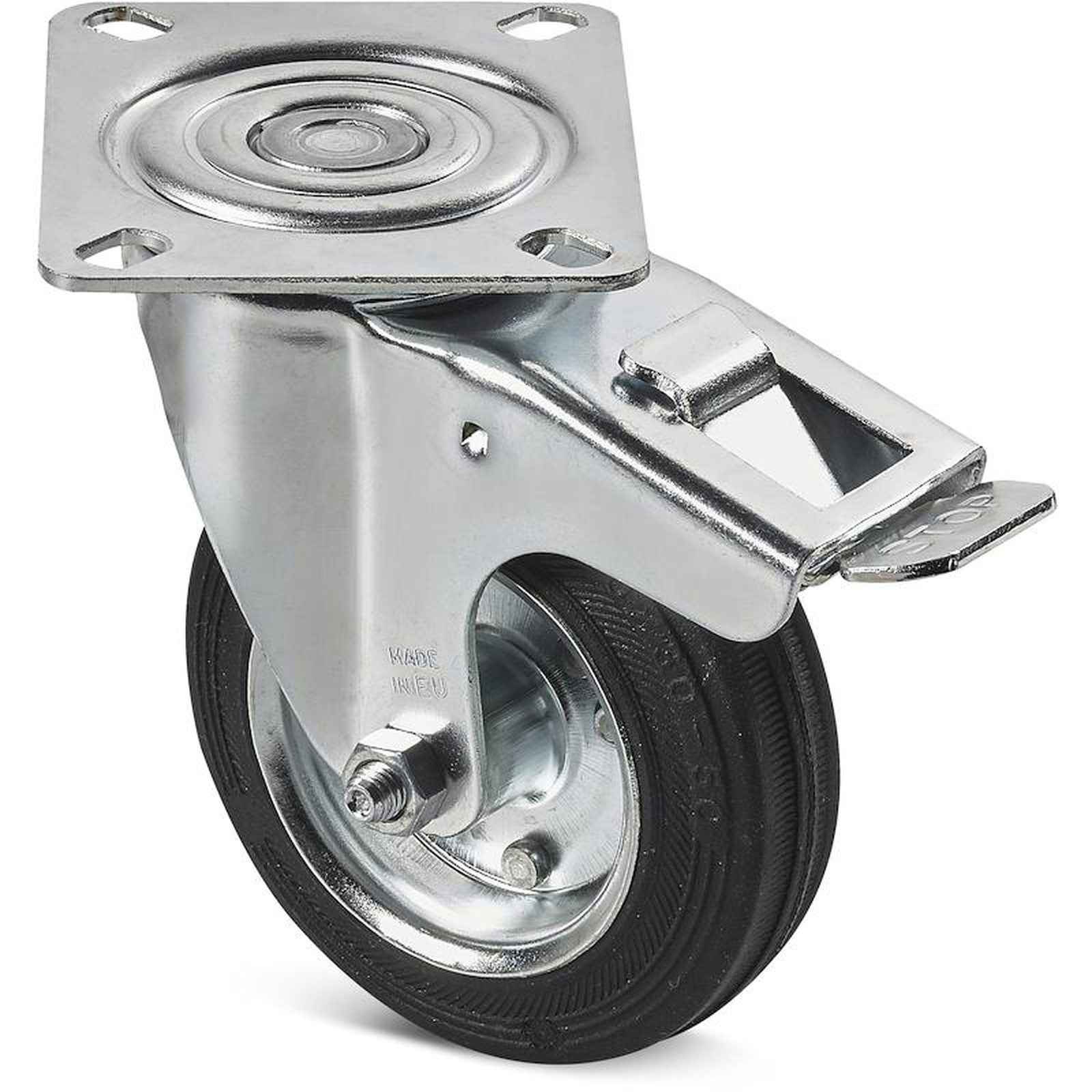

SHEET METAL RIM / RUBBER WHEEL WITH RECTANGULAR SWIVEL STEEL PLATE WITH BRAKE
Sheet metal/natural rubber wheels
Materials:
Wheel body:
Two stamped sheet metal disks (steel DD13) riveted together to create a single body.
Tread:
Natural rubber trapezoidal tread. Hardness 85 ± 4 Shore A.
Surface finish:
Smooth.
Colour:
(2) Black (RAL 9011).
(1-3-4-5-6) Galvanised blue.
Wheel rotation:
The hole for the pivot pin is stamped in sheet metal. A black polyamide insert is positioned between the pin and the hole for protection.
Bracket (3):
Steel fork (DD13), with integrated brake.
Rotating assembly (5):
Steel rotating assembly with double ball race, and rectangular swivel plate with four slotted mounting holes.
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R308 with code no. R338).

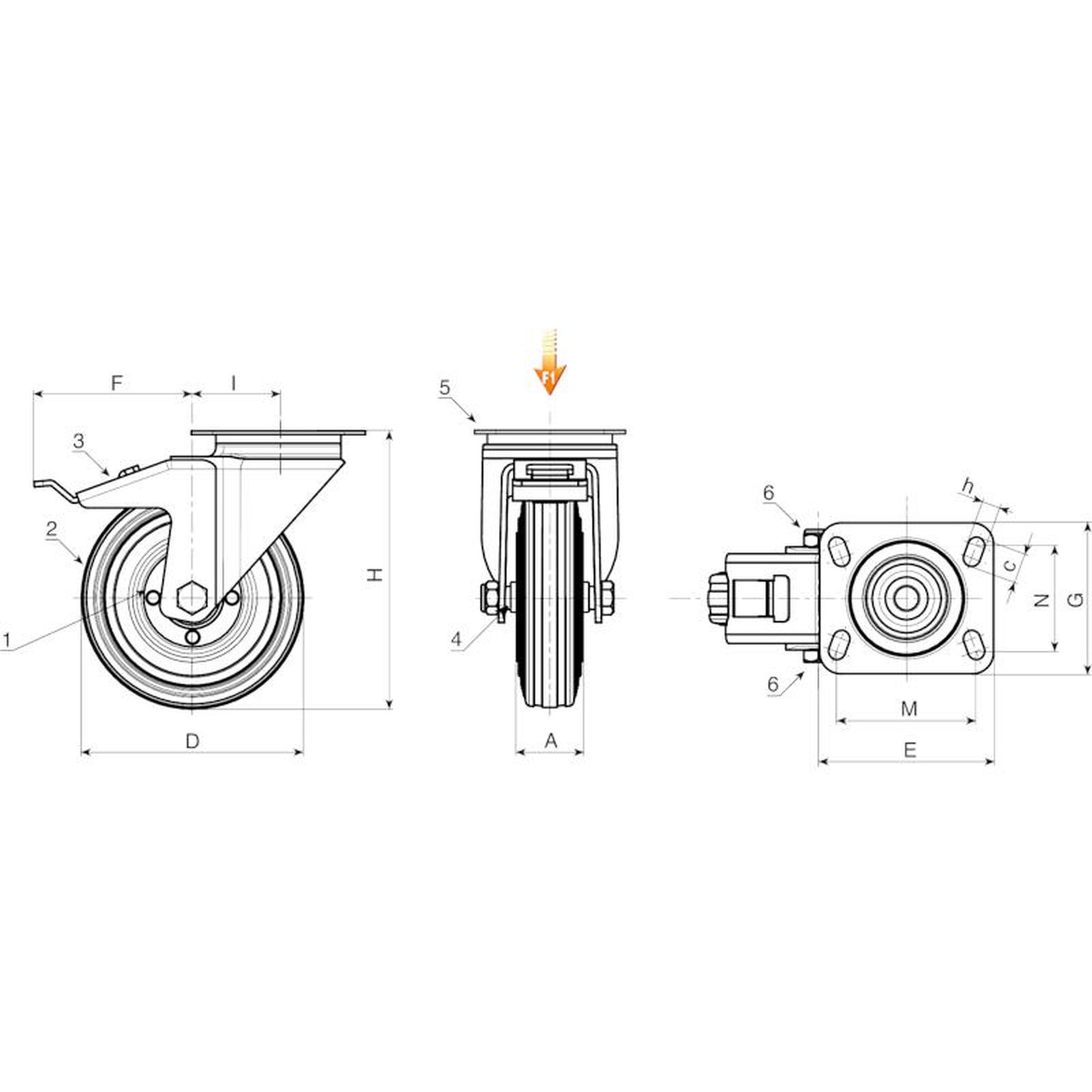

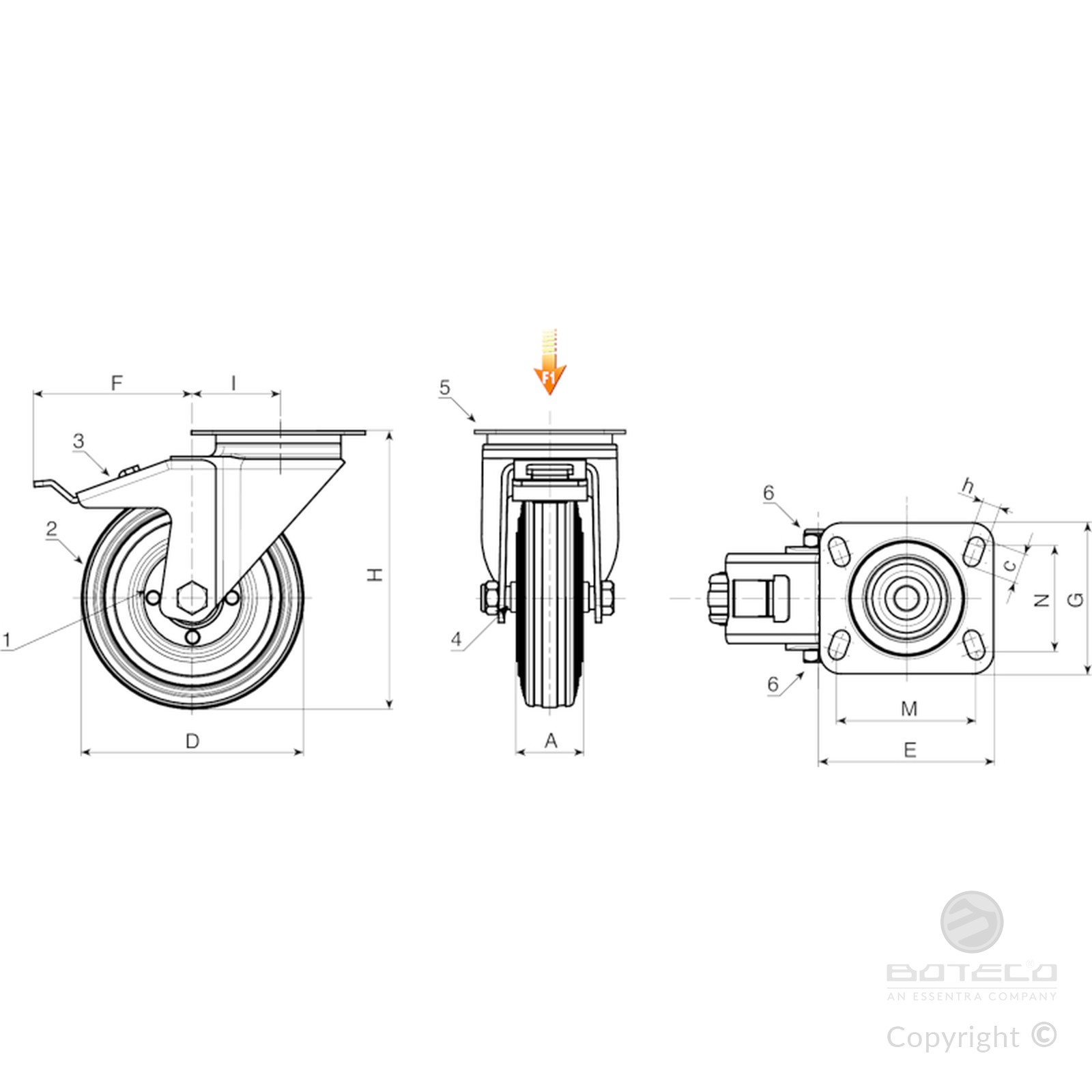

| Code | art. | D | A | H | I | E | G | M | N | c | h | F | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R308080.0001 | R308080.T25P080X060 | 80 | 25 | 108 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 110 | 669 | 50 |
| R308100.0001 | R308100.T30P080X060 | 100 | 30 | 127 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 110 | 782 | 70 |
| R308125.0001 | R308125.T37P080X060 | 125 | 37.5 | 155 | 32 | 95 | 80 | 80 | 60 | 12 | 9 | 113 | 1086 | 100 |
| R308150.0001 | R308150.T37P080X060 | 150 | 37.5 | 183 | 35 | 100 | 80 | 80 | 60 | 12 | 9 | 115 | - | 140 |
| R308180.0001 | R308180.T45P105X080 | 180 | 45 | 230 | 48 | 129 | 106 | 105 | 80 | 23 | 11 | 150 | 3068 | 180 |
| R308200.0001 | R308200.T50P105X080 | 200 | 50 | 240 | 48 | 129 | 106 | 105 | 80 | 23 | 11 | 150 | 2860 | 220 |
