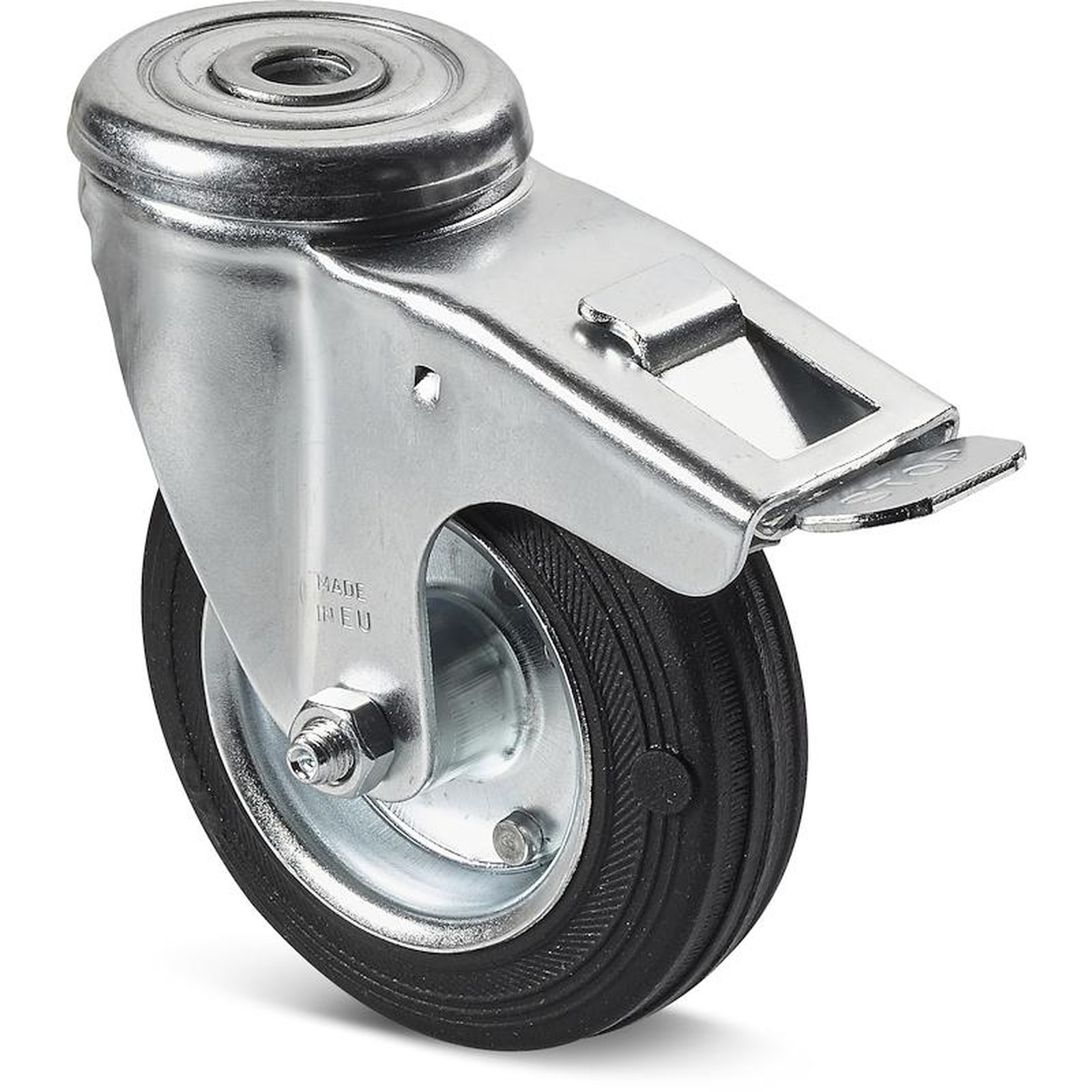

SHEET METAL RIM / RUBBER WHEEL WITH ROUND STEEL SWIVEL SUPPORT AND SMOOTH THROUGH HOLE WITH BRAKE
18
R302
Ruote in Lamiera/Gomma Naturale
Materials:
Wheel body:
Two stamped sheet metal disks (steel DD13) riveted together to create a single body.
Tread:
Natural rubber trapezoidal tread. Hardness 85 ± 4 Shore A.
Surface finish:
Smooth.
Colour:
(2) Black (RAL 9011).
(1-3-4-5-6) Galvanised blue.
Wheel rotation:
The hole for the pivot pin is stamped in sheet metal. A black polyamide insert is positioned between the pin and the hole for protection.
Bracket (3):
Steel fork (DD13), with integrated brake.
Rotating assembly (5):
Steel rotating assembly with double ball race and smooth fixing hole, (hole tolerance H7).
Wheel fastening (6):
Steel hex head screw, coupled with a steel nut.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R302 with code no. R332).
| Code | art. | D | A | H | I | d | d1 H7 | F | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| R302080.0001 | R302080.T25D12 | 80 | 25 | 108 | 32 | 64 | 12 | 110 | 570 | 50 |
| R302100.0001 | R302100.T30D12 | 100 | 30 | 127 | 32 | 64 | 12 | 110 | 618 | 70 |
| R302125.0001 | R302125.T37D12 | 125 | 37.5 | 155 | 32 | 64 | 12 | 113 | 1134 | 100 |
| R302150.0001 | R302150.T37D12 | 150 | 37.5 | 183 | 35 | 65 | 12 | 115 | - | 140 |
| R302180.0001 | R302180.T45D16 | 180 | 45 | 230 | 48 | 95 | 16 | 150 | - | 180 |
| R302200.0001 | R302200.T50D16 | 200 | 50 | 240 | 48 | 95 | 16 | 150 | 3297 | 200 |
