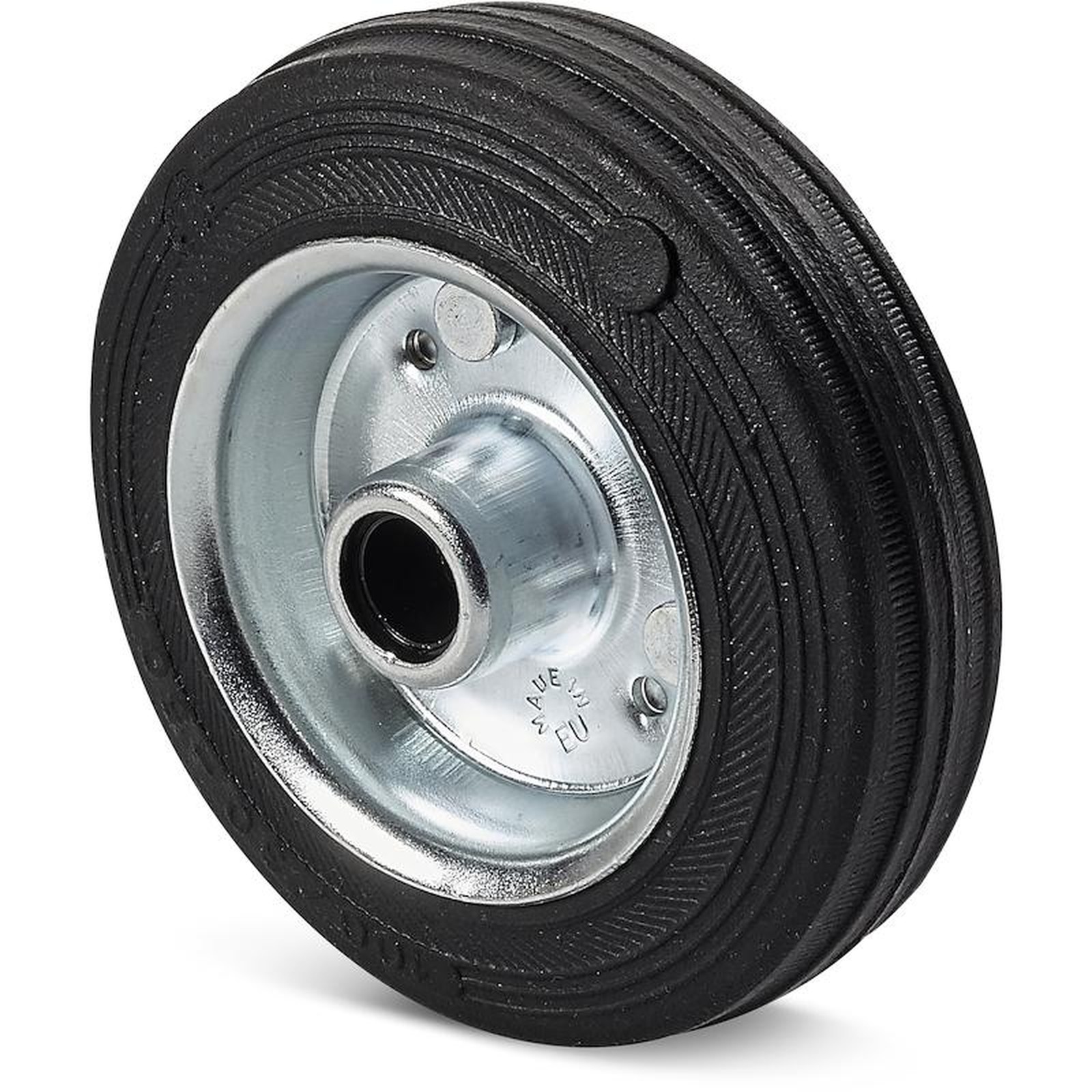

WHEEL WITH SHEET METAL RIM AND RUBBER TREAD (WITHOUT RIG)
18
R300
Ruote in Lamiera/Gomma Naturale
Materials:
Wheel body:
Two stamped sheet metal disks (steel DD13) riveted together to create a single body.
Tread:
Natural rubber trapezoidal tread. Hardness 85 ± 4 Shore A.
Surface finish:
Smooth.
Colour:
Body:
Galvanised blue.
Tread:
Black (Ral 9011).
Wheel rotation:
The hole for the pivot pin is stamped in sheet metal. A black polyamide insert is positioned between the pin and the hole for protection.
Special requests:
Upon request and for a minimum of 20 pieces, the wheel can be supplied with a needle roller cage, (replace code no. R300 with code no. R330).

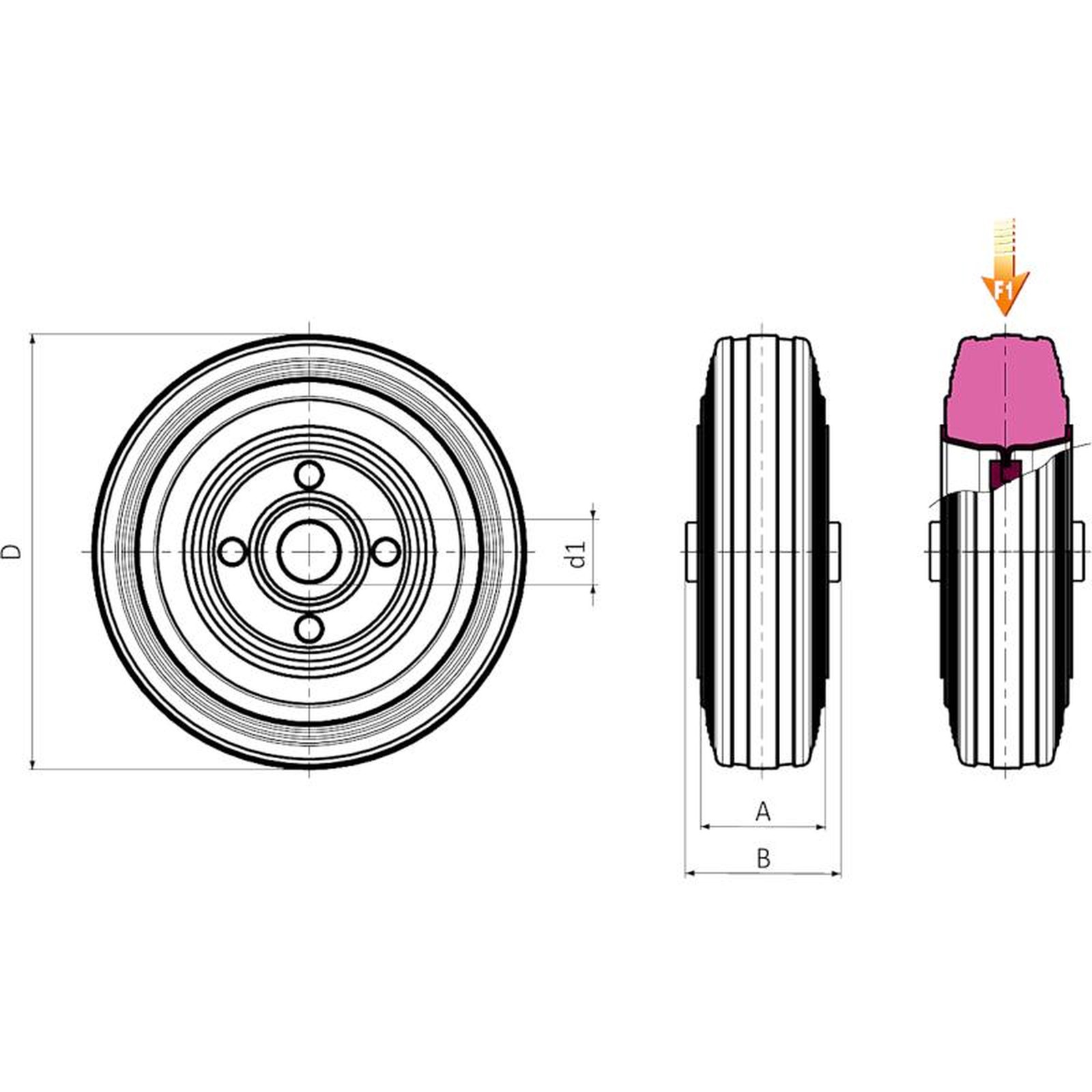

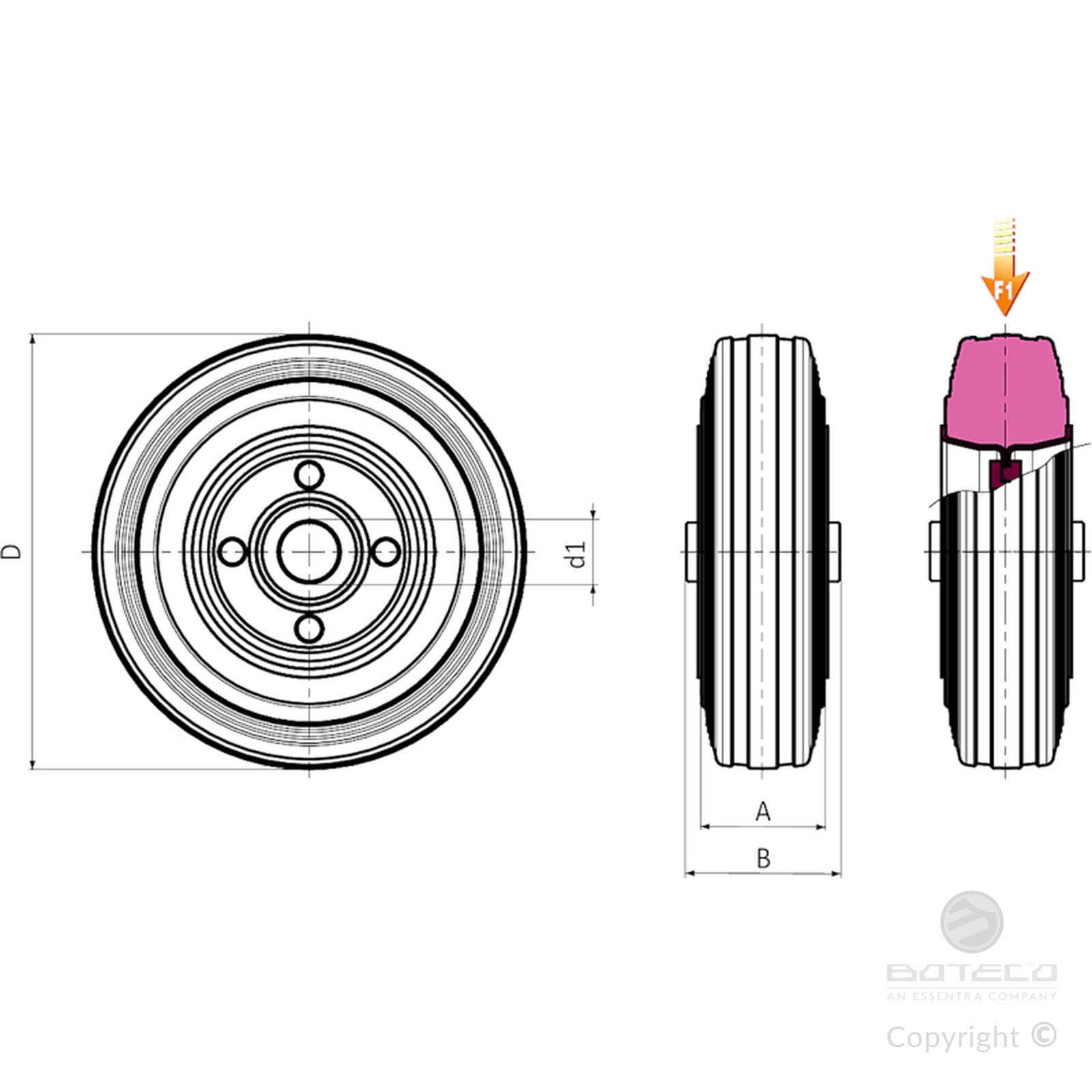

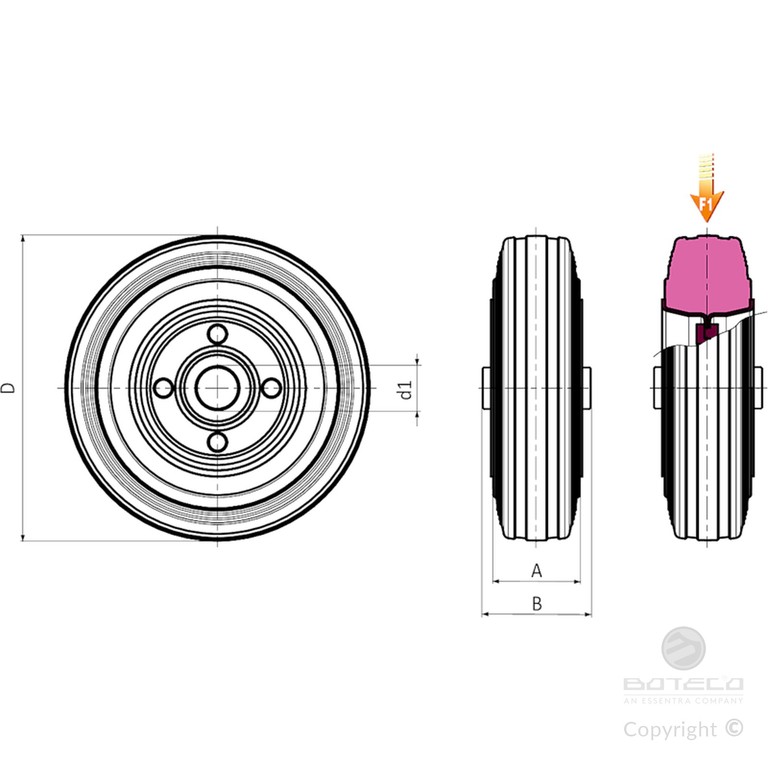

| Code | art. | D | A | B | d1 | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|
| R300080.0001 | R300080.T25D12 | 80 | 25 | 39 | 12 | - | 50 |
| R300100.0001 | R300100.T30D12 | 100 | 30 | 39 | 12 | - | 70 |
| R300125.0001 | R300125.T37D15 | 125 | 37.5 | 44 | 15 | - | 110 |
| R300140.0001 | R300140.T37D15 | 140 | 37.5 | 44 | 15 | - | 140 |
| R300150.0001 | R300150.T37D15 | 150 | 37.5 | 44 | 15 | - | 140 |
| R300160.0001 | R300160.T40D20 | 160 | 40 | 45 | 20 | - | 160 |
| R300180.0001 | R300180.T45D20 | 180 | 45 | 58 | 20 | - | 180 |
| R300200.0001 | R300200.T50D20 | 200 | 50 | 58 | 20 | - | 220 |
