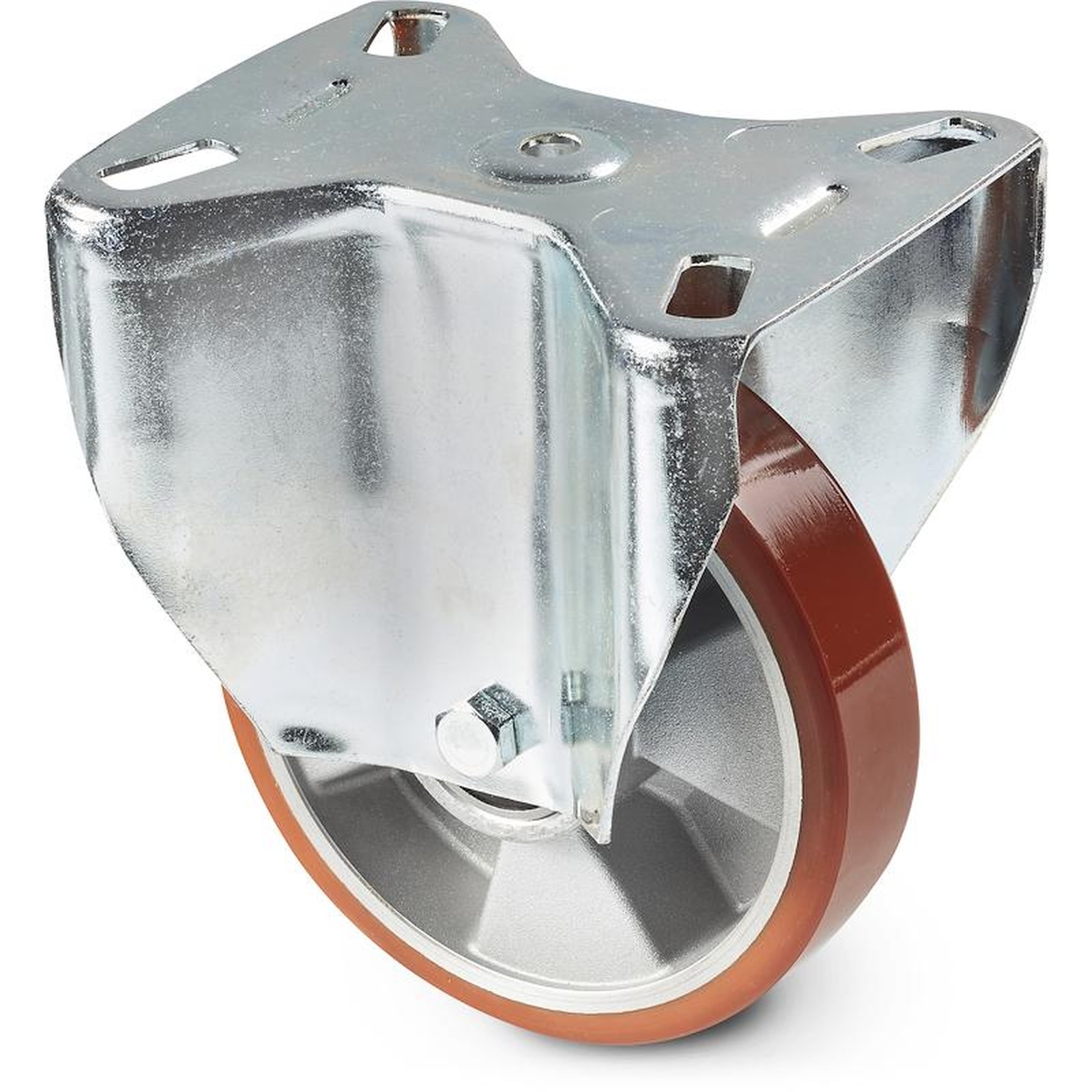

ALUMINIUM / POLYURETHANE WHEEL WITH RIGID STEEL FORK AND STEEL BEARINGS
18
R279
Ruote in Nylon/Poliuretano
Materials:
Wheel body (1):
Die-cast aluminium alloy.
Tread (2):
Mould-on polyurethane. Hardness 94 ± 2 Shore A.
Surface finish:
Smooth.
Colour:
(1) Natural aluminium.
(2) Light brown.
(3-4-5-6) Galvanised blue.
Wheel rotation (4):
A pair of steel ball bearings is inserted in the wheel hub to provide excellent rollability.
Bracket (3):
Extra-thick steel (DD13) fork, with mounting holes in the base.
Wheel fastening (6):
Steel hex head screw, coupled with a self-locking steel nut.
Special requests:
None.

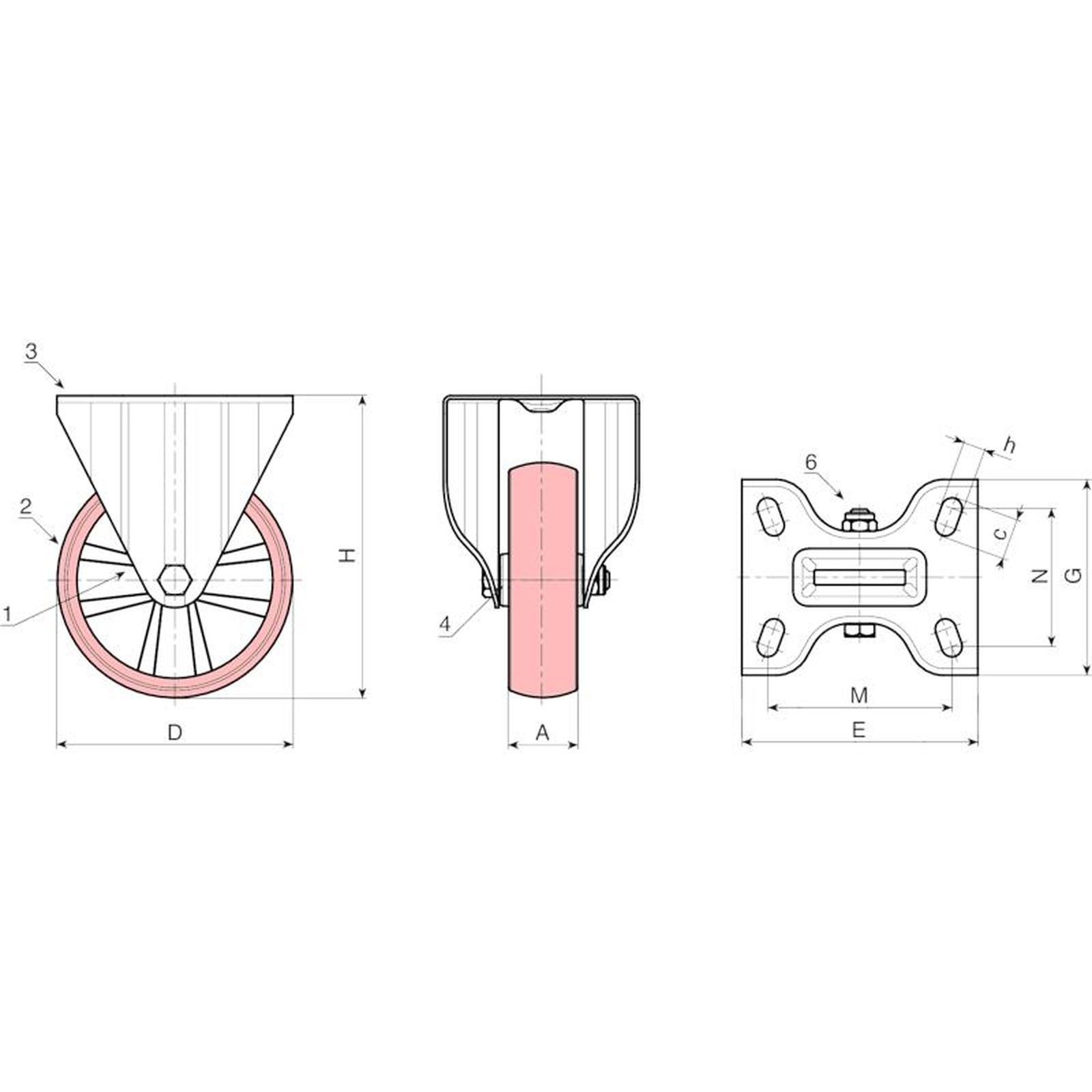

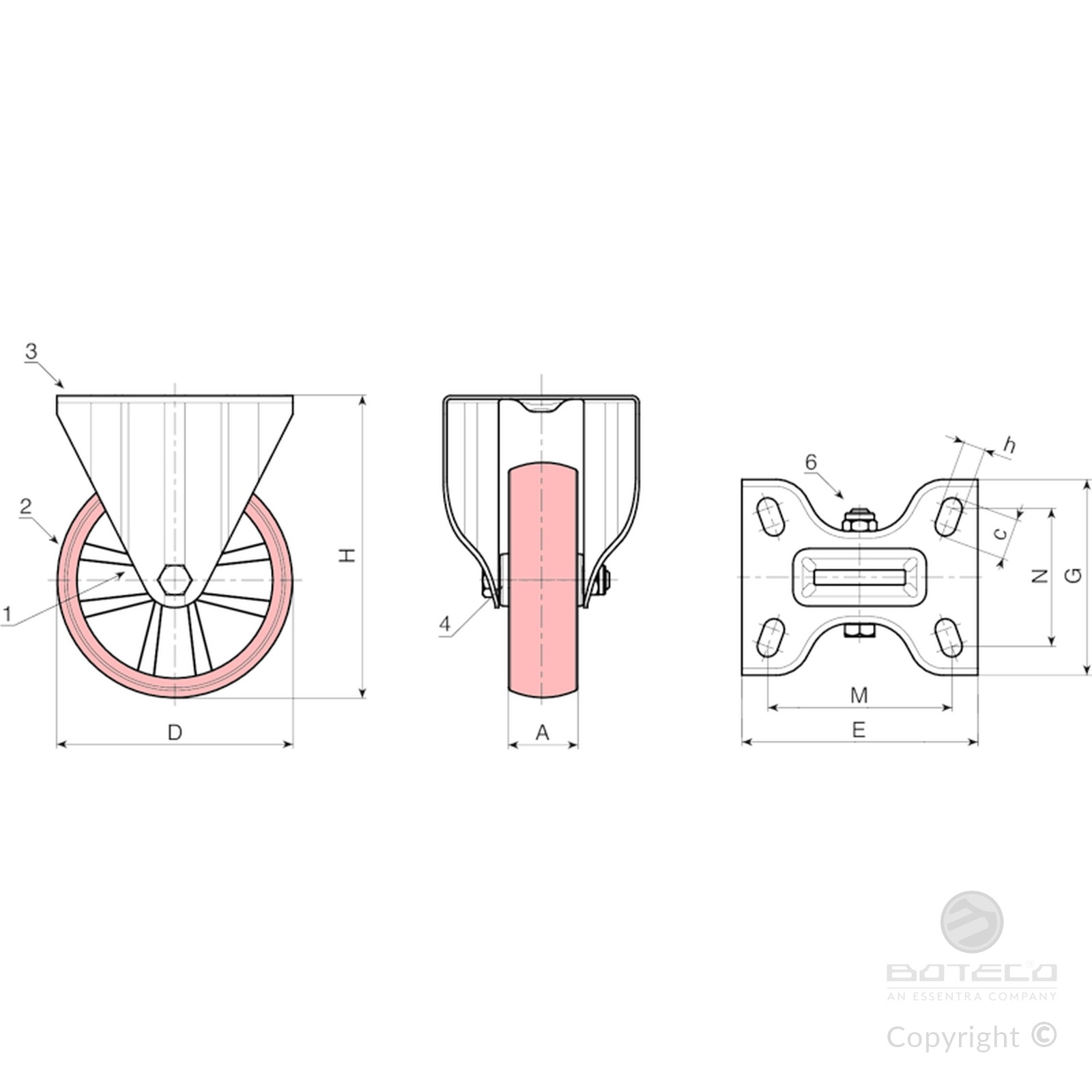

| Code | art. | D | A | H | E | G | M | N | c | h | Weight (g) | F1 (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R279080.0001 | R279080.T25P080X060 | 80 | 25 | 108 | 100 | 84 | 80 | 60 | 12 | 9 | - | 150 |
| R279100.0001 | R279100.T30P080X060 | 100 | 30 | 127 | 100 | 84 | 80 | 60 | 12 | 9 | - | 180 |
| R279125.0001 | R279125.T30P080X060 | 125 | 30 | 155 | 100 | 84 | 80 | 60 | 12 | 9 | - | 180 |
| R279150.0001 | R279150.T40P105X080 | 150 | 40 | 184 | 134 | 110 | 105 | 80 | 23 | 11 | - | 220 |
| R279200.0001 | R279200.T50P105X080 | 200 | 50 | 240 | 135 | 110 | 105 | 80 | 23 | 11 | - | 300 |
